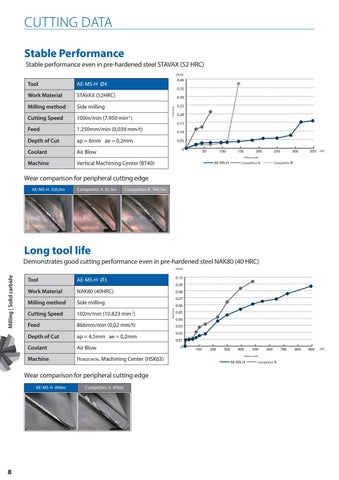

CUTTING DATA Stable Performance Stable performance even in pre-hardened steel STAVAX (52 HRC) (mm)
0.40
Tool
AE-MS-H Ø4
Work Material
STAVAX (52HRC)
0.30
Milling method
Side milling
0.25
Cutting Speed
100m/min (7.950 min-1)
Feed
1.250mm/min (0,039 mm/t)
0.10
Depth of Cut
ap = 6mm ae = 0,2mm
0.05
Coolant
Air Blow
Flank Wear
0.35
0.20 0.15
0
50
100
150
200
250
300
350 (m)
Milling Length
Machine
Vertical Machining Center (BT40)
AE-MS-H
Competitor A
Competitor B
Wear comparison for peripheral cutting edge AE-MS-H 350,9m
Competitor A 61,3m
Competitor B 144,3m
Long tool life Demonstrates good cutting performance even in pre-hardened steel NAK80 (40 HRC) Tool
AE-MS-H Ø3
0.10
Work Material
NAK80 (40HRC)
0.08
Milling method
Side milling
Cutting Speed
102m/min (10.823 min )
Feed
866mm/min (0,02 mm/t)
Depth of Cut
ap = 4,5mm ae = 0,2mm
Coolant
Air Blow
Machine
0.09 0.07 0.06 -1
Horizontal Machining Center (HSK63)
Wear comparison for peripheral cutting edge AE-MS-H 896m
8
Competitor A 476m
Flank Wear
Milling | Solid carbide
(mm)
0.05 0.04 0.03 0.02 0.01 0
100
200
300
400
500
600
Milling Length
AE-MS-H
Competitor A
700
800
900
(m)
