REAMER SERIES

Carbide Reamer Series HSS Reamer Series

MILLING BLADE

MILLING BLADE

For difficult-to-cut materials evolution series

Designed for difficult-to-cut materials with an extremely heat-resistant alloy coating for such as Inconel, Hastelloy, and Waspaloy.

MILLING BLADE

MILLING BLADE

MILLING BLADE

MILLING BLADE

MILLING BLADE

MILLING BLADE

MILLING BLADE

MILLING BLADE

MILLING BLADE

MILLING BLADE

For aluminium, aluminium casting Spectrum Reamer Series

Super-hard with a new thin-film hydrogen-free SPX coating

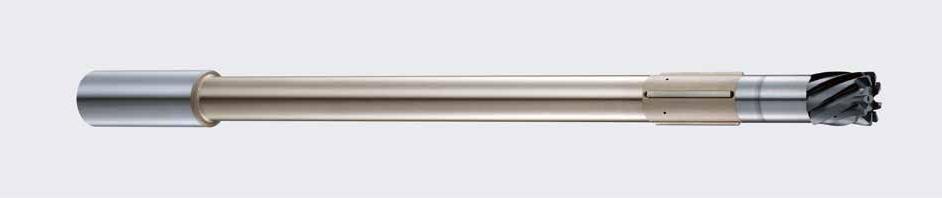

PF Radical Reamer Series

The run-out accuracy and the tool life have been substantially improved with Press Fit type Radical Reamer. This is sophisticated reamer with fine powder carbide and TiCN-2 coated for low friction purpose and hardness HV3,500, thus its tool life is extremely extended even with water soluble coolant.

MILLING BLADE

MILLING BLADE

MILLING BLADE

MILLING BLADE

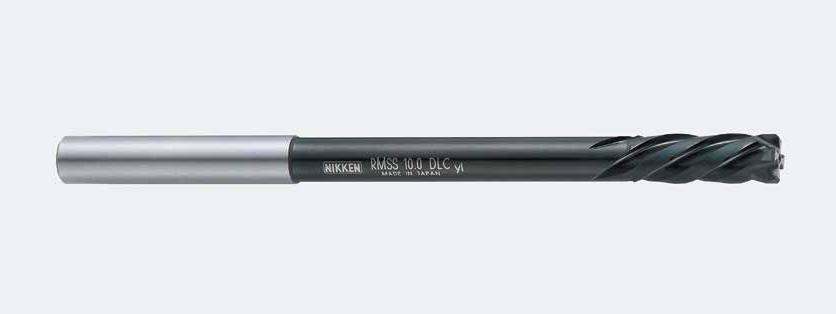

Carbide Radical Mill Reamer DLC Coating

DLC(Diamond-Like Carbon) coating provides improvement for aluminium and non-ferrous metals reaming. 3 type of the reamers with milling blade are into a line up

Carbide Mill Reamer DLC Coating

DLC(Diamond-Like Carbon) coating provides improvement for aluminium and non-ferrous metals reaming. 3 type of the reamers with milling blade are into a line up

MILLING BLADE

MILLING BLADE

NC Sensor Reamer

The NC Sensor Reamer is dedicated for better surface finish, especially effective on Stainless Steel, Die Steel, Annealed and Tempered Steel. The high precision finish surface can be achieved with its TiN Coated and its burnishing effect. The reamer can be used with even water soluble coolant.

The ultra high left-handed helix of 60 degree performs smooth reaming operation.

Tough-Cut Skill Reamer

This is all-mighty reamer, which is made by powder HSS & ion-nitrided and good for tough materials, die steel, annealed and tempered steel.

Turning Skill Reamer

Short type Skill Reamer for NC Lathe

Broach Reamer

Long Type Reamer

Longer neck type for deep hole is also available.

MILLING BLADE

MILLING BLADE

MILLING BLADE

Carbide Mill Reamer

As the Mill Reamer made by K10 grade carbide, the cutting speed can be substantially increased for the productivity improvement. Especially it performs very well on Cast Iron, Meehanite, Aluminium, and Non-steel metal.

Carbide Broach Reamer

The Carbide Broach Reamer maintain the excellent surface finish for Aluminium and Cast Iron reaming operation.

Recommended Cutting Conditions and Special Made Reamer/ Technical Information

■Various Application - Through Hole, Stepped

Hole and Blind Hole

Through Hole series Stepped Hole series

JAPAN PAT. Blind Hole series
