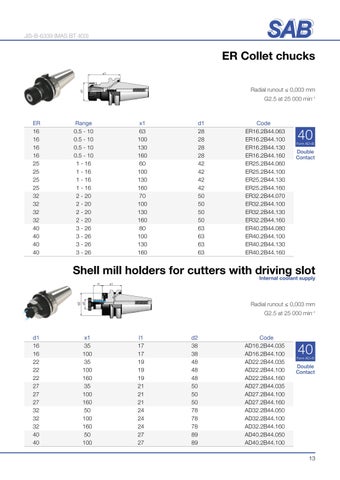

SAB vpenjalni trni MAS-BT

JIS-B-6339 (MAS BT 403)

ER Collet chucks x1

d1

Radial runout ≤ 0,003 mm G2.5 at 25 000 min-1

ER 16 16 16 16 25 25 25 25 32 32 32 32 40 40 40 40

Range 0.5 - 10 0.5 - 10 0.5 - 10 0.5 - 10 1 - 16 1 - 16 1 - 16 1 - 16 2 - 20 2 - 20 2 - 20 2 - 20 3 - 26 3 - 26 3 - 26 3 - 26

x1 63 100 130 160 60 100 130 160 70 100 130 160 80 100 130 160

d1 28 28 28 28 42 42 42 42 50 50 50 50 63 63 63 63

Code ER16.2B44.063 ER16.2B44.100 ER16.2B44.130 ER16.2B44.160 ER25.2B44.060 ER25.2B44.100 ER25.2B44.130 ER25.2B44.160 ER32.2B44.070 ER32.2B44.100 ER32.2B44.130 ER32.2B44.160 ER40.2B44.080 ER40.2B44.100 ER40.2B44.130 ER40.2B44.160

40

Form AD+B

Double Contact

Shell mill holders for cutters with driving slot Internal coolant supply

x1

Radial runout ≤ 0,003 mm

d2 d1

l1

G2.5 at 25 000 min-1

d1 16 16 22 22 22 27 27 27 32 32 32 40 40

x1 35 100 35 100 160 35 100 160 50 100 160 50 100

l1 17 17 19 19 19 21 21 21 24 24 24 27 27

d2 38 38 48 48 48 50 50 50 78 78 78 89 89

Code AD16.2B44.035 AD16.2B44.100 AD22.2B44.035 AD22.2B44.100 AD22.2B44.160 AD27.2B44.035 AD27.2B44.100 AD27.2B44.160 AD32.2B44.050 AD32.2B44.100 AD32.2B44.160 AD40.2B44.050 AD40.2B44.100

40

Form AD+B

Double Contact

13
