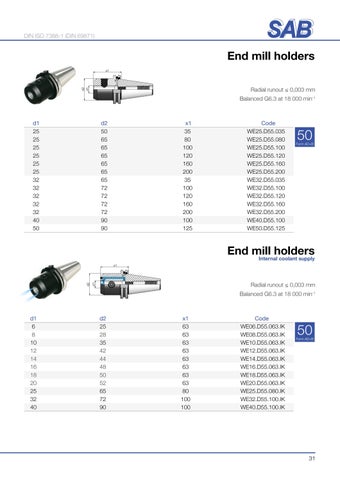

DIN ISO 7388-1 (DIN 69871)
End mill holders x1
d2 d1
Radial runout ≤ 0,003 mm Balanced G6.3 at 18 000 min-1
d1 25 25 25 25 25 25 32 32 32 32 32 40 50
d2 50 65 65 65 65 65 65 72 72 72 72 90 90
x1 35 80 100 120 160 200 35 100 120 160 200 100 125
Code WE25.D55.035 WE25.D55.080 WE25.D55.100 WE25.D55.120 WE25.D55.160 WE25.D55.200 WE32.D55.035 WE32.D55.100 WE32.D55.120 WE32.D55.160 WE32.D55.200 WE40.D55.100 WE50.D55.125
50
Form AD+B
End mill holders Internal coolant supply
Radial runout ≤ 0,003 mm
d1
d2
x1
Balanced G6.3 at 18 000 min-1
d1 6 8 10 12 14 16 18 20 25 32 40
d2 25 28 35 42 44 48 50 52 65 72 90
x1 63 63 63 63 63 63 63 63 80 100 100
Code WE06.D55.063.IK WE08.D55.063.IK WE10.D55.063.IK WE12.D55.063.IK WE14.D55.063.IK WE16.D55.063.IK WE18.D55.063.IK WE20.D55.063.IK WE25.D55.080.IK WE32.D55.100.IK WE40.D55.100.IK
50
Form AD+B
31
