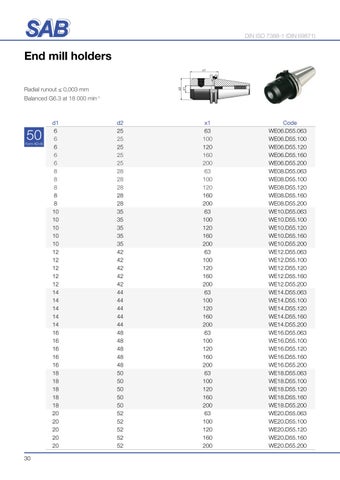

DIN ISO 7388-1 (DIN 69871)
End mill holders x1
d2 d1
Radial runout ≤ 0,003 mm Balanced G6.3 at 18 000 min-1
50
Form AD+B
30
d1 6 6 6 6 6 8 8 8 8 8 10 10 10 10 10 12 12 12 12 12 14 14 14 14 14 16 16 16 16 16 18 18 18 18 18 20 20 20 20 20
d2 25 25 25 25 25 28 28 28 28 28 35 35 35 35 35 42 42 42 42 42 44 44 44 44 44 48 48 48 48 48 50 50 50 50 50 52 52 52 52 52
x1 63 100 120 160 200 63 100 120 160 200 63 100 120 160 200 63 100 120 160 200 63 100 120 160 200 63 100 120 160 200 63 100 120 160 200 63 100 120 160 200
Code WE06.D55.063 WE06.D55.100 WE06.D55.120 WE06.D55.160 WE06.D55.200 WE08.D55.063 WE08.D55.100 WE08.D55.120 WE08.D55.160 WE08.D55.200 WE10.D55.063 WE10.D55.100 WE10.D55.120 WE10.D55.160 WE10.D55.200 WE12.D55.063 WE12.D55.100 WE12.D55.120 WE12.D55.160 WE12.D55.200 WE14.D55.063 WE14.D55.100 WE14.D55.120 WE14.D55.160 WE14.D55.200 WE16.D55.063 WE16.D55.100 WE16.D55.120 WE16.D55.160 WE16.D55.200 WE18.D55.063 WE18.D55.100 WE18.D55.120 WE18.D55.160 WE18.D55.200 WE20.D55.063 WE20.D55.100 WE20.D55.120 WE20.D55.160 WE20.D55.200
