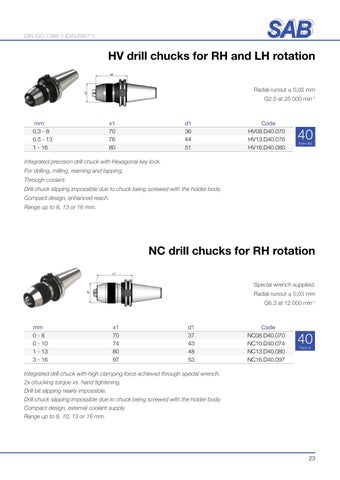

DIN ISO 7388-1 (DIN 69871)
HV drill chucks for RH and LH rotation x1
d1
Radial runout ≤ 0,02 mm G2.5 at 25 000 min-1
mm 0.3 - 8 0.5 - 13 1 - 16
x1 70 76 80
d1 36 44 51
Code HV08.D40.070 HV13.D40.076 HV16.D40.080
40 Form AD
Integrated precision drill chuck with Hexagonal key lock. For drilling, milling, reaming and tapping. Through coolant. Drill chuck slipping impossible due to chuck being screwed with the holder body. Compact design, enhanced reach. Range up to 8, 13 or 16 mm.
NC drill chucks for RH rotation x1
d1
Special wrench supplied. Radial runout ≤ 0,03 mm G6.3 at 12 000 min-1
mm 0-8 0 - 10 1 - 13 3 - 16
x1 70 74 80 97
d1 37 43 48 53
Code NC08.D40.070 NC10.D40.074 NC13.D40.080 NC16.D40.097
40 Form A
Integrated drill chuck with high clamping force achieved through special wrench. 2x chucking torque vs. hand tightening. Drill bit slipping nearly impossible. Drill chuck slipping impossible due to chuck being screwed with the holder body. Compact design, external coolant supply. Range up to 8, 10, 13 or 16 mm.
23
