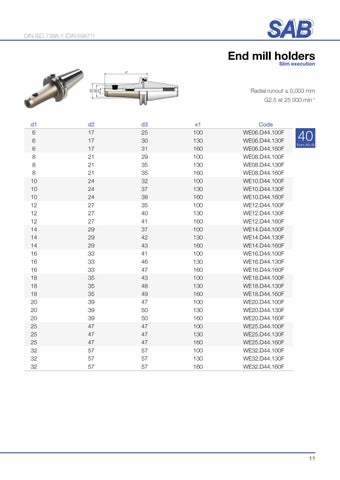

DIN ISO 7388-1 (DIN 69871)
End mill holders Slim execution
x1
d3 d2 d1
Radial runout ≤ 0,003 mm G2.5 at 25 000 min-1
d1 6 6 6 8 8 8 10 10 10 12 12 12 14 14 14 16 16 16 18 18 18 20 20 20 25 25 25 32 32 32
d2 17 17 17 21 21 21 24 24 24 27 27 27 29 29 29 33 33 33 35 35 35 39 39 39 47 47 47 57 57 57
d3 25 30 31 29 35 35 32 37 38 35 40 41 37 42 43 41 46 47 43 48 49 47 50 50 47 47 47 57 57 57
x1 100 130 160 100 130 160 100 130 160 100 130 160 100 130 160 100 130 160 100 130 160 100 130 160 100 130 160 100 130 160
Code WE06.D44.100F WE06.D44.130F WE06.D44.160F WE08.D44.100F WE08.D44.130F WE08.D44.160F WE10.D44.100F WE10.D44.130F WE10.D44.160F WE12.D44.100F WE12.D44.130F WE12.D44.160F WE14.D44.100F WE14.D44.130F WE14.D44.160F WE16.D44.100F WE16.D44.130F WE16.D44.160F WE18.D44.100F WE18.D44.130F WE18.D44.160F WE20.D44.100F WE20.D44.130F WE20.D44.160F WE25.D44.100F WE25.D44.130F WE25.D44.160F WE32.D44.100F WE32.D44.130F WE32.D44.160F
40
Form AD+B
11
