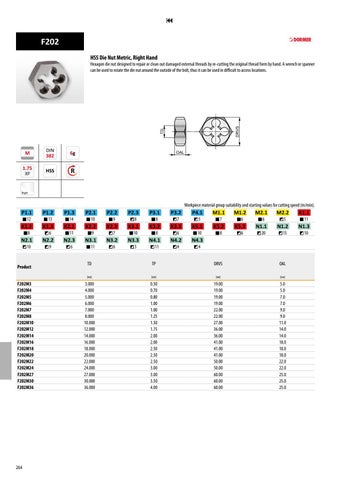

F202 HSS Die Nut Metric, Right Hand
TD
DRVS
Hexagon die nut designed to repair or clean out damaged external threads by re-cutting the original thread form by hand. A wrench or spanner can be used to rotate the die nut around the outside of the bolt, thus it can be used in difficult to access locations.
6g HSS
OAL
R
Bright
Workpiece material group suitability and starting values for cutting speed (m/min).
P1.1
P1.2
P1.3
P2.1
P2.2
P2.3
P3.1
P3.2
P4.1
M1.1
M1.2
M2.1
M2.2
K1.1
K1.2
K1.3
K2.1
K2.2
K2.3
K3.1
K3.2
K3.3
K5.1
K5.2
K5.3
N1.1
N1.2
N1.3
N2.1
N2.2
N2.3
N3.1
N3.2
N3.3
N4.1
N4.2
N4.3
12 8
10
Product F202M3 F202M4 F202M5 F202M6 F202M7 F202M8 F202M10 F202M12 F202M14 F202M16 F202M18 F202M20 F202M22 F202M24 F202M27 F202M30 F202M36
264
13 6 9
14 11 6
10 9
11
TD
9 7 6
8
10 3
8 8
11
TP
7 6 4
5
10
7 8
6 6
6
20
5
15
4
DRVS
OAL
[mm]
[mm]
[mm]
[mm]
3.000 4.000 5.000 6.000 7.000 8.000 10.000 12.000 14.000 16.000 18.000 20.000 22.000 24.000 27.000 30.000 36.000
0.50 0.70 0.80 1.00 1.00 1.25 1.50 1.75 2.00 2.00 2.50 2.50 2.50 3.00 3.00 3.50 4.00
19.00 19.00 19.00 19.00 22.00 22.00 27.00 36.00 36.00 41.00 41.00 41.00 50.00 50.00 60.00 60.00 60.00
5.0 5.0 7.0 7.0 9.0 9.0 11.0 14.0 14.0 18.0 18.0 18.0 22.0 22.0 25.0 25.0 25.0
11 10
