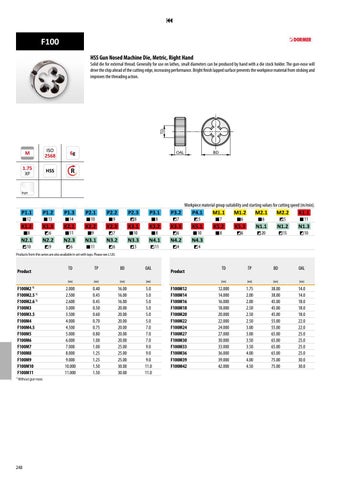

F100 HSS Gun Nosed Machine Die, Metric, Right Hand
Solid die for external thread. Generally for use on lathes, small diameters can be produced by hand with a die stock holder. The gun-nose will drive the chip ahead of the cutting edge, increasing performance. Bright finish lapped surface prevents the workpiece material from sticking and improves the threading action.
6g HSS
R
Bright
Workpiece material group suitability and starting values for cutting speed (m/min).
P1.1
P1.2
P1.3
P2.1
P2.2
P2.3
P3.1
P3.2
P4.1
M1.1
M1.2
M2.1
M2.2
K1.1
K1.2
K1.3
K2.1
K2.2
K2.3
K3.1
K3.2
K3.3
K5.1
K5.2
K5.3
N1.1
N1.2
N1.3
N2.1
N2.2
N2.3
N3.1
N3.2
N3.3
N4.1
N4.2
N4.3
12 8
10
13 6 9
14 11 6
10 9
11
9
8
7
10
6
3
8 8
11
7 6 4
5
10
7 8
6
6
6
20
5
15
11 10
4
Products from this series are also available in set with taps. Please see L120.
Product F100M2 1) F100M2.5 1) F100M2.6 1) F100M3 F100M3.5 F100M4 F100M4.5 F100M5 F100M6 F100M7 F100M8 F100M9 F100M10 F100M11 1)
Without gun-nose.
248
TD
TP
BD
OAL
[mm]
[mm]
[mm]
[mm]
2.000 2.500 2.600 3.000 3.500 4.000 4.500 5.000 6.000 7.000 8.000 9.000 10.000 11.000
0.40 0.45 0.45 0.50 0.60 0.70 0.75 0.80 1.00 1.00 1.25 1.25 1.50 1.50
16.00 16.00 16.00 20.00 20.00 20.00 20.00 20.00 20.00 25.00 25.00 25.00 30.00 30.00
5.0 5.0 5.0 5.0 5.0 5.0 7.0 7.0 7.0 9.0 9.0 9.0 11.0 11.0
Product F100M12 F100M14 F100M16 F100M18 F100M20 F100M22 F100M24 F100M27 F100M30 F100M33 F100M36 F100M39 F100M42
TD
TP
BD
OAL
[mm]
[mm]
[mm]
[mm]
12.000 14.000 16.000 18.000 20.000 22.000 24.000 27.000 30.000 33.000 36.000 39.000 42.000
1.75 2.00 2.00 2.50 2.50 2.50 3.00 3.00 3.50 3.50 4.00 4.00 4.50
38.00 38.00 45.00 45.00 45.00 55.00 55.00 65.00 65.00 65.00 65.00 75.00 75.00
14.0 14.0 18.0 18.0 18.0 22.0 22.0 25.0 25.0 25.0 25.0 30.0 30.0
