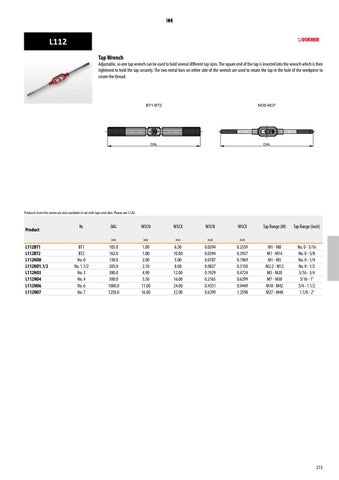

L112 Tap Wrench
Adjustable, so one tap wrench can be used to hold several different tap sizes. The square end of the tap is inserted into the wrench which is then tightened to hold the tap securely. The two metal bars on either side of the wrench are used to rotate the tap in the hole of the workpiece to create the thread.
BT1-BT2
NO0-NO7
OAL
OAL
Products from this series are also available in set with taps and dies. Please see L120.
Product L112BT1 L112BT2 L112NO0 L112NO1.1/2 L112NO3 L112NO4 L112NO6 L112NO7
Nr.
BT1 BT2 No. 0 No. 1.1/2 No. 3 No. 4 No. 6 No. 7
OAL
WSCN
WSCX
WSCN
WSCX
[mm]
[mm]
[mm]
[inch]
[inch]
105.0 162.0 130.0 205.0 380.0 500.0 1000.0 1250.0
1.00 1.00 2.00 2.10 4.90 5.50 11.00 16.00
6.50 10.00 5.00 8.00 12.00 16.00 24.00 32.00
0.0394 0.0394 0.0787 0.0827 0.1929 0.2165 0.4331 0.6299
0.2559 0.3937 0.1969 0.3150 0.4724 0.6299 0.9449 1.2598
Tap Range (M)
Tap Range (Inch)
M1 - M8 M1 - M14 M1 - M5 M2.2 - M12 M5 - M20 M7 - M30 M18 - M42 M27 - M48
No. 0 - 5/16 No. 0 - 5/8 No. 0 - 1/4 No. 0 - 1/2 5/16 - 3/4 5/16 - 1’’ 3/4 - 1.1/2 1.1/8 - 2’’
