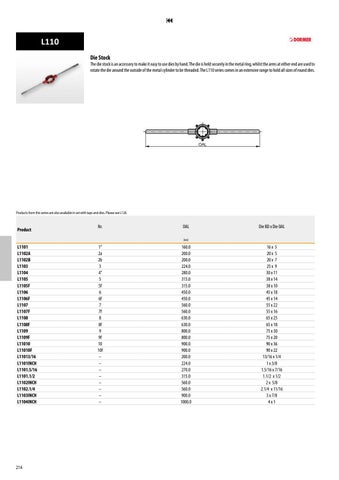

L110 Die Stock
The die stock is an accessory to make it easy to use dies by hand. The die is held securely in the metal ring, whilst the arms at either end are used to rotate the die around the outside of the metal cylinder to be threaded. The L110 series comes in an extensive range to hold all sizes of round dies.
Products from this series are also available in set with taps and dies. Please see L120.
Product
Nr.
OAL
Die BD x Die OAL
[mm]
L1101 L1102A L1102B L1103 L1104 L1105 L1105F L1106 L1106F L1107 L1107F L1108 L1108F L1109 L1109F L11010 L11010F L11013/16 L1101INCH L1101.5/16 L1101.1/2 L1102INCH L1102.1/4 L1103INCH L1104INCH
214
1” 2a 2b 3 4” 5 5f 6 6f 7 7f 8 8f 9 9f 10 10f – – – – – – – –
160.0 200.0 200.0 224.0 280.0 315.0 315.0 450.0 450.0 560.0 560.0 630.0 630.0 800.0 800.0 900.0 900.0 200.0 224.0 270.0 315.0 560.0 560.0 900.0 1000.0
16 x 5 20 x 5 20 x 7 25 x 9 30 x 11 38 x 14 38 x 10 45 x 18 45 x 14 55 x 22 55 x 16 65 x 25 65 x 18 75 x 30 75 x 20 90 x 36 90 x 22 13/16 x 1/4 1 x 3/8 1.5/16 x 7/16 1.1/2 x 1/2 2 x 5/8 2.1/4 x 11/16 3 x 7/8 4x1
