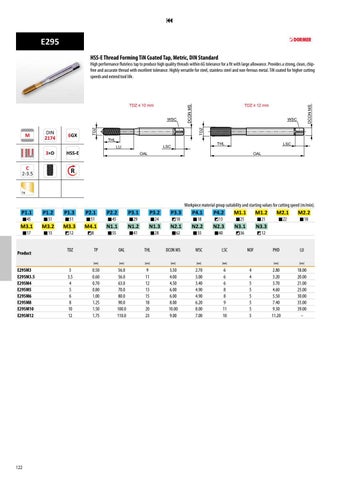

E295 HSS-E Thread Forming TiN Coated Tap, Metric, DIN Standard
High performance fluteless tap to produce high quality threads within 6G tolerance for a fit with large allowance. Provides a strong, clean, chipfree and accurate thread with excellent tolerance. Highly versatile for steel, stainless steel and non-ferrous metal. TiN coated for higher cutting speeds and extend tool life.
DCON MS
WSC TDZ
TDZ
WSC
TDZ ≥ 12 mm
DCON MS
TDZ ≤ 10 mm
THL
THL
LSC
LU
LSC
OAL
OAL
R TiN
Workpiece material group suitability and starting values for cutting speed (m/min).
P1.1
P1.2
P1.3
P2.1
P2.2
P3.1
P3.2
P3.3
P4.1
P4.2
M1.1
M1.2
M3.1
M3.2
M3.3
M4.1
N1.1
N1.2
N1.3
N2.1
N2.2
N2.3
N3.1
N3.3
DCON MS
WSC
LSC
45 17
Product E295M3 E295M3.5 E295M4 E295M5 E295M6 E295M8 E295M10 E295M12
122
51 15
51 12
51 8
TDZ
TP
3 3.5 4 5 6 8 10 12
45
29
55
41
24 28
18 62
18 55
13 40
OAL
THL
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
0.50 0.60 0.70 0.80 1.00 1.25 1.50 1.75
56.0 56.0 63.0 70.0 80.0 90.0 100.0 110.0
9 11 12 13 15 18 20 23
3.50 4.00 4.50 6.00 6.00 8.00 10.00 9.00
2.70 3.00 3.40 4.90 4.90 6.20 8.00 7.00
6 6 6 8 8 9 11 10
25
21
36
M2.1 22
M2.2 18
12
NOF
PHD
LU
[mm]
[mm]
4 4 5 5 5 5 5 5
2.80 3.20 3.70 4.60 5.50 7.40 9.30 11.20
18.00 20.00 21.00 25.00 30.00 35.00 39.00 –
