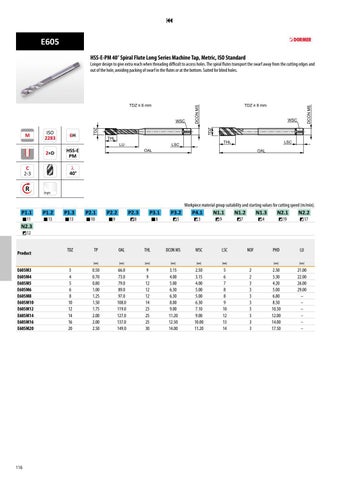

E605 HSS-E-PM 40° Spiral Flute Long Series Machine Tap, Metric, ISO Standard
Longer design to give extra reach when threading difficult to access holes. The spiral flutes transport the swarf away from the cutting edges and out of the hole, avoiding packing of swarf in the flutes or at the bottom. Suited for blind holes.
DCON MS
WSC
TDZ
TDZ
WSC
TDZ ≥ 8 mm
DCON MS
TDZ ≤ 6 mm
THL
HSS-E PM
THL
LSC
LU
LSC
OAL
OAL
l 40°
R
Bright
Workpiece material group suitability and starting values for cutting speed (m/min).
P1.1 11
N2.3
P1.2 13
P1.3 13
P2.1 10
P2.2
P2.3
9
P3.1
8
8
P3.2
P4.1
DCON MS
WSC
LSC
5
3
N1.1 9
N1.2
N1.3
7
4
N2.1 19
N2.2 17
12
Product E605M3 E605M4 E605M5 E605M6 E605M8 E605M10 E605M12 E605M14 E605M16 E605M20
116
TDZ
TP
OAL
THL
3 4 5 6 8 10 12 14 16 20
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
0.50 0.70 0.80 1.00 1.25 1.50 1.75 2.00 2.00 2.50
66.0 73.0 79.0 89.0 97.0 108.0 119.0 127.0 137.0 149.0
9 9 12 12 12 14 23 25 25 30
3.15 4.00 5.00 6.30 6.30 8.00 9.00 11.20 12.50 14.00
2.50 3.15 4.00 5.00 5.00 6.30 7.10 9.00 10.00 11.20
5 6 7 8 8 9 10 12 13 14
NOF
PHD
LU
[mm]
[mm]
2 2 3 3 3 3 3 3 3 3
2.50 3.30 4.20 5.00 6.80 8.50 10.30 12.00 14.00 17.50
21.00 22.00 26.00 29.00 – – – – – –
