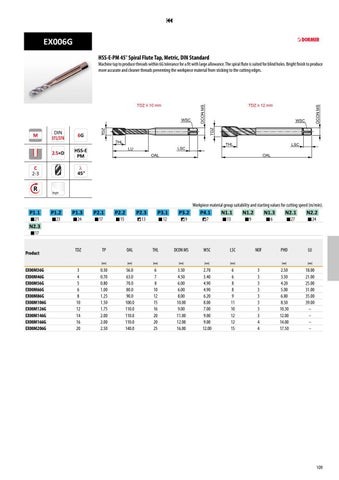

EX006G HSS-E-PM 45° Spiral Flute Tap, Metric, DIN Standard
Machine tap to produce threads within 6G tolerance for a fit with large allowance. The spiral flute is suited for blind holes. Bright finish to produce more accurate and cleaner threads preventing the workpiece material from sticking to the cutting edges.
DCON MS
WSC
TDZ
TDZ
WSC
TDZ ≥ 12 mm
DCON MS
TDZ ≤ 10 mm
THL
THL
LSC
LU
HSS-E PM
LSC OAL
OAL
l 45°
R
Bright
Workpiece material group suitability and starting values for cutting speed (m/min).
P1.1 21
N2.3
P1.2 23
P1.3 24
P2.1 17
P2.2
P2.3
15
P3.1
13
12
P3.2
P4.1
DCON MS
WSC
LSC
9
7
N1.1 13
N1.2
N1.3
9
6
N2.1 27
N2.2 24
17
Product EX00M36G EX00M46G EX00M56G EX00M66G EX00M86G EX00M106G EX00M126G EX00M146G EX00M166G EX00M206G
TDZ
TP
OAL
THL
3 4 5 6 8 10 12 14 16 20
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
0.50 0.70 0.80 1.00 1.25 1.50 1.75 2.00 2.00 2.50
56.0 63.0 70.0 80.0 90.0 100.0 110.0 110.0 110.0 140.0
6 7 8 10 12 15 16 20 20 25
3.50 4.50 6.00 6.00 8.00 10.00 9.00 11.00 12.00 16.00
2.70 3.40 4.90 4.90 6.20 8.00 7.00 9.00 9.00 12.00
6 6 8 8 9 11 10 12 12 15
NOF
PHD
LU
[mm]
[mm]
3 3 3 3 3 3 3 3 4 4
2.50 3.30 4.20 5.00 6.80 8.50 10.30 12.00 14.00 17.50
18.00 21.00 25.00 31.00 35.00 39.00 – – – –
