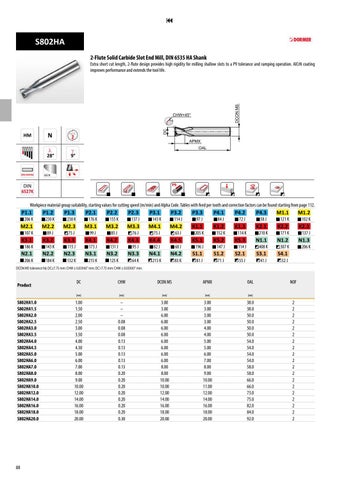

S802HA 2-Flute Solid Carbide Slot End Mill, DIN 6535 HA Shank
DCON MS
Extra short cut length, 2-flute design provides high rigidity for milling shallow slots to a P9 tolerance and ramping operation. AlCrN coating improves performance and extends the tool life.
DIN 6535HA
N
NOF
l 28°
g 9°
DC
CHW×45°
2
APMX OAL
AlCrN
P9
Workpiece material group suitability, starting values for cutting speed (m/min) and Alpha Code. Tables with feed per tooth and correction factors can be found starting from page 112.
P1.1
P1.2
P1.3
P2.1
P2.2
P2.3
P3.1
P3.2
P3.3
P4.1
P4.2
P4.3
M1.1
M1.2
M2.1
M2.2
M2.3
M3.1
M3.2
M3.3
M4.1
M4.2
K1.1
K1.2
K1.3
K2.1
K2.2
K2.3
K3.1
K3.2
K3.3
K4.1
K4.2
K4.3
K4.4
K4.5
K5.1
K5.2
K5.3
N1.1
N1.2
N1.3
N2.1
N2.2
N2.3
N3.1
N3.2
N3.3
N4.1
N4.2
S1.1
S1.2
S2.1
S3.1
S4.1
206 K 107 K 186 K 206 K
230 K 89 J
143 K 184 K
238 K
176 K
75 J
99 J
115 J
173 J
132 K
215 K
155 K
137 J
85 J
76 J
131 J
95 J
125 K
64 K
143 K
114 J
75 J
63 J
82 J
68 J
215 K
83 K
97 J
84 J
205 K
152 K
196 J
147 J
81 J
71 J
72 J
58 J
114 K
210 K
114 J
408 K
55 J
41 J
121 K
102 K
171 K
137 J
307 K
206 K
32 J
DCON MS tolerance h6; DC≤7.75 mm: CHW ± 0.03X45° mm; DC>7.75 mm: CHW ± 0.05X45° mm.
Product S802HA1.0 S802HA1.5 S802HA2.0 S802HA2.5 S802HA3.0 S802HA3.5 S802HA4.0 S802HA4.5 S802HA5.0 S802HA6.0 S802HA7.0 S802HA8.0 S802HA9.0 S802HA10.0 S802HA12.0 S802HA14.0 S802HA16.0 S802HA18.0 S802HA20.0
88
DC
CHW
DCON MS
APMX
OAL
[mm]
[mm]
[mm]
[mm]
[mm]
1.00 1.50 2.00 2.50 3.00 3.50 4.00 4.50 5.00 6.00 7.00 8.00 9.00 10.00 12.00 14.00 16.00 18.00 20.00
– – – 0.08 0.08 0.08 0.13 0.13 0.13 0.13 0.13 0.20 0.20 0.20 0.20 0.20 0.20 0.20 0.30
3.00 3.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 8.00 8.00 10.00 10.00 12.00 14.00 16.00 18.00 20.00
3.00 3.00 3.00 3.00 4.00 4.00 5.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 12.00 14.00 16.00 18.00 20.00
38.0 38.0 50.0 50.0 50.0 50.0 54.0 54.0 54.0 54.0 58.0 58.0 66.0 66.0 73.0 75.0 82.0 84.0 92.0
NOF
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
