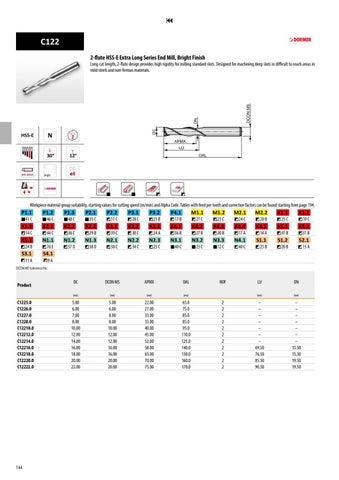

C122 2-flute HSS-E Extra Long Series End Mill, Bright Finish
Long cut length, 2-flute design provides high rigidity for milling standard slots. Designed for machining deep slots in difficult to reach areas in mild steels and non-ferrous materials.
N
NOF
l 30°
g 12°
Bright
2
DC e8
Workpiece material group suitability, starting values for cutting speed (m/min) and Alpha Code. Tables with feed per tooth and correction factors can be found starting from page 194.
P1.1
P1.2
P1.3
P2.1
P2.2
P3.1
P3.2
P4.1
M1.1
M1.2
M2.1
M2.2
K1.1
K1.2
K1.3
K2.1
K2.2
K2.3
K3.1
K3.2
K3.3
K4.1
K4.2
K4.3
K4.4
K4.5
K5.1
K5.2
K5.3
N1.1
N1.2
N1.3
N2.1
N2.2
N2.3
N3.1
N3.2
N3.3
N4.1
S1.1
S1.2
S2.1
S3.1
S4.1
41 C 14 C
24 B
11 A
46 C 44 C 76 E
48 C 36 C
57 D
35 C
29 B
38 D
31 C 39 C 38 C
28 C 30 C 34 C
23 B
24 A 25 C
17 B
27 C
36 B
27 B
40 C
23 C
23 C
20 B 12 C
24 C
17 A 40 C
20 B
14 A 25 B
25 C
19 C
41 B
31 B
20 B
15 A
9A
DCON MS tolerance h6.
Product C1225.0 C1226.0 C1227.0 C1228.0 C12210.0 C12212.0 C12214.0 C12216.0 C12218.0 C12220.0 C12222.0
144
DC
DCON MS
APMX
OAL
[mm]
[mm]
[mm]
[mm]
5.00 6.00 7.00 8.00 10.00 12.00 14.00 16.00 18.00 20.00 22.00
5.00 6.00 8.00 8.00 10.00 12.00 12.00 16.00 16.00 20.00 20.00
22.00 27.00 33.00 33.00 40.00 45.00 52.00 58.00 65.00 70.00 75.00
65.0 75.0 85.0 85.0 95.0 110.0 125.0 140.0 150.0 160.0 170.0
NOF
2 2 2 2 2 2 2 2 2 2 2
LU
DN
[mm]
[mm]
– – – – – – – 69.50 76.50 85.50 90.50
– – – – – – – 15.50 15.50 19.50 19.50
