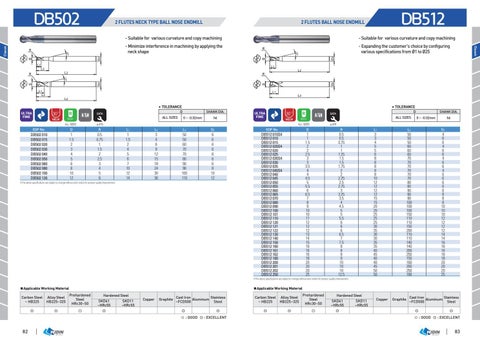

DB502
2 FLUTES NECK TYPE BALL NOSE ENDMILL
D2
D
D
D2
13°
L1
L1
L3
L2
R
- Expanding the customer's choice by configuring various specifications from Ø1 to Ø25
R
Classic
- Minimize interference in machining by applying the neck shape
- Suitable for various curvature and copy machining 13°
Classic
- Suitable for various curvature and copy machining R
DB512
2 FLUTES BALL NOSE ENDMILL
L2
R
L1
L2
L2 ■
ULTRA FINE
D2
D
D
D2
13°
L1 L3
30 0.01
TOLERANCE ALL SIZES
0.01
HELIX
ALL SIZES
■
D
DATA
SHANK DIA. 0 ~ -0.02mm
h6
ULTRA FINE
30 0.01
D ALL SIZES
0.01
HELIX
p.479
TOLERANCE
DATA
ALL SIZES
SHANK DIA. 0 ~ -0.02mm
h6
p.479
EDP No
D
R
L1
L3
L2
D2
EDP No
D
R
L1
L2
D2
DB502 010 DB502 015 DB502 020 DB502 030 DB502 040 DB502 050 DB502 060 DB502 080 DB502 100 DB502 120
1 1.5 2 3 4 5 6 8 10 12
0.5 0.75 1 1.5 2 2.5 3 4 5 6
1 1.5 2 4 5 6 7 10 12 14
3 4 6 9 12 15 18 24 30 36
50 50 60 70 70 80 90 90 100 110
6 6 6 6 6 6 6 8 10 12
DB512 010S4 DB512 010 DB512 015 DB512 020S4 DB512 020 DB512 025 DB512 030S4 DB512 030 DB512 035 DB512 040S4 DB512 040 DB512 045 DB512 050 DB512 055 DB512 060 DB512 065 DB512 070 DB512 080 DB512 090 DB512 100 DB512 101 DB512 110 DB512 120 DB512 121 DB512 122 DB512 130 DB512 140 DB512 150 DB512 160 DB512 161 DB512 162 DB512 180 DB512 200 DB512 201 DB512 202 DB512 250
1 1 1.5 2 2 2.5 3 3 3.5 4 4 4.5 5 5.5 6 6.5 7 8 9 10 10 11 12 12 12 13 14 15 16 16 16 18 20 20 20 25
0.5 0.5 0.75 1 1 1.25 1.5 1.5 1.75 2 2 2.25 2.5 2.75 3 3.25 3.5 4 4.5 5 5 5.5 6 6 6 6.5 7 7.5 8 8 8 9 10 10 10 12.5
3 3 4 5 5 6 8 8 8 8 8 10 12 12 12 12 15 15 20 20 25 25 25 30 35 30 30 35 35 40 45 40 40 45 50 50
50 50 50 60 60 60 70 70 70 70 70 70 80 80 90 90 90 100 100 100 150 110 110 150 200 110 110 140 140 200 250 150 160 200 250 180
4 6 6 4 6 6 4 6 6 4 6 6 6 6 6 8 8 8 10 10 10 12 12 12 12 14 14 16 16 16 16 18 20 20 20 25
※The above specifications are subject to change without prior notice for product quality improvement.
※The above specifications are subject to change without prior notice for product quality improvement.
■Applicable Working Material
■Applicable Working Material
Carbon Steel ~ HB225
Alloy Steel HB225~325
Prehardened Steel HRc30~50
○
○
◎
Hardened Steel SKD61 SKD11 ~HRc55 ~HRc55 ○
Copper
Graphite
Cast Iron Stainless Aluminum ~FCD500 Steel ○
○
○ : GOOD ◎ : EXCELLENT
82
Carbon Steel ~ HB225
Alloy Steel HB225~325
Prehardened Steel HRc30~50
○
○
◎
Hardened Steel SKD61 SKD11 ~HRc55 ~HRc55 ○
Copper
Graphite
Cast Iron Stainless Aluminum ~FCD500 Steel ○
○
○ : GOOD ◎ : EXCELLENT
83
