CCF
MEMO

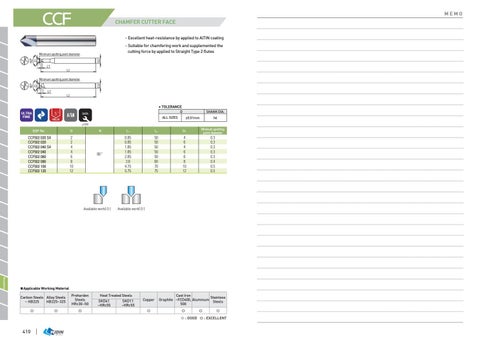

CHAMFER CUTTER FACE - Excellent heat-resistance by applied to AlTiN coating - Suitable for chamfering work and supplemented the cutting force by applied to Straight Type 2 flutes D2
90° D
Minimum spotting point diameter
L1
L2
D2
90° D
Minimum spotting point diameter
L1
L2
■
ULTRA FINE
5
TOLERANCE D
DATA
SHANK DIA.
ALL SIZES
HELIX
±0.01mm
h6
p.550
EDP No
D
CCF502 020 S4 CCF502 020 CCF502 040 S4 CCF502 040 CCF502 060 CCF502 080 CCF502 100 CCF502 120
2 2 4 4 6 8 10 12
θ
L1
L2
D2
Minimum spotting point diameter
90 ˚
0.85 0.85 1.85 1.85 2.85 3.8 4.75 5.75
50 50 50 50 50 60 70 75
4 6 4 6 6 8 10 12
0.3 0.3 0.3 0.3 0.3 0.4 0.5 0.5
Centering
Available work( O )
Available work( O )
■Applicable Working Material Carbon Steels Alloy Steels ~ HB225 HB225~325 ○
○
Preharden Steels HRc30~50 ○
Heat Treated Steels SKD61 SKD11 ~HRc55 ~HRc55
Copper ○
Cast Iron Stainless Graphite ~FCD400, Aluminum Steels 500 ○
○
○
○ : GOOD ◎ : EXCELLENT
410
