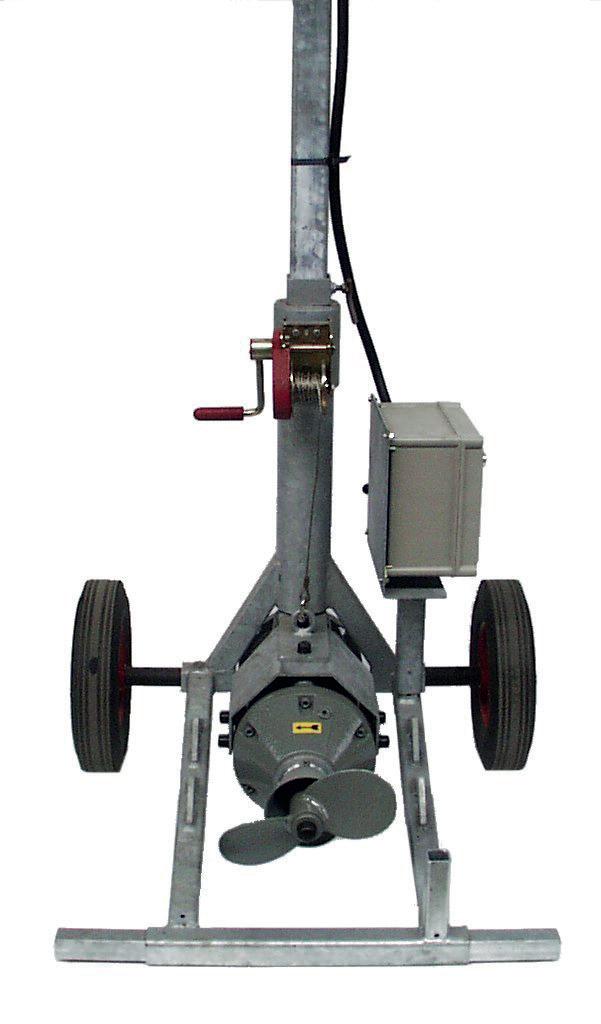

TROLLEY-MOUNTED AGITATOR POD

Power from 2.2 to 11 kW

Area of application: Stirring slurry beneath slotted floors. Effectively mixing floating sludge and sediment into the liquid phase improves the consistency of the slurry, making it easy to pump. Push the agitator to the stirring site. Then lift up part of the slotted floor and immerse the agitator into the slurry using the winch. You can also lift, lower and turn the agitator. This allows the slurry to be easily and effectively homogenised in the various parts of the channel.

Specifications and performance:

Motor, 3x400 V: 2,2 kW 5,5 kW 7,5 kW 11,0 kW Current 5,2 amp. 10,5 amp. 15,0 amp. 21, amp. Propeller revolutions: 1500 t/m 1500 t/m 1500 t/m 1500 t/m Yield

360 m³/h 920 m³/h 1450 m³/h 2000 m³/h
