Chase Lot 403 Fixed Finish Design Manual
© 2025 Donna Figg Design
Note: Refer to Architect’s 3D Renderings for Material Locations
Exterior Flooring
House Stone
Large Format Running Bond Lay
White Cut Limestone
Entry Door
Industrial Iron Door
4 Divided Lites
Color to Match Exterior Window
Cladding, Pella Lifestyle in Black

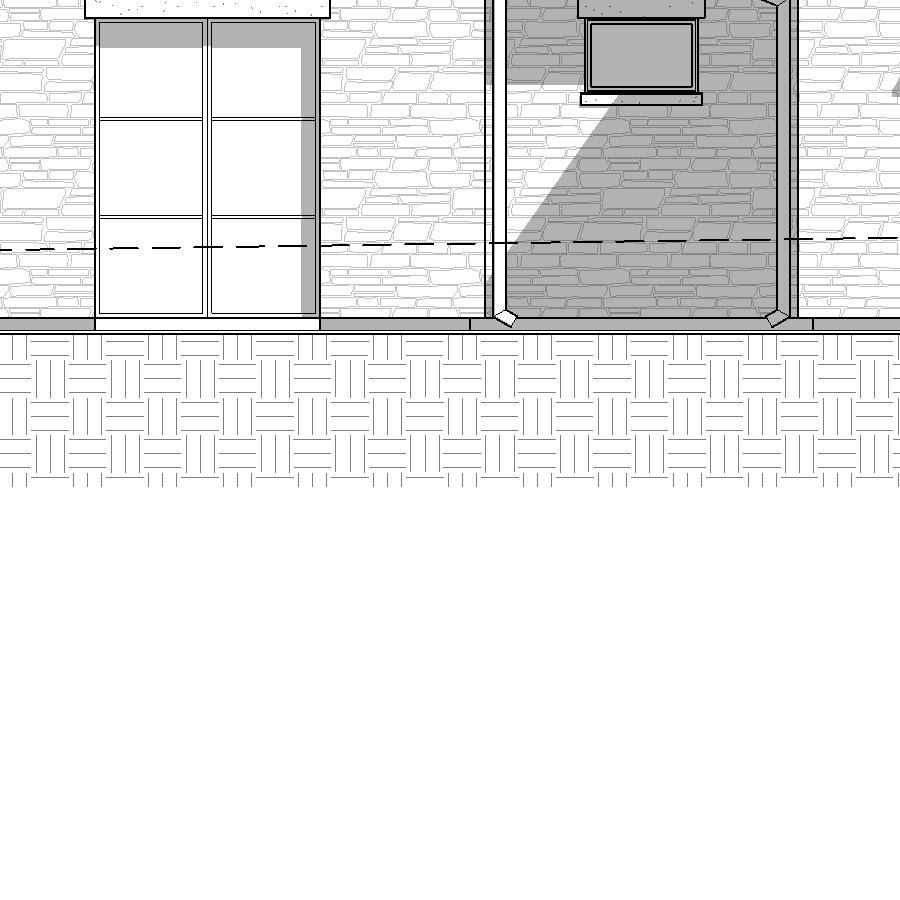

Exterior |Finishes
Entry Hardware
Seattle - Matte Black Finish
Porch Sconces
Finish: Textured Black
7”W x 3.5”D x 15”H
Dark Sky Rated
Garage Door
Stained Wood Decking with no Window
Minwax Semi-Transparent Wood Shed
Entry Sconces
Finish: Textured Black
9”W x 4”D x 24”H
Dark Sky Rated
Sconces at Garage
Finish: Textured Black
7”W x 3.5”D x 7”H
Dark Sky Rated

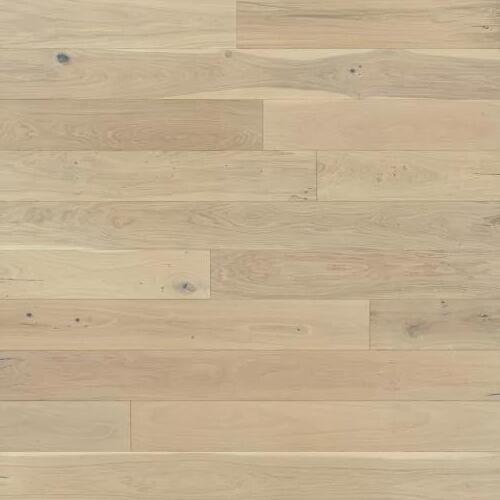

Wood Flooring
Opus - Naples
Wall Paint
BM White Dove
Rectangular White Recessed Chime
Finish
Knurled Lever with Square Rosette Finish: Black Door Hardware
Door Style
2-Panel Paint Grade Door with Square Sticking Profile and Flat Panel
THROUGHOUT | Passage Hallways
Stained Header
Wood Header with Dry Wall Return at Passageways/Hallways
Stain Color
“Classic Gray”
Specialty Wall Treatment House Stone on Wall
Entry Chandelier
Finish: Black Oxide
22.25”W x 13”H
Built-in Cabinetry Concept
Floating Stained Shelves with Painted Cabinetry
BM Grey Huskie Cabinetry Paint
Ceiling Design
“Classic Gray” on White Pine Stained Box Beams
Surround and Hearth Finish
Floating Shelf Stain
Ash Gray Pulls at Cabinet Doors
Ash Gray Pulls at Drawers
Available in Stainless Steel or Panel Ready Only Available in Stainless Steel
Double Trash Drawer
KITCHEN | Concept
BM Grey Huskie Cabinetry Paint
Cabinetry Style
Paint Grade 2-1/2” Shaker
Style Doors with Full Overlay
Range Hood
Hammered Bronze Copper Enclosure
“Classic Grey” on White Pine Stained Box Beams with Minimal
Stain Color
KITCHEN | Concept Elevation -
Island - Side View
Pendant
Finish: Smoke Glass
16”Dia x 20.3”H
35 11/16”W x 21 9/16”D x 9 5/8”H
Ash Gray Pulls at Drawers
KITCHEN | Finishes
Absolute Black Granite Perimeter Countertop
BM Grey Huskie Perimeter Cabinetry
Island Cabinetry Stain
Grey Goose Marble Island Countertop
PANTRY | Appliances and Hardware
Pewter Cabinetry Hardware
Sink Side Cabinetry
Pull Out Shelves with Cabinet Doors
Fridge
36” KitchenAid
Finish: Stainless Steel
French Door over Freezer
Pocket Door
8-Lite Door with Frosted Glass
Finish: Black
Ice Maker
15” Scotsman
Finish: Custom Wood Front to Match Cabinetry
White Ice Granite Countertop
BM Sea Salt Cabinetry Paint
Porcelain Backsplash
Maytag Washer + Dryer
Finish: Metallic Slate
Front Loading - Gas
Under-Mount Sink 25”
Finish: White
Cabinetry Paint
SW Taupe Tone
Cabinetry Hardware
Finish: Matte Black
SW Taupe Tone Cabinetry Paint
Calcutta Super Bella StratusQuartz Countertop
Matte Black Cabinetry Hardware
Porcelain Backsplash Tile
MUD ROOM |
Floating Shelves Above with LED Tape Light
Finish: Satin Nickel
7/8”W x 2 1/2”D x 4”H
**Finish Not Shown**
Penny Gap Chevron Finish
Robe Hooks
Concept Floating Bench with Accent Paneling Behind Accent Paneling
Stained Floating Bench & Shelves
Floating Bench
POWDER BATH | Concept
Vessel Sink
Finish: White
Semi-Recessed 23"W
Finish: Matte Black
Wall Covering
Finish: Smoke Luster
12”Dia x 24”H
Vanity Stain
Towel Arm
Finish: Matte Black
POWDER BATH | Finishes
Wall Covering
Vanity Stain
Backsplash
Calacatta Super Bella StratusQuartz Countertop
Wainscot Paint BM Sea Salt
8-Lite Glass Double Doors
Paneling Stain
MASTER BEDROOM | Concept
Headboard Wall Wall Covering
Ceiling Fan
Finish: Black 60”Dia Sweep
Vanity Concept
Paint Grade 2-1/2” Shaker Style Doors with Open Shelf, and Linen Tower Dividing Vanities
MASTER BATH | Plumbing
Kohler Undermount Sink 20 1/4”W x 15 11/16”D x 7 5/16” H
Kohler Freestanding Tub Filler
Finish: Brushed Nickel
Tub
65” x 31” Freestanding Curved Tub Toilet
Kohler Cimarron
Vitreous China
Comfort Height 16-1/2”
Elongated Bowl
Towel Bar
Finish: Brushed Nickel
Towel Ring
Finish: Brushed Nickel
Pivoting TP Holder
Finish: Brushed Nickel
Finish: Polished Nickel
Towel Ring

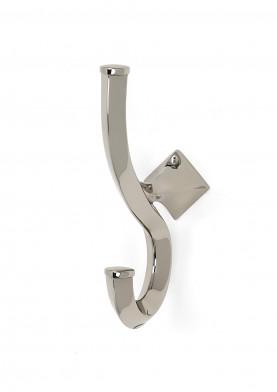

Robe Hook
TP Holder
Sconces
4.75”L x 2.625”D x 30.375”H
Three Functions: Full Coverage Katalyst, Deep Massage, Cloud (Thick Super-Fine Water Droplets)
Finish: Brushed Nickel
Robe Hook at Glass
Finish: Brushed Nickel
Finish: Brushed Nickel
MASTER BATH | Finishes

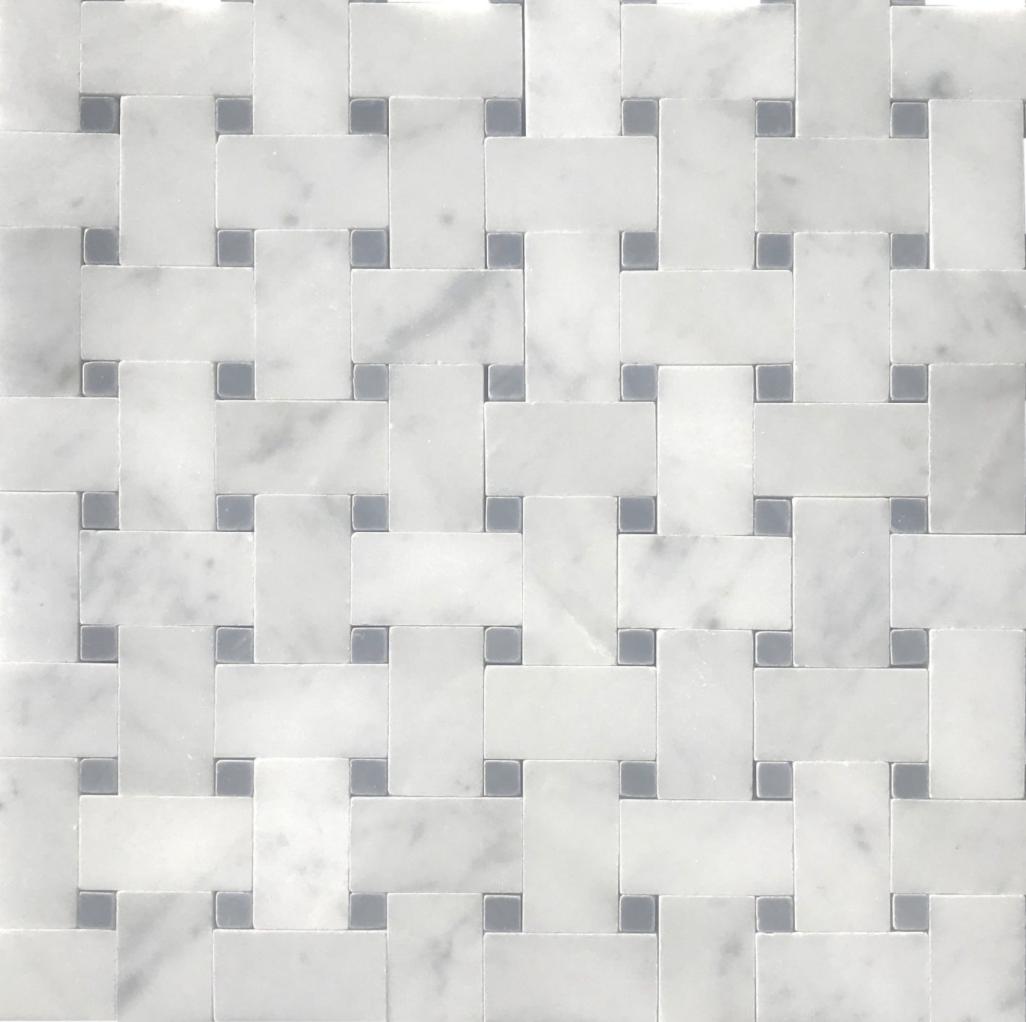

Bianco Carrara Marble Countertops
Floor Tile
Shower Floor Tile
BM Cos Cob Stonewall Cabinetry Paint
Shower Wall Tile
Shower Wall Tile
MASTER CLOSET | Concept
Millwork Style
Paint Grade Hanging Space & Shelving to Match Baseboard/Door Color
*Deeper Shelving to Accommodate Clothing Width 16-24”
Dresser Style
Paint Grade 2” Shaker Style Fronts
Dresser Hardware
Finish: Brushed Nickel
Millwork Paint
BM Classic Gray
Style
Ceiling Fan Finish: Black 60”Dia Sweep
Ceiling and Wall Treatment Plan
BM Thunder
and Wall Treatment Plan
Paint at Upper Wall and Ceiling Divided with Trim Piece
Closet Consisting of Hanging Space & Shelving
Millwork
Millwork
Ceiling
Contrast

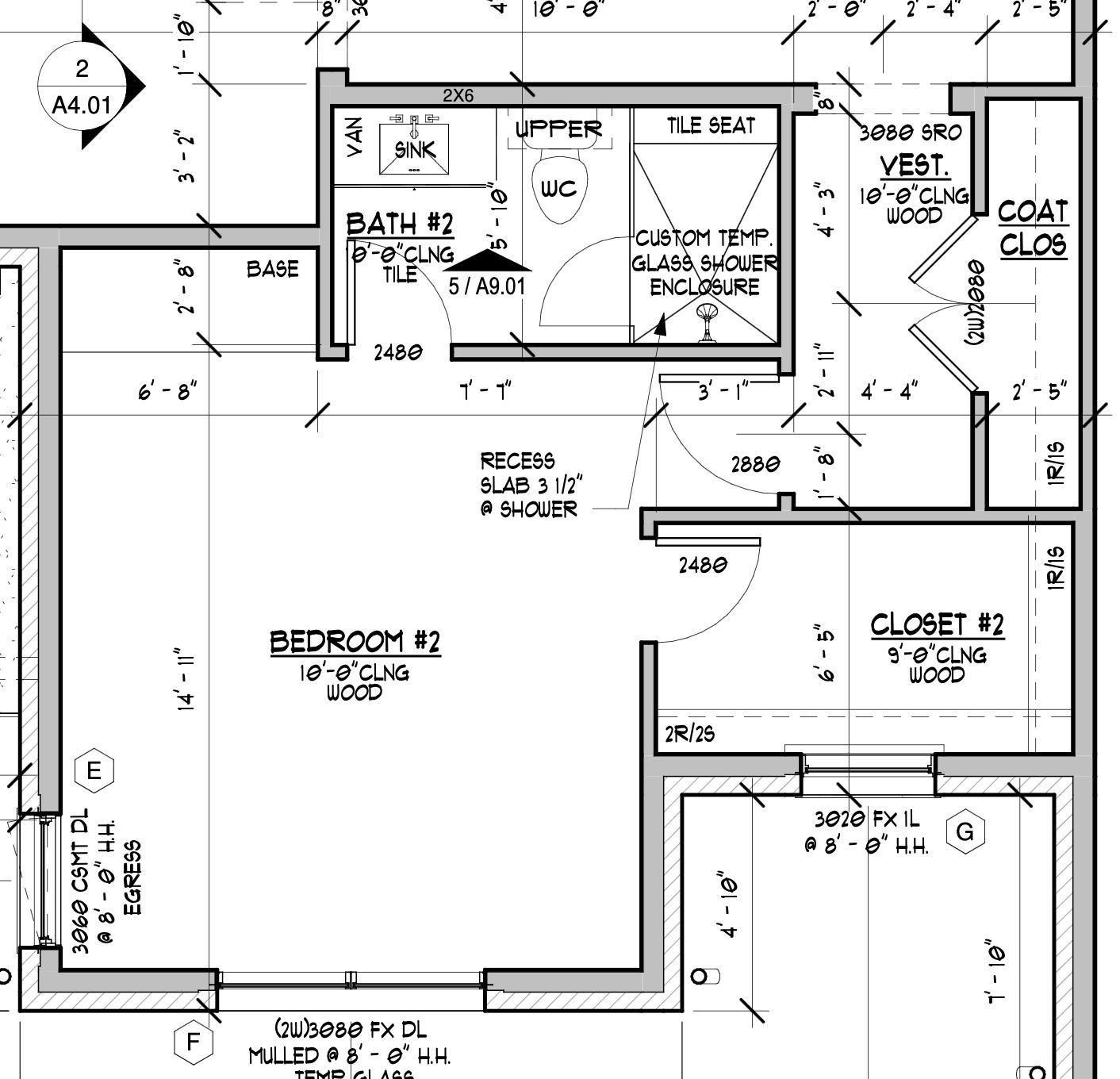

BATH 2 | Hardware and Plumbing
Towel Bar
Finish: Brushed Nickel
Pendants
Finish: Matte Nickel and Mercury Glass
7”Dia x 18.5”H
Pivoting Tissue Holder
Finish: Polished Nickel
Kohler Undermount Sink
20 1/4”W x 15 11/16”D x 7 5/16” H
Toilet
Kohler Cimarron
Vitreous China
Comfort Height 16-1/2”
Elongated Bowl
Shower Concept
Bench & Niche Above
Kohler Shower Head
Finish: Brushed Nickel
Door Pull
Finish: Brushed Nickel
Robe Hook at Glass
Finish: Brushed Nickel
Floor Tile
BM Greyhound Cabinetry Paint
Shower Wall Tile
Regal Calacatta McLaren StratusQuartz Countertop
Ceiling Fan
Finish: Black
60”Dia Sweep
Ceiling and Wall Treatment Plan
BM Thunder
Ceiling and Wall Treatment Plan
Contrast Paint at Upper Wall and Ceiling Divided with Trim Piece
Vanity Concept
Paint Grade Vanity with 2-1/2” Shaker Style Doors
BATH 3 | Hardware and Plumbing
Finish: Brushed Nickel
Sconces
Finish: Polished Nickel
4.75”W x 3.5”D x 23.5”H
Kohler Undermount Sink
20 1/4”W x 15 11/16”D x 7 5/16” H
Pivoting Tissue Holder
Finish: Polished Nickel
Comfort Height 16-1/2”
Toilet Kohler Cimarron
Vitreous China
Elongated Bowl
Towel Bar
Shower Head
Shower Concept
Bench & Niche Above
Kohler
Finish: Polished Nickel
Finish: Brushed Nickel
Door Pull
Finish: Brushed Nickel
Robe Hook at Glass
Finish: Brushed Nickel
Bathroom Floor Tile
Shower Floor Tile
Shower Wall Tile

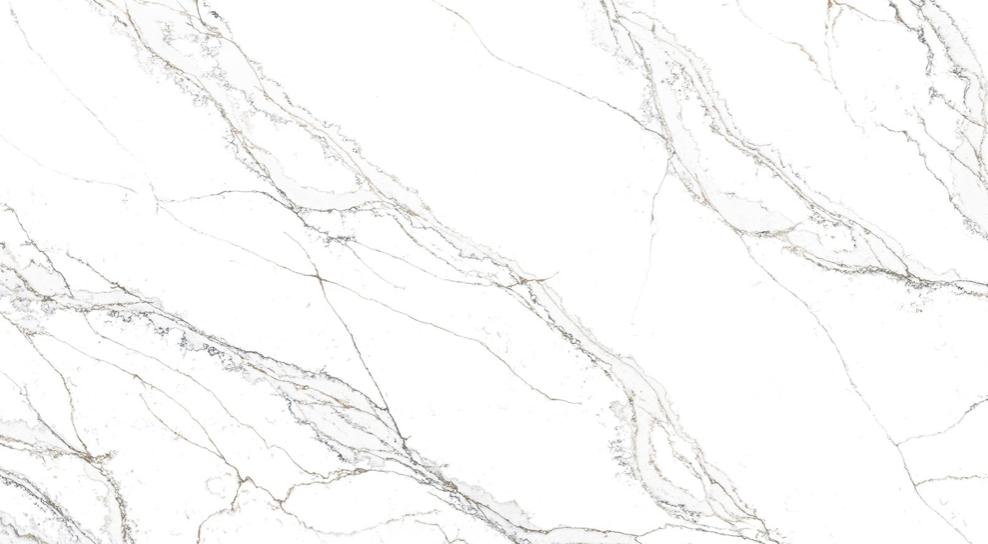

Calacatta Super Bella StratusQuartz Countertop
BM Cos Cob Stonewall Cabinetry Paint
STAIRCASE
Staircase Concept
Wall Mounted Stained Hand Rail to Match Flooring
BEDROOM
Ceiling Fan
Finish: Black
60”Dia Sweep
Treatment Plan
BM Thunder
Ceiling and Wall Treatment Plan
Contrast Paint at Upper Wall and Ceiling Divided with Trim Piece
Vanity Concept
Paint Grade Vanity with 2-1/2” Shaker Style Doors
BATH 4 | Hardware and Plumbing
Towel Bar
Finish: Brushed Nickel
Sconces
Kohler Undermount Sink
20 1/4”W x 15 11/16”D x 7 5/16” H
Pivoting Tissue Holder
Finish: Polished Nickel
Comfort Height 16-1/2”
Finish: Polished Nickel
4.75”W x 5.5”D x 19”H
Toilet
Kohler Cimarron
Vitreous China
Elongated Bowl
Kohler Shower Head
Finish: Polished Nickel
Door Pull
Finish: Brushed Nickel
Finish: Brushed Nickel
BATH 4 | Finishes
Porcelain Shower Wall Tile Flooring
BM Sea Salt Cabinetry Paint
Regal Calacatta McLaren StratusQuartz Countertop
BUNK ROOM | Finishes

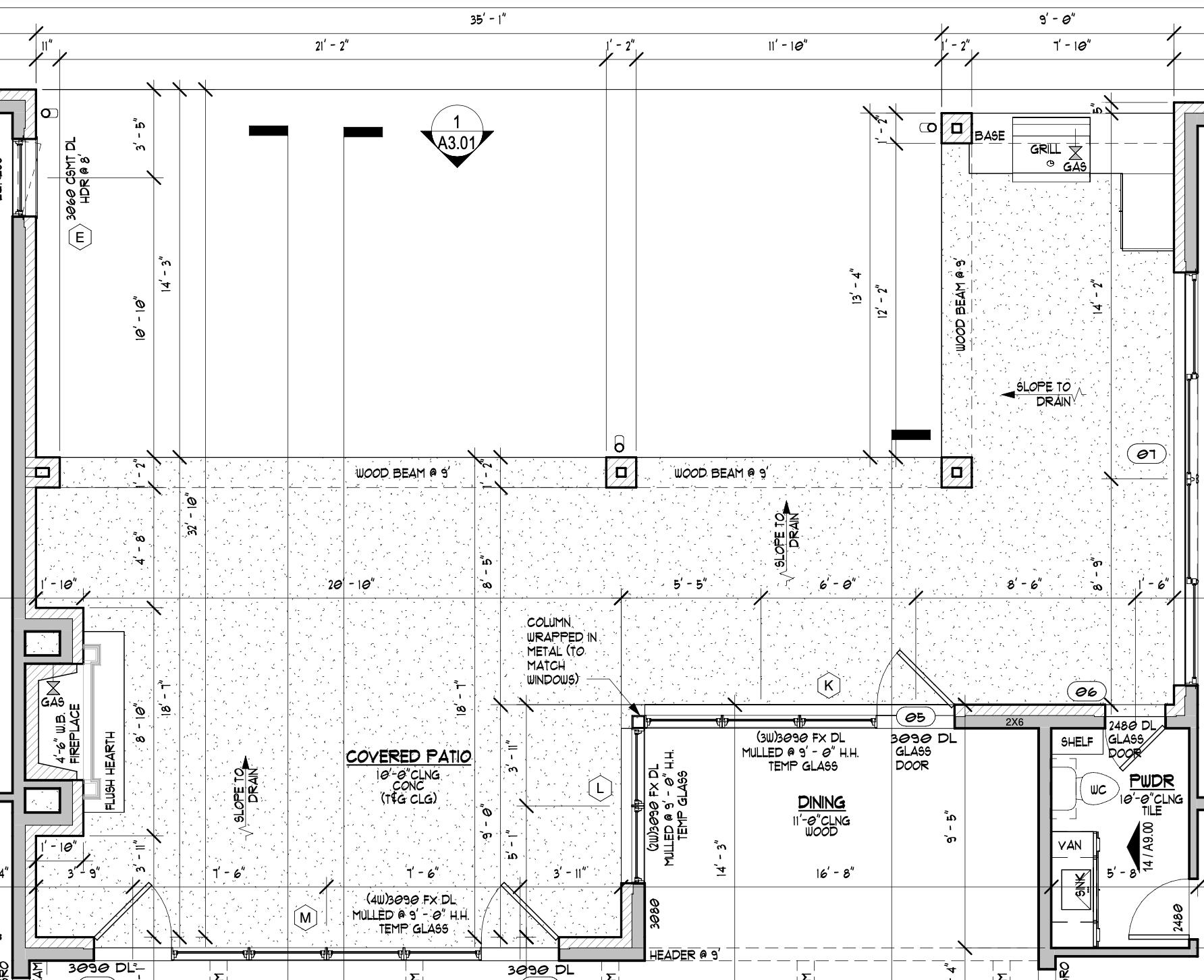

ENLARGED PLAN - LIVING ROOM
Finish: Brushed Bronze
Finish: Sage Green with Heritage Brass Accents
6.75”Dia x 4”D
Wall Paint
BM Thunder
Ceiling Fan
Finish: Black
60”Dia Sweep
Vanity Concept
Paint Grade Vanity with 2-1/2” Shaker Style Doors
BATH 5 | Hardware and Plumbing
Sconces
Kohler Undermount Sink
20 1/4”W x 15 11/16”D x 7 5/16” H
Pivoting Tissue Holder
Finish: Polished Nickel
Comfort Height 16-1/2”
Finish: Polished Nickel
9”W x 10”D x 7.75”H
Toilet
Kohler Cimarron
Vitreous China
Elongated Bowl
Towel Bar
Finish: Brushed Nickel
Shower Head
Finish: Polished Nickel
Door Pull Finish: Brushed Nickel
Robe Hook at Glass Finish: Brushed Nickel
Porcelain Floor Tile
Porcelain Shower Wall Tile
Glazed Stoneware Shower Floor and Niche Tile
Regal Calacatta McLaren StratusQuartz Countertop
BM Greyhound Cabinetry Paint
OUTDOOR
36” DCS Grill Rotisserie Natural Gas
DCS Built In Access Drawers
Outdoor Kitchen Concept
Built in Appliances with House Stone Surround and Quartz Countertops
Ceiling Fan
Matte Black Ceiling Fan without Light Kit
65”Dia Sweep
Ceiling Treatment Stain Grade Decking and Exposed Rafters
