M OTOR SPO R T PROVE N

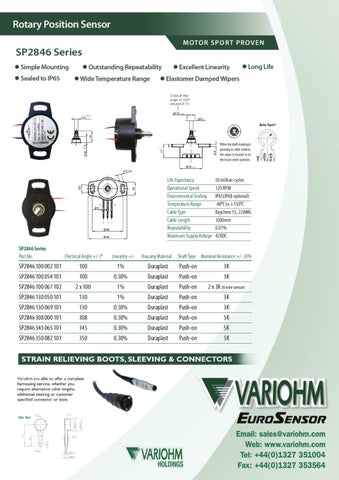

SP2846 Series
When the shaft marking is pointing to cable (white), the wiper is located in an electrical center position.
Life Expectancy Operational Speed Environmental Sealing Temperature Range Cable Type Cable Length Repeatability Maximum Supply Voltage SP2846 Series Part No.
SP2846 100 002 101 SP2846 100 054 101 SP2846 100 067 102 SP2846 130 050 101 SP2846 130 069 101 SP2846 308 000 101 SP2846 345 065 101 SP2846 350 082 101
Electrical Angle +/-1o
100 100 2 x 100 130 130 308 345 350
Linearity +/-
1% 0.50% 1% 1% 0.50% 0.30% 0.30% 0.30%
Housing Material
Duraplast Duraplast Duraplast Duraplast Duraplast Duraplast Duraplast Duraplast
50 million cycles 120 RPM IP65(IP68 optional) -40oC to +150oC Raychem 55, 22AWG 1000mm 0.01% 42VDC
Shaft Type Nominal Resistance +/- 20%
Push-on Push-on Push-on Push-on Push-on Push-on Push-on Push-on
3K 3K 2 x 3K (6 wire sensor) 3K 3K 5K 5K 5K
