Blauberg Domestic Extractor Fans

Blauberg offers a range of powerful, quiet and stylish extractor fans which provide high airflow rates and are available in a variety of styles and colours.

In reaction to changes in the Building Regulations, we have increased our assortment of extractor fans to include more fans that can be mounted in bathroom Zones 1 and 2. We’ve also developed our energyefficient motors to further exceed Part L of the Building Regulations and decrease energy consumption.

As homes become more airtight and better insulated, whole-house ventilation solutions with higher airflow rates are now required.

Higher airflow rates are particularly important to prevent the build up of problems such as mould, condensation and damp, as well as to decrease the effect of poor air quality on our health.

Social housing, private landlords and councils are becoming increasingly aware of the effects of poor air quality, damp and mould on tenants. dMEV (decentralised mechanical extract ventilation) is becoming the preferred ventilation solution.

Continually running extractor fans are the most frequently chosen dMEV for these types of residential properties. These systems are quieter and more efficient than traditional extractor fans. Their continuous extraction is a more effective way to reduce condensation and mould risk.

Check out our Calm dMEV range for continually running extractor fans available with a range of control options and colours.

Part L of the Building Regulations stipulates that inline extractor fans are required to be more efficient. In reaction to this, Blauberg now offers inline fans with low-energy EC motors, produced at our German facility in Munich.

We also offer inline extractor fans with EC motors across our entire range of mixed flow and centrifugal products.

To explore the full range of domestic extractor fans, please browse the following pages or visit our website www.blauberg.co.uk.

Calm Extractor Fans - Page 8

Extractor Fans

Continually Running Extractor Fans - Page 10

Bathroom Fans - Page 12

Purge Ventilation, In-Line Fans and PIV - Page 15

Extractor Fan Controls - Page 18

Mechanical Extract Ventilation - Page 19

Blauberg Zone 1 Calm Range Powerful,

Zone 1 Bathroom Fans Explained

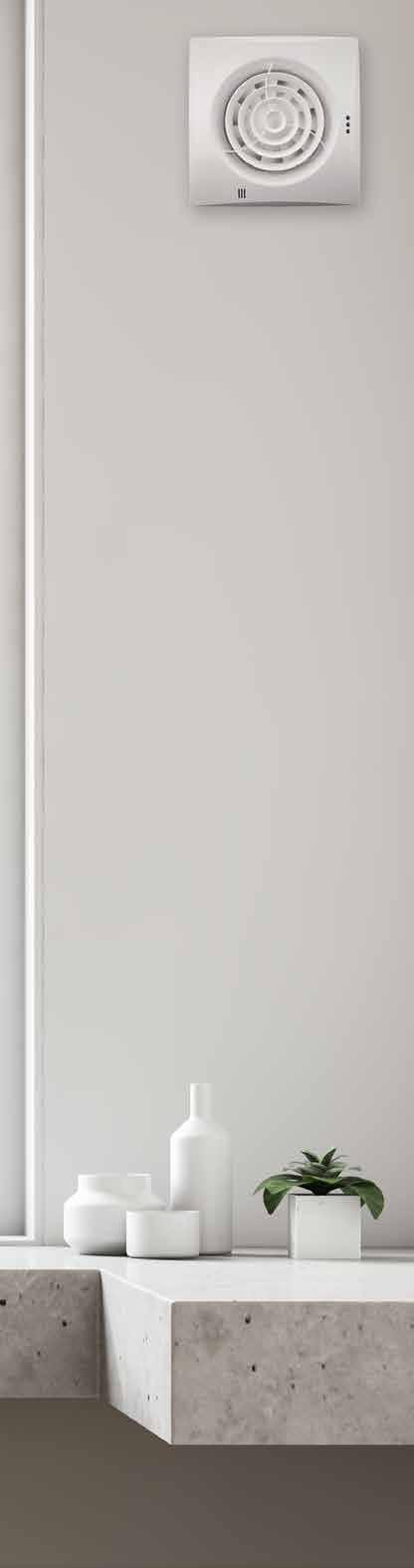

You can now mount the Blauberg Calm range of extractor fans directly into Bathroom Zones 1 & 2*.

Calm

• No need for a 12v Transformer

Calm Extractor Fans

Continually Running Extractor fans:

• Comprehensive range of continually running extractor fans for bathrooms, kitchens, wet rooms and utility rooms.

Stylish designs in contemporary colours.

• Constant trickle operation at low speed with humidity boost and timer options.

• Fitted with highly efficient German low energy motors. Low running costs.

Changes to building regulations for dMEV extractor fans

In 2022 updates to Building Regulations outlined the importance of a particular type of ventilation: continually running extractor fans.

Continually running extractor fans, commonly known as dMEV, work the same as conventional extractors but run constantly at a low speed.

Typically a dMEV fan for a toilet has an extract rate of 6 l/s whereas a traditional fan would be 15 to 20 l/s. The lower continual airflow provides a higher overall rate of extraction with lower noise levels.

dMEV fans also have a boost option, the boost speed offers higher rates of air extraction when a room is occupied or when humidity levels are high.

The air permeability of a building is also a contributing factor when selecting extractor fans. If your home is fairly airtight (an air permeability of 5 m3/hr/m2 @ 50 Pa or lower) you now must use a continually running extractor fan to meet Building Regulations.

In addition, sufficient background ventilation is required to ensure fresh air can enter the room. This can be trickle vents in windows or additional passive vents installed within the room.

Extractor Fans

Continually Running Extractor Fans

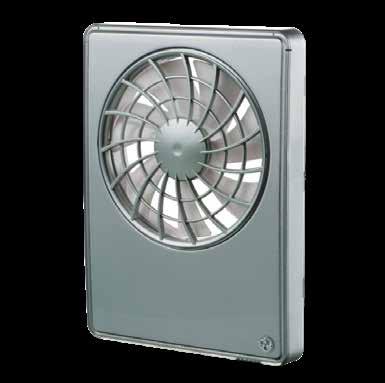

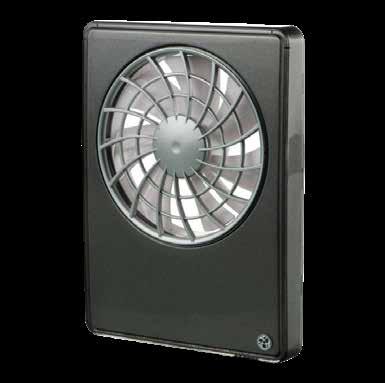

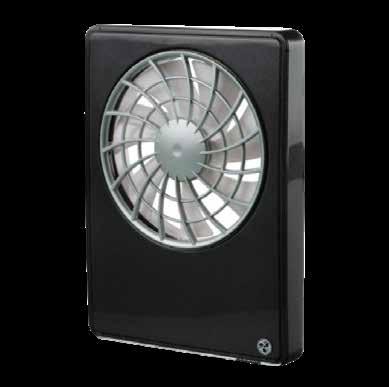

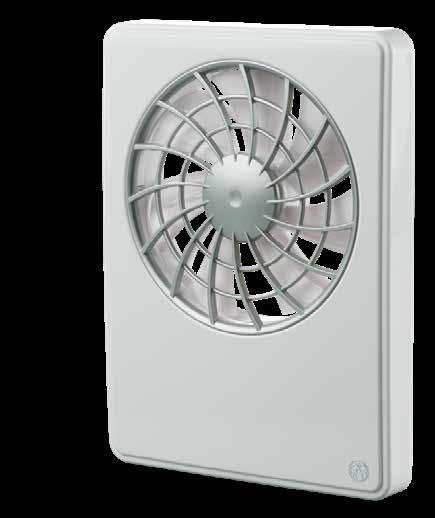

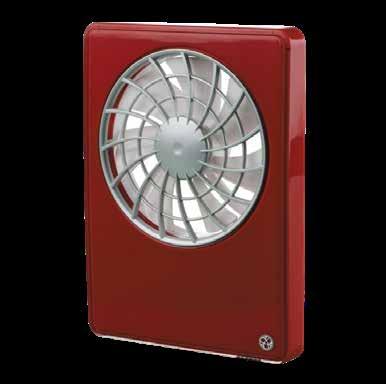

Smart Extractor Fans

• Modern extractor fans with Wi-Fi operation.

• Up to 133 m3/hour extract rate. Humidity and condensation sensors, timer, and additional control models. Silent running with variable speed control and light sensing PIR option.

• German EC motors.

• 5-year warranty.

Extractor Fans

Bathroom Fans

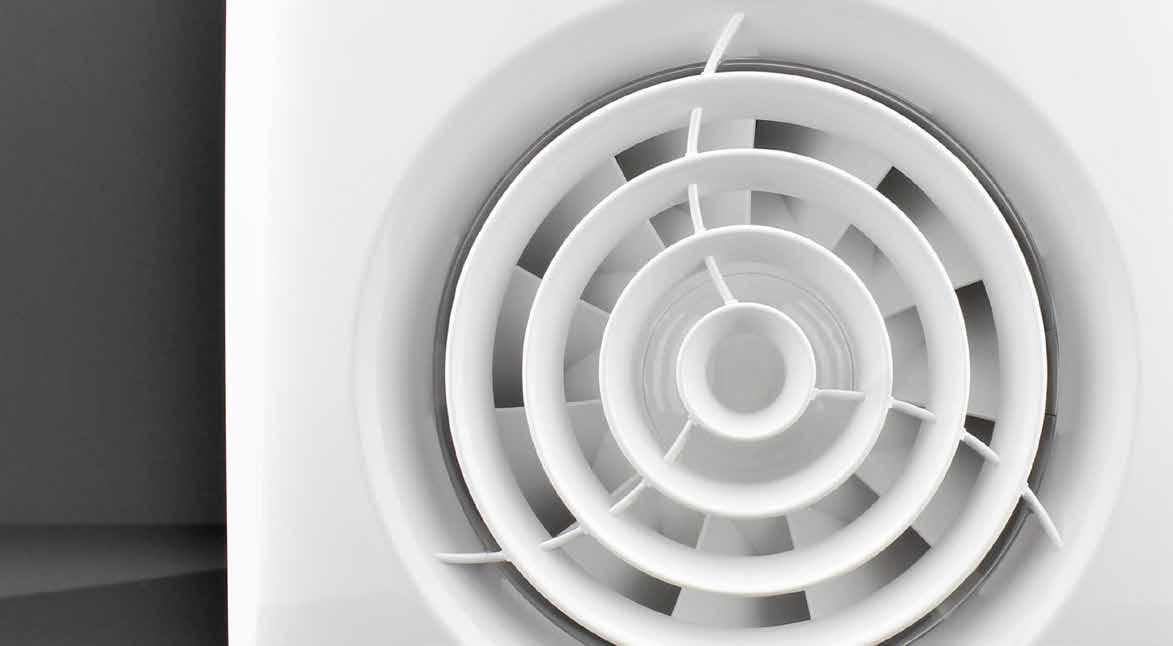

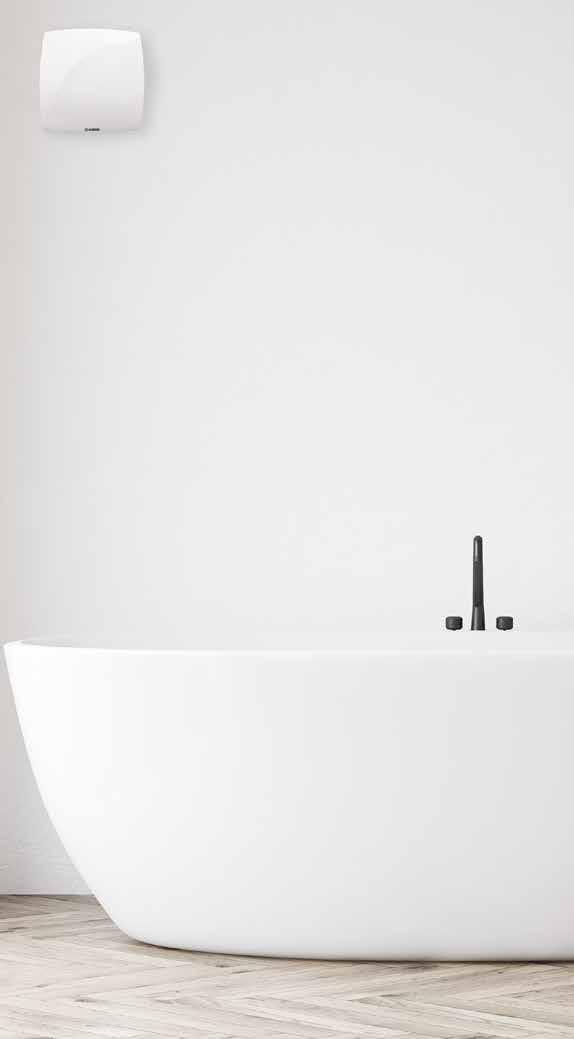

Moon Extractor Fan

Suitable for Zones 1 and 2

Our Moon extractor fan is an ultra-quiet fan due to its special air straightening gators.

Blauberg Moon has a modern design. Its flat front plate and discreet nature suit any bathroom, kitchen or shower room.

Blauberg Moon extractor fans are Building Regulation

Part P, F and L compliant and are available in 240v mains voltage or with a 12v SELV transformer. This fan can be mounted within Zones 1 and 2 of bathrooms, showers or sink areas.

The fitted shutter ensures that back draughts are kept to a minimum when the fan is not in use without the need for an external shutter or draught excluder. There are plenty of control options to choose from depending on your needs from simple 2-wire pull cord operation to timer function, and humidity and damp control options.

Features

• Stylish 100mm 4" designer bathroom, kitchen extractor fan finished in brilliant white.

• German engineered air straitening gators to reduce noise, only 25 dB(A) sound level.

• Water, moisture and condensation rated to IP44.

• Supplied with a 240v mains motor or SELV 12v transformer option for mounting in bathroom zones 1 and 2.

• Mixed flow impeller blade design enables longer duct runs to be used.

100mm, 4" diameter duct connection. An impressive 85 m3/hour extract airflow rate 24 l/s.

• Fitted with an anti-back draft shutter.

• Choose from the following control options: run on timer, pull cord and humidity sensor.

• Fitted with a German Blauberg motor and backed with a 5 year warranty.

• Can be wall or ceiling mounted.

• Energy rating A+ ErP compliant and meets Building Regulations.
