Cafe Concept

The concept is generated from the St.ann’s allotments and combining with the conceptual precedental studies done in research

Just like the allotments, customers here will have a good look at the courtyard vegetation. Since the Courtyards are slightly angled, 3 mirrors across the window are tilted as well to capture the green from outside.

Sustainable Heat Generation

The heat generated from the tea making process is extracted with the help of extractor and redirected to the glass houses. This heat adds to the already achieved temperature during the day time A false ceiling was thought through with arched coffers such that the sound from the interactive tea making process is suppressed.

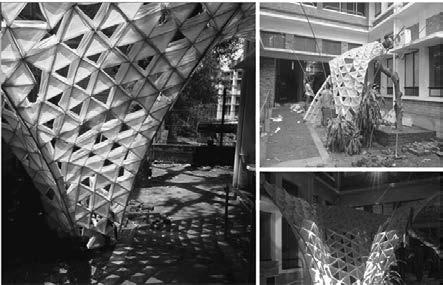

Courtyard Canopy Installation

Undergraduate [6th semester]

About

Location Installation

Group Installation Project Type Year Brief

Department of Architecture, College of Engineering, Trivandrum, Kerala, India

2015

To build an installation in the courtyard of the department of architecture which acts an extention of the sunshade from the first floor to the ground. The overall form is supported by steel, which is parametrically curved to the at a center point on the ground. These steel bars are connect through a large group of triangular units made of cloth-bag materials attached to a triangular steel wire profile.

Faculty Support : Project Involvement :

Prof. Jinoj M

Unit designs, On-site execution

Cloth bag material Triangular steel wire profile

Triangular units interconnected

Steel curved to the center

Guastavino Vault Workshop

Undergraduate [3rd Semester ] Group Workshop

About

Project Type

Location

Seating Structure Installation

Department of Architecture, College of Engineering, Trivandrum, Kerala, India

Year

Brief

2014

The objective was to construct a Guastavino vault inspired seating structure, designed by Ar. vinu daniel in the department of architecture courtyard The main purpose of the structure was to provide seating for the informal/formal gatherings that took place at the courtyard .

Architect Supervisor : Project Involvement :

Ar. Vinu Daniel On-site design execution
