03. living on the structure

from Portfolio_Maria-Belen_Niro-Gonzalez

02. between matter and void

Appartment-Sharing Community | Karlsruhe, Germany

1st Semester | WS 18/19

Prof. Marc Frohn Individual Project

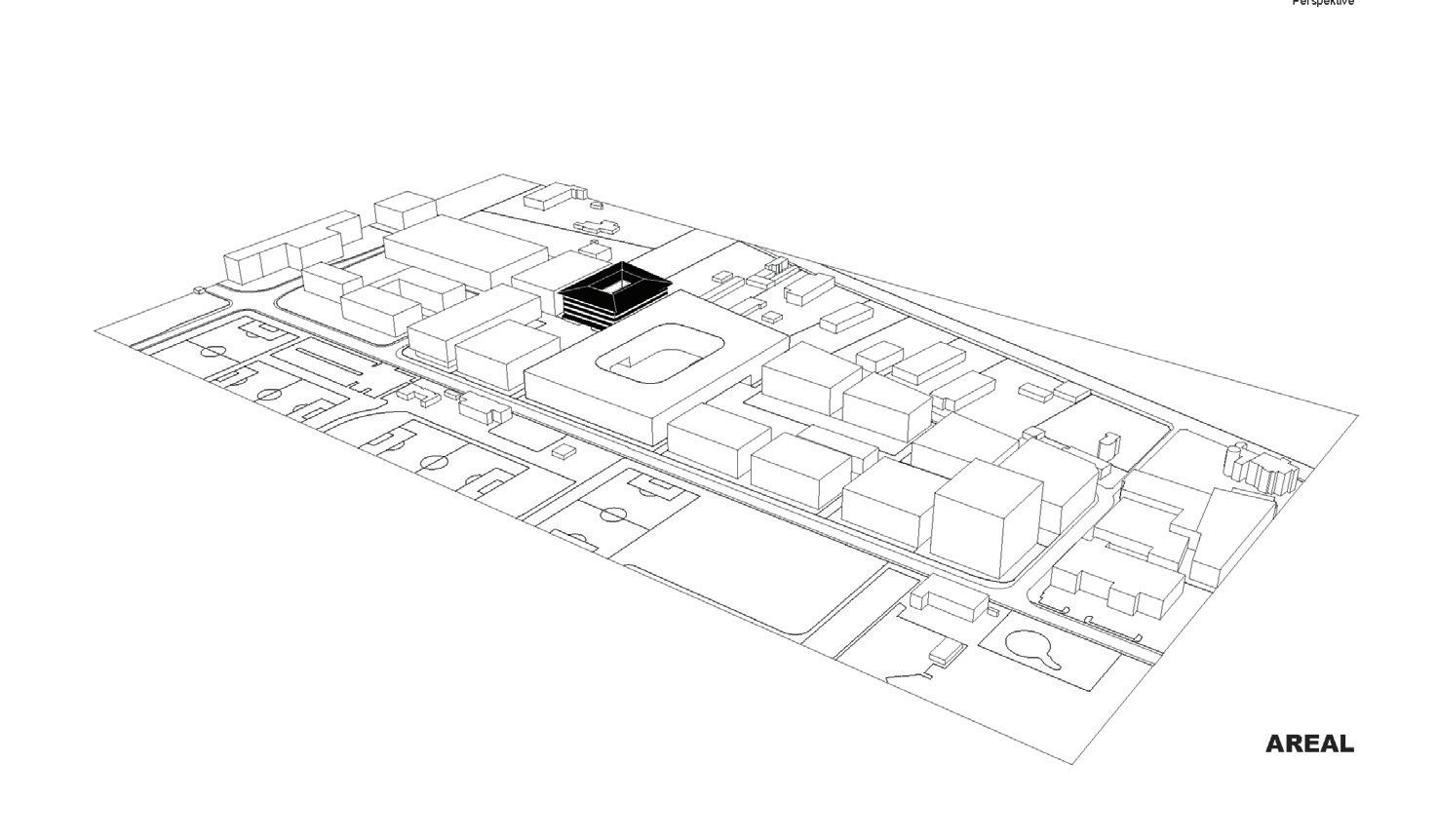

The task of the semester was to plan a comunal house in the KIT Campus. The aim was to combine the everyday areas of living, working and leisure in a new way and to relate them to the context.

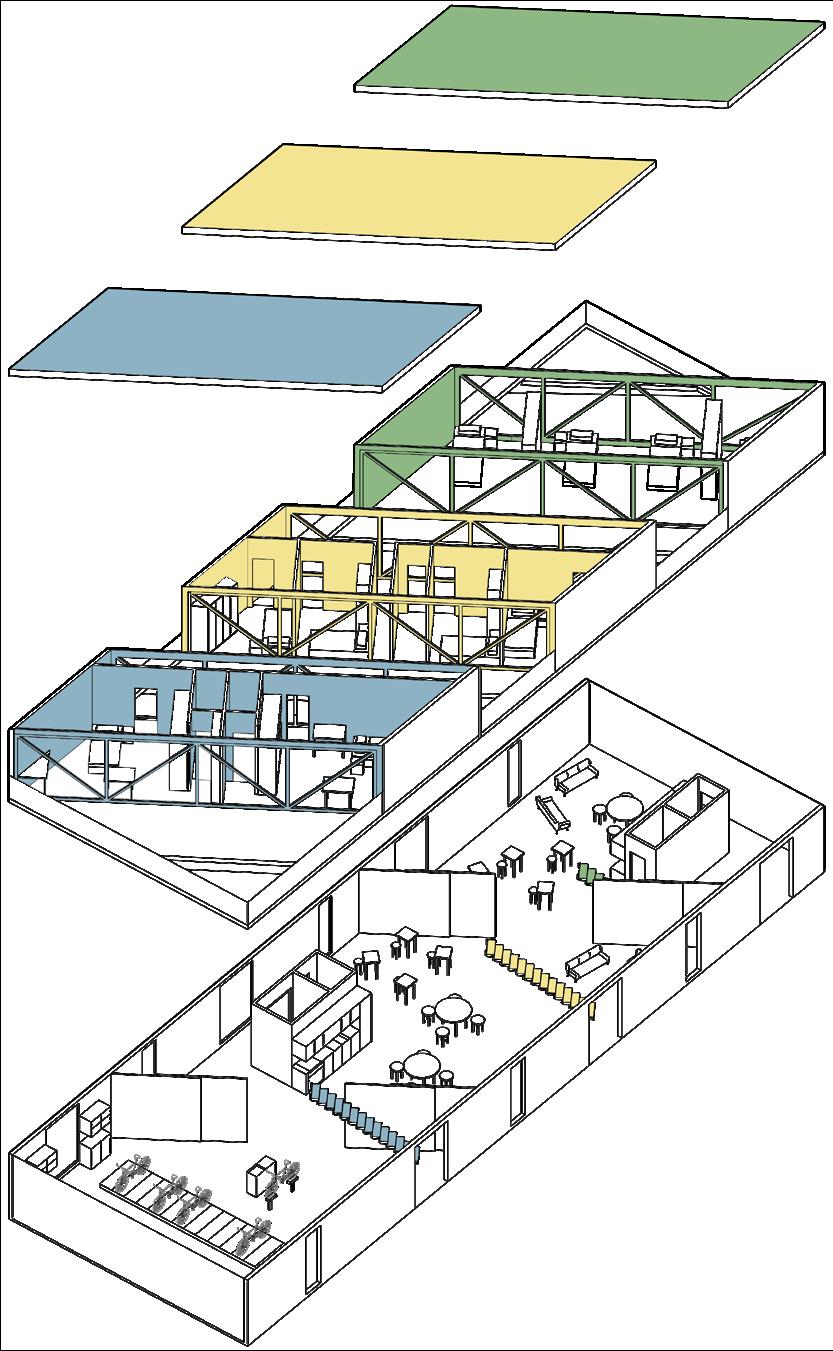

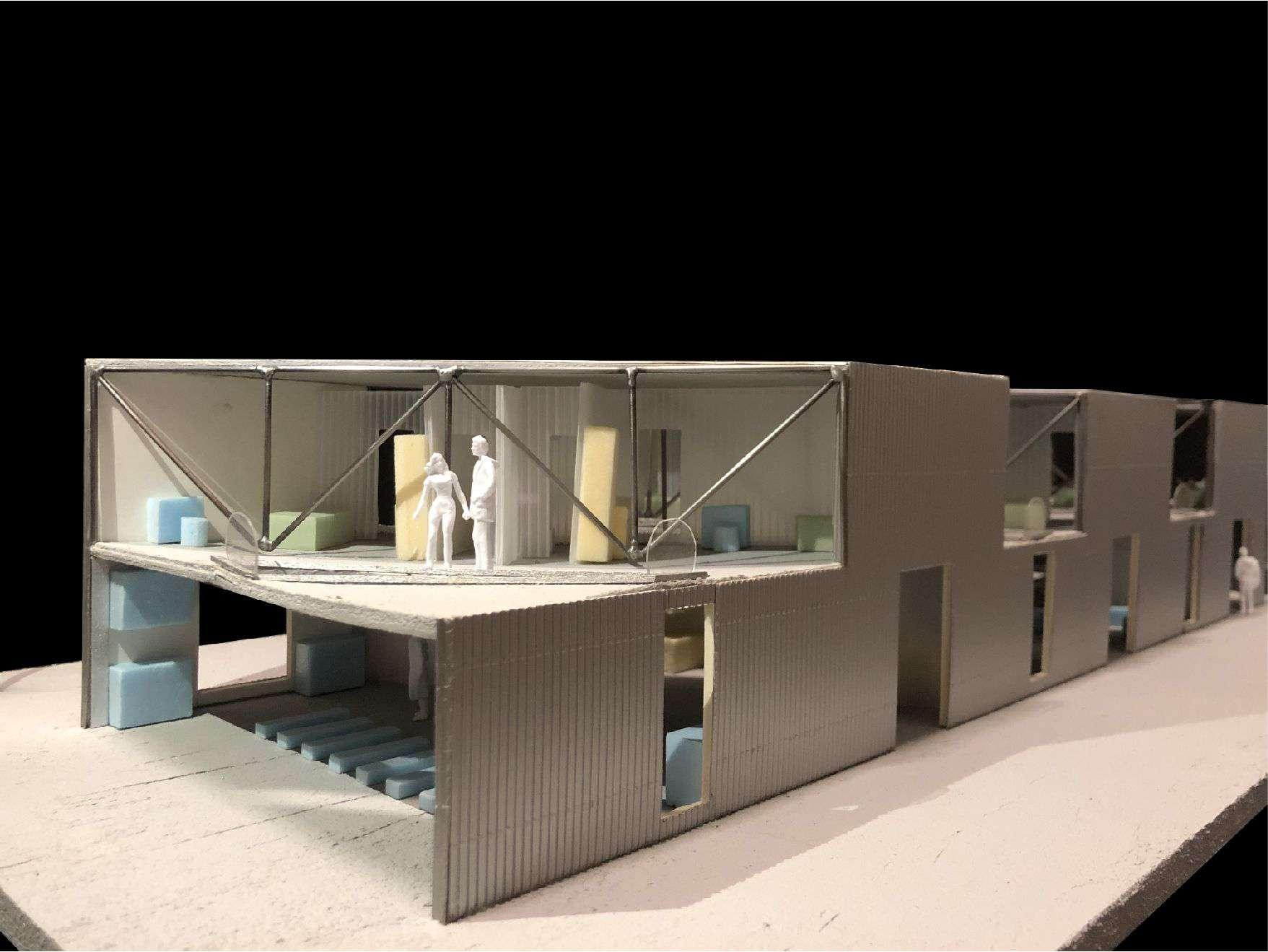

For this purpose, the idea of “living in the supporting structure“ was created, with a flexible large room on the ground floor, in which one finds the communal facilities of the living arrangement, and a publicly accessible bicycle workshop, which keeps contact with the public and creates a livable atmosphere inside and outside the house. Movable walls also provide a freedom of organisation for the ground floor. This is combined with three different types of housing on the upper floor, which can be flexible adapted to different typologies according to the needs of the users.

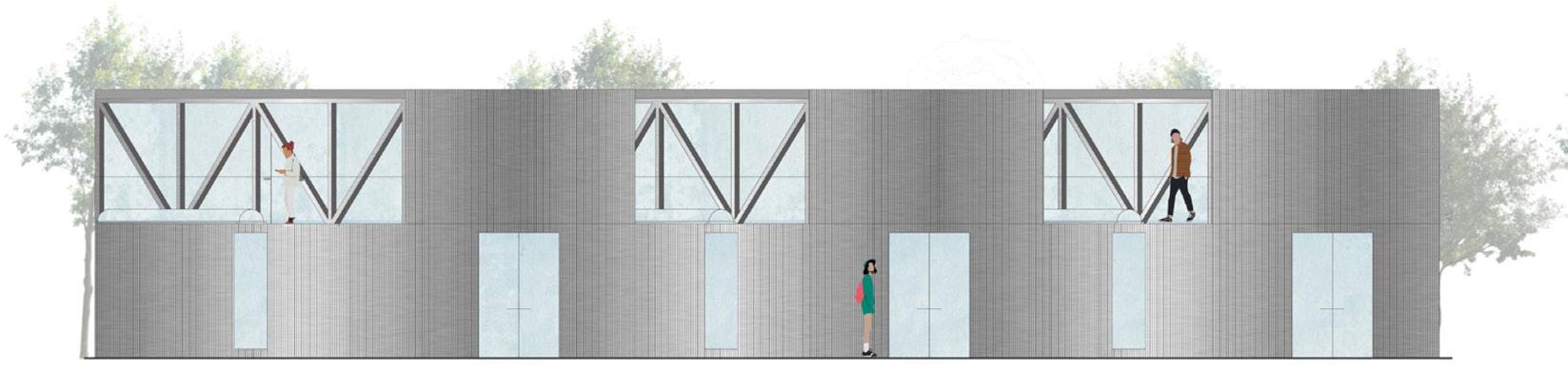

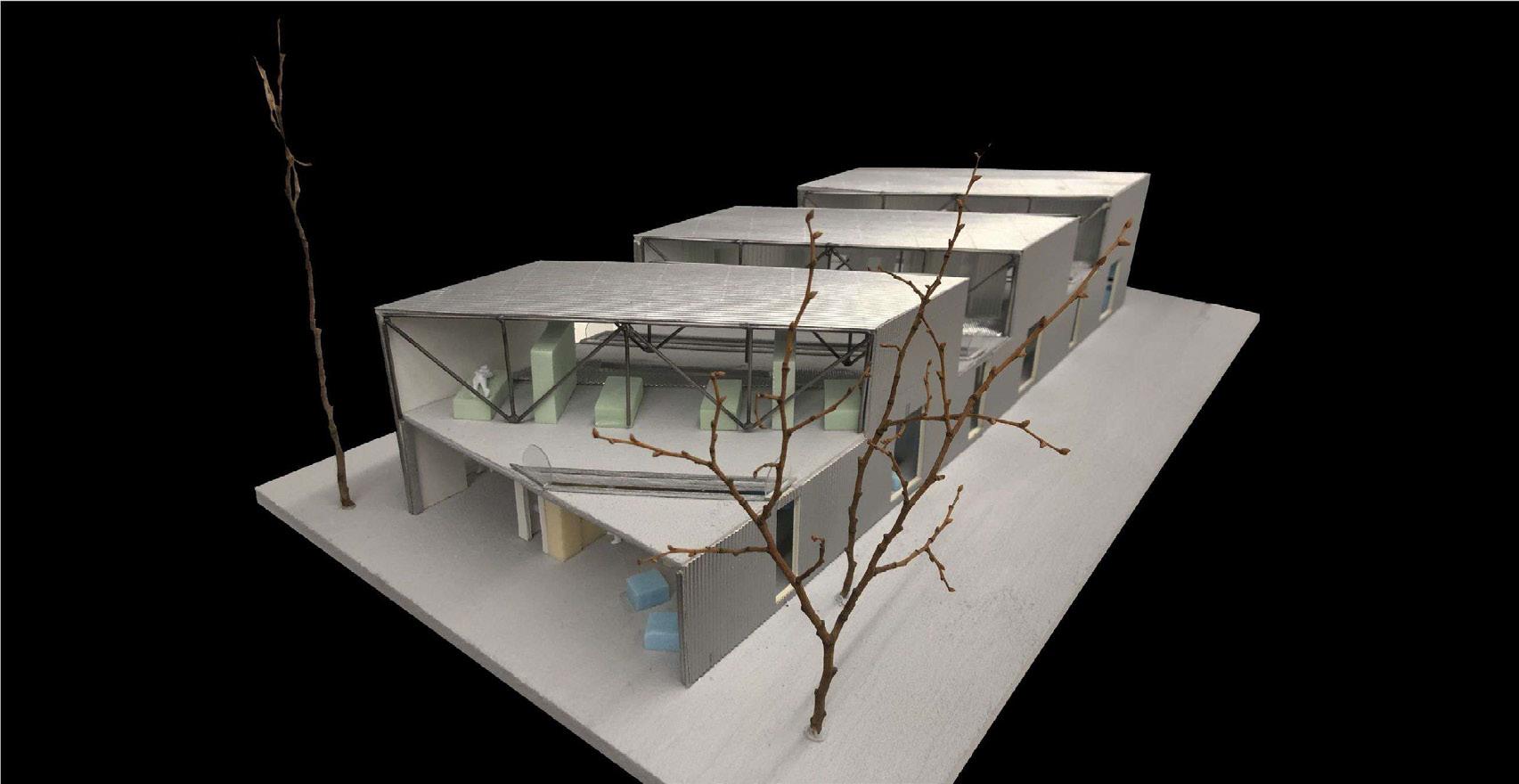

The house is a compact rectangular volume and celebrates concrete, glass and metal to express the feeling of stability and accessibility.

ground floor collage ground floor upper floor

Allschwil, Switzerland

Architect: Herzog & de Meuron Ltd.

Client: SENN IFA AG

Status: In Progress

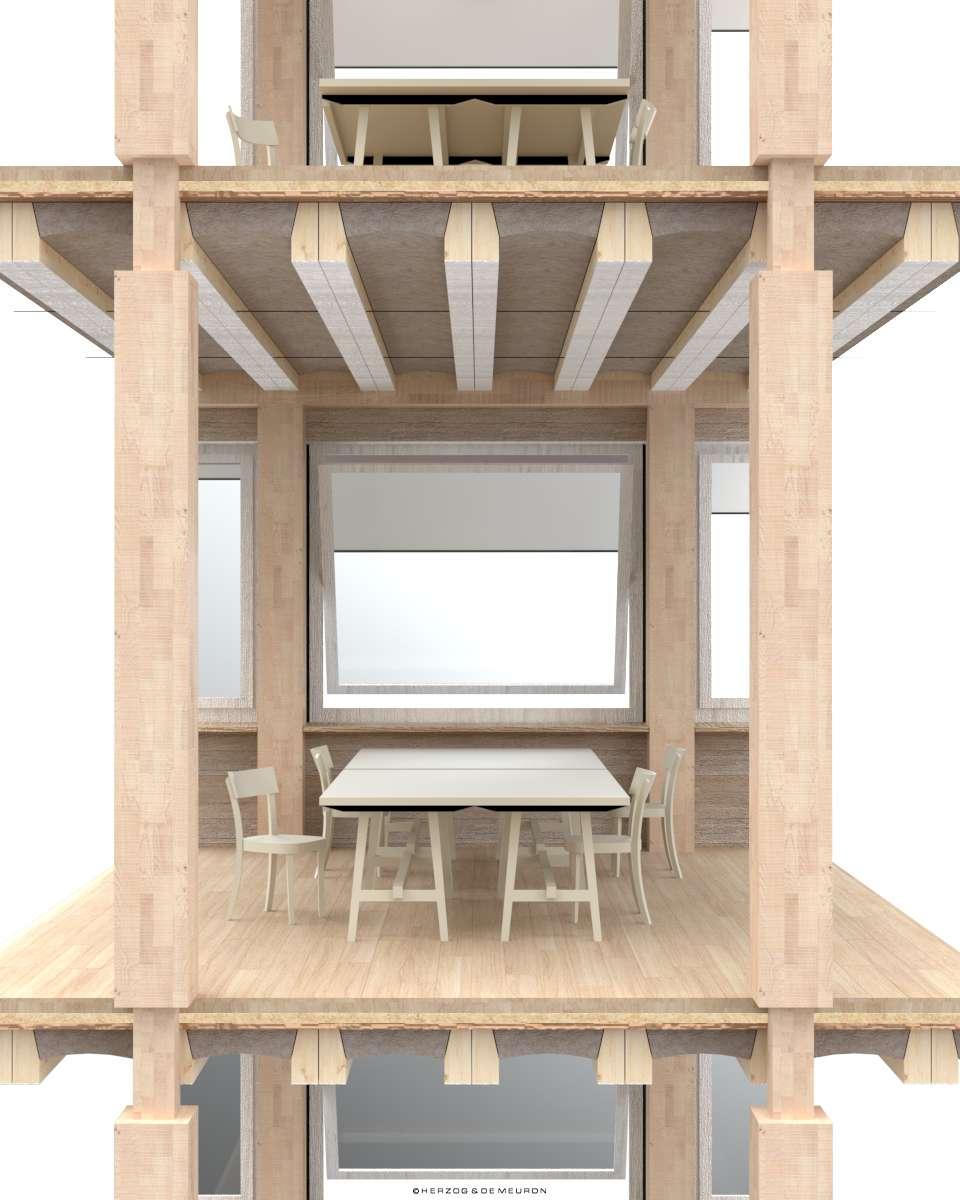

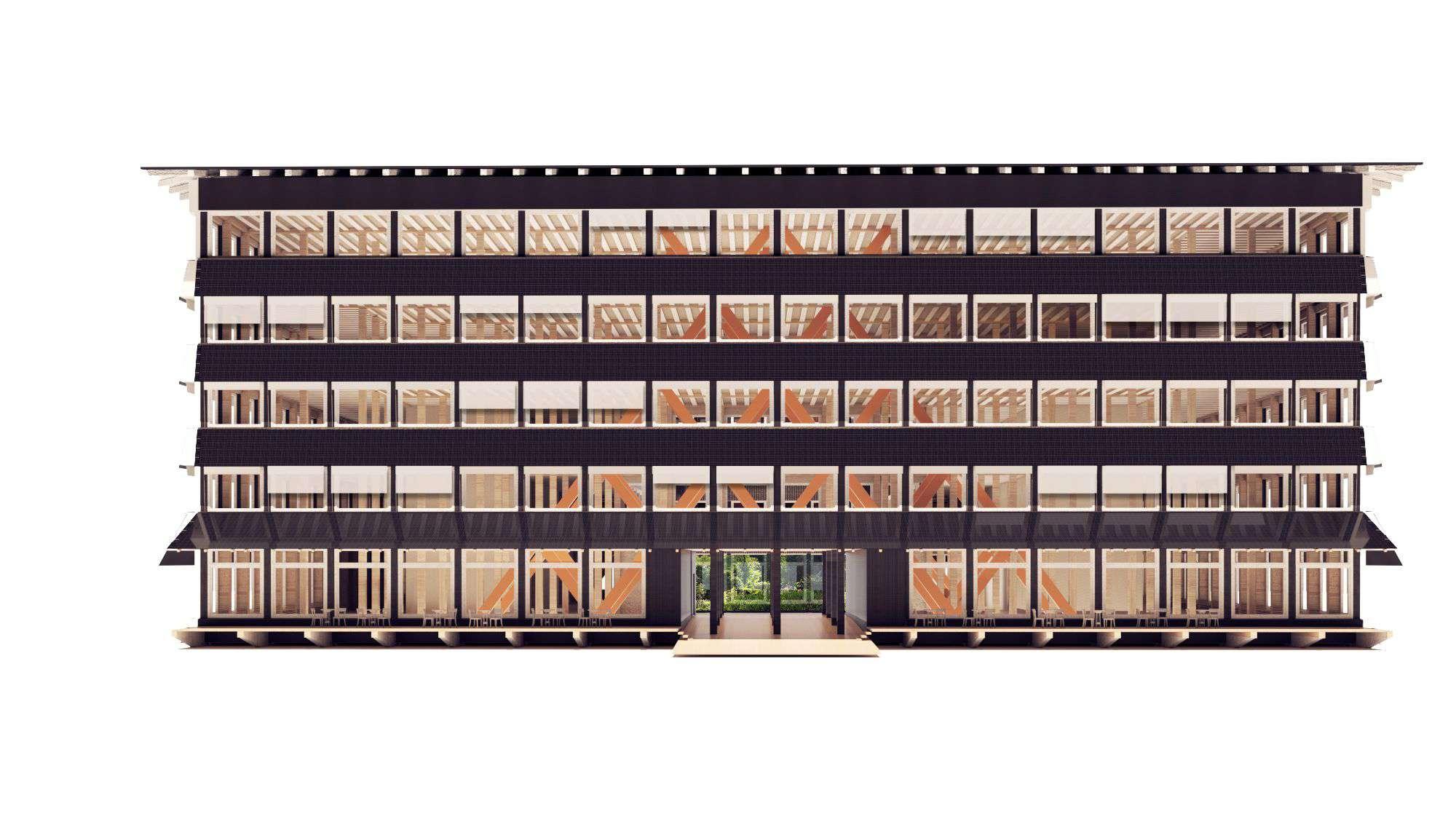

“HORTUS stands for House of Research, Technology, Utopia and Sustainability and focuses on innovative and ambitious sustainability concepts. In line with the cradle-to-cradle principle, all components used should be catalogued and available for recycling in the ecological cycle system. The example of HORTUS is intended to show that future architecture should be aesthetic, healthy and useful for society, the environment and the economy at the same time and can act as a local source of energy and raw materials.“The building creates a modern, communicative and flexible working environment for a new generation of companies with ecological awareness that are to settle here in the future.“ -

Herzog & de Meuron

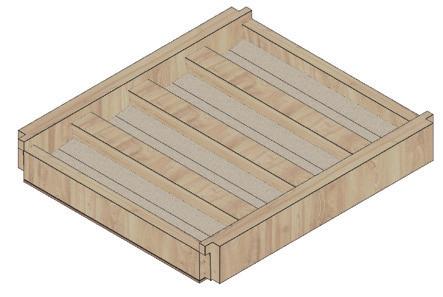

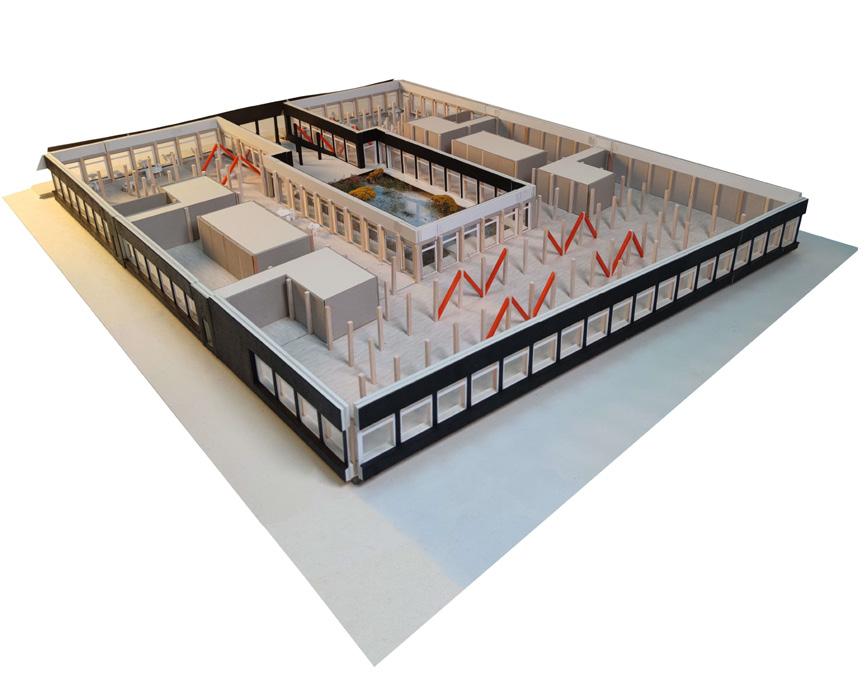

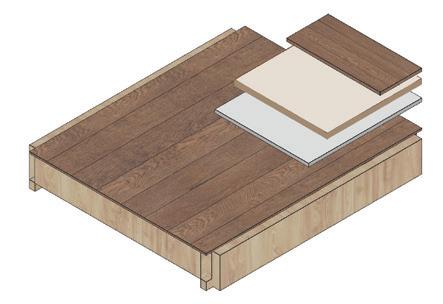

I have been working on different studies to create variants of the organisation and furnishing of the floor plans, where I have made studies like where the entrances could be positioned, different office organisations and their materialisation. I am working almost entirely in Revit, so I have also built and modified mainly elements in the facade and worked a lot in the visualisation and construction of 3D and physical models to analyze the various studies mentioned above.

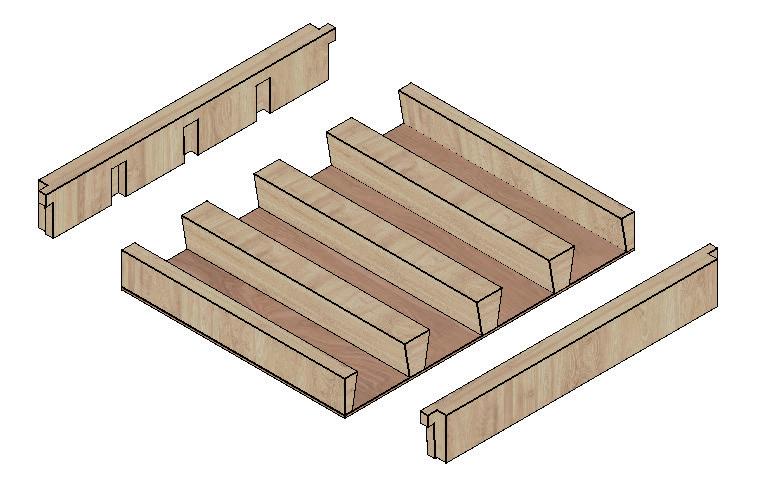

concept and site axonometry open atrium house locally sourced wood an open floor plan solar power station plug-in system from variability without basement a floating house above grown terrain high flexibility and
