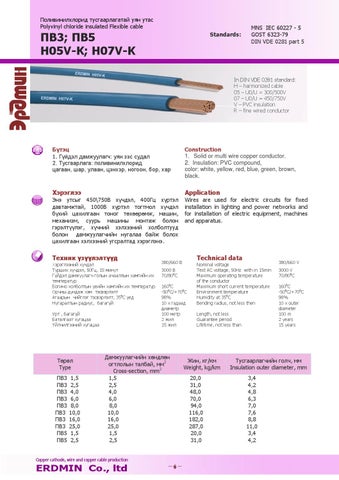

Поливинилхлорид тусгаарлагатай уян утас Polyvinyl chloride insulated Flexible cable
ПВ3; ПВ5 Н05V-K; H07V-K
Standards:
MNS IEC 60227 - 5 GOST 6323-79 DIN VDE 0281 part 5
In DIN VDE 0281 standard: H – harmonized cable 05 – U0/U = 300/500V 07 – U0/U = 450/750V V – PVC insulation R – fine wired conductor
Бүтэц 1. Гүйдэл дамжуулагч: уян зэс судал 2. Тусгаарлага: поливинилхлорид цагаан, шар, улаан, цэнхэр, ногоон, бор, хар
Construction 1. Solid or multi wire copper conductor. 2. Insulation: PVC compound, color: white, yellow, red, blue, green, brown, black.
Хэрэглээ
Application
Энэ утсыг 450\750В хүчдэл, 400Гц хүртэл давтамжтай, 1000В хүртэл тогтмол хүчдэл бүхий цахилгаан тоног төхөөрөмж, машин, механизм, суурь машины монтаж болон гэрэлтүүлэг, хүчний хэлхээний холболтууд болон дамжуулагчийн нугалаа байж болох цахилгаан хэлхээний угсралтад хэрэглэнэ.
Wires are used for electric circuits for fixed installation in lighting and power networks and for installation of electric equipment, machines and apparatus.
Техник үзүүлэлтүүд
Хэрэглээний хүчдэл Турших хүчдэл, 50Гц, 15 минут Гүйдэл дамжуулагч голын ачааллын хамгийн их температур Богино холболтын үеийн хамгийн их температур Орчны дундаж хэм тэсвэрлэлт Агаарын чийглэг тэсвэрлэлт, 350С үед Нугаралтын радиус, багагүй Урт , багагүй Баталгаат хугацаа Үйлчилгээний хугацаа
Төрөл Type ПВ3 ПВ3 ПВ3 ПВ3 ПВ3 ПВ3 ПВ3 ПВ3 ПВ5 ПВ5
1,5 2,5 4,0 6,0 8,0 10,0 16,0 25,0 1,5 2,5
3000 В 70/800С 1600С -500С/+700С 98% 10 х гадаад диаметр 100 метр 2 жил 15 жил
Дамжуулагчийн хөндлөн огтлолын талбай, мм2 Cross-section, mm2 1,5 2,5 4,0 6,0 8,0 10,0 16,0 25,0 1,5 2,5
Copper cathode, wire and copper cable production
ERDMIN Co., ltd
Technical data
380/660 В
-6-
Nominal voltage Тest АС voltage, 50Hz with in 15min Maximum operating temperature of the conductor Maximum short current temperature Environment temperature Humidity at 350С Bending radius, not less then Length, not less Guarantee period Lifetime, not less than
Жин, кг/км Weight, kg/km 20,0 31,0 48,0 70,0 94,0 116,0 182,0 287,0 20,0 31,0
380/660 V 3000 V 70/800С 1600С -500С/+700С 98% 10 х outer diameter 100 m 2 years 15 years
Тусгаарлагчийн голч, мм Insulation outer diameter, mm 3,4 4,2 4,8 6,3 7,0 7,6 8,8 11,0 3,4 4,2
