BEAVERS CREEK OFFTAKE REGULATOR GATES AND FISHWAY

• Partnered with WaterNSW and

Haslin Constructions.

• The largest environmental regulators constructed in Australia at the time.

• Full hydraulic system with backup and manual hand pumps, cable drive actuation systems, tilting weir gates, hydraulically actuated rope drums, hydraulic control cabinet, access platform and handrails.

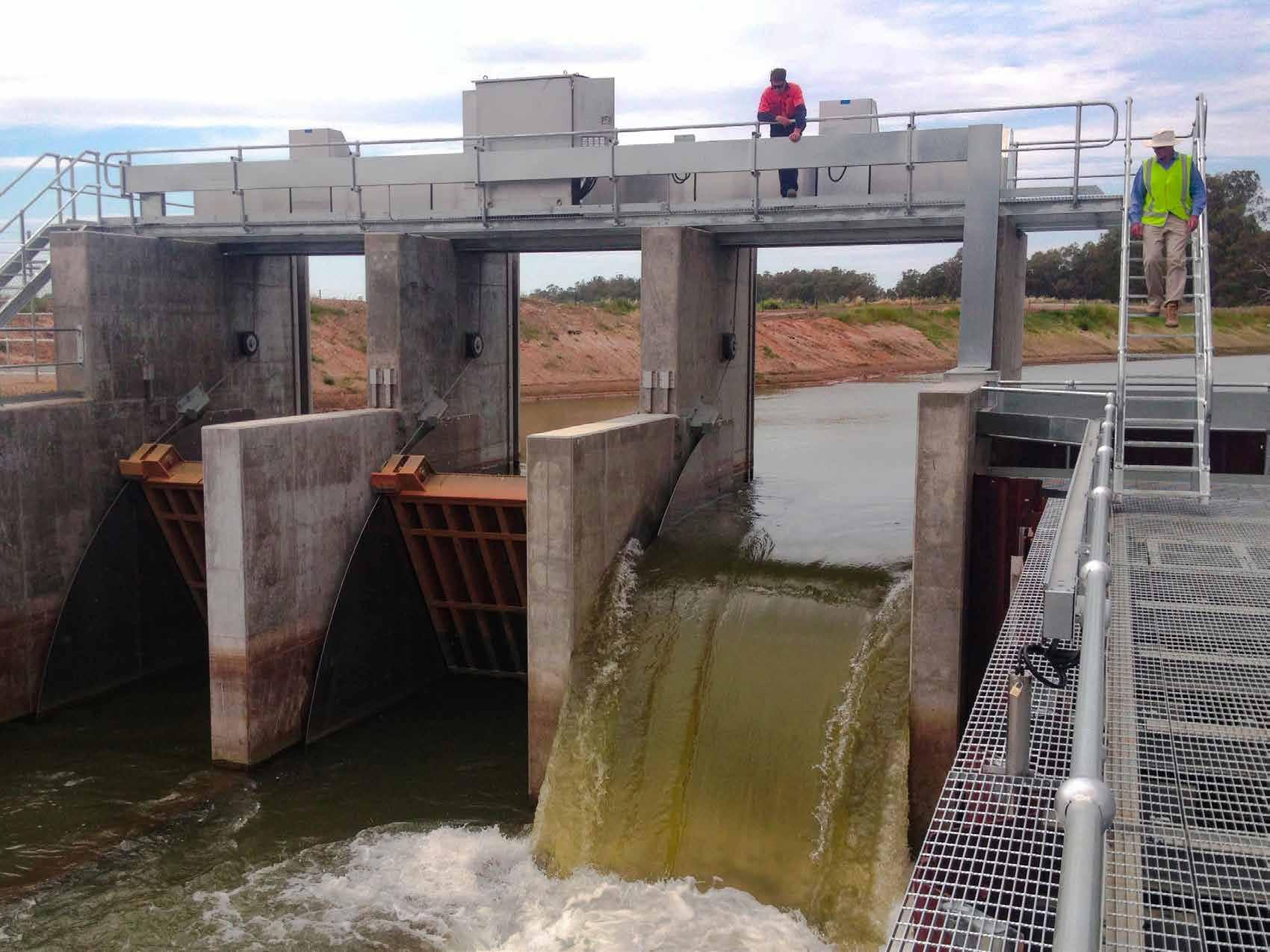

• 3.5m wide x 4.5m high LayFlat gates • The large LayFlat gate leaves are driven by hydraulic actuation.

Engineering and quality scrutiny required unique features including ⌀500mm cast stainless steel rope drums, ⌀28mm 7 x 37 G316 stainless steel cables and a worm gear box with winch design output torque of 90,000Nm of torque and 461 kN lifting capacity (46tn.)

• 3340mm wide x 4402mm high marine grade aluminium segmented roller stoplogs (in three 1500mm segments) including embedded stainless steel frames, certified stoplog lifting frame and stoplog storage rack. • Stainless steel sidewinder gates with electric actuators. 300mm wide, up to 4m high.

• 1580mm wide x 2020mm high marine grade aluminium stopboard in a stainless steel frame.

• 2000mm wide x 2209mm high undershot gates.

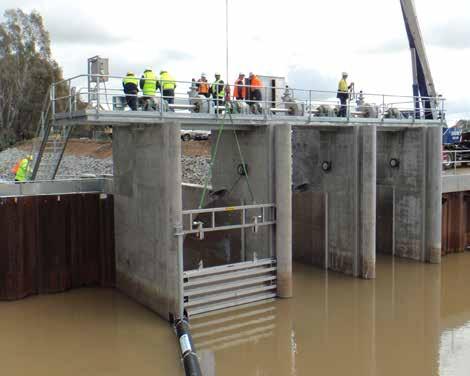

• The large gates were transported in sections and assembled on site.

• AWMA segmented stoplogs were supplied with rollers to allow insertion into the waterway under full flow conditions should emergency isolation be required.
