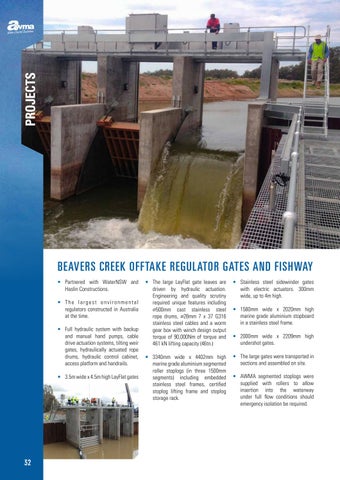

PROJECTS BEAVERS CREEK OFFTAKE REGULATOR GATES AND FISHWAY • Partnered with WaterNSW and Haslin Constructions. • The largest environmental regulators constructed in Australia at the time. • Full hydraulic system with backup and manual hand pumps, cable drive actuation systems, tilting weir gates, hydraulically actuated rope drums, hydraulic control cabinet, access platform and handrails. • 3.5m wide x 4.5m high LayFlat gates
32
• The large LayFlat gate leaves are driven by hydraulic actuation. Engineering and quality scrutiny required unique features including ⌀500mm cast stainless steel rope drums, ⌀28mm 7 x 37 G316 stainless steel cables and a worm gear box with winch design output torque of 90,000Nm of torque and 461 kN lifting capacity (46tn.)
• Stainless steel sidewinder gates with electric actuators. 300mm wide, up to 4m high.
• 3340mm wide x 4402mm high marine grade aluminium segmented roller stoplogs (in three 1500mm segments) including embedded stainless steel frames, certified stoplog lifting frame and stoplog storage rack.
• The large gates were transported in sections and assembled on site.
• 1580mm wide x 2020mm high marine grade aluminium stopboard in a stainless steel frame. • 2000mm wide x 2209mm high undershot gates.
• AWMA segmented stoplogs were supplied with rollers to allow insertion into the waterway under full flow conditions should emergency isolation be required.
