3 Year Warranty Matt White finish

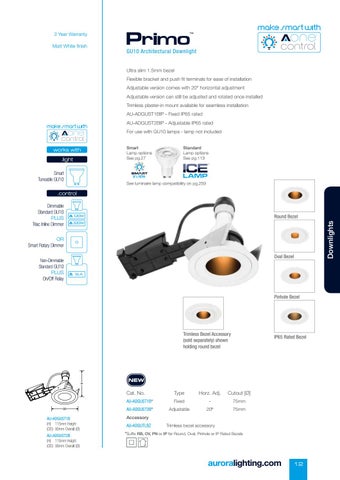

GU10 Architectural Downlight Ultra slim 1.5mm bezel Flexible bracket and push fit terminals for ease of installation Adjustable version comes with 20° horizontal adjustment Adjustable version can still be adjusted and rotated once installed Trimless plaster-in mount available for seamless installation AU-ADGUST1BIP - Fixed IP65 rated AU-ADGUST2BIP - Adjustable IP65 rated For use with GU10 lamps - lamp not included
works with .light Smart Tuneable GU10
Smart Lamp options See pg.27
Standard Lamp options See pg.113
See luminaire lamp compatibility on pg.259
.control
Round Bezel
120W 320W
OR Smart Rotary Dimmer Oval Bezel
Non-Dimmable Standard GU10
PLUS On/Off Relay
16 A
Pinhole Bezel
Trimless Bezel Accessory (sold separately) shown holding round bezel
IP65 Rated Bezel
H
OD
AU-ADGUST1B (H) 115mm Height (OD) 90mm Overall (Ø) AU-ADGUST2B (H) 115mm Height (OD) 90mm Overall (Ø)
Cat. No.
Type
Horz. Adj.
Cutout [Ø]
AU-ADGUST1B*
Fixed
-
75mm
AU-ADGUST2B*
Adjustable
20º
75mm
Accessory AU-ADGUTLBZ
Trimless bezel accessory
*Suffix RB, OV, PN or IP for Round, Oval, Pinhole or IP Rated Bezels
auroralighting.com
12
Downlights
Dimmable Standard GU10 PLUS Triac Inline Dimmer
