Edition Two

Page 236

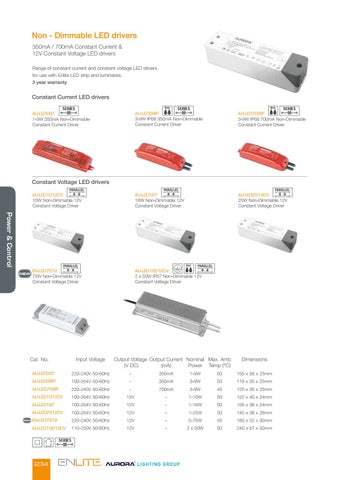

Non - Dimmable LED drivers 350mA / 700mA Constant Current & 12V Constant Voltage LED drivers Range of constant current and constant voltage LED drivers for use with Enlite LED strip and luminaires. 3 year warranty

Constant Current LED drivers AU-LED09IP 3-9W IP68 350mA Non-Dimmable Constant Current Driver

AU-LED709IP 3-9W IP68 700mA Non-Dimmable Constant Current Driver

AU-LED1012CV 10W Non-Dimmable 12V Constant Voltage Driver

AU-LED16T 16W Non-Dimmable 12V Constant Voltage Driver

AU-LED2512CV 25W Non-Dimmable 12V Constant Voltage Driver

EN-LED7512 75W Non-Dimmable 12V Constant Voltage Driver

AU-LED10012CV 2 x 50W IP67 Non-Dimmable 12V Constant Voltage Driver

AU-LED09T 1-9W 350mA Non-Dimmable Constant Current Driver

Constant Voltage LED drivers

Power & Control Cat. No.

Input Voltage

Output Voltage Output Current Nominal Max. Amb (V DC) (mA) Power Temp (°C)

Dimensions

AU-LED09T

220-240V 50-60Hz

-

350mA

1-9W

50

156 x 38 x 25mm

AU-LED09IP

100-264V 50-60Hz

-

350mA

3-9W

50

118 x 35 x 25mm

AU-LED709IP

220-240V 50-60Hz

-

700mA

3-9W

45

120 x 35 x 25mm

AU-LED1012CV

100-264V 50-60Hz

12V

-

1-10W

50

122 x 40 x 24mm

AU-LED16T

100-264V 50-60Hz

12V

-

1-16W

50

156 x 38 x 24mm

AU-LED2512CV

100-264V 50-60Hz

12V

-

1-25W

50

145 x 38 x 28mm

EN-LED7512

220-240V 50-60Hz

12V

-

5-75W

45

180 x 52 x 30mm

AU-LED10012CV

110-250V 50-60Hz

12V

-

2 x 50W

50

240 x 67 x 50mm

234

LIGHTIN G G R O U P
