50,000 hours (L80) 5 Year Warranty
Constant Connected Illumination See pg.246-249 for compatibility table

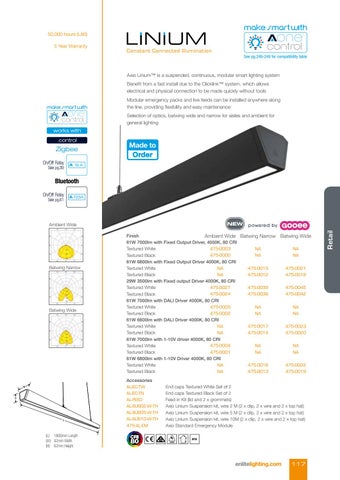

Axio Linium™ is a suspended, continuous, modular smart lighting system Benefit from a fast install due to the Clicklink™ system, which allows electrical and physical connection to be made quickly without tools Modular emergency packs and live feeds can be installed anywhere along the line, providing flexibility and easy maintenance Selection of optics, batwing wide and narrow for aisles and ambient for general lighting
works with .control
Zigbee On/Off Relay See pg.39
16 A
Bluetooth See pg.61
12.5A
Ambient Wide
Batwing Narrow
Batwing Wide
W
H
L
powered by
Finish Ambient Wide Batwing Narrow 61W 7000lm with Fixed Output Driver, 4000K, 80 CRI 475-0003 NA Textured White 475-0000 NA Textured Black 61W 6800lm with Fixed Output Driver 4000K, 80 CRI NA 475-0015 Textured White NA 475-0012 Textured Black 29W 3500lm with Fixed output Driver 4000K, 80 CRI 475-0027 475-0039 Textured White 475-0024 475-0036 Textured Black 61W 7000lm with DALI Driver 4000K, 80 CRI 475-0005 NA Textured White 475-0002 NA Textured Black 61W 6800lm with DALI Driver 4000K, 80 CRI NA 475-0017 Textured White NA 475-0014 Textured Black 61W 7000lm with 1-10V driver 4000K, 80 CRI 475-0004 NA Textured White 475-0001 NA Textured Black 61W 6800lm with 1-10V Driver 4000K, 80 CRI NA 475-0016 Textured White NA 475-0013 Textured Black Accessories AL-EC-TW AL-EC-TN AL-FEED AL-SUS02-W-TH AL-SUS05-W-TH AL-SUS10-W-TH 475-AL-EM
Batwing Wide NA NA 475-0021 475-0018 475-0045 475-0042 NA NA 475-0023 475-0020 NA NA 475-0022 475-0019
End caps Textured White Set of 2 End caps Textured Black Set of 2 Feed in Kit (lid and 2 x grommets) Axio Linium Suspension kit, wire 2 M (2 x clip, 2 x wire and 2 x top hat) Axio Linium Suspension kit, wire 5 M (2 x clip, 2 x wire and 2 x top hat) Axio Linium Suspension kit, wire 10M (2 x clip, 2 x wire and 2 x top hat) Axio Standard Emergency Module
(L) 1800mm Length (W) 92mm Width (H) 62mm Height
enlitelighting.com
117
Retail
On/Off Relay
