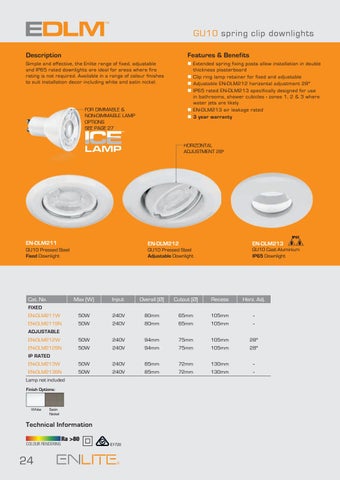

GU10 spring clip downlights Description
Features & Benefits
Simple and effective, the Enlite range of fixed, adjustable and IP65 rated downlights are ideal for areas where fire rating is not required. Available in a range of colour finishes to suit installation decor including white and satin nickel.
n n Extended spring fixing posts allow installation in double thickness plasterboard n n Clip ring lamp retainer for fixed and adjustable n n Adjustable EN-DLM212 horizontal adjustment 28° n n IP65 rated EN-DLM213 specifically designed for use in bathrooms, shower cubicles - zones 1, 2 & 3 where water jets are likely n n EN-DLM213 air leakage rated n n 3 year warranty
FOR DIMMABLE & NON-DIMMABLE LAMP OPTIONS SEE PAGE 27
HORIZONTAL ADJUSTMENT 28o
EN-DLM211
EN-DLM212
GU10 Pressed Steel Fixed Downlight
GU10 Pressed Steel Adjustable Downlight
Cat. No.
EN-DLM213
GU10 Cast Aluminium IP65 Downlight
Max (W)
Input
Overall [Ø]
Cutout [Ø]
Recess
Horz. Adj.
EN-DLM211W
50W
240V
80mm
65mm
105mm
-
EN-DLM211SN
50W
240V
80mm
65mm
105mm
-
EN-DLM212W
50W
240V
94mm
75mm
105mm
28°
EN-DLM212SN
50W
240V
94mm
75mm
105mm
28°
EN-DLM213W
50W
240V
85mm
72mm
130mm
-
EN-DLM213SN
50W
240V
85mm
72mm
130mm
-
FIXED
ADJUSTABLE
IP RATED
Lamp not included Finish Options:
White
Satin Nickel
Technical Information COLOUR RENDERING
24
Ra >80
