TPMS diagnosis and service tips

Advice from parts & equipment manufacturers

As you know, tire pressure monitoring systems (TPMS) have been mandatory on new vehicles since 2008. Servicing these systems involves sensor replacement, proper programming and relearning. However, there are a number of common misconceptions and misunderstandings of how some of these systems operate, especially regarding diagnosis, inspection, handling and vehicle-specific procedures. In this article, we’ll share advice and tips regarding TPMS service.

By Mike Mavrigian

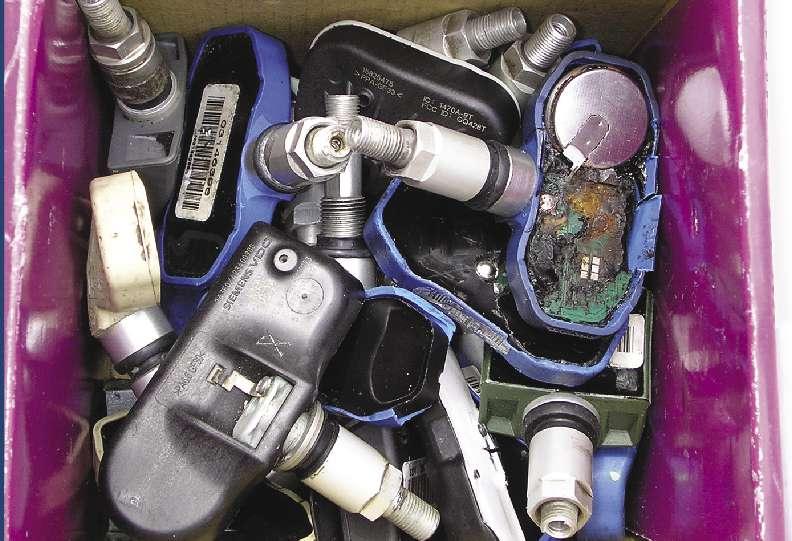

Likely the leading cause of system failures lies with the condition of the sensor batteries. Sensor batteries are expected to last around six to 10 years, with newer sensors lasting longer due to battery improvements.

The rule of thumb is that once a single sensor goes bad, it’s likely that the others are soon to fail as well.

Make this an educational opportunity for the customer. Explain that sensor batteries have a finite lifespan. Let them know that it’s likely time to replace the other sensors. Otherwise they may need to return to the shop once another battery dies.

Always give them the option of changing them now or letting them know that they will likely need sensors in the not-too-distant future.

Replacing all the sensors at the same time avoids having the customer face another tire/ wheel disassembly, remount and balance in the near future simply due to dying or dead sensor batteries.

In addition to the ability to perform programming and relearning, TPMS scan tools are available that allow the technician to read individual tire pressure and individual sensor battery condition on-screen, alerting you of low/bad battery state.

Not the batteries?

Other issues can arise that have nothing to do with sensor battery life. One or more sensors may have trouble getting the signal through to the module, which could be a damaged antenna or a wiring issue, or a bad module.

EMI (electromagnetic interference) also can cause issues that disrupt the TPMS signals, such as another wiring harness running too close or touching the TPMS harness, similar to an engine misfire when (depending on the application) two spark plug wires run against each other.

Depending on the design of the vehicle’s electrical system, keyless entry systems also can present problems if TPMS signals run through the keyless entry system, where a keyless system glitch can in turn prevent the correct TPMS signals from communicating properly.

An example of two fixed-value in.-lb. torque application tools, one labeled at 65 in.-lbs. and another at 40 in.-lbs. While 65 in.-lbs. is theoretically equal to 5.41 ft.-lbs., DO NOT be tempted to try using a ft.-lb. torque wrench dialed “a bit below” the tool’s lightest 10 ft.-lbs. mark in an effort to “guesstimate.” You absolutely must use torque-limiting tools calibrated to the specific torque break-away limit to prevent damage.

Don’t guess on torque!

This basic service procedure is critical and cannot be over-emphasized. TPMS sensors can easily be damaged by improper tightening of stems, valve cores and/or caps. Seriously... this is no joke. Tightening “until it feels good” simply doesn’t cut it.

All sensor and sensor service kit makers provide torque specifications for core to stem, stem hex nut to wheel and replacement stem to sensor installations.

When a specification calls for 40 in.-lbs., for example, you must use a quality, and properly calibrated, torque wrench that will release torque at 40 in.-lbs.

If you don’t want to use the correct tools and follow the correct torque specs, you shouldn’t be servicing TPMS. Since TPMS sensors require relatively light torque specified in inch-pound value, you need torque-application tools that are specifically designed for these applications.

You can certainly source these from a major tool supplier, but obtaining specialty TPMS torque tools is best done through your supplier of TPMS sensors, since they offer torque-application and specialty tools that are specifically designed for TPMS service. Even pre-set 4 in.-lbs. valve core torque wrenches are available.

We can’t over-emphasize the need to follow correct tightening values. The specified torque values must be followed to avoid valve, core and or sensor damage.

TPMS sensor-related torque values are based on dry-thread torque. Do not apply lubricant to any threads, as this can reduce friction during tightening and can result in unintentional over-torquing.

Tips from AirTech TPMS

There are no TPMS shortcuts. Following are steps to follow when troubleshooting TPMS.

TPMS dashboard icon: solid or blinking? A solid icon indicates low or high tire pressure, or vehicle relearn required. A blinking light indicates a TPMS system error. This could indicate a wrong or dead sensor, or relearn required.

Confirm if the vehicle is equipped with a spare wheel/tire assembly, and confirm if the spare has a sensor.

1. Inflate all tires to match the vehicle placard (including spare, if so equipped). Start the engine. If the warning light is still on, some vehicles require a short drive period. If tire pressure is not the issue but the light is still on, go to Step 2. 2. Scan all sensors with a TPMS tool. Verify that all sensors are functioning. If you can’t obtain correct data from a sensor, the battery may be dead. Write down tire position and the last 5 digits of the sensor ID. Verify that there are no duplicates. If you know the sensor brand, try to modify the sensor ID. 3. Perform a valid relearn. Be sure to follow the specific relearn procedure for the vehicle. There are many sources of abbreviated procedures for a specific year/make/model, but some models may differ. The wrong relearn procedure simply won’t work.

Tips from ATEQ TPMS

To avoid issues with your TPMS sensors, be sure to take the proper precautions to keep the sensors functioning properly. Some common practices include:

– Avoid flat tire repair sprays. Some brands display “safe to use with TPMS sensors.”

However, the glue can stick to the sensor and prevent it from working properly. – Avoid over-torquing the TPMS valve stem nut. This can easily break the sensor stem. – When cleaning the TPMS sensor port during inspection, don’t allow any sharp objects to puncture the diaphragm, as this can damage the sensor. – For clamp-in sensors, always use new rubber seals between the sensor and the wheel to prevent sensor damage or leaks. For example, never re-use grommets or O-rings for clamp-in sensors. They develop set dimensions that eventually become permanent to the TPMS sensor. – When replacing a snap-in sensor, always replace the valve.

If you cannot read tire pressure information from the vehicle using your TPMS tool, first determine which TPMS light is on... a malfunction indicator lamp MIL or telltale light. The MIL will blink when the ignition is turned on, indicating a failure of operating the TPMS, such as a dead sensor. The telltale light will remain solid to warn the driver when their tire pressure is below 25% of the placard pressure.

Next, determine if the vehicle has a direct or indirect TPMS. Direct TPMS uses TPMS

By taking advantage of a torque-limiting tool that is preset to one specific in.-lb. value, there is no need to adjust the tool. Apply rotation until the application torque releases. sensors inside the wheels to report pressure data to the vehicle’s ECU in real time. Direct systems include domestic, Asian and European vehicles. An indirect system uses an ABS to monitor the speed of the wheel and communicate with the ECU. Indirect systems include some Asian and European vehicles.

There are ways to determine whether the vehicle is equipped with a direct or indirect TPMS.

– Use your TPMS tool to look up the make, model and year of the vehicle to determine the relearn procedure. It should list whether your system is a direct TPMS (auto, stationary or OBD II relearn procedure) or indirect TPMS. – Refer to the Tire Industry Association (TIA) or your service information provider relearn chart to determine the type of system. – Demount the tire to verify which system you are working with. If there is no TPMS sensor in the wheel, and the vehicle is 2008-present year, the vehicle has an indirect TPMS. If the vehicle is older than 2008, indirect TPMS were available in many vehicles, so be sure to visually inspect the valve. A TPMS sensor valve has a visible “shoulder” shape on the valve, where a valve with no TPMS sensor attached does not have the same shape and is easier to physically move back and forth. If you are working with a direct TPMS and your TPMS tool still does not display the vehicle make, model and year, you may want to update your tool to the latest software version.

Tips from Autel Intelligent Technology Corp.

One of the most common TPMS tool feature purposes that customers don’t understand is the difference between a sensor relearn and a sensor program procedure. They think programming and relearn are the same thing, but they are two different procedures that offer different benefits.

Users don’t understand the fundamental differences between the features and why one is more useful than the other.

The ability for a sensor to provide both

A seemingly straightforward tightening of a screw that secures a rubber valve stem to a sensor still requires adhering to the specific torque value listed by the sensor or stem maker. Never take any TPMS sensor tightening requirement for granted. Follow the specs!

options is an important profit saver, but better TPMS tools provide a clear understanding why a relearn procedure saves time and the ability to program a sensor helps shops cut down on their sensor inventory stock.

Tips from Bartec USA

The following information is provided by Scot Holloway of Bartec USA.

As we celebrate the 10-year anniversary of TPMS being a 100% mandate in the U.S., there still remains plenty of obstacles relating to the diagnostics and service of these safety systems.

1. Keeping the TPMS tool up-to-date: Vehicle coverage, new sensors and better features are always coming. Keeping the tool current is very important and can often mean the difference between a happy customer and one that’s talking about you on the internet. 2. Retrieving information from the tool: The collection of critical inspection, diagnostic and vehicle data are now part of the process for some TPMS tools. 3. Length of time to complete TPMS service: We often hear that dealing with TPMS service takes too long, whether it be extra steps dealing with replacement sensors or

redundant steps of looking up a customer, knowing the vehicle make, model and year at the point of sale, only to have to set up the tool separately. 4. Changing the recommended inflation pressure: We hear loads of stuff about this topic, mostly whether or not it can be changed, and this remains a significant obstacle. TPMS placard changing is necessary if plus-sizing or “up-fitting” tires. 5. What kind of sensor is inside the wheel? A few years ago, we knew that the vehicle was fitted with OE sensors, but you cannot be so sure today, since the wheels may have been serviced previously. Do you have the proper service kit or tools for the possible aftermarket sensor that’s inside the wheel?

Tips from Continental VDO

Listed here is an assortment of tips that refer to TPMS service, provided by Sean Lannoo, sales technical training specialist, and Lindsay Smith, product manager.

– Refer to the placard pressure when inflating tires, not the max pressure listed on the tire sidewall. – Use the 10th digit of the vehicle VIN to

identify vehicle model year, not the build date. – Make sure that the shop has an assortment of service kits in-house for easy access. – Protect the wheel when pulling the valve stem through. More rubber stem sensors are used on aluminum wheels. – Follow the specific vehicle relearn procedure:

• Some vehicles must be driven immediately after relearn for a length of time at or above a specific speed. • Some vehicles must sit for a predetermined time after relearn before driven for a length of time at or above a specific speed. • Some vehicles require sensors to be triggered a second time after relearn. • Be sure to keep your TPMS tool fully charged and updated with the latest software. • When triggering sensors, it is possible that

you might have to rotate the tire so the vehicle can receive the RF (re: interference from body panels, modules, brake components and steering/suspension components). • If one sensor battery is dead, the others are likely close (if all were installed at the same time). • Always change service kits to prevent ghost leaks and comebacks. • Some GM vehicles must be put into Service

Mode in order to access the relearn mode. • Newer Fords have Auto-Relearn capability. • Newer Fords have a tire rotation relearn and a sensor replacement relearn. The tire rotation relearn will not learn a new sensor ID.

– Sensor battery life typically lasts seven to 10 years. These batteries are not replaceable as they are fully enclosed in the sensor body. Attempting to replace the battery can compromise the integrity of the sensor assembly, ultimately leading to system failure. – Aluminum stem corrosion must be addressed. Regularly checking the condition of the valve stem and replacing the service kit hardware during every tire service are ways to reduce the risk of corrosion issues. It is also important to use only hardware that is approved for use with TPMS sensors. For example, older non-TPMS valve cores that are made of brass cannot be used with TPMS valve stems. Nickel plated valve cores must be used in order to prevent corrosion.

TPMS sensor manufacturers offer individual tools as well as complete tool kits that are dedicated specifically for TPMS service.

Tips from Dill Valves

The information here on aluminum stem corrosion is provided by Tyson Boyer of Dill Valves/Dill Air Control Products.

Aluminum is a lightweight

alloy but is susceptible to long-term corrosion, similar to other aluminum vehicle components. Aluminum tire pressure monitoring valves must be inspected during every tirerelated service, as they may corrode over time, leading to potential failure.

While some OEM sensors cannot be retrofitted with a new valve, note that some OEM aluminum valve stems are not permanently attached to the sensor and may be serviced without the need to replace the sensor. These two-piece sensor and valve stems must be replaced during tire service or replacement when corrosion is evident, allowing the continued use of a good sensor. Dodge, Chrysler, Jeep, BMW and VW, as examples, feature sensors equipped with a replaceable aluminum valve stem.

Service kits are available that include the valve stem. The valve stem attaches to the sensor body by inserting the valve head from the bottom side on the front of the sensor before installing into the wheel. The hex nut is then installed and tightened to a torque value of 58 in.-lbs.

The most common type found on makes such as Audi, BMW, Mini and VW is installed into the wheel first in order to obtain the proper alignment of the sensor. Using a mounting pin to hold the base of the stem, tighten the hex nut to a value of 40 in.-lbs. Next, attach the sensor to the base of the stem and torque the screw to 35 in.-lbs.

Kits are available that include a locking hex nut that features a shear ring internal to the nut that will shear off as the hex nut is tightened short of full torque value, ensuring that the valve stem and sensor are locked together. The ring is sheared prior to reaching 35 in.-lbs., after which the nut is then final tightened to 35 to 40 in.-lbs.

Some OE designs feature an easy to replace valve stem. The stem should drop into the clip at the narrowest section of the threads, and then pulled into place. Once you install it into the wheel, align the flat surface of the washer to the underside of the sensor body.

Slide the rubber grommet on the stem with the angle edge up and straight edge down. Install the hex nut while adjusting the valve to

Note the cracking and deterioration of this TPMS sensor stem-to-wheel grommet. This may have occurred as a result of age and temperature or by over-tightening, or a combination. Even if a grommet appears to be in good condition visually, never assume condition,. Always replace the grommet whenever the sensor is serviced. the wheel angle and torque it to 71 in.-lbs. If the grommet and washer are of the one-piece design, there will be no flat side so alignment is not important. This simple to install OE stem is found on numerous European, Asian and domestic vehicles.

Kits for Dodge six-wheel dually applications with alloy wheels may feature inner duals equipped with a rubber valve stem. During replacement, be sure to torque the sensor to the valve stem first with the hex screw at 12 in.-lbs. After inserting into the wheel hole, install the nut and torque between 80 and 125 in.-lbs.

Always verify the proper part for the application you are working on before installing and follow all instructions that are provided with replacement TPMS components.

Editor’s note: It is critical to pay attention to the specified torque values listed for any given TPMS sensor. Under- or over-tightening can easily result in leaks and/or sensor damage. NEVER guess at torque value. Be sure to carry the inch-pound torque wrenches that are dedicated for TPMS service.

Editor’s note: Do not be tempted to apply any type of lubricant to aluminum stems or hex nuts or any threaded connection on the

for a source for the warning light. Toyota and commonly a “set” button that reassigns the

tool and relearned with a scan tool before the system will operate normally again. In the case of a Set 1 and Set 2 system, the system will need to be relearned twice...once for Set 1 and once for Set 2, including the spare. If tire/wheel assemblies are taken from a different year of a similar model vehicle, improper sensors may learn to the vehicle, but may report the wrong tire pressure. Correct If you’re under the assumption that an aluminum TPMS valve stem can’t be damaged by over-tightening a cap, think again. Here’s an example. sensors must be installed. For programsensor. There will be no advantage in terms mable sensors, the correct year, make and of reducing corrosion, and the application of model must be input. thread lube may result in incorrect torque. Some aftermarket programmable sensors All TPMS sensor threaded torque values are “lock” after the tire has been inflated. It is based on dry threads. important to program the sensor before

Use of a lubricant can easily result in installing the sensor to the rim. After airing over-torquing. up and installation, the relearn process can be followed normally. Tips from JS Products Inc. Many technicians get confused as to the

The following information was provided by difference between “programming” and JS Products’ Michael Christopherson. “relearning” the TPMS sensors. Programming

Toyota and Lexus a protocol and ID previous to installation.

Toyota and Lexus vehicles commonly have Relearning is a process of the vehicle system a sensor in the spare that will trigger a TPMS recognizing the IDs and the positions of each light. Always check the spare when looking wheel. Lexus vehicles may have a Set 1 and Set 2 Ford button. This is so customers can run winter Newer Ford vehicles can be manually tires. Sometimes the button is pushed by learned or they may auto-learn wheel posimistake, generating a code. It may be necestions. With auto-learn, the wheels may learn sary to push the switch to turn the TPMS to the wrong locations. This is especially true light off. with aftermarket sensors. A best practice is to

On Toyota and Lexus vehicles there is manually learn wheel positions. is when a programmable sensor is assigned tire positions when tire/wheel assemblies are Kia and Hyundai rotated. If a new sensor is added to the system Before installing programmable sensors and the button is pushed before a scan tool in Kia and Hyundai vehicles, verify that the relearn process, it will lock the system. The sensor is applicable to the system, as there system will need to be unlocked with a scan are High Line and Low Line systems. High

Line systems will display the pressure at each wheel.

Low Line systems feature a TPMS lamp that indicates a problem in the system. The applicable sensors are different even in the same model year.

General Motors

Certain GM vehicles require the use of the key fob or factory tool to put TPMS into the learn mode. Make sure the customer has the key fob and verify that it is broadcasting before starting service.

Tips from Schrader/Sensata Technologies

The following information is provided by Jacki Lutz at Schrader/Sensata Technologies.

“Our call center’s number 1 call is always concerning the difference between programming vs. relearning a sensor,” says Lutz.

“Some of our customers don’t understand the difference and when instructed to program a sensor, they try to relearn the sensors, causing errors.

“Our number 2 call is in regards to relearning the vehicle, in terms of how to relearn the vehicle and the importance of following the unique application instructions to every last detail.”

Programming and relearning

Editor’s note: Our intent is not to promote any specific brand of sensor. However, following is an example of the steps required to program and relearn an aftermarket programmable sensor.

Lutz offers the following advice.

Programming: Depending on the aftermarket brand and model of sensor, sensors may be pre-programmed or may be initially blank and must be programmed to the specific make, model and year vehicle, with the use of a programming tool.

The TPMS tool programs the sensor with the vehicle-specific protocol so that the sensor will communicate with the vehicle’s receiver. The sensor can either be created with a new ID or it can be copied from an existing sensor and programmed onto the new sensor.

Reprogramming a TPMS to accept a change in tire pressure must include a new modified placard indicating the supplemental tire cold inflation pressure. In this example, the original placard indicates that the vehicle was originally equipped with 225/50R17 tires with a factory-recommended inflation pressure of 31 psi. The modification placard shows a change to 305/35R24 tires, with an inflation pressure of 41 psi.

Note that other sensors are available that are pre-programmed and require no in-shop programming and are ready for installation and relearning.

Various sensor designs are available from aftermarket manufacturers.

Relearning: A relearn is required whenever a new sensor ID is introduced or when the wheel/tire assemblies are rotated.

The vehicle’s ECU records the sensors (four or five, depending if a spare is in the vehicle).

This allows the unique sensor IDs are correctly recognized by the vehicle’s ECU. On vehicles with a pressure-by-location function (where the system lets you know which tire is low), the ECU is now ready to display the correct wheel location of each tire’s pressure. Using a TPMS scan tool, you’re able to relearn the sensor IDs to the vehicle’s ECU.

The tool will wake up (ping) each sensor, one at a time (LF, RF, RR, LR, spare) and store individual sensor IDs.

Tips from Standard Motor Products Inc. (SMP)

Today’s motorists don’t trust what they don’t understand, which is why there’s such a great opportunity for service technicians to help with TPMS. Common questions that need answers include, “What sensors should I use — OE or universal?”, “When should I clone a sensor and why?”, “When should I perform a ‘re-learn’ on a vehicle?”, “What is the best scan tool to use?”, and maybe the most critical question, “When should I talk to my customer about TPMS?”

If you want to position your business as an expert in this service category, you should be prepared to talk TPMS. Here are a few expert tips:

1. First perform an inspection

When a customer visits your repair facility for a tire replacement, tire rotation, or TPMS-related concern, your first action before performing any work should be to obtain their information and conduct a quick system check. This extra effort up front will help you explain potential damages later and, most importantly, ensure that your customer is pleased with their service experience. Here’s what to do:

To start, perform a bulb check by turning the ignition key from OFF to RUN. All of the warning lamps on the dash should illuminate and go off in approximately 5 seconds. If not, there’s an error.

Lighten Up Your TPMS Inventory!

Single SKU combines 314.9, 315 & 433 MHz Over 96% coverage Aluminum clamp-in & rubber snap-in stem options

2. Know the difference between a solid and flashing light

If during your bulb check the warning lamps don’t illuminate and go off in 5 seconds, here’s what it means:

Error #1: Low Tire Pressure Telltale (Solid Light)

If the light remains illuminated, the TPMS system is indicating that one or more tires has an inflation error. Some vehicles (if the previous service provider performed a relearn) provide an additional message indicating the position of the fault. For low tires, check the placard on the vehicle to find the recommended pressure, fill up the tire accordingly, make sure the warning light goes out, and repair the cause of the leak.

OE quality from the trusted OE market leader

Check out our NEW website: SchraderSensors.com!

PERFORMANCE SENSORS

In n ov ati on D r i ven Si n c e 1 8 4 4 Tire Valves

Error #2: Malfunction Indicator Lamp (MIL) (Flashing Light)

If the light flashes for 60 to 90 seconds during a bulb check and then stays solid, there is a fault with the TPMS, such as the sensor, receiver, or module. Use a tool to retrieve Diagnostic Trouble Codes from the vehicle, or use a TPMS tool to read each sensor.

For more information on these procedures, refer to the videos on our YouTube channel at www.youtube.com/standardbrandparts.

3. TPMS relearn

The final step of any tire or TPMS-related work should be a TPMS relearn. This step will ensure that the correct ID numbers are stored in the proper location. In the event of a future fault, the relearn will indicate the correct position to the driver and future repair technician.

4. Keep an inspection sheet

Once the work is complete and the money is collected, it’s helpful to have an inspection sheet to show the customer. The inspection sheet should document as much A TPMS scan tool allows information as you to reprogram the TPMS possible, including tire pressure setting to customer inforaccommodate a change in mation, TPMS ID tire inflation as a result of a change in tire size. numbers, DTCs, and more. Also, you can use the inspection sheet to inform the customer that 1.) a relearn was performed, and 2.) they can feel safe knowing their TPMS system is functioning and reporting properly. In the end, this simple communication can go a long way toward ensuring a successful TPMS repair and a happy customer.

5. Don’t forget the service kit

The Tire Industry Association (TIA), U.S. Tire Manufacturers Association (USTMA), and the Motorist Assurance Program (MAP) require that every time a tire is removed from the wheel you should replace TPMS service parts such as the valve stems, seals, washers, nuts, valve cores and caps.

Advice and tips from Xtra Seal/Group 31 Inc.

The following advice and recommendations are offered by John Rice of Group 31 Inc.

All sensors must be programmed prior to installation. This would apply to universal programmable sensors as well as selectable programmable sensors.

All sensors must have a unique ID (no two can be the same on the same vehicle). Many universal programmable sensors allow the user to create a copy/clone of the OE sensor, and it’s important after the OE sensor is copied/cloned that no two sensors with the same ID end up being installed on the vehicle.

Many Audi, VW, Mazda and Honda vehicles feature indirect TPMS. Vehicles equipped with indirect TPMS do not have sensors in the wheels, therefore no sensor will be detected when trying to scan/activate/ wake-up the sensors.

Typically, the only service required is to inflate to the proper pressure and reset by pressing a reset button.

Not all vehicles relearn the TPMS by simply driving the vehicle after TPMS service. Actually, only about one-third of all vehicles are Auto Relearn. The remaining systems are either Stationary Relearn or OBD II Relearn.

Keep your TPMS tool(s) updated. It’s important to update your tools whenever updates are available.

Updates can include new vehicle applications, new features, software fixes, etc. By keeping your tools up-to-date you’ll always be ready for the next vehicle that enters your shop.

Some TPMS tool manufacturers charge an annual fee (typically $200-$300) for updates, but there are some TPMS tools available with lifetime free updates.

Keep sensors in stock. It is inevitable that the customer needing a replacement sensor

shows up at 5 p.m. on a Saturday, and the last thing you want is to have to wait for your local parts store to deliver a sensor, assuming that they are even able to do so.

With universal/programmable sensors, you can stock one to two sensors and be covered, with no huge inventory investment.

Don’t forget to replace the TPMS service kit. OEMs recommend replacing the TPMS sensor components (rubber valve for a snap-in style sensor) and core, cap, grommet, etc., if it is a clamp-in style sensor during every tire service (including installation of new tires, new wheels, tire repair, etc.).

These special sealing elements are designed for a single use and should be replaced periodically to ensure a proper seal between the sensor and wheel. Several distributors offer service kit assortments covering many vehicle applications.

There are even TPMS valve assortments that cover the ever-growing number of replacement rubber TPMS valves.

Note that a valve-mounted sensor (snap-in or clamp-in) can be used to replace a banded sensor.

NOTE: Ford has two relearns available, one for tire rotation which uses the hazard switch to initiate the relearn (listed in the owner’s manual), and another relearn when a new sensor has been introduced on a vehicle and uses a sequence of steps to put the vehicle into relearn mode by cycling the ignition switch (not listed in the owner’s manual).

Another tip: When one or more of the tires are significantly underinflated, the TPMS indicator will be solid at start-up. If a malfunction occurs (typically a sensor issue), the MIL will blink for 60 to 90 seconds and then go solid.

The first step in properly diagnosing a TPMS issue is to note what the TPMS light/ MIL tells you at start-up.

Upgrading tires and changing placard value

Apparently, the process is quite simple. For direct-TPMS, using the appropriate scan tool that allows this reprogramming function, select the mode that enables tire pressure value resetting (the steps will vary depending on the make and model of tool), change the factory OEM values to the new desired values, again following the prompts on the specific tool in use.

Once the system has been reprogrammed to alert based on a new inflation pressure value, fill out a supplemental tire cold inflation pressure placard and attach it near the factory tire placard. Include the new tire size, load rating and new cold inflation pressure.

Winter wheels/tires

It’s common for many customers to switch to dedicated winter tires for their region’s cold/snow weather period. Obviously, we have several options. The original or “summer” tires may be demounted and the winter tires of the same size may be mounted to the same wheels.

Since a tire service is being performed, it’s best to take the opportunity to install new TPMS sensors and service replacement parts to ensure proper sealing and

battery performance. The sensors may be pre-programmed or need to be programmed (depending on make and model of the sensors).

The winter tires should feature the same overall diameter as the OE tires in order for the ABS to function, so the winter tires may require the same inflation pressure as the OE tires. If not, the inflation pressure would have to be reprogrammed to the TPMS ECU.

Once the wheel and tire assemblies have been installed to the vehicle, the sensors need to be relearned.

However. some customers prefer to run different wheels with their winter tires, for two reasons: to save the OE or aftermarket alloy wheels from salt, ice and slush, and for the ability to run a narrower tire with a taller sidewall, which is better suited for snow and ice traction and handling as compared to a wider tire with a shorter and less-compliant sidewall.

Tire size would be based on finding a size that is equal or near-equal to the original tire overall diameter in order to provide the ABS module with the proper overall diameter and rotational distance, while being narrower and still providing a load index that is suitable for the vehicle.

For example, a vehicle is equipped with OEM alloy wheels and 205/55R16 tires. This size tire features an overall diameter of 24.9 inches. The customer wishes to move to steel wheels and a narrower winter tire with a taller sidewall.

One choice would be 15 x 6 or 6.5-inch wheels with 195/65R15 winter tires, which have an overall diameter of 25 inches, but with a narrower section width and taller sidewall.

In order for the TPMS to remain operational, TPMS sensors would need to be installed to the new steel wheels, using sensors that have stems compatible with the valve holes in the wheels. Once the sensors are programmed (along with any change to inflation pressure that may be needed), the assemblies are installed to the vehicle and relearned.

DO NOT be tempted to install any wheel with no TPMS sensor on any vehicle that was originally equipped with direct TPMS. The National Highway Safety Administration’s interpretation of the Motor Vehicle safety Act prohibits service providers from installing aftermarket tire and wheel assemblies without working TPMS sensors.

Depending on the state, the TPMS might not need to be functional in order to pass an inspection, but a shop is not allowed to omit the sensors on a vehicle that was equipped with TPMS.

From a purely functional aspect, if the winter wheels are not equipped with TPMS sensors, no sensor signal would be sent to the ECM, which will result in no system monitoring of tire pressure, and the TPMS warning light to remain on during the months of winter tire use.

However, a shop is not allowed to omit the sensors.

TPMS module replacement

After replacing modules that contain TPMS data, it is required to relearn TPMS data. It’s interesting to note that on Ford vehicles, proper module programming and TPMS relearning is required.

The vehicle’s dome lamp will flash until all needed programming and relearning is complete.

Tip for sensor programming

The best practice is to program sensors away from where other sensors in your inventory are stored. Multiple sensors might be programmed by mistake.

Typically, a flashing TPMS light indicates a TPMS fault and a solid light indicates a tire pressure issue. To make sure that there is not a system fault, cycling the key is necessary. Once driven for a time, the flashing light will go solid.

Cycling the key will reset the system and allow for either a solid or flashing light. It’s best practice to relearn the TPMS anytime the wheels are removed.

You never know if the “last guy” rotated the wheel/tire assemblies and did not perform a relearn.

Scan tools are available to allow activating, reading and relearning all known TPMS sensors.

Relearning tips

Once one or more TPMS sensors have been replaced, or a service such as tire/wheel rotation has been performed, a relearn procedure is likely required.

There are three basic types of relearns, depending on the make, model and year vehicle. These include auto-relearn, stationary relearn and OBD II relearn.

Auto Relearn applies to vehicles that are designed to learn sensor IDs without the need for a TPMS tool. Once the service has been performed, the vehicle simply needs to be driven for a predetermined amount of time in order for the system to reset.

Depending on the vehicle, this may require as little as 5 minutes to as long as perhaps 20 minutes. However, to prevent wasting your time, it’s advisable to first use a TPMS tool to trigger each sensor to verify that the sensors are functioning properly.

It should be obvious that all tires must first be inflated to the placard’s recommended pressure.

A Stationary Relearn allows sensor IDs to be transferred to the vehicle ECU while in the shop. This typically requires a TPMS tool or an OBD II scan tool.

An RF signal communicates with the ECU to inform the computer as to the location of each sensor wheel position.

According to ATEQ, an example is the 2014 Ford Escape that features a standard ignition. Inflate all tires to the specification, turn the ignition off, press and release the brake pedal, cycle the ignition off to run three times, finishing with the engine in the run position. Next, press and release the brake pedal again, and then turn the ignition to the off position.

Once again, cycle the ignition from off to run three times, finishing with the engine in the run position. At this point, the horn will sound twice (at least, it should).

Use the tool to activate the left front sensor, at which point the horn should sound once. Repeat this process for the right front sensor, followed by the right rear sensor, followed by the left rear sensor.

The sequence must be followed properly (LF, RF, RR, LR).

The OBD II Relearn requires a TPMS tool to transfer the new sensor IDs directly to the vehicle’s ECU.

With the tool connected to the OBD II port, each sensor is scanned, following the prompts on the tool.

The sensor IDs are then transferred to the ECU. Most Asian and European vehicles currently require the OBD II relearn procedure.

Referring to a 2011 Toyota Camry as an example, the procedure is as follows:

1. Inflate all tires to specification. 2. Read all sensor IDs using a TPMS/scan tool. 3. Connect the tool to the OBD port. 4. Reset the ECU using the tool. 5. Turn the ignition off, then to the on position. 6. Drive the vehicle at a speed of about 12 mph for about five minutes.

Again, this is merely one example. Always follow the procedure provided by the auto maker’s service manual or the instructions provided by the sensor and/or tool maker.

GM keyless entry/TPMS problem

Several GM models require the use of the keyless entry remote fob in order to perform a TPMS relearn. If the keyless entry system malfunctions, TPMS relearn may not be possible, as well as the dashboard information center showing TPMS faults.

A cause of the issue may be related to allowing the vehicle’s battery to drain. After

charging the dead battery, the issue may be

presented.

Apparently, the dead battery problem may

have caused the RCDLR (remote control door

lock receiver) and RKE (remote keyless entry)

transmitter to not function after the serial

data bus has gone to sleep.

The RKE transmitter rolling codes may become out of synch with the RCDLR, resulting in intermittent operation of the keyless entry system, poor RKE range and service tire monitor system message.

If the key fob(s) are inoperative and the TPMS is not reading correctly (dashes on all four tire readings), the technician may find DTCs C0775 (low tire pressure system sensors not programmed), C0569 (system configuration error), B3105 (keyless entry fobs not programmed) set in the RCDLR module. The technician may find that the TPMS sensors are unable to be programmed to the vehicle by adding or releasing pressure to the tires while in the TPMS learn mode.

According to GM, you need to reprogram the RCDLR with an updated software calibration using a Tech 2.

Once the module has been re-flashed, it may be keyless entry transmitter fobs, reconfigure the tire tire type and relearn all TPMS sensors.

If the Tech 2 cannot and the programming event ended with “error,” attempt to reprogram by selecting “remote control door lock receiver with E4399 error....pass thru only.”

However, if reprogramming does not work, may need to be replaced because it went to sleep and can no longer maintain its information. Another possible glitch with GM systems involves the addition of a two-way remote start option that may have been dealer-installed.

If the customer complains about having a constant or intermittent “service tire pressure system” message, along with key fob range

separately.

necessary to relearn all pressure placards and

establish communication with the RCDLR

the RCDLR module issues and/or remote start issues, check to see if a two-way remote start system has been added.

Possible trouble codes include C0750 (low LF tire pressure), C0755 (RF low pressure), C0760 (low LR pressure) and C0765 (low RR pressure).

Check for the proper placement of the remote start antenna and check for pinched wires between the antenna and the receiver. Antenna placement differs with the vehicle model, so check with the Accessories Installation Manual in the service manual for vehicle-specific antenna placement.

Apparently, a small change in antenna location can drastically decrease the operating range. If the antenna is damaged, it’s available

TPMS PARTS AND TOOL SOURCES

AirTech TPMS www.airtechtpms.com

ATEQ TPMS www.ateqtpmsusa.com

Autel Intelligent Technology Corp. www.autel.com

Bartec USA www.bartecusa.com

Continental Automotive Systems Inc./Continental VDO www.redi-sensor.com

Dill Air Control Products www.dillvalves.com

Hamaton Inc. www.hamaton-tpms.com

Huf North America www.huf-group.com JDI Dynamic/John Dow Industries www.dynamictpms.com

JS Products Inc. www.jsproducts.com

Regitar USA Inc. www.regitar.com

Revolution Supply Co./Oro Tek www.revolutionsupply.com

Schrader-Bridgeport International Inc./Sensata Technologies www.schraderintl.com

Standard Motor Products Inc. (SMP) www.standardbrand.com

Xtra Seal/Group 31 Inc. www.31inc.com

Instant information from ASP advertisers

You’re mere seconds away from receiving free product information. Just go to the website(s) listed to the right of each advertiser below and you’re there! Instant product information at your fingertips.

Of course, you can always use the Reader Service Card to the right and send it to us, and we’ll connect you to the advertiser.

Advertiser Page R.S # Quik-Link

Aftermarket Auto Parts Alliance Inc. 15 105 www.aspquiklink.com/11105

Autel

Automechanika Atlanta

Automotive Distribution Network 37

29

23 113

111

108 www.aspquiklink.com/11113

www.aspquiklink.com/11111

www.aspquiklink.com/11108

Bartec USA

Bosch Automotive Service Solutions

Brake Parts Inc.

Clore Automotive

Dealer Strategic Planning Inc. 45

IBC

OBC

27

49 116

118

119

110

117 www.aspquiklink.com/11116

www.aspquiklink.com/11118

www.aspquiklink.com/11119

www.aspquiklink.com/11110

www.aspquiklink.com/11117

Drew Technologies

Electronic Specialties Inc.

Federated Auto Parts

Innovative Products of America Inc.

Lang Tools

Mahle Aftermarket Inc.

Motorcraft

O’Reilly Auto Parts

Schrader Performance Sensors 7

25

5

19

17

IFC

11

9

43 103

109

102

107

106

101

104

115 www.aspquiklink.com/11103

www.aspquiklink.com/11109

www.aspquiklink.com/11102

www.aspquiklink.com/11107

www.aspquiklink.com/11106

www.aspquiklink.com/11101

www.aspquiklink.com/11104

www.aspquiklink.com/11115

Standard Motor Products Inc. 41 114 www.aspquiklink.com/11114

The bulletin applies to 2000-2010 Cadillac Escalade models. The service information and owners manual do not show a service interval for the 7.6, 8.6, 9.5, 9.75, 10.5 and 11.5-inch rear axles with or without G80 locking differential.

According to Cadillac, these axles do not need to be serviced under normal operation due to the synthetic fluid that is installed at the factory. As long as the fluid level is correct, there’s no need to change the gear lube.

Chevrolet RUBBED THE WRONG WAY

Some owners of 2009-2011 Chevy Traverse vehicles (as well as 2008-2011 Buick Enclave, 2007-2011 GMC Acadia and 2007-2010 Saturn Outlook) may complain about an intermittent no-crank/no-start, lift gate inoperative and/ or warning lights on. Another concern may be that there is no communication on the low speed LAN with any combination of the following codes set: U0073, U0140, U0151, U0155, U0159, U0164, U0170, U0184, U0194, U0198, U0214 and U0249. Note the two possible areas for wiring chafing. Inspect the wiring harness at the base of the left B pillar for chafing that may result from rubbing as the harness routes along the floor sheet metal.

There are two areas of concern: One is at the rear of the front door opening. The other is at the front of the rear door opening. If necessary, peel the tape from the area and look for

Cadillac LIFELONG LUBE?

any damaged wires. Repair as necessary.

Acura OVERLY SENSITIVE ACURA

This bulletin applies to all 2000 and later Acura models with SRS. The OPDS (occupant position detection system) sensors in the front passenger seat back pad are very sensitive and can set SRS DTC 15-3 (faulty OPDS sensor) or 86-11 (faulty OPDS seat back sensor) if they are exposed to even small amounts of electronic interference.

Some electrical devices that plug into the accessory power socket, especially those using a power inverter/converter, can interfere with the seat back sensors and cause a false DTC. According to Acura, even fluorescent lights can cause this when placed close to these sensors.

Find out if the customer is using any plug-in electrical devices or fluorescent lights near the front passenger seat. Typical plug-in devices include laptops, DVD players, cell phone/laptop charging units, A/C inverters, etc.

If the answer is yes, clear the DTC and let the customer know how sensitive these plug-ins can be and to advise them not to use such items.

Volkswagen VW AUXILIARY HEATER TIP

This bulletin applies to all Volkswagen TDI diesels. The auxiliary heater is designed to improve the heating performance under certain conditions via three glow plugs in the coolant flange.

If just one of the glow plugs becomes

defective, the entire flange with the three glow plugs must be replaced to avoid coolant leaks.

Ford FAULTY FIESTA FUSE

Some 2011 Ford Fiesta vehicles may exhibit a MIL on with DTC U029F set in the PCM, and/or a no-crank condition with no communication with the PCM.

1. Disconnect the battery. 2. Inspect fuse F27 in the battery junction box for a possible open condition. Replace the fuse as required. 3. Remove the rear seat cushion. 4. Determine the vehicle build date. Is the date on or before 3/29/2011? a. Yes... Install the in-line fuse included with the natural vacuum leak detection (NVLD) service kit. b. No... Inspect the in-line NVLD fuse. If the fuse is open, replace the 1A fuse and install a new NVLD service kit. If the fuse is closed, install the rear seat cushion and connect the battery. Refer to the Powertrain Control/ Emissions Diagnosis manual, pinpoint test HZ for normal diagnostics. 5. Install the rear seat cushion. 6. Connect the battery.

P/N AE8Z-9J279-L

AE8Z-9J279-M

9L3Z-14526-BA BE8Z-14526-AA PART NVLD module and hose assembly (4 door) NVLD module and hose assembly (5 door) BJB fuse 1A fuse

Chevrolet START WITH THE BASICS

Some owners of 2010-2013 Chevy Camaro SS models may complain about an SES light along with a misfire.

Upon inspection, any of the following DTCs may be present: P0300, P0301, P0302, P0303, P0304, P0305, P0306, P0307 and/or P0308.

This problem may simply be the result of a loose spark plug wire at an ignition coil.

Ford MOODY MUSTANG

Some 2011-2013 Ford Mustangs may exhibit an intermittent drivability condition, crank/ no-start, or a blown fuse 13 in the battery junction box. DTC P0627 may be stored in the PCM.

Follow this procedure to fix:

1. Remove the rear seat cushion. 2. Inspect the fuel pump module wire harness for chafing. 3. If chafing is found, re-route the wiring harness so that it will lie in the recess area of the rear seat when the seat cushion is installed. 4. Reinstall the rear seat cushion and verify the repair. If the number 13 fuse was blown, replace with a 15 amp mini-fuse, P/N F2UZ14526-N. ■

This photograph shows that the in-line fuse is accessed by removing the rear seat cushion.

Route the fuel pump module wiring harness in the recess area so that the rear seat cushion does not depress and rub on the harness.

Electronic Specialties unveils clamp meter The new 400 amp DC/AC AutoRanging Clamp Meter (model #684) from Electronic Specialties is designed to measure currents and applications up to 400 amps, such as fuel pumps, electric motors, alternators, starters, lamp circuits and more. The company says current measurements are easily made by clamping over any wire, and the clamp meter is safe to use on sensitive automobile circuits. A built-in, full-function autoranging digital multi-meter measures AC or DC volts, resistance, continuity, frequency, duty cycle, capacitance, diodes and temperature in both Fahrenheit and Celsius. ELECTRONIC SPECIALTIES INC. Circle 160 on Reader Service Card www.aspquiklink.com/11160 Astro Pneumatic Tools has a new portable work light Astro Pneumatic Tool’s new portable work light features a collapsible hook design and a lithium battery that provides longer battery life. The new 40SLMax 450 Lumen Rechargeable LED Slim Light with XL battery has a 3,350mAh lithium battery to provide a continuous 13 hours of work time at 50% power, or 3.5 hours at full power. The 40SLMax light also has a 20-pound magnetic swivel-and-stay base and overcharge protection and auto idle mode. ASTRO PNEUMATIC TOOL CO. Circle 161 on Reader Service Card www.aspquiklink.com/11161

Chicago Pneumatic upgrades composite air ratchets Chicago Pneumatic Tool’s new CP825C series composite air ratchets are designed to offer high accessibility to tight spaces such as motor engine compartments as well as high speed for fast rundown (280 rpm). The new series is available in two sizes, 1/4-inch and 3/8-inch, and are an upgrade to the company’s existing CP825 series. The CP825C series is lightweight (1.1 lbs. – 0.5 kg). CHICAGO PNEUMATIC TOOL CO. Circle 162 on Reader Service Card www.aspquiklink.com/11162 Ford adds TPMS sensors to its Omnicraft brand Ford Motor Co. has added tire pressure monitoring system (TPMS) sensors to its Omnicraft brand of replacement parts for nonFord vehicles. Ford says Omnicraft TPMS sensors combine 314.9, 315, and 433 MHz applications into one sensor. The sensors are programmable using any of the major TPMS programming devices and replicate original equipment functionality including auto-locate features. They are quick and simple to program using a large range of programming tools; have easy-to-install rubber snap-in stems; and support new and planned OE system technologies. OMNICRAFT

Pico Technology’s NVH kits provide real-time diagnosis PicoDiagnostics NVH (noise, vibration and harshness) kits are designed to provide a real-time diagnosis to the technician, in the form of either a bar graph, a frequency chart, a 3D frequency chart, rpm order, road speed view or a time domain view. Pico Technology says the ability to start the recording before a road test and play back and analyze the recording back in the shop, ensures that the driver’s attention remains on the road. The files are simply saved to the laptop’s hard drive. PICO TECHNOLOGY LTD. Circle 163 on Reader Service Card www.aspquiklink.com/11163

Odyssey battery has more amps EnerSys Energy Products has upgraded its Odyssey Performance Series Group 31 battery for commercial trucks and tractor trailers from 800 cold cranking amps (CCA) to 925 CCA. The company says the new Odyssey 31-925 battery is designed to handle the increased use of onboard accessories in today’s commercial trucks and tractor trailers. Manufactured with Thin Plate Pure Lead (TPPL) technology, the Odyssey 31-925 battery can handle 400 charge-discharge cycles at 80% depth of discharge. ODYSSEY Circle 164 on Reader Service Card www.aspquiklink.com/11164 Baxter has oil filter adapters for Ford, GM and Mopar Baxter Performance, a manufacturer of cartridge oil filter adapters for Toyota engines, has added adapters for Ford, General Motors and Mopar applications. The company produces machined adapters to convert from cartridge filters to spin-on style filters and remote filter mounting applications. The company says that with the automotive manufacturers reverting to cartridge style filters, there is no other way to appropriately invade these systems to add additional cooling accumulators or simply relocate the filter to a more accessible location. BAXTER PERFORMANCE LLC Circle 165 on Reader Service Card www.aspquiklink.com/11165 Cardone offers drive axle assemblies Cardone Industries says its drive axle assemblies simplify the servicing process for the rear differential/axle by replacing the whole unit. All bearing preloads, axle housings and shafts are inspected using precision measuring equipment to ensure drivability. Features include powder-coating for maximum corrosion protection and on-car performance enhancement, new OE ring and pinion gears inspected for correct backlash and wear patterns, OE quality bearings, dust shields, seals and gaskets; and are pre-filled with oil. CARDONE INDUSTRIES INC. Circle 166 on Reader Service Card www.aspquiklink.com/11166

Continental offers ATE brake parts Continental Commercial Vehicles & Aftermarket is offering the ATE Brake Parts line in the North American market. The ATE brand encompasses brake pads and rotors, boosters, master cylinders, wheel speed sensors, brake wear indicators, calipers, brake fluid, hoses, reservoirs, as well as wheel cylinders. Continental is a global supplier of brake systems and components, and the ATE line offers many genuine OE parts. CONTINENTAL COMMERCIAL VEHICLES & AFTERMARKET Circle 167 on Reader Service Card www.aspquiklink.com/11167 Tenneco expands Monroe Quick-Strut coverage Tenneco launched a record 296 Monroe Quick-Strut part numbers in 2017. Several of the part numbers in the latest release are the first available in the aftermarket, according to the company. Monroe Quick-Strut assemblies are now available for the following additional vehicle applications: 2005-2007 Ford Five Hundred (front — first to market); 2005-2007 Ford Freestyle (front — first to market); 2005-2007 Mercury Montego (front — first to market); 2006-2008 Subaru Forester (rear — first to market); 2009-2013 Toyota Highlander (rear); and 2013-2015 Toyota Venza (rear). MONROE Circle 168 on Reader Service Card www.aspquiklink.com/11168

Cheetah Bead Seaters are designed for difficult tire beads Cheetah Bead Seaters are engineered to make seating the most difficult bead safe, simple, fast and economical. Manufactured by Tire Service Equipment Mfg. Co. and Saf-Tee Siping & Grooving Co., Cheetah Bead Seaters are equipped with a high-quality butterfly valve for faster, easier and surer discharge of air. Features include state-of-the-art construction with robotic welds and a durable powder-coated finish. Cheetah Bead Seaters are manufactured in Monticello, Minn. TIRE SERVICE EQUIPMENT MFG. CO. INC. Circle 169 on Reader Service Card www.aspquiklink.com/11169

Raybestos releases friction lines for street and track Brake Parts Inc. (BPI) has introduced Raybestos friction lines for street use and professional racing. New Raybestos Performance Specialty brake pads are engineered to deliver superior stopping power on domestic and foreign street performance applications such as muscle cars, sports cars and import tuner cars. The company says all formulations are designed to provide sport drivers with aggressive braking, stability, consistency and fade resistance. BPI also released Professional Racing brake pads for high performance track use. RAYBESTOS Circle 170 on Reader Service Card www.aspquiklink.com/11170 IPA unveils electric brake force meter for 7-spade vehicles The new #9107A Electric Brake Force Meter with dynamic load simulation and circuit testing from Innovative Products of America (IPA) is designed for use on 7-spade equipped vehicles. IPA says this new technology automatically recognizes the electronic signature of both integrated (ITBC) and aftermarket trailer brake controllers, simulates trailer load and displays real-time, brake-controller output gain and application time. The Electric Brake Force Meter can quickly troubleshoot truck-side tow circuits, e.g., tail lights, turn signals, 12 V+, reverse and ground condition and the 25-foot cable allows for one-person, in-cab testing. INNOVATIVE PRODUCTS OF AMERICA INC. Circle 171 on Reader Service Card www.aspquiklink.com/11171 Philips offers headlight restoration kit The Philips Headlight Restoration Kit from Lumileds is designed to restore headlights to a like-new condition and finish in just 30 minutes. The company says the kit quickly and effectively removes the cloudy haze and yellowing that is caused by sunlight, ozone, and road pollution. The Philips Headlight Restoration Kit also adds a protective UV (ultraviolet) coating that can help to prevent future clouding. PHILIPS Circle 172 on Reader Service Card www.aspquiklink.com/11172 Centric Parts has new line of StopTech GCX disc brake rotors The new line of StopTech GCX disc brake rotors from Centric Parts is engineered to restore OE performance and provide superior protection from rust and corrosion, even in extremely harsh conditions. The company says these rotors feature a partial Geomet coating on the friction surface, resulting in a 10% faster pad bed-in while eliminating annoying corrosion rings. They also have a full Geomet coating on all non-mating surfaces, which inhibits rust formation and helps provide long-lasting corrosion resistance. CENTRIC PARTS Circle 173 on Reader Service Card www.aspquiklink.com/11173

Tech200Pro works with shop’s point-of-sale system The Tech200Pro from Bartec USA is designed to work with a shop’s existing point-of-sale system or Bartec’s Service Center System to make it easy, fast and accurate to inform customers of their tires’ condition. The Tech200Pro is set up for a make, model and year by accepting the vehicle lookup from a shop’s point-of-sale system. When the inspection is complete, the data is then sent wirelessly to the P.O.S. or tablet. A color report with gauge tire pressure, TPMS tire pressure, remaining tread, tread wear, and TPMS sensor battery state can be printed. BARTEC USA LLC Circle 174 on Reader Service Card www.aspquiklink.com/11174 Standard and Intermotor lines have been expanded Standard Motor Products Inc. (SMP) has added 324 part numbers to its Standard and Intermotor lines. With the introduction of seven VVT sprockets and one VVT solenoid, Standard’s VVT line now totals more than 300 parts. The release of 119 sensors includes 51 exhaust gas temperature sensors. The company also released 83 switches including 36 power window, six stoplight, and four clutch starter safety switches. Other additions include 26 fuel vapor canisters, 10 exhaust gas recirculation (EGR) tubes, and four EGR valves. STANDARD AND INTERMOTOR Circle 175 on Reader Service Card www.aspquiklink.com/11175 CarSmart A/C inspector analyzes system performance The CarSmart A/C Inspector from CPS Products is designed to provide quick and easy non-invasive A/C system performance analysis that accurately measures and records temperature and relative humidity of the air entering the air conditioning system. In two minutes, the CarSmart A/C Inspector indicates whether the A/C system is operating within original equipment manufacturer specifications by comparing outside humidity and temperat u r e c o m i n g from the A/C vent. The information can be displayed on any smart phone through a CPS Link or through a CPS mechanic’s tablet. CPS PRODUCTS INC. Circle 176 on Reader Service Card www.aspquiklink.com/11176 Lisle offers 12-piece oil funnel set Lisle has released a 12-piece multi-application oil funnel set that includes five new adapters and an adapter holder for storage. The set (#19612) helps eliminate oil spills w h e n r e f i l l i n g crankcases, especially those with baffle valve covers. The 1.6 quart translucent funnel comes with 12 different color-coded adapters and a 45 degree elbow to work on many applications and save valuable storage space. LISLE CORP. Circle 177 on Reader Service Card www.aspquiklink.com/11177 Worktech offers headlight restoration kit Worktech’s Professional Headlight Restoration Kit (#WT300) is designed to quickly and safely restore, maintain and protect all types of smooth, shiny plastic and acrylic headlights to crystal clarity. It cleans away yellowing and stains, and even buffs out unsightly hairline scratches, smudges and flaws in a single step. The company says the product polishes to restore crystal clarity, leaving a tough protective, oxidation-inhibiting polymer layer to guard against future degradation from the elements. WORKTECH Circle 178 on Reader Service Card www.aspquiklink.com/11178

Robinair has three new A/C leak detectors Robinair, a Bosch Automotive Service Solutions brand, has released three leak detectors for quickly finding R-1234yf and R-134a leaks. The company says these air conditioning leak detectors are compatible with nearly all refrigerants used today, including R1234-yf and R-134a. The leak detectors, LD3, LD5 and LD7, meet all industry standards. Robinair’s new leak detectors are made in the U.S. with globally sourced components. Each of the new A/C leak detectors feature an audible alarm with a stable, long-life sensor that lasts up to 10 years. ROBINAIR Circle 179 on Reader Service Card www.aspquiklink.com/11179

Rotary adds to its line of heavy-duty tire changers The new line of Rotary heavy-duty tire changers is designed to quickly change tires on virtually any vehicle, including trucks, buses and agricultural equipment, in the shop or on the road. Vehicle Service Group (VSG) says the R501N Speed Changer HD demounts and mounts a truck tire in 30 seconds. Its compact design is ideal for truck tires, bus tires and super singles. The R560 Mobile HD is designed for both roadside and workshop service. The R511 Commercial HD services the widest range of wheels, including truck, bus, super single, lock ring and agricultural. ROTARY Circle 180 on Reader Service Card www.aspquiklink.com/11180 Clore adds Light-N-Carry COB LED work light Clore Automotive has added a 500 lumen COB LED (chip-on-board light emitting diode) rechargeable work light, model LNC 1541, to its Light-NCarry brand product line. The company says the LNC 1541 is an ideal shop tool, combining high lumen output, long run times, multiple lighting functions, a dust/water resistant housing and an easy-to-use micro-USB charging system. CLORE AUTOMOTIVE INC. Circle 181 on Reader Service Card www.aspquiklink.com/11181

Lumax has new oil drain plug swivel wrench set Lumax’s new 8-in-1 SAE and Metric oil drain plug swivel wrench set features eight socket sizes in one tool. Model numbers LX-1865 and LX-1866 fit most oil drain, transfer case and differential plugs. The swivel head allows for easy access and fits all angles. Lumax says the heavy-duty yoke support withstands high torque applications. The wrench features a built-in magnet to hold drain plugs or nuts. The SAE sizes are 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4 and 13/16 inch. The metric sizes are 8, 10, 12, 13, 14, 17, 19, and 21 mm. LUMAX LLC Circle 182 on Reader Service Card www.aspquiklink.com/11182

Permatex offers sponge for oil spills The new Permatex Fast Orange Grime Magnet is a soap-infused sponge designed to quickly and effortlessly absorb oil and other petroleum products from vehicle surfaces, garage floors, shop tools, and hands and arms. The Fast Orange Grime Magnet can also be used to clean oil and petroleum products on hands and arms. The company says it works with or without water. PERMATEX Circle 183 on Reader Service Card www.aspquiklink.com/11183

Mahle unveils ShopPro Line for commercial vehicles Mahle Service Solutions has partnered with Gray Manufacturing to offer the ShopPro line of hydraulic and pneumatic equipment for the commercial vehicle market. The ShopPro product line includes 12 product categories: air lifts, axle jacks, component lifts, engine stands, fluid handling, forklift jacks, service jacks, shop cranes, shop presses, support stands, vehicle lifts and wheel service equipment. Each piece of ShopPro equipment is made in the U.S. at Gray’s manufacturing facility in St. Joseph, Mo. MAHLE SERVICE SOLUTIONS Circle 184 on Reader Service Card www.aspquiklink.com/11184 ACDelco offers new brake calipers for all makes and models ACDelco has added brake calipers to its aftermarket offerings for all makes and models. The brake calipers are new, not rebuilt or remanufactured. They are available in cast iron and aluminum with no core charge. The cast iron parts are zinc-plated to help with corrosion protection. Critical components come pre-lubricated for smooth operation, including the pistons and bleeder screws. The company says the new calipers are launching just as remanufactured aluminum calipers for vehicles built in the 1990s and 2000s are becoming harder to find. ACDELCO

Hunter brake lathe is designed for speed and accuracy Hunter Engineering’s AutoComp Elite brake lathe features patent-pending automatic compensation technology. The system directly determines the position of the internal plates to maximize speed and accuracy without operator intervention. The company says the result is the fastest, highest quality brake job possible. The new 7-inch touchscreen provides a user-friendly interface that allows technicians to quickly look up required adaptors, operate the lathe including changing cutting direction and speed, and view instructional videos. HUNTER ENGINEERING CO. Circle 185 on Reader Service Card www.aspquiklink.com/11185 Steelman adds wheel stud cleaner set The new Steelman Wheel Stud Cleaner Set (par t number 60099) can be used by hand or with a cordless drill using the quick-chuck adapter. The Steelman Wheel Stud Cleaner Set comes complete in a blow molded case to professionally clean wheel studs. Six quick-change brushes are supplied in the set and fit both SAE and metric studs. The company says the larger brush sizes make this set perfect for commercial vehicles. Replacement brushes are available individually in all sizes. STEELMAN Circle 186 on Reader Service Card www.aspquiklink.com/11186 Prestone offers treatment for cooling system leaks The Triple Seal Protection line from Prestone Products Corp. is designed to seal leaks from the inside of the affected product area without blocking or corroding the cooling system. Each Triple Seal Protection product is designed for the unique heat and pressure of the specific leak location (engine block, head gasket or radiator). The company says the product is delivered through three proprietary technologies that work together to repair the source of the leak. All three Triple Seal Protection products are safe to use with all colors of antifreeze. PRESTONE PRODUCTS CORP. Circle 187 on Reader Service Card www.aspquiklink.com/11187
