New and innovative equipment for

ID number (scroll to INPUT ID and press ENTER to select each character).

Program the new sensor

This function will create a new TPMS sensor to a blank Smart Sensor, with a new ID. NOTE: Whenever you use this feature, you must always perform the required vehicle relearn procedure.

1. Select the vehicle. 2. Scroll and highlight “PROGRAM NEW

SENSOR.” 3. Place a new Smart Sensor into the tool’s cradle and secure with the thumb latch. 4. Press ENTER. 5. The tool will now program the sensor and will display the ID. If you happen to install the wrong sensor into the cradle that’s not compatible with the required frequency, the display will show “INCORRECT

SENSOR” to alert you, and will tell you which frequency sensor to install (315 MHz or 433 MHz).

Asian vehicle sensor application

Many Asian vehicles require an OBD II connection in order to perform the needed relearn procedure. Perform the relearn after all sensors are installed on the vehicle.

1. Select the vehicle make, model and For Asian vehicles that year with OBD II require a direct OBD II support. port connection, an OBD 2. Highlight OBD module is available.

II and press

ENTER. 3. Scan the first sensor by pressing ENTER (start with the right front wheel). Use the

UP arrow button to select the next wheel position (the pattern is RF, RR, LR and then

LF). Repeat the scan process with each wheel in that order. 4. After all IDs have been stored, use the up/ down buttons to select OBD. 5. Turn the key on with ignition off. 6. Connect the OBD II module to the tool with the supplied cable. 7. Connect the OBD II module to the vehicle’s

OBD II port. 8. Select UPLOAD IDs TO CAR and press

ENTER to upload. 9. Check the printed or online relearn procedures for additional steps based on the make, year and model.

What it doesn’t do

While the Smart Sensor Pro+ tool also serves as a diagnostic scanner, the diagnostic scan capabilities are limited to TPMS codes only (it’s not an all-systems OBD II scan tool).

While some high-dollar TPMS tools provide on-screen OE relearn procedures, the Pro+ does not (however, when you select RELEARN from the tool menu, you will be shown where to find the necessary relearn procedure at www.31inc.com).

The unit also does not offer a printing feature, so you can’t print out a hard copy from the tool. But so what? In essence, this is a simple but highly efficient TPMS scan, copy and re-learn tool, without the costly bells and whistles often featured in very expensive units.

As noted above, 31 Inc. does offer all of the necessary domestic and import OE relearn procedures online at no charge, in addition to a printed and laminated TPMS relearn chart that’s available as P/N 19-122.

Online resources include a printable/downloadable PDF application chart, a TPMS part finder with make/model and year lookup (for relearn procedures, TPMS valve kits, service kits, sensors, etc., for specific vehicle applications), printable PDF relearn procedures and free tool updates.

In addition, a dedicated TPMS technical support line is available at (877) 659-TPMS (8767).

SOURCE 31 Incorporated 100 Enterprise Dr. Newcomerstown, OH 43832 (800) 438-3302 or (740) 498-8324 www.31inc.com

ACDelco expands air filter line ACDelco is adding 91 part numbers to its Professional air filter line. The expansion includes new part numbers for many popular import models from Acura, BMW, Infiniti, Nissan, Volkswagen and other manufacturers. The company says ACDelco Professional air filters are the ideal replacement for customers seeking OE quality and value. Key benefits include: excellent filter capacity, efficiency and flow management for superior performance; and tight seals to prevent unfiltered air from entering the combustion chamber. ACDelco Professional and OE filters are backed by a 12-month/12,000-mile warranty. ACDELCO

OTC releases flexible hose clamp pliers with memory OTC, a Bosch Automotive Service Solutions brand, has introduced Flexible Hose Clamp Pliers with Memory, a tool designed to enable technicians to access hard-to-reach areas, including flat type hose clamps, with less frustration. The flexible cable assists with the challenge of working in tightly packed engine bays, featuring a heavy-duty 24-inch cable that flexes and holds almost any shape. The pliers include a locking mechanism to hold clamps open, making removal and installation easier and faster. BOSCH AUTOMOTIVE SERVICE SOLUTIONS Circle 160 on Reader Service Card www.aspquiklink.com/14160 Vehicle interface works with all makes and models The CarDAQ-Plus 2 from Drew Technologies Inc. provides the SAE J2534-1 and J2534-2 capabilities needed to work with all OEM functions available today. The company says the rugged construction of the CarDAQ-Plus 2 meets today’s requirements and tomorrow’s expectations as its most rugged, solid tool for the best vehicle repair shops and technicians. This vehicle interface can be used for OEM-level engine, transmission and body control module reprogramming, security/immobilizer adaptation, dealerlevel diagnostics, and more. DREW TECHNOLOGIES INC. Circle 161 on Reader Service Card www.aspquiklink.com/14161 AME International introduces durable tire inflator The new Dura-Flate from AME International is a durable, handheld digital tire inflator. The company says Dura-Flate measures, inflates, and deflates tires with advanced precision and is for use in the industrial, workshop, automotive and fleet service industries. Powered by two AAA batteries, the Dura-Flate provides 80 hours of battery life. The backlit LCD screen with an auto-off function to preserve battery life makes the DuraFlate ideal for all fleet service trucks and tire shops. The company says the Dura-Flate durable unit will not fail when dropped or abused. AME INTERNATIONAL LLC Circle 162 on Reader Service Card www.aspquiklink.com/14162 31 Inc. updates X-tra Seal Smart Sensor software 31 Inc. has announced a software update for its X-tra Seal Smart Sensor. The update is labeled V3.4 (4.19 for the OBD II Module). The update provides additional 2016 model year vehicle coverage, including expanded European vehicles. 31 Inc.’s TPMS Network is designed to provide support needs for its users. The network features a dedicated TPMS technical support line (877.659.8767), and online relearn procedures. The relearn procedures are available in both English and Spanish. The company also makes available a part finder look-up at its website www.31inc.com/partfinder. A mobile version app is available at the Apple Store. Search for “TPMS Part Finder.” For more information, go to www.31inc.com and click on the “Relearn” button. 31 INC. Circle 163 on Reader Service Card www.aspquiklink.com/14163

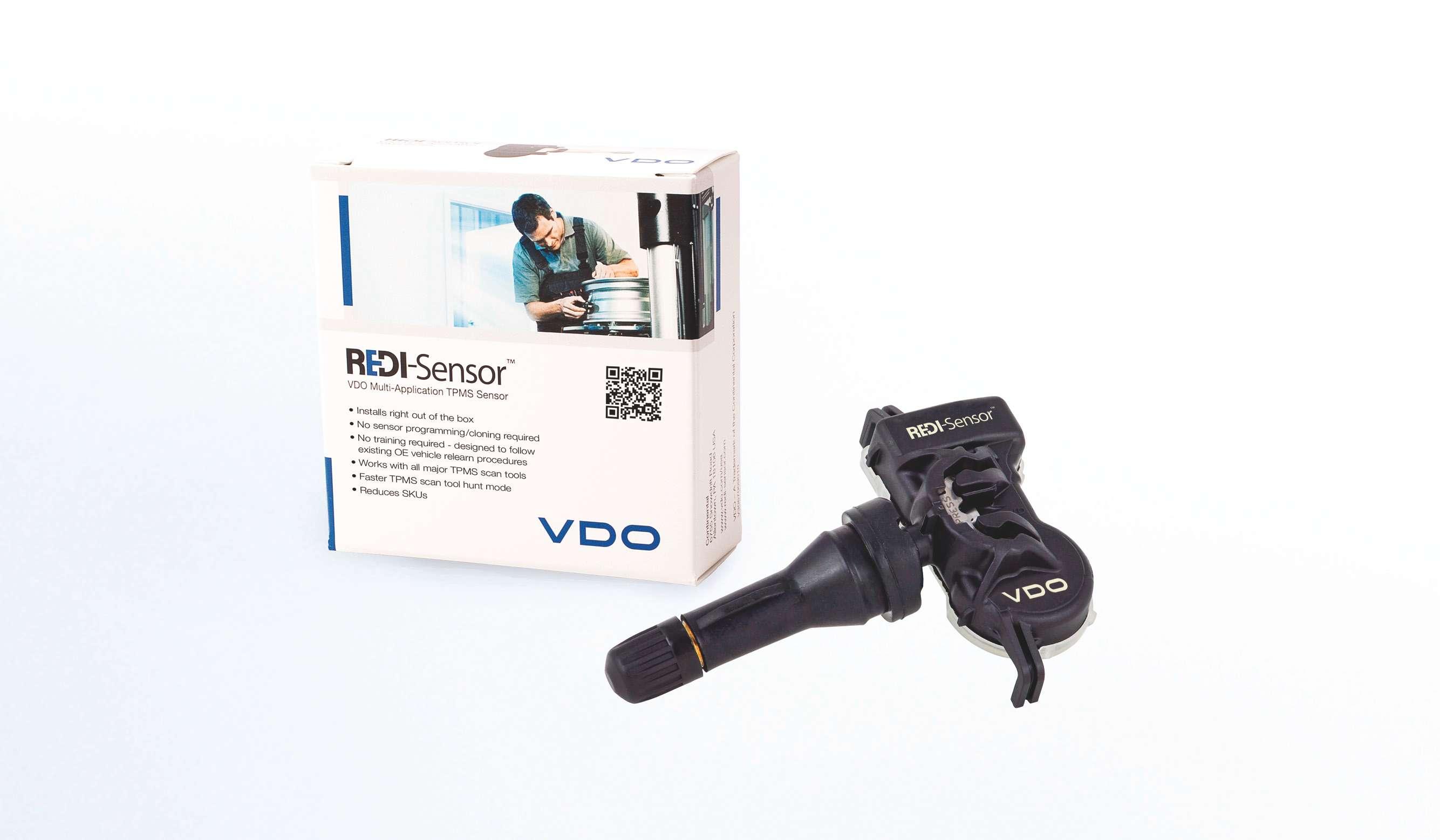

VDO Redi-Sensor is ready to install VDO Redi-Sensor Rubber Snap-In TPMS Sensor is ready to install right out of the box. Continental Commercial Vehicles & Aftermarket says it is pre-programmed to fit popular domestic and Asian vehicles. The sensor snaps together without any threaded components and follows the OE vehicle relearn procedures just like the original metal clamp-in VDO Redi-Sensor. No aftermarket sensor programing or cloning steps are required. VDO Redi-Sensor works with all major TPMS scan tools and no new training is needed. CONTINENTAL COMMERCIAL VEHICLES & AFTERMARKET Circle 164 on Reader Service Card www.aspquiklink.com/14164

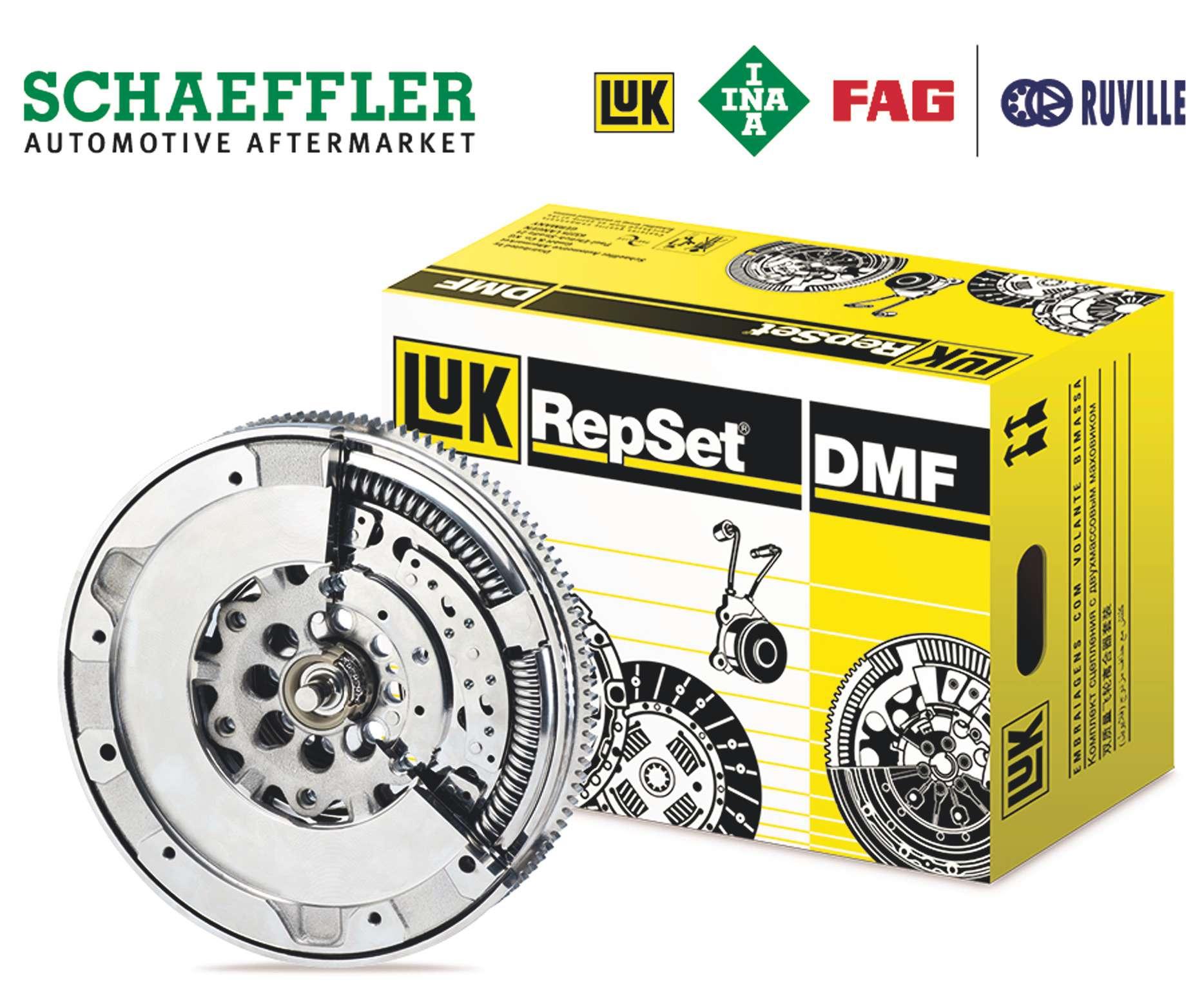

Premium grade dual mass flywheels from Luk The flywheel is an integral part of a clutch replacement. It can make the difference between a satisfied customer and a comeback, according to Schaeffler Group USA Inc., manufacturer of Luk brand dual mass flywheels. Installing inferior parts can cost you time, money and most importantly, your reputation, says the company. Luk reports it originated the dual mass flywheel design in conjunction with leading OEMs more than 30 years ago. SCHAEFFLER GROUP USA INC. Circle 165 on Reader Service Card www.aspquiklink.com/14165

ACDelco and GM release new version of OE diagnostic tool ACDelco and General Motors Co. have released a new version of the Multiple Diagnostic Interface (MDI 2) for GM vehicles. ACDelco says the MDI 2 adds enhanced connectivity, plug-and-play setup, operation during engine cranking, extended temperature range, rugged design and other improvements. It fully complies with the latest SAE J2534 and ISO-22900 standards. Although other manufacturers offer similar interface tools, MDI 2 is the only GM-supported tool that is fully functional for every 1996 and newer GM vehicle, according to ACDelco. ACDELCO

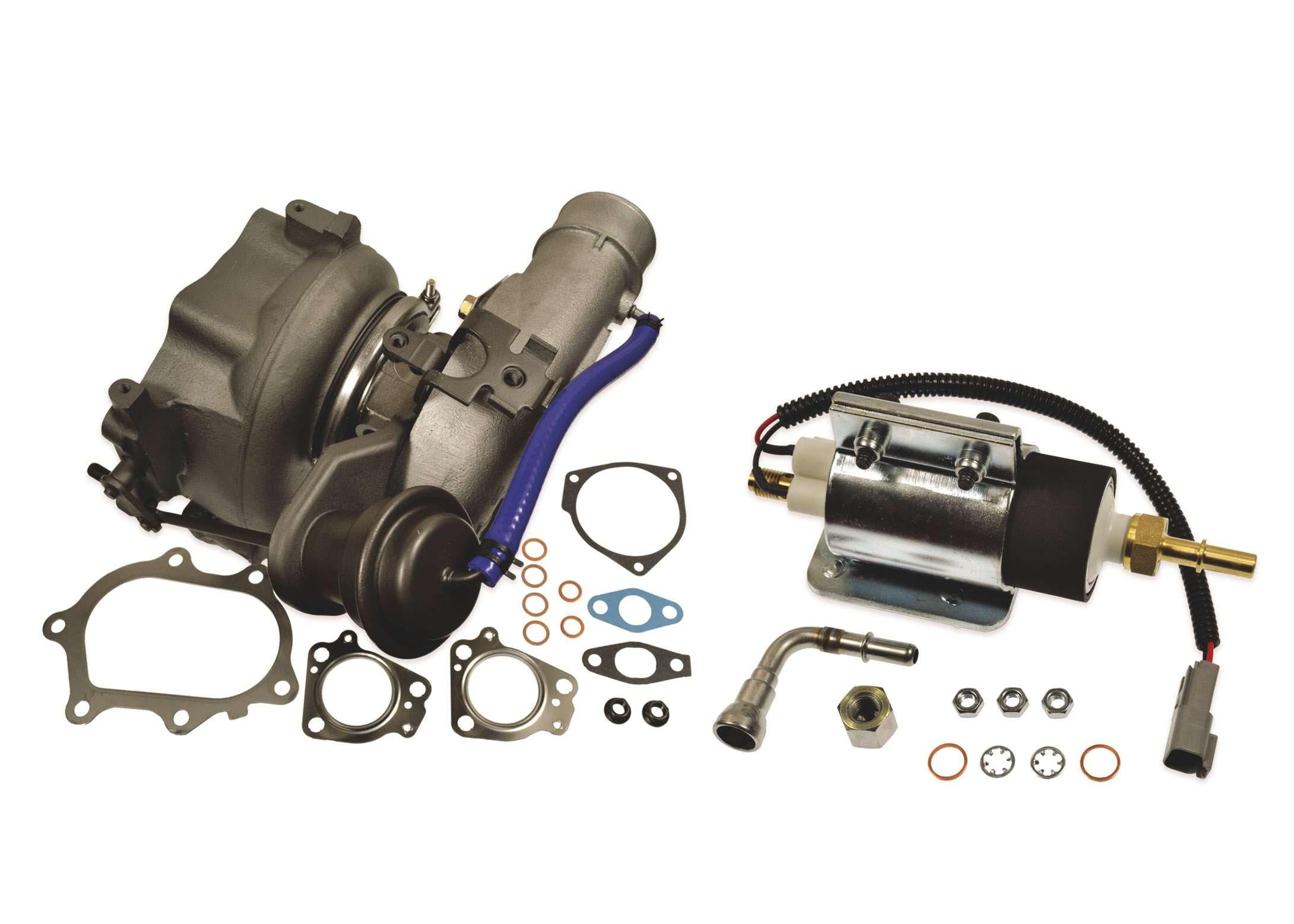

SMP expands coverage Standard Motor Products (SMP) has added 213 part numbers to its Standard and Intermotor lines. The release spans 49 product categories and expands coverage through the 2016 model year with more than 100 million additional vehicles in operation (VIO). SMP introduced a diesel fuel injection harness, diesel fuel transfer pump, and diesel glow plug wiring harness. The company added 15 new and remanufactured turbochargers for gas and diesel applications. Other additions include 75 sensors, 58 power door lock actuators and 10 fuel vapor canisters. STANDARD MOTOR PRODUCTS INC. Circle 166 on Reader Service Card www.aspquiklink.com/14166 Power Probe offers master combo kit Power Probe’s new Power Probe IV diagnostic circuit tester and ECT3000 electrical circuit tracer are available in a Master Combo Kit (product code PPKIT04). The company says the Power Probe IV diagnoses fuel injectors, sensor signals, computer outputs, resistance readings and power up components. T h e E C T 3 0 0 0 helps technicians save time by not tearing up wire harnesses, panels, carpets, and more to locate open or shorted circuits, the company reports. POWER PROBE INC. Circle 167 on Reader Service Card www.aspquiklink.com/14167

Ingersoll Rand introduces PowerSocket Ingersoll Rand plc has introduced PowerSocket, an impact socket designed to break loose virtually any bolt, no matter how stubborn and rusted. The company says PowerSocket delivers up to 50% more torque compared to a stand-alone impact tool. The PowerSocket is available in five sizes, 17 mm, 19 mm, 21 mm, 26 mm and 27 mm, to meet the standard bolt and lug nut variations from a variety of car and tire manufacturers. INGERSOLL RAND PLC Circle 168 on Reader Service Card www.aspquiklink.com/14168 Robinair unveils premium A/C recover, recycle and recharge machine Robinair, a Bosch Automotive Service Solutions brand, has introduced the 34988NI Premium A/C Recovery Machine. The machine recovers, recycles, evacuates, leak tests and recharges vehicle systems quickly and accurately, according to the company. The 34988NI is designed for use with R-134a, covering the vast majority of passenger vehicles on roads today. The 34988NI is the only fully automatic machine on the market, says Robinair, and can recover, vacuum, leak test, and charge without technician intervention. It offers the industry’s best refrigerant recovery at 98.5%, besting SAE standards. An optional refrigerant charge and oil capacities database is available for North American market vehicles. BOSCH AUTOMOTIVE SERVICE SOLUTIONS Circle 169 on Reader Service Card www.aspquiklink.com/14169 Permatex unveils Fast Orange Xtreme Hand Cleaner Permatex says its new professional grade hand cleaner is designed specifically for automotive technicians and delivers more cleaning power than original Fast Orange Hand Cleaners and competitive brands. It leaves little residue and removes petroleum odors. Proprietary MicroGel technology increases cleaning efficiency and odor eliminating technology that neutralizes gasoline, oil and other common odors. Advanced skin protection formula contains conditioners Aloe Vera, Glycerin, Lanolin, Vitamin E and Jojoba oil. PERMATEX Circle 170 on Reader Service Card www.aspquiklink.com/14170

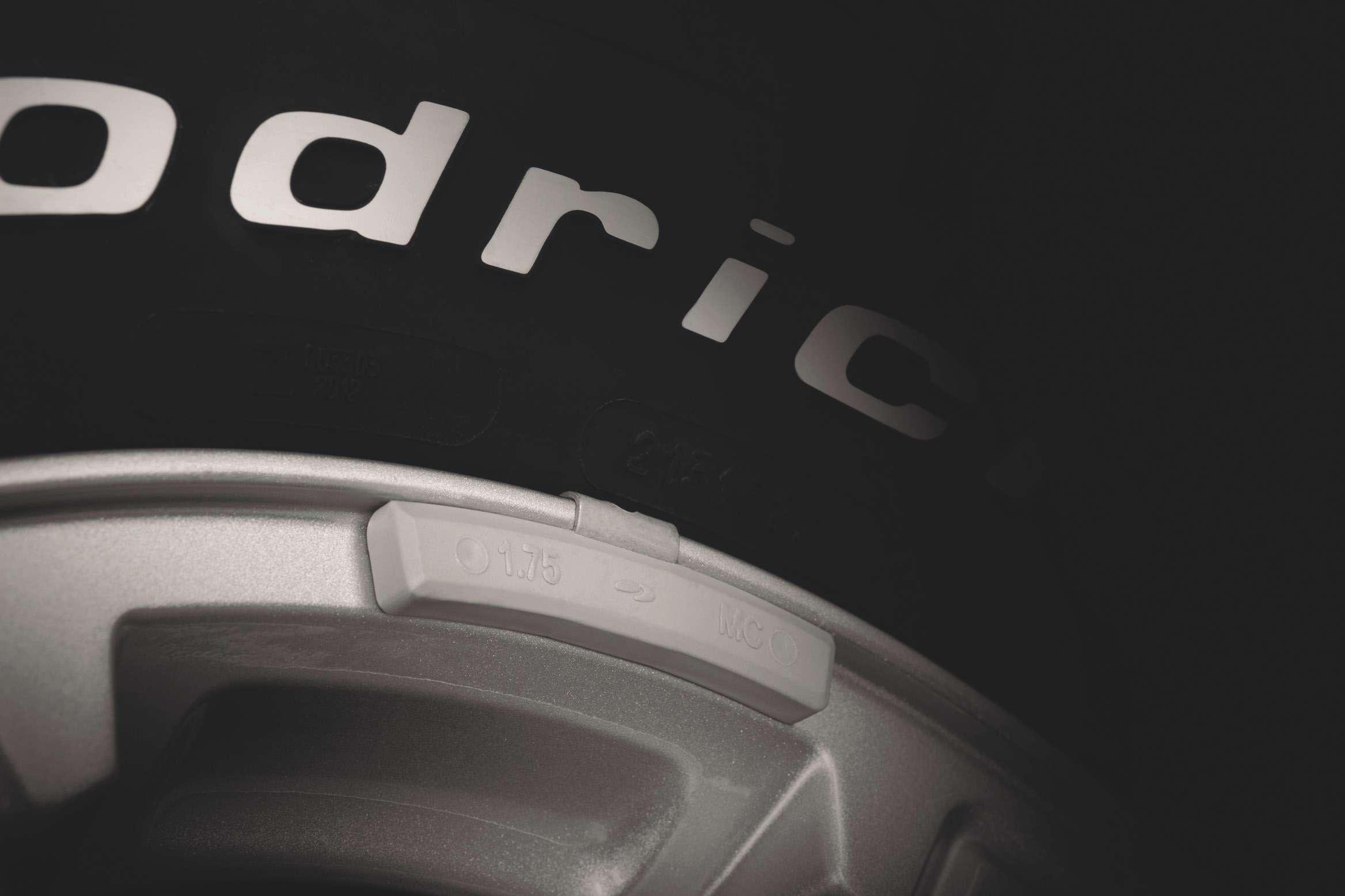

Plasteel premium wheel weights have a plastic shell Plasteel premium wheel weights from Plombco Inc. are made of steel with a plastic shell. The company says Plasteel premium wheel weights are easy to install, have exceptional corrosion resistance, look great and don’t scratch the wheel. Learn more about the features and benefits of Plasteel at www.plasteelwheelweights.com. Video clips demonstrate the main features of Plasteel .A free sample and/or information about Plasteel can be requested from the website. PLOMBCO INC. Circle 171 on Reader Service Card www.aspquiklink.com/14171 Hunter offers Inflation Station with Quick Check Hunter Engineering Co. has released a new Inflation Station that is compatible with its Quick Check vehicle inspection system or can be installed as an independent system. The company says Inflation Station quickly measures tire pressure and then inflates or deflates the tires according to the user-entered specifications. Technicians simply set the pressure at the Inflation Station or Quick Check console and connect the air hoses. With Quick Check Inflation Station, the initial and final tire pressure readings are automatically included in the customer report. HUNTER ENGINEERING CO. Circle 172 on Reader Service Card www.aspquiklink.com/14172

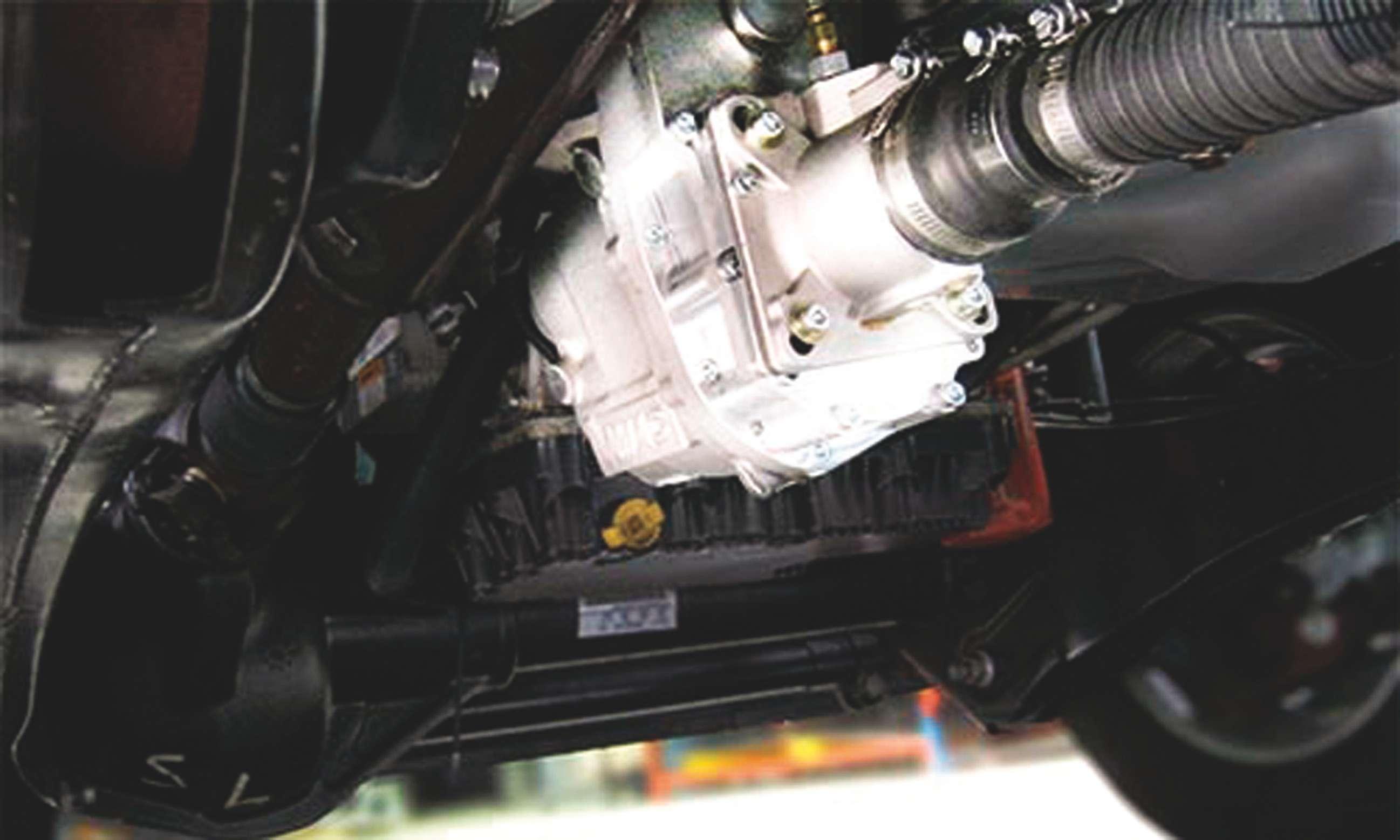

VMAC releases direct-transmission mounted air compressor VMAC has introduced the DTM70 PTO driven rotary screw air compressor for the Ford F-250 to F-550 Super Duty 6.7L Power Stroke diesel 4x2 and 4x4 work trucks with TorqShift Automatic Transmission. The company says the DTM70 PTOdriven rotary screw air compressor is the first commercial product of its kind in the world. It has all the benefits of a traditional under-deck, with no transfer case modifications, no drive shafts, and no warranty concerns. VMAC Circle 173 on Reader Service Card www.aspquiklink.com/14173 Monster brand adds two corded brushless tools The Monster brand from Integrated Supply Network Inc. has added two corded brushless tools to its product line, the MST6148 corded brushless 1200W angle grinder (pictured) a n d M S T614 9 corded brushless 1200W variable speed polisher. The company says brushless motors are contact-free, reducing the resistance and eliminating the wear on the tools armature to deliver longer tool life. Features and benefits include up to three times longer life than conventional motors, overload protection to prevent the motor from overheating and no need to replace carbon brushes. INTEGRATED SUPPLY NETWORK INC. Circle 174 on Reader Service Card www.aspquiklink.com/14174

KTI introduces line of premium air hoses The hoses in K-Tool International’s (KTI) new family of AvaGard premium rubber hoses come in 3/8-inch and 1/2-inch sizes and 25-foot and 50-foot lengths. The company says the new AvaGard premium 300 PSI professional rubber air hose is very light, super strong and agile. The hose stays flexible in extreme conditions from -40 to 180 degrees Fahrenheit, and its oil-resistant core tube meets RMA Class C oil resistance. The hose’s ozone-resistant cover resists extreme weather, abrasions and kinks providing ultimate durability. K-TOOL INTERNATIONAL Circle 175 on Reader Service Card www.aspquiklink.com/14175 New heavy-duty two-post lift from Forward Lift Forward Lift’s new heavy-duty F12 two-post lift is a 12,000 lb. capacity two-post lift designed to service a wide range of vehicles. The company says the competitively priced Forward Lift F12 two-post lift has two-stage front and rear arms equipped with low-profile 4.75-inch oversized rubber-pad swivel adapters. Combined with the standard extra height extensions (3.5 and 5 inches), the arms can reach the recommended pick-up points of most cars, light trucks and vans on the road today. The lift can be configured for multiple drivethrough clearances including two widths and four heights to meet any shop’s needs. FORWARD LIFT Circle 176 on Reader Service Card www.aspquiklink.com/14176 Rein Automotive adds line of vehiclespecific power steering hoses Rein Automotive p owe r s te e r i n g hoses f rom CRP Automotive are designed as a direct replacement for popular European makes. The company says they deliver the exact form, fit and function as the OE part. The new line features more than 125 SKUs for Audi, BMW, Mercedes-Benz, Mini, Volvo and VW. CRP says applications include pressure hose assemblies, return hose assemblies, reservoir line hoses and suction hoses. CRP AUTOMOTIVE Circle 177 on Reader Service Card www.aspquiklink.com/14177
