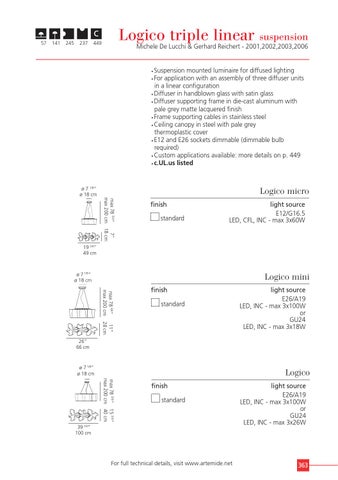

Logico triple linear suspension Michele De Lucchi & Gerhard Reichert - 2001,2002,2003,2006
Suspension mounted luminaire for diffused lighting For application with an assembly of three diffuser units in a linear configuration • Diffuser in handblown glass with satin glass • Diffuser supporting frame in die-cast aluminum with pale grey matte lacquered finish • Frame supporting cables in stainless steel • Ceiling canopy in steel with pale grey thermoplastic cover • E12 and E26 sockets dimmable (dimmable bulb required) • Custom applications available: more details on p. 449 • c.UL.us listed • •
Logico micro max 78 3/4” 7” max 200 cm 18 cm
ø 7 1/8” ø 18 cm
finish standard
light source E12/G16.5 LED, CFL, INC - max 3x60W
19 1/4” 49 cm
Logico mini
ø 7 1/8” ø 18 cm max 78 3/4” max 200 cm
finish standard
11” 28 cm
light source E26/A19 LED, INC - max 3x100W or GU24 LED, INC - max 3x18W
26” 66 cm
ø 7 1/8” ø 18 cm
Logico max 78 3/4” 15 3/4” max 200 cm 40 cm
finish standard
39 1/4” 100 cm
For full technical details, visit www.artemide.net
light source E26/A19 LED, INC - max 3x100W or GU24 LED, INC - max 3x26W
363
