2025 Tiger Lights Catalog by Arrowhead Engineered Products

Industrial

Agriculture Off-Road

TABLE

Lights

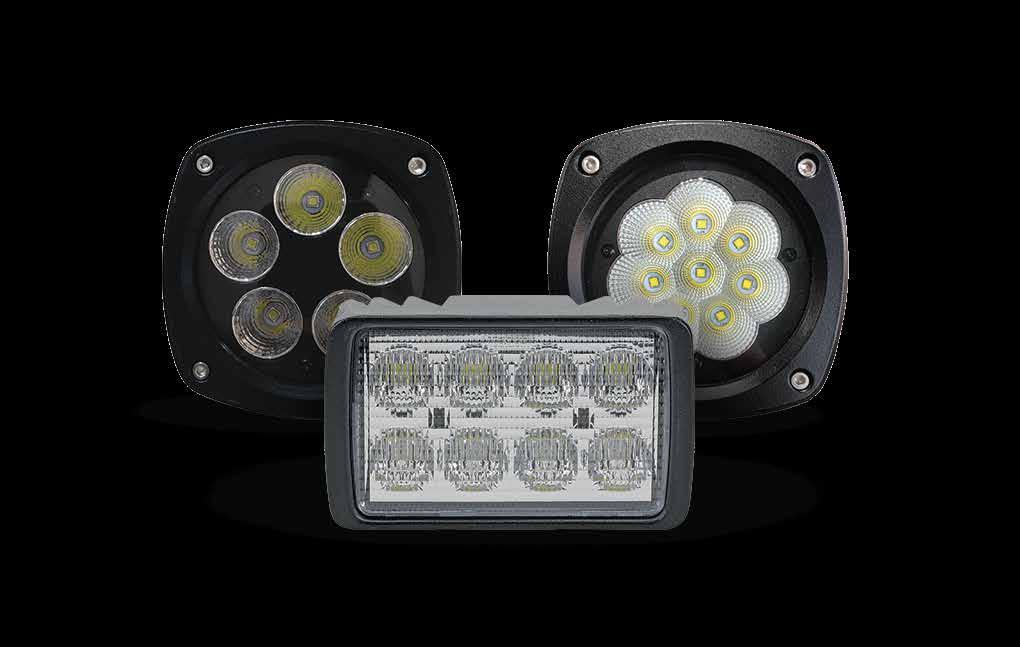

APPLICATION SPECIFIC HIGHLIGHTS

Tailored

LED lighting for every environment

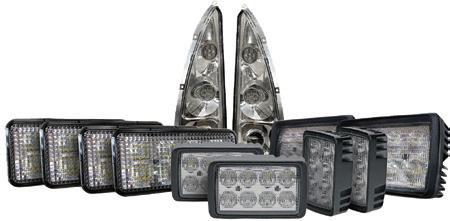

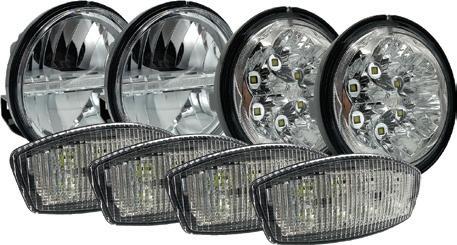

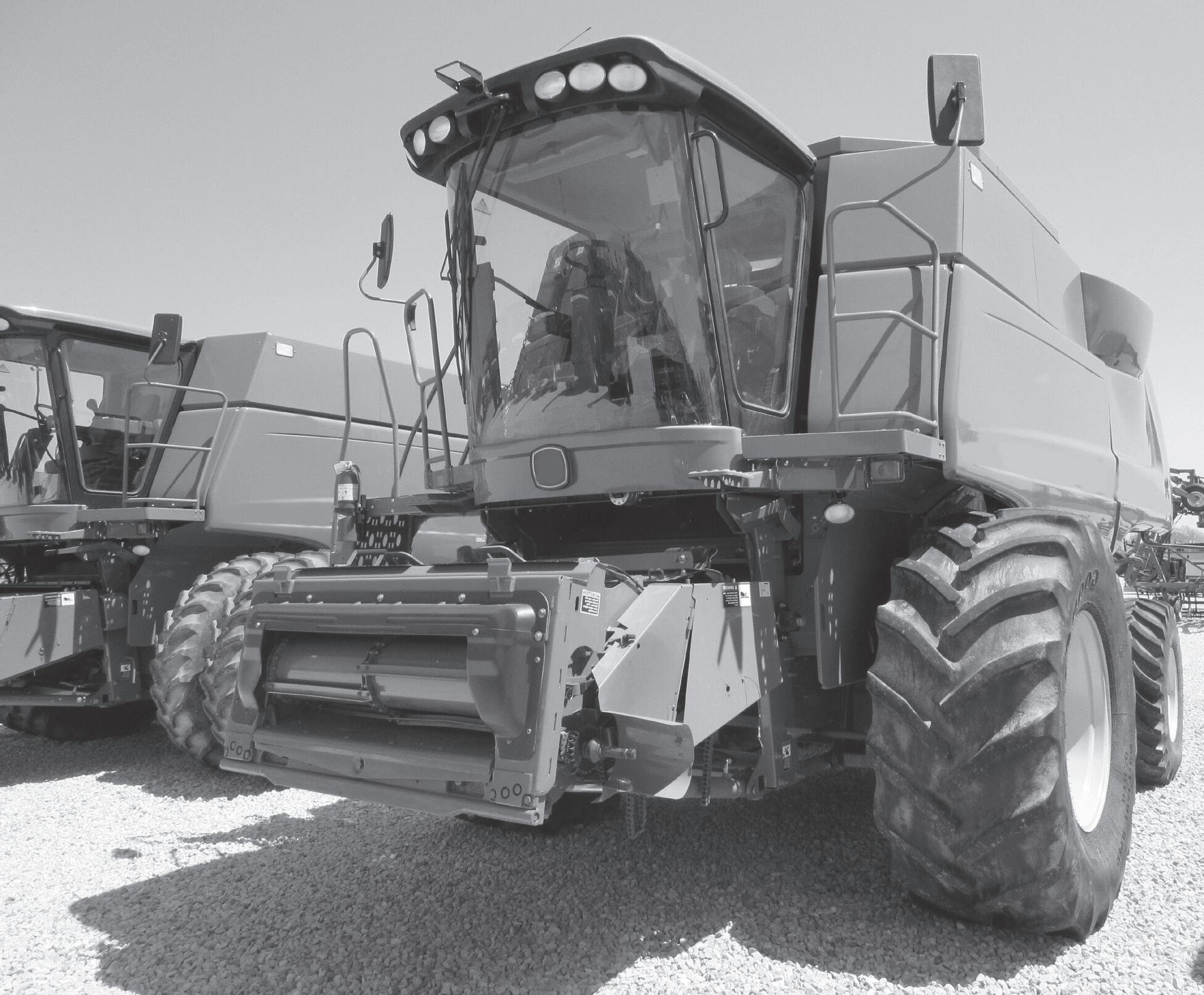

AGRICULTURE & TRACTOR LIGHTS

• Headlights, work lights, cab kits, and complete combine upgrades

• Plug-and-play options for John Deere, Case IH, Kubota, New Holland & more

• Engineered for vibration resistance and rugged ﬁeld conditions

INDUSTRIAL & HEAVY EQUIPMENT

• Fits OEM mounts and wiring harnesses for skid steers, forklifts, and loaders

• Heavy-duty build for demanding jobsite use

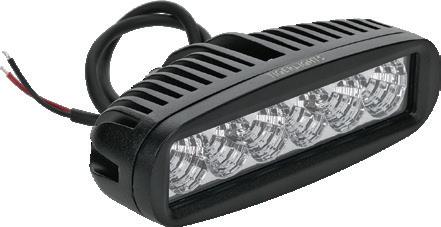

OFF-ROAD, UTV & ATV LIGHTING

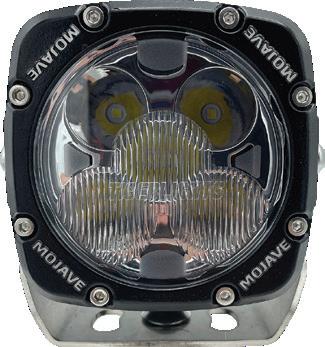

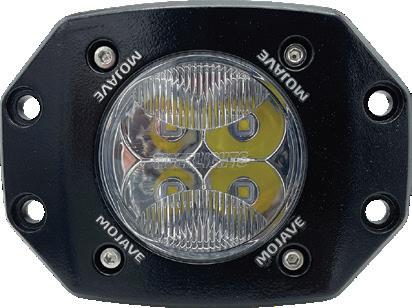

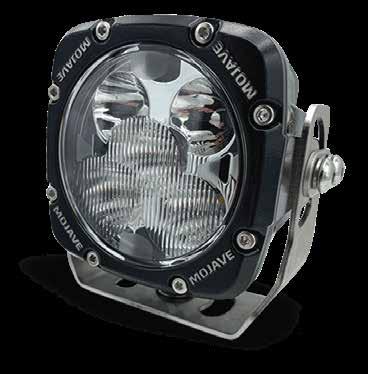

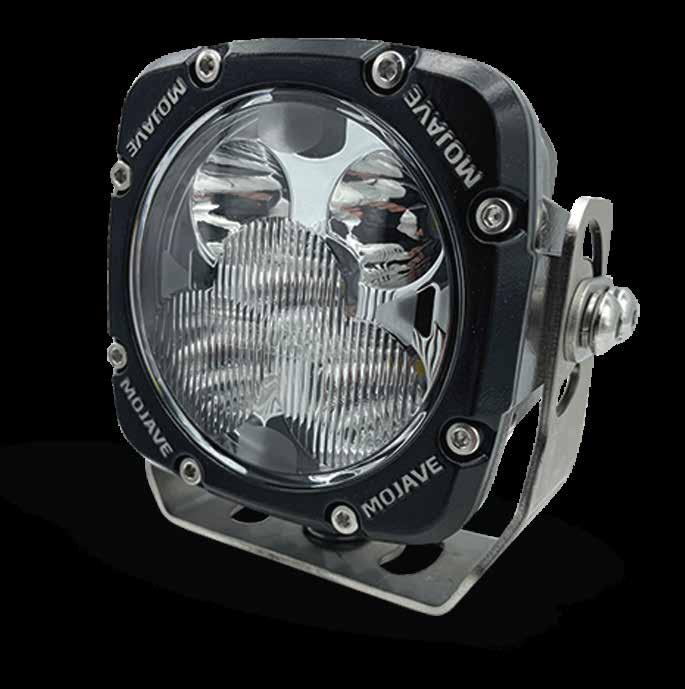

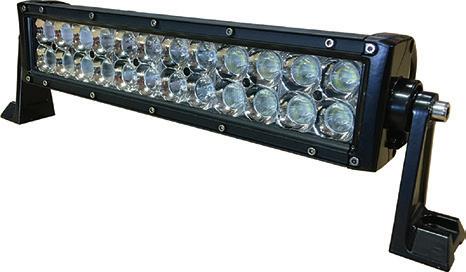

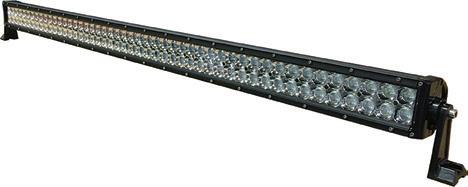

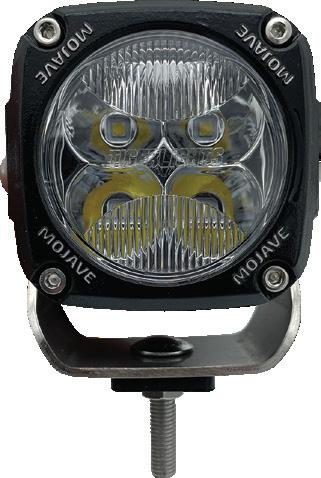

• Mojave Series: Compact and mid-sized LED lighting solutions

• Ideal for trail use, rough terrain, and adverse weather

• Available in spot and ﬂood beam patterns

vs LED HID

LIFESPAN

30,000 TO 50,000 hours

AVERAGE LUMEN OUTPUT

TL3030 (40 Watts): 3,600 Lumens

TL5680 (65 Watts): 5,200 Lumens

TL500F (50 Watts): 6,900 Lumens

WARM-UP TIME

LEDs offer instant full brightness and produce up to 150+ lumens per watt

BRIGHTNESS DEGRADATION

Minimal loss of lumens over time

DURABILITY

Highly resistant to shock, vibration,

LIFESPAN

6,000 TO 20,000 HOURS

AVERAGE LUMEN OUTPUT

35 Watt Lamp: 2,500 Lumens

WARM-UP TIME

HID Lights have a warm-up period

BRIGHTNESS DEGRADATION

HID Lights can deteriorate by up to 70% over 10,000 burning hours

DURABILITY

Fragile arc tubes and ballasts can fail under vibration or extreme

ENGINEERED FOR THE EXTREMES

COLD. WET. NO PROBLEM.

When job sites freeze over and visibility matters most, Tiger Lights keep performing. Rated IP68, every light is fully sealed against dust and built to survive full water submersion. Snow, slush, and sleet are just part of the job. No warm-up time. No moisture failures. Just relentless clarity, no matter the weather.

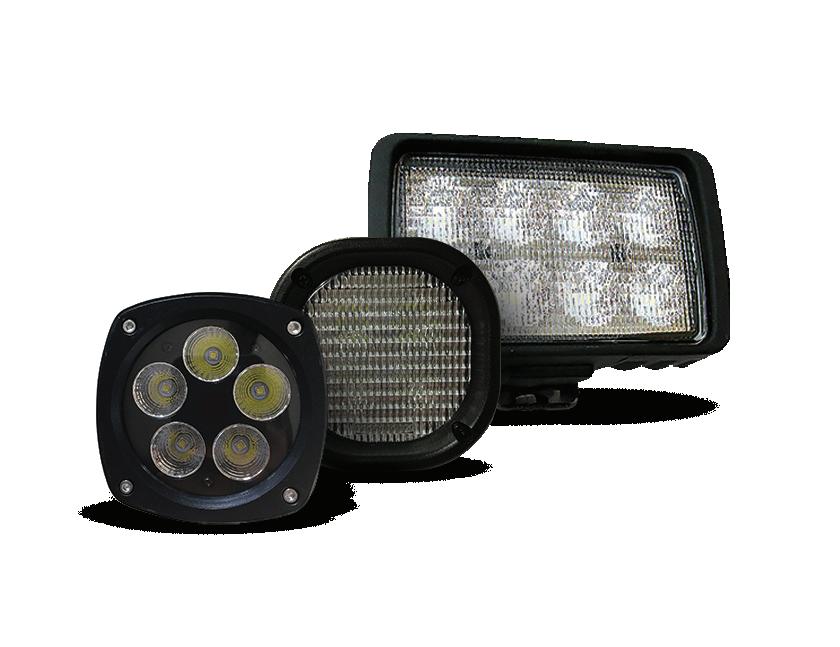

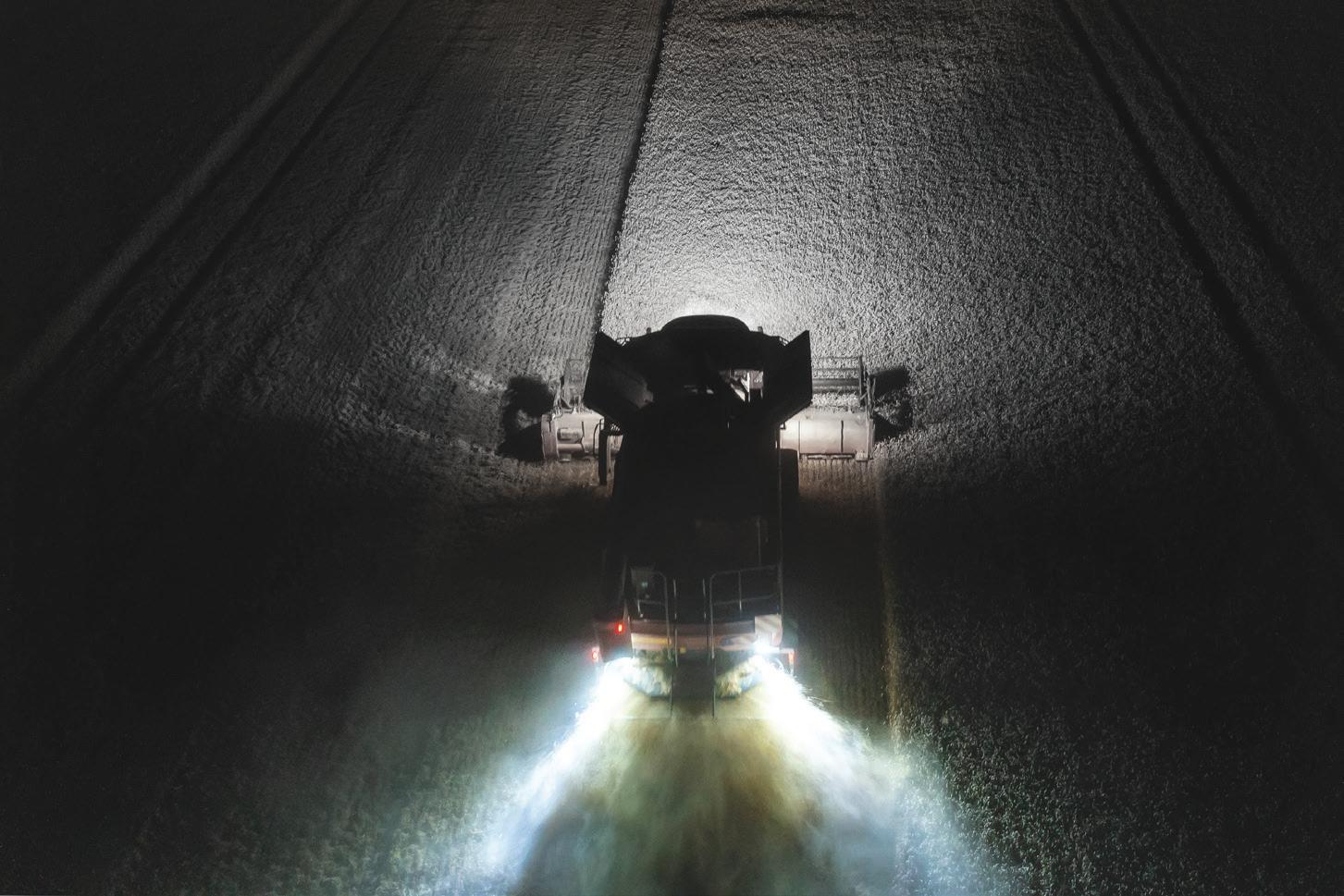

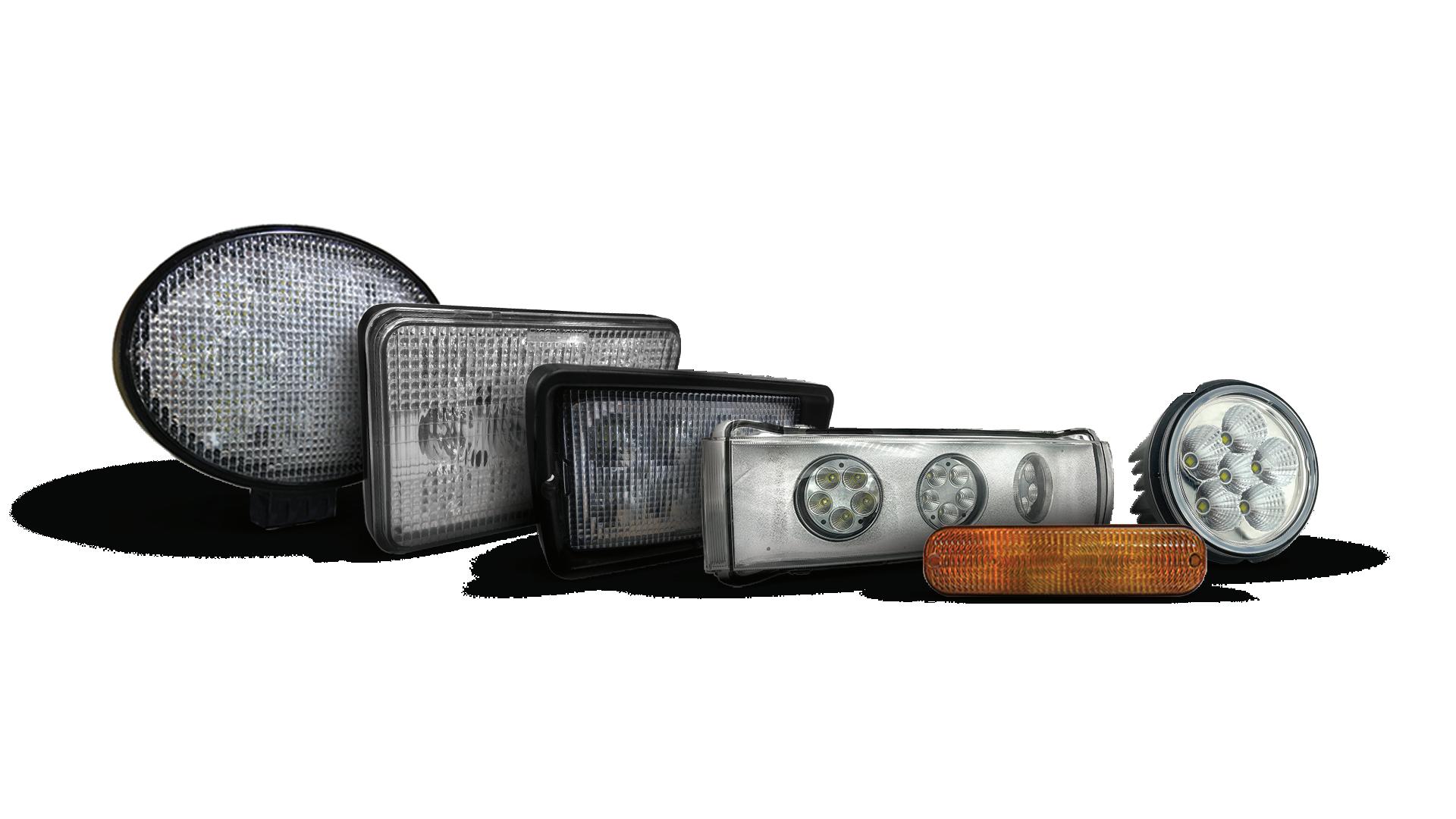

AGRICULTURE LED LIGHTS

• Headlights, work lights, cab kits and complete combine upgrades

• Plug and Play options for John Deere, Case IH, Kubota, Ford/New Holland and more

• Engineered for vibration resistance and rugged field conditions

AGCO

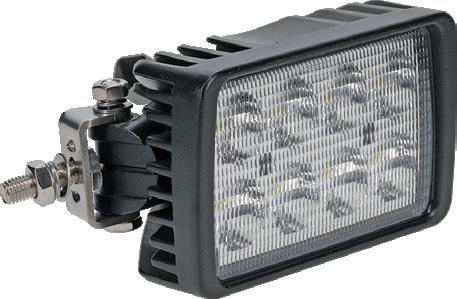

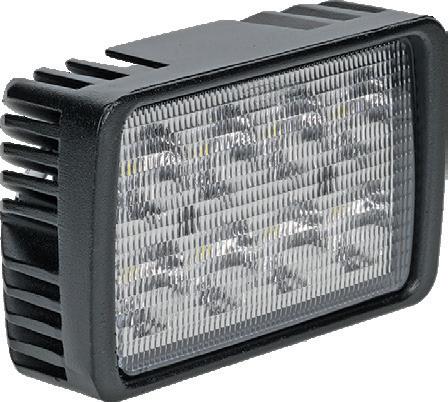

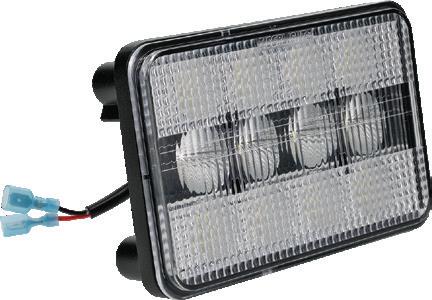

TL175F LED Flood Light

Lumens: 4800

Watt: 50

Amps: 4.160

Light Pattern: Spot/Flood

Light Shape: Rectangular

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Fits Models: Agco

8100, 8200, 8400, 8500

Replaces:70264104, 70264105

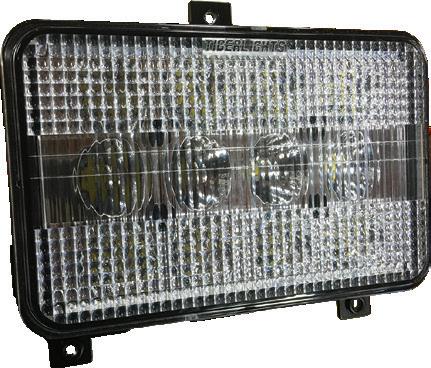

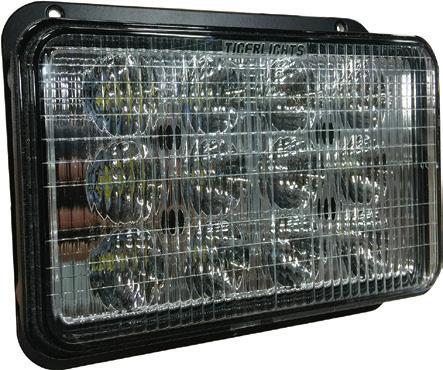

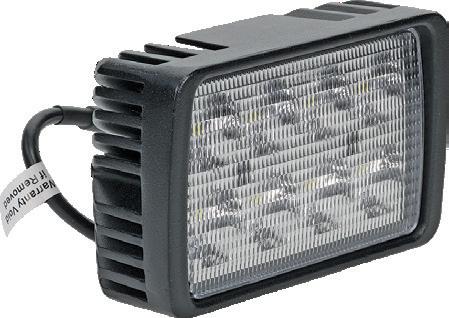

TL6040 LED High/Low Beam

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Connection and stainless steel hardware

Tech Specs: Uses original mount and wiring

Fits Models: Agco

6124, 6144, 6145, 6175, 6195, 6215, 8510, 8710, 8810, 9435, 9455, 9630, 9635, 9650, 9655, 9670, 9675, 9690, 9695, 9815, 9875, 9755 4WD, 9765

4WD, 9775 4WD, 9785 4WD, DT160, DT180, DT200, DT225

Replaces: 72514546

TL6050 LED High/Low Beam

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Connectors and stainless steel hardware

Tech Specs: Uses original mount and wiring

Fits Models: Agco 6140, 8310, 8410, 9735, 9745, RT130, RT145

Replaces: 1693944M93, 3713799M91, 3809345M91, 3809346M91

TL9020 LED High/Low Beam

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Tech Specs: Oversized aluminum heat sink; RFI and EMI filters

Fits Models: Agco 9130, 9150, 9170, 9190 Replaces: 30-3534510, 72162190

TL9010 Flood Light

Lumens: 3500

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Tech Specs: Plug and Play; uses original mount and wiring

Fits Models: Agco 25600, 2-155, 2-180 Replaces: 30-3227332

TL9095 LED Mount Light

Lumens: 3500

Watt: 40

Amps: 3.300

Light Pattern: Spot/Flood

Dimensions: 3 1/4" W x 7 1/4" L x 3 1/4" D

Volt: 12-24

Includes: H4 connector, oversized aluminum heat sink and aluminum bezel

Tech Specs: Oversized aluminum heat sink and aluminum bezel; direct fit; high/low beam; H4 connector

Replaces: 155-0043, 3713137M1, 72312570

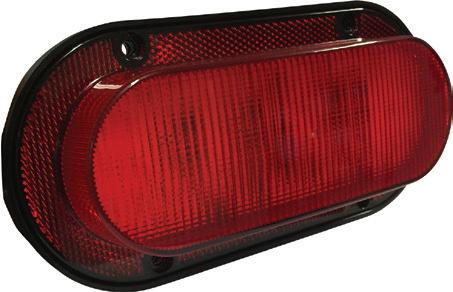

TL4560 LED Red Tail Light

Watt: 9

Amps: 0.750

Color: Red

Light Shape: Oval

Volt: 12-24

Tech Specs: Plug and Play

Fits Models: Agco

25600, 2-155, 2-180

Replaces: 30-3153347, 72160473

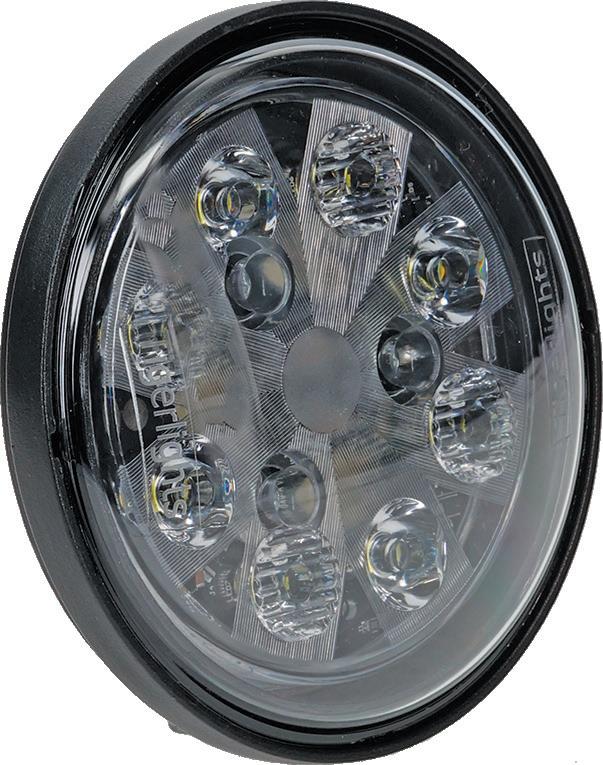

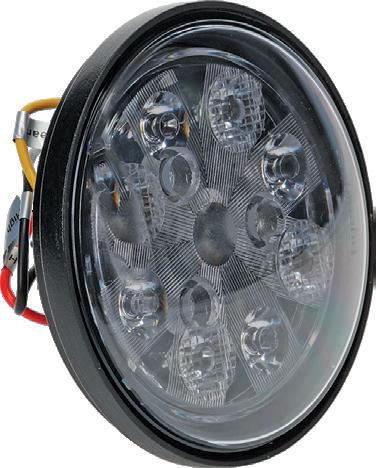

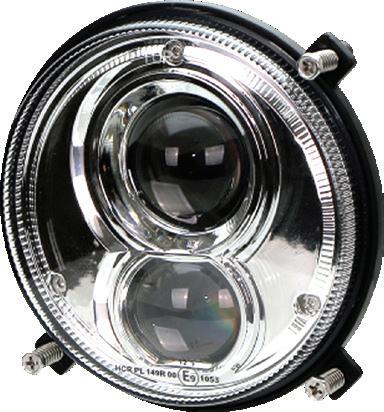

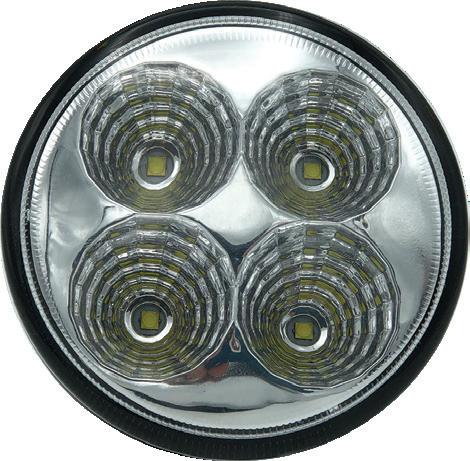

TL6460 LED Headlight

Lumens: 4000

Watt: 60

Amps: 4.200

Light Pattern: Driving

Dimensions: 5 1/2" OD x 3 1/8" D

Volt: 12-24

Tech Specs: Round; high/low beam fits directly into factory mounts; Plug and Play

Replaces: 3788220M91, 3788221M91, 427838M92, 621873M91, 72436277, 72436278, 72438271, 72484113

TL6045 LED Tractor Light

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Connectors and stainless steel hardware

Tech Specs: Uses original mount and wiring, high/low beam

Fits Models: Agco

6124, 6140, 6144, 6145, 6175, 6195, 6215, 8310, 8510, 8710, 8810, 9435, 9455, 9630, 9635, 9650, 9655, 9670, 9675, 9690, 9695, 9735, 9745, 9815, 9875, 9755 4WD, 9765 4WD, 9775 4WD, 9785 4WD, DT160, DT180, DT200, DT225, RT130, RT1450

Replaces: 1693944M93, 3713799M91, 3809345M91, 3809346M91, 72514546

AG-CHEM

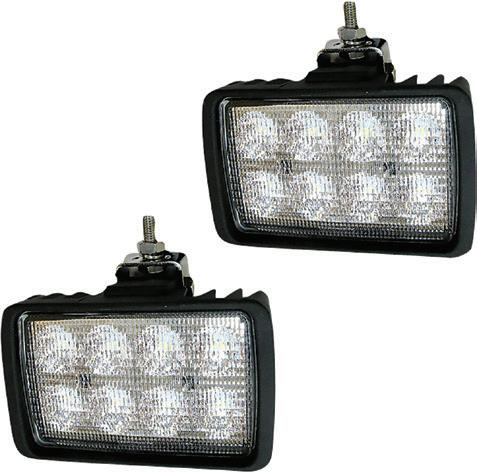

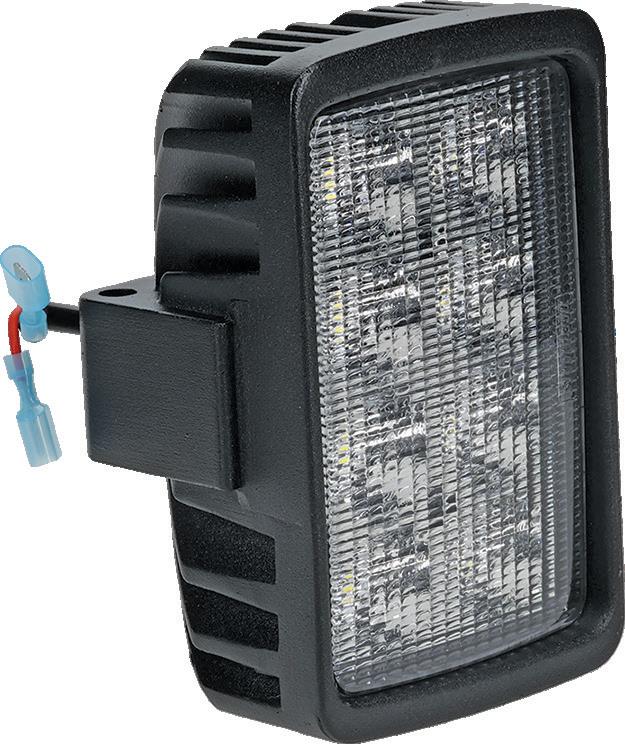

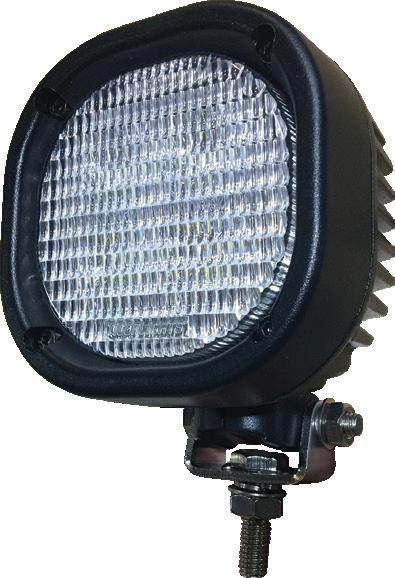

TL7085 LED Work Light

Lumens: 2450

Watt: 24

Amps: 2

Light Pattern: Flood

Dimensions: 4" W x 6 1/2" L x 3" D

Volt: 12-24

Includes: Connectors, adapter and stainless steel hardware

Tech Specs: Plug and Play; uses original mounting bracket on tractor; swivel mount

Fits Models: Ag-Chem 6203, 8203, 8204, 8244, 8303, 9203, 9205, TG7300, TG7300B, TG7300C, TG8300, TG8300B, TG8300C, TG8400, TG8400B, TG8400C, TG9300, TG9300B, TG9300C

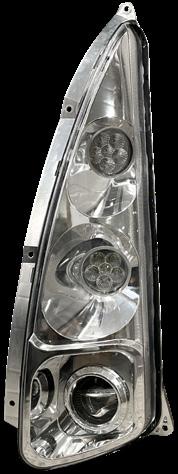

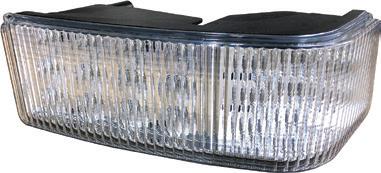

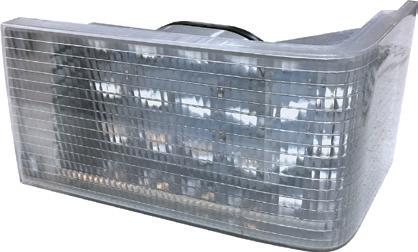

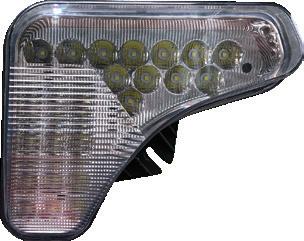

TL8950L and TL8950R LED Headlight

Lumens: 8200

Watt: 90

Amps: 7.500

Light Pattern: Spot/Flood

Dimensions: 13 1/2" L x 5 1/2" HT x 10 1/2" D

Tech Specs: Uses original mount and wiring

Fits Models: Ag-Chem

1054, 1254, 3104, 6103, 6203, 8103, 8104, 8144, 8203, 8204, 8244, 8303, 9103, 9105, 9203, 9205, 1254C, TG7300, TG7300B, TG7300C, TG8300, TG8300B, TG8300C, TG8400, TG8400B, TG8400C, TG9300, TG9300B, TG9300C

ALLIS CHALMERS

TL175F LED Flood Light

Lumens: 4800

Watt: 50

Amps: 4.160

Light Pattern: Spot/Flood

Light Shape: Rectangular

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Fits Models: Allis Chalmers

220, 305, 6060, 6070, 6080, 8010, 8030, 8050, 8070

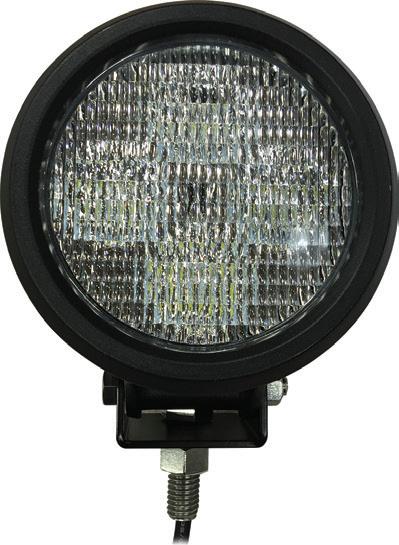

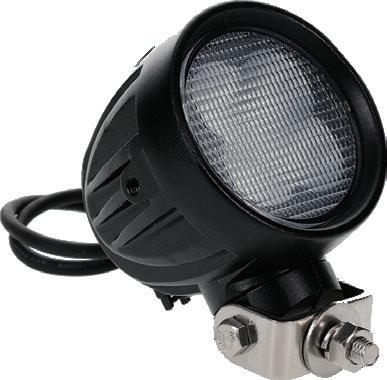

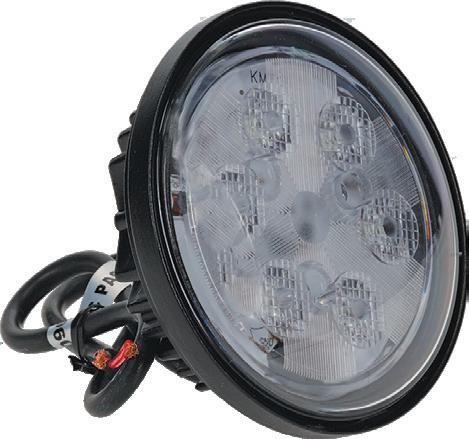

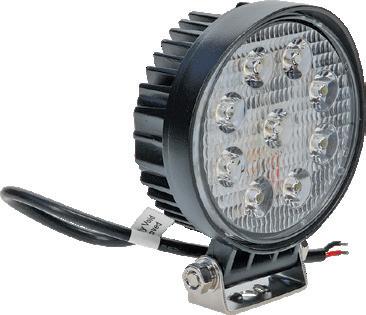

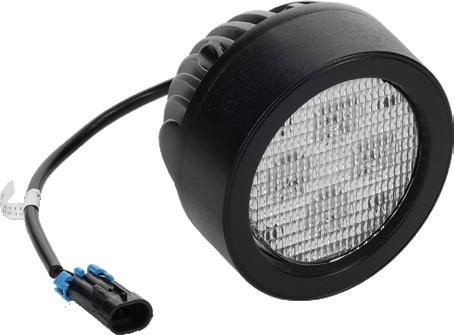

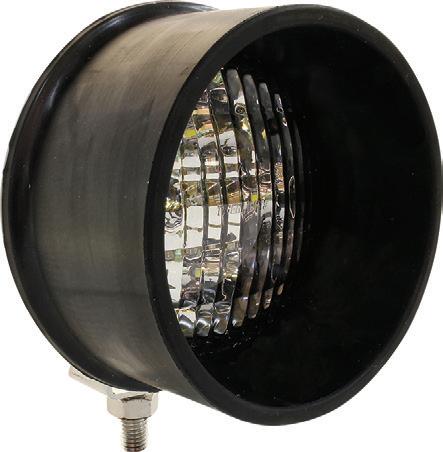

TL2060 LED Tractor Light

Lumens: 2800

Watt: 40

Amps: 3.300

Light Pattern: Trapezoid

Light Shape: Round

Dimensions: 3 1/2" L x 4 1/2" Dia.

Volt: 12-24

Includes: Stainless steel hardware, long rubber bezel and short rubber bezel

Tech Specs: 1/2 rear stud mount with built-in heat sink

Fits Models: Allis Chalmers

160, 170, 175, 180, 185, 190, 200, 210, 6040, 6060, 6070, 6080, 7000, 7010, 7020, 7030, 7040, 7045, 7050, 7060, 7080

Replaces: 70249146, 70249147

TL2080 LED Tractor Light

Lumens: 2800

Watt: 40

Amps: 3.300

Light Pattern: Trapezoid

Light Shape: Round

Dimensions: 3 1/2" L x 4 1/2" Dia.

Volt: 12-24

Includes: Stainless steel hardware, long rubber bezel, short rubber bezel and mounting bracket

Tech Specs: Built-in heat sink; bottom mount

Fits Models: Allis Chalmers

160, 170, 175, 180, 185, 190, 200, 210, 6040, 6060, 6070, 6080, 7000, 7010, 7020, 7030, 7040, 7045, 7050, 7060, 7080

Replaces: 70269614

TL4560 LED Red Tail Light

Watt: 9

Amps: 0.750

Color: Red

Light Shape: Oval Volt: 12-24

Tech Specs: Plug and Play

Fits Models: Allis Chalmers 9130, 9150, 9170, 9190

TLFL2 LED Warning Light

Light Pattern: Flood/Flashing

Dimensions: 4 1/8" Dia.

Volt: 12-24

Tech Specs: Double-sided warning light; 1/2" mounting stud; aluminum body; double-sided warning light, 25 bulbs per side; does not have a built-in flasher, would require a flashing relay inline in order to flash

Fits Models: Allis Chalmers

160, 170, 175, 180, 185, 190, 200, 210, 440, 5040, 5050, 6040, 6060, 6070, 6080, 7000, 7010, 7020, 7030, 7040, 7045, 7050, 7060, 7080, D19

TLFL3 LED Warning Light

Light Pattern: Flood/Flashing

Dimensions: 4 1/8" Dia.

Volt: 12-24

Tech Specs: Double-sided warning light with red and amber; 1/2" mounting stud; aluminum body; double-sided warning light, 25 bulbs per side; does not have a built-in flasher, would require a flashing relay inline in order to flash

Fits Models: Allis Chalmers

160, 170, 175, 180, 185, 190, 200, 210, 440, 5040, 5050, 6040, 6060, 6070, 6080, 7000, 7010, 7020, 7030, 7040, 7045, 7050, 7060, 7080, D19

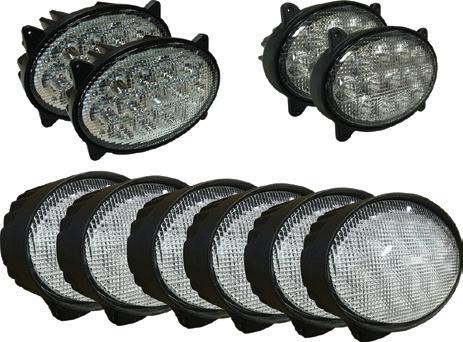

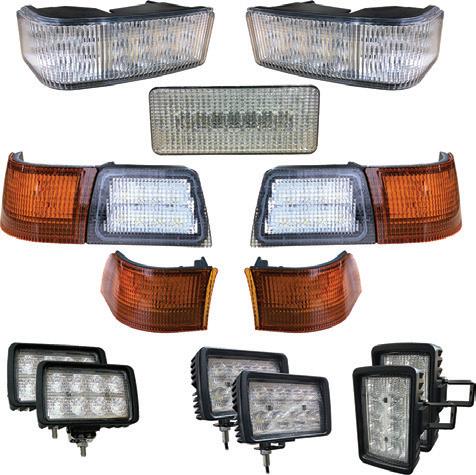

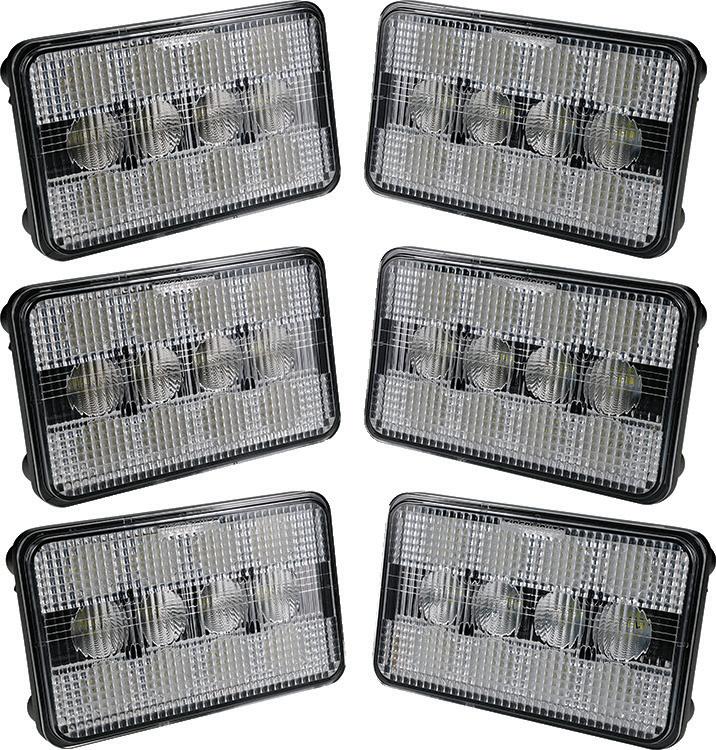

CASEKIT-1 LED Light Kit

Lumens: 42800

Watt: 520

Amps: 43.300

Light Pattern: Spot/Flood Volt: 12-24

Includes:TL7140L left headlight, TL7140R right headlight, two TL3070 lower mid mount lights, stairs and fuel tank and six TL3030 upper front cab and rear fenders

Tech Specs: Plug and Play

Fits Models: Case IH 7110, 7120, 7130, 7140, 7150, 7210, 7220, 7230, 7240, 7250, 8910, 8920, 8930, 8940, 8950

CASEKIT-3 LED Light Kit

Lumens: 52600

Watt: 600

Amps: 50

Light Pattern: Spot/Flood

Volt: 12-24

Includes:Two TL6090 center headlights, high/low beam, four TL6080 outer headlights and eight TL3035 stubble lights, grain tank lights, unloading auger lights and field lights

Tech Specs: Plug and Play

Fits Models: Case IH

5088, 6088, 7010, 7088, 7120, 7130, 7230, 8010, 8120, 8230, 9120, 9230

CASEKIT-2 LED Light Kit

Lumens: 49800

Watt: 680

Amps: 56.600

Light Pattern: Spot/Flood Volt: 12-24

Includes:Two TL6090 center headlights, high/low beam, four TL6080 outer headlights and eight TL3035 stubble lights, grain tank, unloading auger and field lights

Tech Specs: Plug and Play

Fits Models: Case IH 2144, 2166, 2188, 2344, 2366, 2377, 2388, 2577, 2588

CASEKIT-4 LED Light Kit

Lumens: 38500

Watt: 428

Amps: 35.600

Light Pattern: Spot/Flood

Volt: 12-24

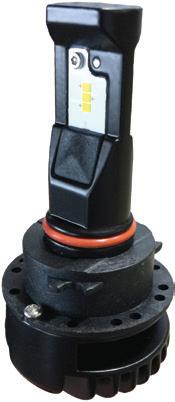

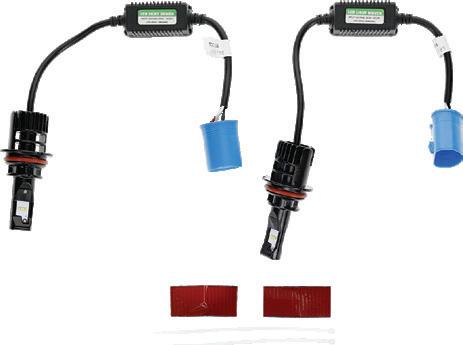

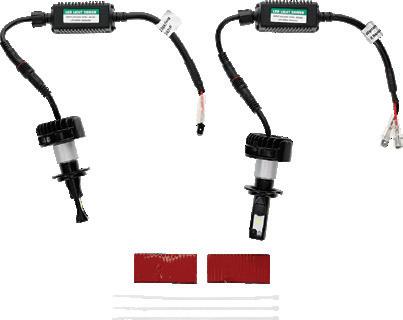

Includes:Three TL6020 center headlights, TLHL-9007 LED headlight bulb, TL6120L left upper front cab light with amber, TL6120R right upper front cab light with amber, TL6130L left upper rear amber light, TL6130R right upper rear amber light, two TL3030 upper rear cab work lights, two TL3085 rear fender work lights and two TL3075 mid mount cab lights

Tech Specs: Plug and Play; will bolt right into factory light housing; OEM replacement

Fits Models: Case IH

Magnum 180, 190, 200, 210, 215, 220, 225, 235, 240, 245, 250, 260, 275, 280, 290, 305, 310, 315, 335, 340, 370, 380, MX215, MX245, MX275, MX305

CASE IH

CASEKIT-5 LED Light Kit

Lumens: 22800

Watt: 336

Amps: 28

Light Pattern: Spot/Flood Volt: 12-24

Includes:Two TL2010 headlights, two TL2040 mid mount lights, four TL3015 rear work lights, stainless steel hardware and mounting bracket

Tech Specs: Plug and Play; uses original mount and wiring

Fits Models: Case IH

3088, 3288, 3488, 3688, 5088, 5288, 5488

CASEKIT-6 LED Light Kit

Lumens: 35800

Watt: 440

Amps: 36.600

Light Pattern: Spot/Flood Volt: 12-24

Includes: Two TL2020 high/low headlights, eight TL3085 work lights and eight mating Deutsch pigtails for work lights

Tech Specs: Requires installation of connector onto wiring harness; original equipment does not have connectors; pigtail connectors are provided

Fits Models: Case IH

9110, 9130, 9150, 9170, 9180, 9210, 9230, 9240, 9260, 9270, 9280, 9310, 9330, 9350, 9370, 9380, 9390

CASEKIT-7 LED Light Kit

Lumens: 53800

Watt: 648

Amps: 54

Light Pattern: Spot/Flood Volt: 12-24

Includes:TL6110L left headlight, TL6110R right headlight, TL6010 center headlight and ten TL3030 work lights on fenders and cab

Tech Specs: OEM replacement; some models have different headlights, be sure to double check your equipment; fits tractors with similar headlights

Fits Models: Case IH

Steiger 330, 335, 380, 385, 430, 435, 480, 485, 530, 535, STX275, STX280, STX325, STX330, STX375, STX380, STX425, STX430, STX440, STX440, STX450, STX480, STX485, STX500, STX530

CASEKIT-8 LED Light Kit

Lumens: 45400

Watt: 548

Amps: 45.670

Light Pattern: Spot/Flood Volt: 12-24

Includes:TL6110L left headlight, TL6110R right headlight, TL6010 center headlight, TL6120L left upper front cab light with amber, TL6120R right upper front cab light with amber, TL6130L left upper rear amber light, TL6130R right upper rear amber light, two TL3030 upper rear cab work lights, two TL3085 rear fender work lights and two TL3075 mid mount cab lights

Tech Specs: Plug and Play; OEM replacement; option for rear tail lights; TL3075 may require splicing into wiring harness

Fits Models: Case IH

MX180, MX200, MX210, MX220, MX230, MX240, MX255, MX270, MX285

CASEKIT-9 LED Light Kit

Lumens: 29600

Watt: 340

Amps: 28.330

Light Pattern: Spot/Flood Volt: 12-24

Includes:TL5140L left headlight, TL5140R right headlight and six TL3030 work lights

Tech Specs: Plug and Play; OEM replacement

Fits Models: Case IH

3220, 3230, 4210, 4230, 4240, 5120, 5130, 5140, 5220, 5230, 5240, 5250

CASEKIT-10 LED Light Kit

Lumens: 40800

Watt: 480

Amps: 40

Light Pattern: Spot/Flood Volt: 12-24

Includes:TL6200L left headlight, L6200R right headlight, TL3085 rear fender work light, four TL3030 upper cab lights, two TL3070 front mid mounts and stainless steel hardware

Tech Specs: Plug and Play; OEM replacement

CASEKIT-11 LED Headlight Kit

Lumens: 17400

Watt: 210

Amps: 17.500

Light Pattern: Spot/Flood Volt: 12-24

Includes:TL6150 center headlight, TL6160L left headlight and TL6160R right headlight

Tech Specs: Plug and Play; TL6150 center light puts out 15000 lumens, five times more light than factory; TL6160 corner headlights designed for DOT and EU road travel

Fits Models: Case IH

Patriot 2250, 3240, 3340

STEIGER 350, 370, 400, 420, 420 Rowtrac

Magnum 180, 190, 200, 210, 215, 220, 225, 235, 240, 245, 250, 260, 275, 280, 290, 305, 310, 315, 335, 340, 370, 380, MX215, MX245, MX275, MX305

Quadtrac 370, 400, 420

CASEKIT-13 LED Headlight Kit

Lumens: 32400

Watt: 360

Amps: 30

Light Pattern: Spot/Flood Volt: 12-24

Includes:Two TL6150 center headlights, TL6160L left headlight and TL6160R right headlight

Tech Specs: Plug and Play; TL6150 center light puts out 15000 lumens, five times more light than factory; TL6160 corner headlights designed for DOT and EU road travel

Fits Models: Case IH

Steiger 450, 470, 500, 540, 550, 600, 580

Quadtrac 450, 470, 500, 540, 550, 580, 600, 620

CASEKIT-14 LED Light Kit

Lumens: 44400

Watt: 660

Amps: 55

Light Pattern: Spot/Flood

Volt: 12-24

Includes: TL6150 center headlight, TL6160L left LED headlight, TL6160R right LED headlight, TL6120L left upper front cab light with amber, TL6120R right upper front cab light with amber, TL6130L left upper rear amber light, TL6130R right upper rear amber light, two TL3030 upper rear cab work lights, two TL3085 rear fender work lights and two TL3075 mid mount cab lights

Tech Specs: Plug and Play; OEM replacement; will bolt right into factory light housing

Fits Models: Case IH

Magnum 180, 190, 200, 210, 215, 220, 225, 235, 240, 245, 250, 260, 275, 280, 290, 305, 310, 315, M 335, 340, 370, 380; MX215, MX245, MX275, MX305

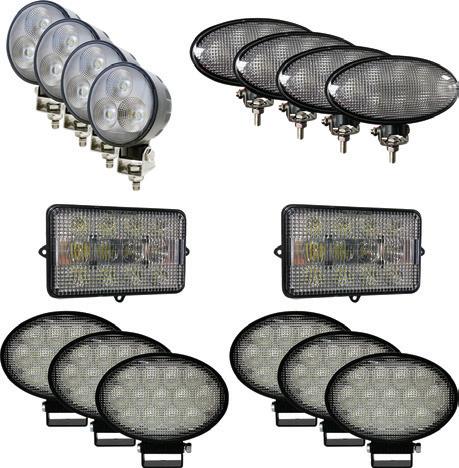

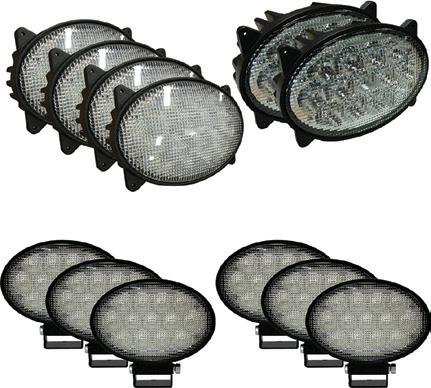

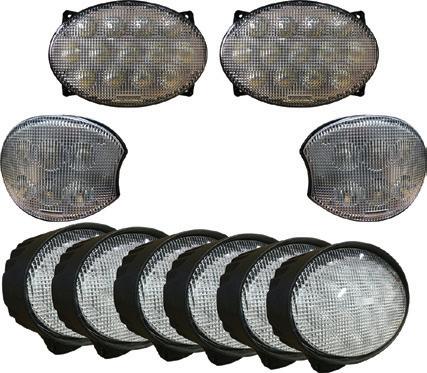

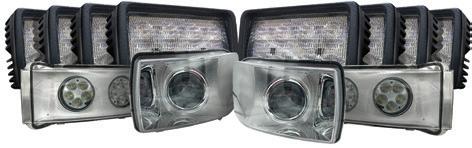

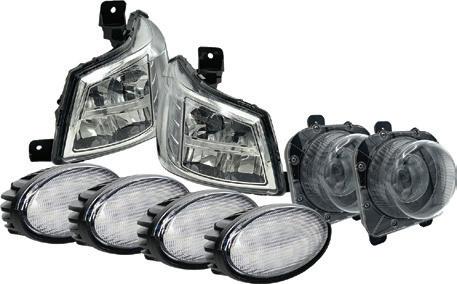

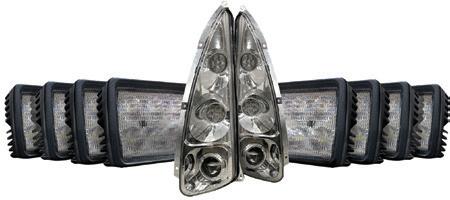

CASEKIT-15 LED Headlight Kit

Lumens:61200

Watt: 680

Amps: 56.400

Light Pattern: Driving/Flood/Spot

Volt: 12-24

Includes: Two TL6150 center headlights, TL6160L left headlight and TL6160R right headlight

Tech Specs: TL6160 corner headlights are designed for DOT and EU road travel, Plug and Play; TL6150 center light puts out 15,000 lumens, 5 times more light then factory,

Fits Models: Case IH

Quadtrac 450, Quadtrac 470, Quadtrac 500, Quadtrac 540, Quadtrac 550, Quadtrac 580, Steiger 450, Steiger 470, Steiger 500, Steiger 540, Steiger 550, Steiger 580, Steiger 600

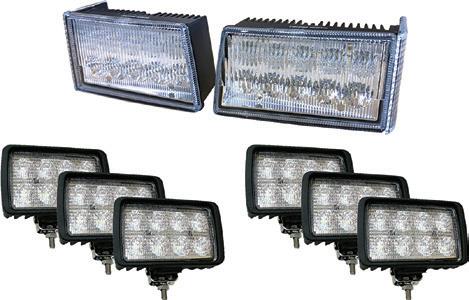

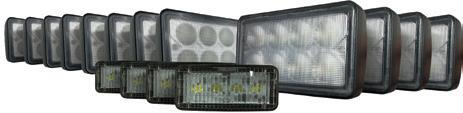

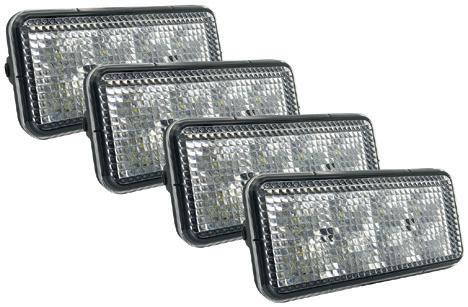

TL2388-KIT LED Cab Light Kit

Lumens: 21000

Watt: 360

Amps: 30

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Two TL6090 center high/low beams, four TL6080 outer high beams and mounting hardware

Tech Specs: Plug and Play; OEM replacement

Fits Models: Case IH 2144, 2166, 2188, 2344, 2366, 2377, 2388, 2577, 2588

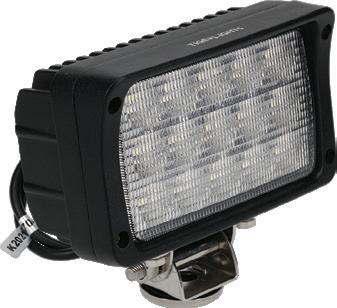

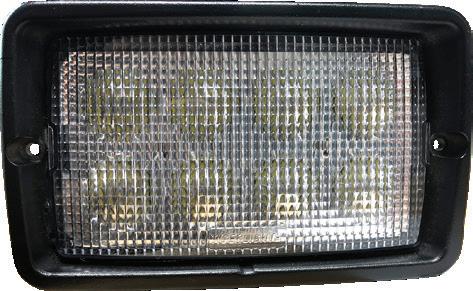

TL175F LED Flood Light

Lumens: 4800

Watt: 50

Amps: 4.170

Light Pattern: Spot/Flood

Light Shape: Rectangular Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Fits Models: Case IH 1620, 1640, 1644, 1660, 1666, 1670, 1680, 1688, 1800, 1822, 1844, 2022, 2044, 2055, Steiger 1225, 1280, 1325, 1360, 1400, CM, KM, KR, KS, ST

Replaces: 20-1730T91, 245555C1, 245897C91, 91666C91

TL2020-1 LED Tractor Headlight

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 8 1/4" W x 5 3/4" L

Volt: 12-24

Includes: Deutsch connector, stainless steel hardware and mounting bracket

Tech Specs: Uses original mount and wiring, high/low beam

Fits Models: Case IH 9110, 9130, 9150, 9170, 9180, 9210, 9230, 9240, 9250, 9260, 9270, 9280, 9310, 9330, 9350, 9370, 9380, 9390

Replaces: 20-2063T1, 60-6730T91

TL2020 LED Tractor Headlight High/Low Beam

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Flood

Dimensions: 8 1/4" W x 5 3/4" L

Volt: 12-24

Includes:Deutsch connector, stainless steel hardware and mounting bracket

Tech Specs: Uses original mount and wiring

Fits Models: Case IH 9110, 9130, 9150, 9170, 9180, 9210, 9230, 9240, 9250, 9260, 9270, 9280, 9310, 9330, 9350, 9370, 9380, 9390, Steiger Bearcat 1000, Cougar 1000, CR-1225, CR-1280, KR-1225, KR-1280, Panther 1000, Puma 1000, Wildcat 1000

Replaces: 20-2063T1, 60-6730T91

TL2010 LED Tractor Headlight

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Flood

Dimensions: 8 1/4" W x 5 3/4" L

Volt: 12-24

Includes:Stainless steel hardware and mounting bracket

Tech Specs: Uses original mount and wiring

Fits Models: Case IH

3088, 3288, 3488, 3688, 5088, 5288, 5488 Replaces: 131227C92

TL2040 LED Tractor Flood Light

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Includes:Stainless steel hardware

Tech Specs: Fits under the ladder into the cab; oversized aluminum heat sink; RFI and EMI filters

Fits Models: Case IH

3088, 3288, 3488, 3688, 5088, 5288, 5488 Replaces: 146479C1

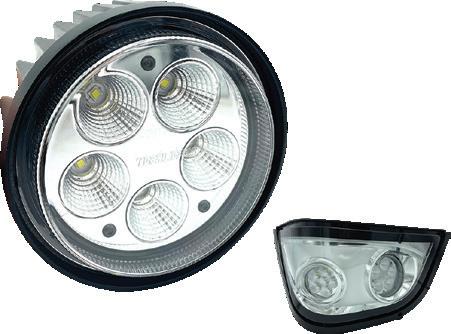

TL2060 LED Tractor Light

Lumens: 2800

Watt: 40

Amps: 3.300

Light Pattern: Trapezoid

Light Shape: Round

Dimensions: 3 1/2" L x 4 1/2" Dia.

Volt: 12-24

Includes: Stainless steel hardware, long rubber bezel and short rubber bezel

Tech Specs: 1/2 rear stud mount with built-in heat sink

Fits Models: Case IH

186, 786, 886, 986, 1086, 1486, 1586, 3088, 3288, 3388, 3488, 3588, 3688, 3788, 5088, 5288, 5488, 6388, 6788, 7288, 7488

Replaces: 131508C1, 388945R91, 533063R91

TL2050 LED Sealed Light

Lumens: 2200

Watt: 24

Amps: 2

Light Pattern: Flood

Dimensions: 1 1/2" L x 4 1/2" Dia.

Volt: 12-24

Includes:Par 36 replacement; Uses original mount, wiring and screw connections

Fits Models: Case IH

26, 33, 34, 265, 530, 544, 656, 666, 686, 706, 756, 766, 780, 786, 806, 826, 856, 886, 966, 986, 1026, 1066, 1086, 1190, 1206, 1256, 1290, 1390, 1450, 1456, 1466, 1468, 1486, 1490, 1550, 1566, 1568, 1586, 1690, 2090, 2290, 2390, 2590, 3088, 3288, 3388, 3488, 3588, 3688, 3788, 4490, 4690, 4890, 5088, 5288, 5488, 1150B, 1150C, 1150D, 1150E, 1155D, 1155E, 1450B, 1455B, 26B, 310C, 310D, 320B, 420B, 420C, 420DB, 450B, 455B, 480B, 480C, 480D, 480E, 480ELL, 480F, 480LL, 580C, 580D, 580SD, 580SE, 584C, 584D, 585C, 585D, 586C, 586D; 680E, 680G, 680H, 780B, 780C Construction King; 850B, 850C, 850D, 855C, 855D, W10E, W8E, W9, W9E

Replaces: 373662R1, 373662R91, A11280, D70115, D71409

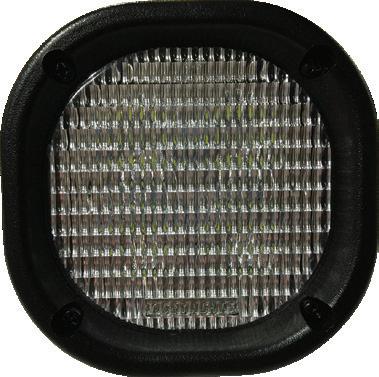

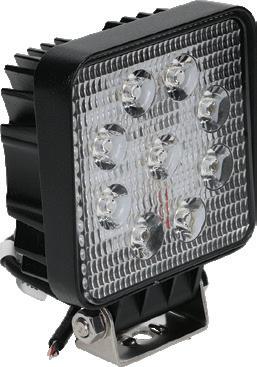

TL860 LED Mount Light

Lumens: 3600

Watt: 40

Amps: 3.300

Light Pattern: Flood

Light Shape: Square

Dimensions: 4" W x 4" L x 3 1/4" D

Volt: 12-24

Tech Specs: Direct replacement; Plug and Play; bottom mount

Fits Models: Case IH

5130, 5140, 5150, 6130, 6140, 6150, 7130, 7140, 7150, 7230, 7240, 7250, 8230, 8240, 8250, 9230, 9240, 9250, 1021F, 1121F, 1221E, 1221F, 1650L, 1650M, 2050M, 521F, 570N, 570NXT, 580N, 580SN, 590SN, 621F, 650K, 650L, 721F, 750K, 750L, 750M, 821F, 850K, 850L, 850M, 921F

Replaces: 47682620, 47682629, 84236850, 87584890

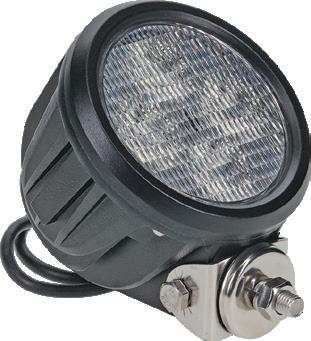

TL2080 LED Tractor Light

Lumens: 2800

Watt: 40

Amps: 3.300

Light Pattern: Trapezoid

Light Shape: Round

Dimensions: 3 1/2" L x 4 1/2" Dia.

Volt: 12-24

Includes: Stainless steel hardware, long rubber bezel, short rubber bezel and mounting bracket

Tech Specs: Built-in heat sink; bottom mount

Fits

Models: Case IH

186, 485, 786, 886, 986, 1086, 1190, 1290, 1390, 1486, 1490, 1586, 1690, 2090, 2290, 2390, 2590, 3088, 3288, 3388, 3488, 3588, 3688, 3788, 4490, 4690, 4890, 5088, 5288, 5488, 6388, 6788, 7288, 7488

Replaces: A145495

TL3010 LED Sealed Light

Lumens: 1250

Watt: 18

Amps: 1.500

Light Pattern: Trapezoid

Light Shape: Round

Dimensions: 1 1/2" L x 4 1/2" Dia.

Volt: 12-24

Tech Specs: Par 36 replacement; uses original mount and wiring

Fits

Models: Case IH

Construction King; 850B, 850C, 850D, 855C, 855D, W10E, W8E, W9, W9E

Replaces: 373662R1, A11280, D70115, D71409

TL3015 LED Sealed Light

Lumens: 2200

Amps: 2

Light Pattern: Spot/Flood

Light Shape: Round

Dimensions: 1 1/2" L x 4 1/2" Dia.

Volt: 12-24

Tech Specs: Par 36 replacement; Uses original mount and wiring

Fits Models: Case IH

Construction King; 850B, 850C, 850D, 855C, 855D, W10E, W8E, W9, W9E

Replaces: 373662R1, 373662R91, A11280, D70115, D71409

TL3070 LED Mount Light

Lumens: 3600

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 3 1/2" W x 6" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Plug and Play; swivel mounting bracket allows for better angles to mount the light; uses original mount and wiring

Fits Models: Case IH

5120, 5130, 5140, 5220, 5230, 5240, 5250, 7110, 7120, 7130, 7140, 7150, 7210, 7220, 7230, 7240, 7250, 8910, 8920, 8930, 8940, 8950, 285 Steiger; Magnum 180, 190, 210, 215, 225, 235, 245, 250, 255, 260, 275, 280, 290, 305, 310, 315, 335, 340, 370, 380; MX100, MX100C, MX120, MX135, MX150, MX170, MX215, MX245, MX285, MX305, MX80C, MX90C; Steiger 280, 330, 335, 380, 385, 430, 435, 480, 485, 530, 535; STX275, STX280, STX325, STX330, STX375, STX380, STX425, STX430, STX440, STX450, STX480, STX485, STX500, STX530

Replaces: 275333A1, 275334A1, 92266C1

TL3035 LED Work Light

Lumens: 3600

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 3 1/2" W x 6" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Replaces all bottom mount lights around combine; uses original mount and wiring

Fits Models: Case IH

2144, 2166, 2188, 2344, 2366, 2377, 2388, 2577, 2588

Cotton pickers 2155, 2555, 420, CPX420

Replaces: 185118A1

301891A LED Handrail Light

Lumens: 3600

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 3 1/2" W x 6" L x 3" D

Volt: 12-24

Includes: Billet mounting bracket to attach to the handrail, and the correct connector, for plug and play installation

Fits Models: Case IH

Magnum 275, Magnum 305, Magnum 335, MX180, MX200, MX210, MX215, MX220, MX230, MX240, MX245, MX255, MX270, MX285, MX305

TL3030 LED Tractor Light

Lumens: 3600

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 3 1/2" W x 6" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Uses original mount and wiring

Fits Models: Case IH 590, 5120, 5130, 5140, 5150, 5220, 5230, 5240, 5250, 7110, 7120, 7130, 7140, 7150, 7210, 7220, 7230, 7240, 7250, 8910, 8920, 8930, 8940, 8950, 1150H; 285 Steiger; 3040, 3540 Titan; 370, 420 Steiger; 4420 Patriot; 4540 Titan; 470, 540, 580 Steiger; 580K, 580SK, 650G, 650H, 750H, 850H, CX100, CX50, CX60, CX70, CX80, CX90, FLX3010, FLX3510, FLX4010, FLX4510; Magnum 215, 245, 255, 260, 275, 305, 335; MX100, MX100C, MX120, MX135, MX150, MX170, MX180, MX200, MX210, MX215, MX220, MX230, MX240, MX245, MX255, MX270, MX285, MX305, MX80C, MX90C; Quadtrac 370, 420, 450, 470, 500, 540, 550, 580, 600, 620; SPX4410; Steiger 280, 330, 335, 350, 380, 385, 400, 430, 435, 450, 480, 485, 500, 530, 535, 550, 600; STX275, STX280, STX325, STX330, STX375, STX380, STX425, STX430, STX440, STX450, STX480, STX485, STX500, STX530; Titan 3020, 3030, 3520, 3530, 4020, 4030, 4520, 4530 Replaces: 178345A1, 180097A1, 1983210C1, 275335A1, 305256A1, 87435762, 87773385, 92263C1, 92269C1, R54411, R54412

TL3085 LED Fender Light

Lumens: 3600

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 3 1/2" W x 6" L

Volt: 12-24

Includes: Deutsch connector, stainless steel hardware and mounting bracket

Tech Specs: Comes with hollow bolt to easily run wire to hide under fender; uses original wiring; will require to install connector after running wires through bolt

Fits Models: Case IH

9110, 9130, 9150, 9170, 9180, 9210, 9230, 9240, 9260, 9270, 9280, 9310, 9330, 9350, 9370, 9380, 9390, CX100, CX50, CX60, CX70, CX80, CX90, Magnum 215, Magnum 235, Magnum 245, Magnum 255, Magnum 260, Magnum 275, Magnum 305, Magnum 335, MX100, MX100C, MX110, MX120, MX135, MX150, MX170, MX180, MX200, MX210, MX215, MX220, MX230, MX240, MX245, MX255, MX270, MX285, MX305, MX80C, MX90C, Replaces: 20-1730T91

TL3075 LED Mount Light

Lumens: 3600

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 3 1/2" W x 6" L x 3" D

Volt: 12-24

Tech Specs: Does require splicing into original wiring; will work with mid mount lights off front of cab on some Case IH Magnum tractors

Fits Models: Case IH

Magnum 215, 245, 255, 260, 275, 305, 335; MX180, MX200, MX210, MX215, MX220, MX230, MX240, MX245, MX255, MX270, MX285, MX305

TL5140L LED Left Headlight

TL5140R LED Right Headlight

Lumens: 4000

Watt: 50

Amps: 4.160

Light Pattern: Spot/Flood

Volt: 12-24

Includes: Stainless steel hardware

Tech Specs: OEM replacement; Plug and Play

Fits Models: Case IH

3220, 3230, 395, 4210, 4230, 4240, 495, 5120, 5130, 5140, 5220, 5230, 5240, 5250, 565, 695, 895, 995, C100, C50, C60, C70, C80, C90, CX100, CX50, CX70, CX80, CX90

Replaces: 196481C2 (left), 196482C2 (right)

TL5650 LED Light

Lumens: 2900

Watt: 35

Amps: 2.500

Light Pattern: Flood

Dimensions: 3 3/4" W x 5 3/4" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Powder coated housing; oversized aluminum heat sink; RFI and EMI filters

Fits Models: Case IH

5088, 6088, 6140, 7088, 7120, 7130, 7230, 8010, 8120, 8230, 8240, 9120, 9130, 5140, 7140, 9130, 9240

Replaces: 87584890

CASE IH

TL5655

LED Light

Lumens: 2900

Watt: 35

Amps: 2.9

Light Pattern: Flood

Dimensions: 3 3/4" W x 5 3/4" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Powder coated housing; oversized aluminum heat sink; RFI and EMI filters

Fits

Models: Case IH

5088, 5130, 5140, 6088, 6140, 7010, 7088, 7120, 7130, 7140, 7230, 8010, 8120, 8230, 8240, 9120, 9230,

Replaces: 47682620, 84479126, 87001315, 87284332, 87584890

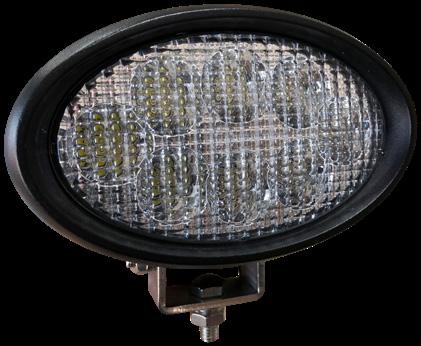

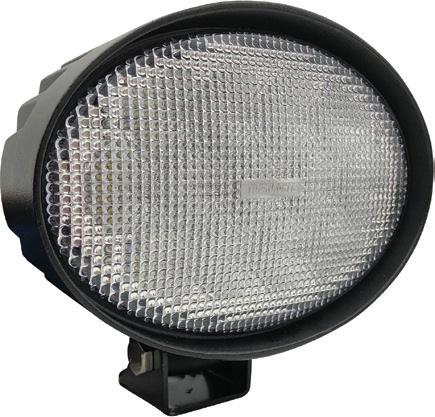

TL5690 LED Work Light

Lumens: 5200

Light Pattern: Flood

Shape: Oval

Dimensions: 6" W x 4" L

Includes: Stainless steel hardware, hollow bolt, adapter and mounting bracket

Tech Specs: For Magnum tractor models; replaces rear fender lights on models with oval lights on the upper cab and fenders; powder coated housing; oversized aluminum heat sink; RFI and EMI filters

Fits Models: Case IH

Magnum 180, 200, 220, 240, 250, 2654, 280, 310, 3154, 340, 380

Replaces: 84380268

TL3095 LED Work Light

Lumens: 2800

Watt: 30

Amps: 2.500

Light Pattern: Flood

Dimensions: 5 1/8" L x 4" HT x 3 1/8" D

Volt: 12-24

Tech Specs: Plug and Play work light/ headlight; Replaces the six lights on top of the cab, as well as the work lights on rear

Fits Models: Case IH

WD1203, WD1903, WD2303, WDX1002S, WDX1202, WDX1202S, WDX1902, WDX2302

Replaces: 86705725, 86705727

TL6010 LED Headlight

Lumens: 7200

Watt: 108

Amps: 9

Light Pattern: Spot/Flood

Dimensions: 4 1/4" W x 10 1/2" L x 4 1/2" D

Volt: 12-24

Tech Specs: Direct replacement; Plug and Play

Fits Models: Case IH

285 Steiger; 3320, 4420 Patriot; MX180, MX200, MX210, MX220, MX230, MX240, MX255, MX270, MX285, SPX4260; SPX4410 Patriot; Steiger 280, 330, 335, 380, 385, 430, 435, 480, 485, 530, 535; STX275, STX280, STX325, STX330, STX375, STX380, STX425, STX430, STX440, STX450, STX480, STX485, STX500, STX530; Titan 3020, 3520, 4020, 4520

Replaces: 232454A2, 232455A2

TL6110L LED Left Headlight TL6110R LED Right Headlight

Lumens: 5300

Watt: 70

Amps: 5.800

Light Pattern: Spot/Flood

Includes: Stainless steel hardware

Tech Specs: OEM replacement; Plug and Play

Fits Models: Case IH

105U, 3040 Titan; 3320 Patriot; 3540, 4040 Titan; 4420 Patriot; 4540 Titan; 85C, 85U, 95C, 95U, CX100, CX70, CX80, CX90, JX100U, JX1060C, JX1070C, JX1070U, JX1075C, JX1080U, JX1085C, JX1090U, JX1095C, JX1100U, JX70U, JX80U, JX90U, MX180, MX200, MX210, MX220, MX230, MX240, MX255, MX270, MX285, MXM120, MXM130, MXM140, MXM155, MXM175, MXM190, MXU100, MXU110, MXU115, MXU125, MXU130, MXU135, SPX4260; SPX4410 Patriot; Steiger 280, 330, 335, 350, 380, 385, 430, 435, 480, 485, 530, 535; STX275, STX280, STX325, STX330, STX375, STX380, STX425, STX430, STX440, STX450, STX480, STX485, STX500, STX530; Titan 3020, 3520, 4020, 4030, 4520, 4530

Replaces: 232449A2 (left), 232451A2 (left), 365842A (left), 87429389 (left), 232448A2 (right), 232450A2 (right), 365841A1 (right), 87429390 (right)

TL6080 LED Combine Light

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Stainless steel hardware

Tech Specs: Fits in above cab; uses original mount

Fits Models: Case IH

320, 625, 2144, 2155, 2166, 2188, 2344, 2366, 2377, 2388, 2555, 2577, 2588, CPX420, CPX610, CPX620

Replaces: 138225A1, 183162A1, 353657A1, 87368623

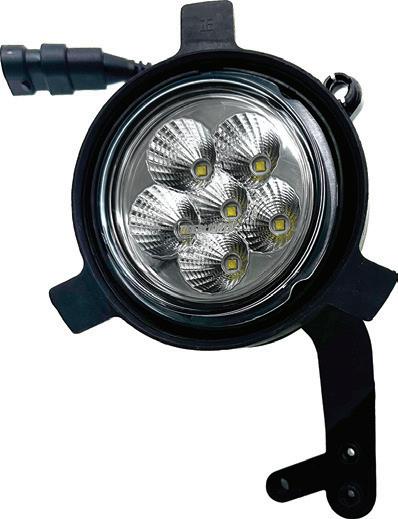

TL6020 LED Headlight

Lumens: 3200

Watt: 32

Amps: 2.600

Light Pattern: Flood

Dimensions: 2" L x 3 3/8" Dia.

Volt: 12-24

Tech Specs: Direct replacement; will bolt right into factory light housing; Plug and Play; will bolt into OEM light housing part numbers: 87455676, 87455677 and 87308895

Fits Models: Case IH

Magnum 180, 190, 200, 210, 215, 220, 225, 235, 240, 245, 250, 260, 275, 280, 290, 305, 310, 315, 335, 340, 370, 380; MX215, MX245, MX285, MX305; Puma 165, 170, 180, 185, 195, 200, 210, 215, 220, 225, 230; Quadtrac 370, 400, 420, 450, 470, 500, 540, 550, 580, 600, 620

Replaces: 47376469, 84530388, 87328621, 87539115

TL6090 LED Cab Light

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Connector, adapter and stainless steel hardware

Tech Specs: Fits in above cab; high/low beam uses original mount and wiring

Fits

Models: Case IH

320, 385, 485, 585, 625, 685, 885, 1294, 1394, 1494, 1594, 1690, 1896, 2090, 2094, 2096, 2144, 2155, 2166, 2188, 2290, 2294, 2344, 2366, 2377, 2388, 2390, 2394, 2555, 2577, 2588, 2590, 2594, 2870, 3294, 3394, 3594, 4490, 4494, 4690, 4694, 4890, 4894, 4994, CPX420, CPX610, CPX620

Replaces: 138224A1, 183161A1, 353656A1

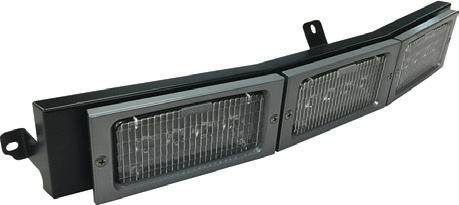

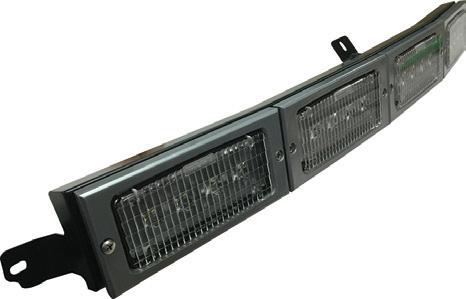

TL6150 LED Hood Light

Lumens: 15000

Watt: 150 Volt: 12-24

Tech Specs: Durable poly-carbonate lens and aluminum housing for each attached light; Light replaces current OEM lights and housing; Plug and Play Fits Models: Case IH

2250, 3240, 3340 Patriot; 370 Steiger; 420 Rowtrac; 420, 470, 540, 580 Steiger; Magnum 180, 190, 200, 210, 215, 220, 225, 235, 240, 245, 250, 260, 275, 280, 290, 305, 310, 315, 335, 340, 370, 380; MX215, MX245, MX285, MX305; Quadtrac 370, 400, 420, 450, 470, 500, 540, 550, 580, 600, 620; Steiger 350, 400, 450, 500, 550, 600

Replaces: 87308895, 87455676, 87455677

TL6140L LED Left Tail Light

TL6140R LED Right Tail Light

Lumens: 3000

Watt: 30

Amps: 3.300

Light Pattern: Flood Volt: 12-24

Tech Specs: Direct replacement; will bolt right into factory light housing; Plug and Play; rear tail light, red corner with white work light; red light Information: 17W + 12W resistor; red light has built in resistor to work with original factory flasher

Fits Models: Case IH

MX180, MX200, MX220, MX240, MX270

Replaces: 279222A1 (left), 279221A1 (right)

TL6145L LED Left Tail Light

TL6145R LED Right Tail Light

Watt: 30

Amps: 3.300

Light Pattern: Flood Volt: 12

Tech Specs: Amber light information: 17W + 12W resistor; direct replacement; will bolt right into factory light housing; Plug and Play; rear tail light, amber corner with red work light; built in resistor to work with original factory flasher Fits Models: Case IH

580M, 580SM, 580SM+, 590SM, 590SM+, JX100U, JX70U, JX80U, JX90U, MX210, MX230, MX255, MX285, MXM120, MXM130, MXM140, MXM155, MXM175, MXM190, MXU100, MXU110, MXU115, MXU125, MXU135

Replaces: 357541A1 (left), 357540A1 (right)

TL6120L LED Left Work Light

TL6120R LED Right Work Light

Lumens: 3000

Watt: 30

Amps: 3.300

Light Pattern: Flood

Volt: 12-24

Tech Specs: Amber light information: 17W + 12W Resistor; direct replacement; front corner light with an attached white work light; will bolt right into factory light housing; Plug and Play; built in resistor to work with original factory flasher

Fits Models: Case IH

3230, 3240, 3330, 3340 Patriot; JX100U, JX70U, JX80U, JX90U; Magnum 180, 190, 210, 215, 225, 235, 245, 250, 255, 260, 275, 280, 290, 305, 310, 315, 335, 340, 370, 380; MX180, MX200, MX210, MX215, MX220, MX230, MX240, MX245, MX255, MX270, MX285, MX305, MXM120, MXM130, MXM140, MXM155, MXM175, MXM190, SPX3320

Replaces: 279219A1 (left), 279220A1 (right)

TL7040 LED Upper Cab Light

Watt: 40

Amps: 3.336

Dimensions: 4" W x 8 3/4" L x 3 1/2" D

Volt: 12-24

Includes: Connector and stainless steel hardware

Tech Specs: May not work on listed Case IH models due to cab variations; reference OEM part number to ensure proper fits; will bolt into original mount in tractor; uses original mount and wiring

Fits Models: Case IH

Maxxum 110, 115, 120, 125, 130, 140; MXU100, MXU110, MXU125, MXU130, MXU135; Puma 125, 140, 145, 155, 160, 165, 165CVT, 170, 180, 180CVT, 185, 195, 195CVT, 200, 210, 210CVT, 215, 225CVT, 230

Replaces: 82031078

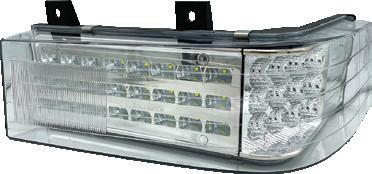

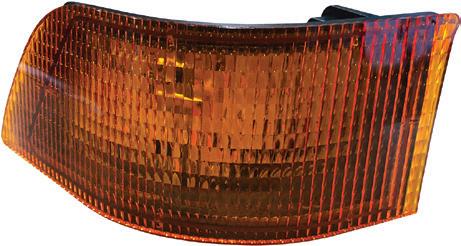

TL6130L LED Corner Amber Left Light

TL7130R LED Corner Amber Right Light

Watt: 17

Amps: 2.4

Volt: 12-24

Tech Specs: Amber light information: 17W + 12W resistor; direct replacement; will bolt right into factory light housing; Plug and Play; corner amber light with an attached white work light; built in resistor to work with original factory flasher

Fits Models: Case IH

3230, 3240, 3330, 3340 Patriot; JX100U, JX1070C, JX1075C, JX1085C, JX1095C, JX70U, JX80U, JX90U; Magnum 180, 190, 210, 215, 225, 235, 245, 250, 255, 260, 275, 280, 290, 305, 310, 315, 335, 340, 370, 380; MX180, MX200, MX210, MX215, MX220, MX230, MX240, MX245, MX255, MX270, MX285, MX305, MXM120, MXM130, MXM140, MXM155, MXM175, MXM190, SPX3320

Replaces: 279223A1 (right), 279224A1 (left)

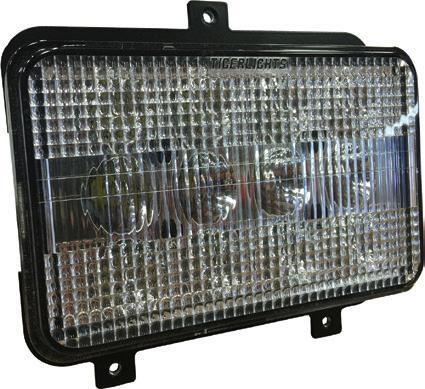

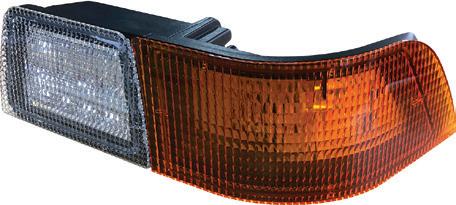

TL6160L

LED Left Headlight

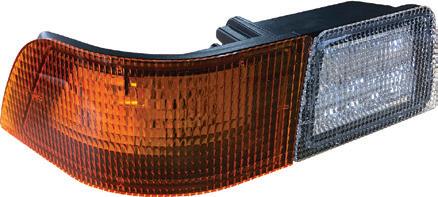

TL6160R LED Right Headlight

Lumens: 1200 Watt: 30

Amps: 2.500

Light Pattern: Driving Dimensions: 9 15/16" W x 14 7/8" L x 7 7/32" D Volt: 12-24

Tech Specs: Features a DOT and E-marked light pattern specifically designed for road travel; fits and looks like OEM; Plug and Play; replaces entire headlight on newer Magnum tractors

Fits Models: Case IH

Magnum 180, 190, 200, 210, 215, 220, 225, 235, 240, 245, 250, 260, 275, 280, 290, 305, 310, 315, 335, 340, 370, 380; MX215, MX245, MX285, MX305; Quadtrac 370, 400, 420, 450, 470, 500, 540, 550, 580, 600, 620

Replaces: 87309029 (left), 87309030 (right)

TL6200L LED Left Headlight

TL6200R LED Right Headlight

Lumens: 6000

Watt: 80

Amps: 6.600

Light Pattern: Spot/Flood

Volt: 12-24

Includes: Stainless steel hardware

Tech Specs: OEM replacement; Plug and Play

Fits Models: Case IH

MX100, MX110, MX120, MX135, MX150, MX170

Replaces: 178312A1, 178314A1, 178316A1, 178318A1, 178320A1, 178322A1 (left), 178311A1, 178313A1, 178315A1, 178317A1, 178319A1, 178321A1 (right)

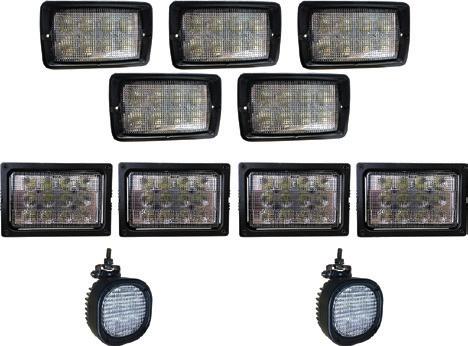

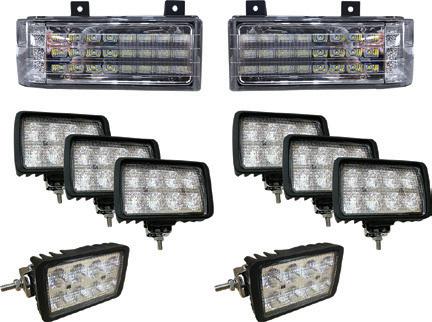

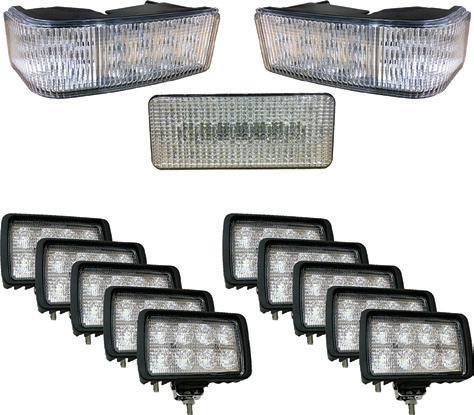

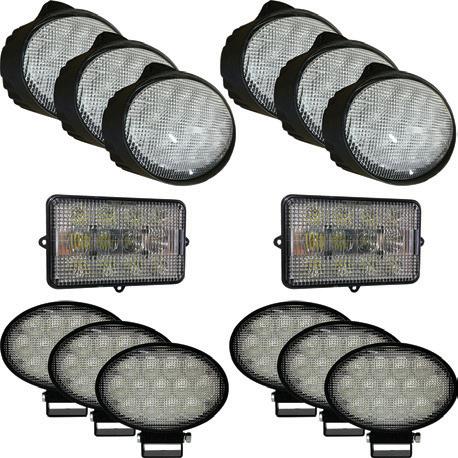

TL7120-KIT LED Combine Light Kit

Lumens: 41000

Watt: 460

Amps: 38.300

Light Pattern: Flood

Dimensions: 4 1/2" W x 6 1/2" L x 4" D

Volt: 12-24

Includes: Four TL8420 outer cab lights, two TL8520 center cab lights, two TL5655 stubble lights, stainless steel hardware and connectors for upper cab lights

Tech Specs: If combine has eight lights on top, please refer to TL8050; fits early model combines with six lights on top of cab; uses original mount and wiring

Fits Models: Case IH

5088, 6088, 7010, 7088, 7120, 7130, 7230, 8010, 8120, 8230, 9120, 9130, 9230

TL7050 LED Cab Light

Light Pattern: Flood

Dimensions: 3 1/2" L x 4 1/2" Dia.

Volt: 12-24

Includes: Connector, adapter and stainless steel hardware

Tech Specs: Reference OEM part number to ensure proper fits; replaces oval cab lights on 2015 and newer, Case IH Magnum tractors; bolts into original mount in tractor; Uses original mount and wiring

Fits Models: Case IH

Magnum 180, 200, 220, 240, 250, 2654, 280, 310, 3154, 340, 380

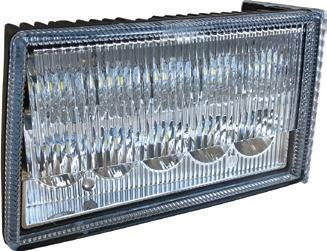

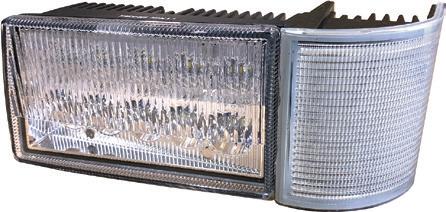

TL7140L LED Left Headlight

TL7140R

LED Right Headlight

Lumens: 7000

Watt: 100

Amps: 8.300

Light Pattern: Spot/Flood

Dimensions: 5" W x 10" L x 5 1/2" D

Volt: 12-24

Includes: Stainless steel hardware

Tech Specs: OEM replacement; Plug and Play

Fits Models: Case IH

7110, 7120, 7130, 7140, 7150, 7210, 7220, 7230, 7240, 7250, 8910, 8920, 8930, 8940, 8950

Replaces: 91971C2 (right), 91972C2 (left)

TL8520 LED Headlight

Lumens: 6000

Watt: 65

Amps: 5.400

Light Pattern: Flood

Light Shape: Oval

Dimensions: 4 1/2" W x 6 1/2" L x 4" D

Volt: 12-24

Tech Specs: Plug and Play; uses original mount and wiring

Fits Models: Case IH

625, 5088, 6088, 7088, 7120, 7130, 7230, 8010, 8120, 8230, 9120, 9130, 9230

Replaces: 87106352, 87106354

TL8420 LED Roof Light

Lumens: 6000

Watt: 65

Amps: 5.400

Light Pattern: Flood

Dimensions: 4 1/2" W x 6 1/2" L x 4" D

Volt: 12-24

Tech Specs: Plug and Play; uses original mount and wiring

Fits Models: Case IH

625, 5088, 6088, 7088, 7120, 7130, 7230, 8010, 8120, 8230, 9120, 9130, 9230

Replaces: 87106353

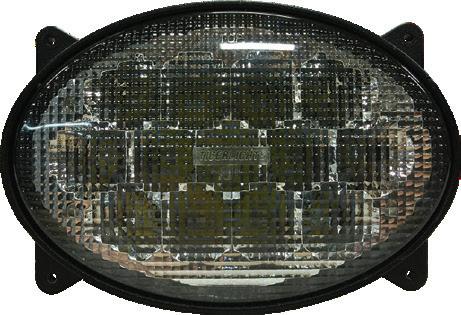

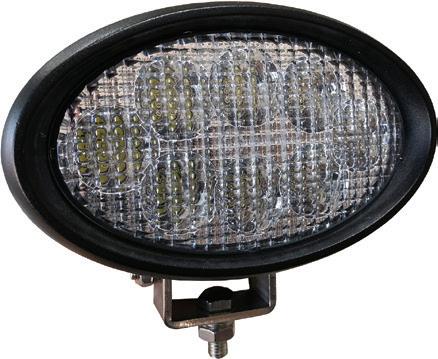

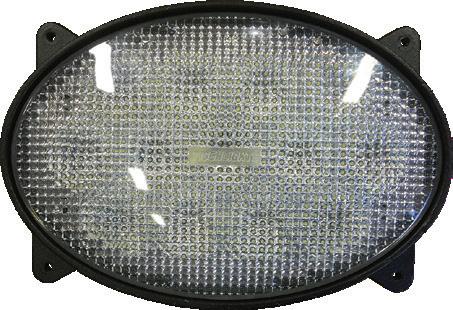

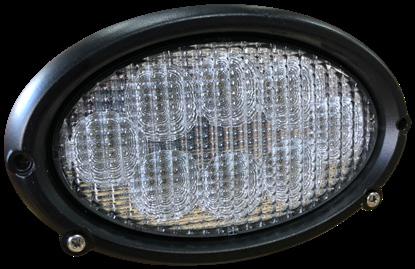

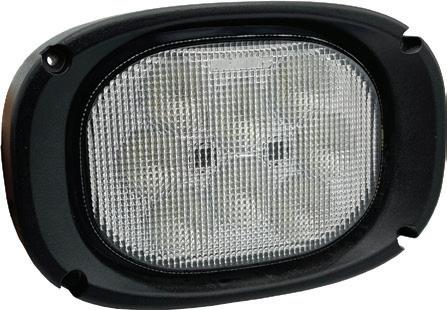

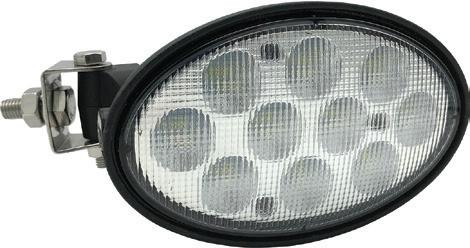

TL8050 LED Oval Flush Mount Cab Light

Lumens: 5200

Watt: 40

Amps: 3.300

Light Pattern: Spot/Flood

Light Shape: Oval

Dimensions: 3" W x 6" L x 3 1/4" D

Volt: 12-24

Tech Specs: Plug and Play, direct replacement, works with later model Case IH combines with 8 lights on top of cab, aluminum housing, durable poly-carbonate lens, does not include plastic bezel, uses original hardware, flush mount

Fits Models: Case IH

5130, 5140, 5150, 6130, 6140, 6150, 7130, 7140, 7150, 7230, 7240, 7250, 8230, 8240, 8250, 9230, 9240, 9250

Replaces: 47430977, 47430979

AR60250 LED Amber Cab Light

Watt: 9

Amps: 0.750

Light Pattern: Flood/Flashing

Dimensions: 2" W x 7 3/4" L x 1 1/2" D

Volt: 12-24

Includes: Stainless steel hardware

Tech Specs: Fits sound guard cabs and 4WD Steiger

Fits Models: Case IH

9110, 9130, 9150, 9170, 9210, 9230, 9240, 9250, 9260, 9270, 9280, 9310, 9330, 9350, 9370, 9380, 9390, Replaces: 20-1950T91, 22-665T1, 60-6246T1, A187626

92185C1 LED Amber Light

Watt: 9

Light Pattern: Flood

Dimensions: 3 1/2" W x 6" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware Fits Models: Case IH

385, 395, 484, 485, 495, 584, 585, 620, 685, 695, 782, 784, 786, 885, 886, 895, 986, 995, 1086, 1400, 1420, 1440, 1460, 1470, 1480, 1486, 1586, 1620, 1640, 1644, 1660, 1666, 1670, 1680, 1682, 1688, 1800, 1822, 1844, 2022, 2044, 2055, 2144, 2155, 2166, 2188, 2344, 2366, 2377, 2388, 2555, 2577, 2588, 3088, 3220, 3230, 3288, 3388, 3488, 3588, 3688, 3788, 4000, 4210, 4230, 4240, 4386, 4586, 4786, 5000, 5088, 5288, 5488, 6388, 6588, 6788, 7110, 7120, 7130, 7140, 7150, 7210, 7220, 7230, 7240, 7250, 8910, 8920, 8930, 8940, 8950, CPX420, CPX610, CX100, CX50, CX60, CX70, CX80, CX90, MX100, MX100C, MX110, MX120, MX135, MX150, MX170, MX80C, MX90C Replaces: 107324C91, 130882C91, 216044C91, 92185C1, 92260C1

CATERPILLAR

TL3015 LED Sealed Light

Lumens: 2200

Watt: 24

Amps: 2

Light Pattern: Spot/Flood

Light Shape: Round

Dimensions: 1 1/2" L x 4 1/2" Dia.

Volt: 12-24

Tech Specs: Par 36 replacement; uses original mount, wiring and screw connections

Fits

Models: Caterpillar

797, 120G, 140G, 776C, 776D, 777C, 777D, 784B, 784C, 785B, 785C, 785D, 785DOEM, 789B, 789C, 793B, 793C, 793D, 797B, 815B, 950H, 966H, 972G, 972H, 972K, 972M, 980F, 980G, 980GII, 980H, 980K, IT12F, MT4400DAC, PR1000

Replaces: 6N-7987, 7G-9319, 7T-1371

TL3010 LED Sealed Light

Lumens: 1250

Watt: 18

Amps: 1.500

Light Pattern: Trapezoid

Light Shape: Round

Dimensions: 1 1/2" W x 4 1/2" Dia.

Volt: 12-24

Tech Specs: Par 36 replacement; Uses original mount and wiring

Fits Models: Caterpillar

Replaces: 373662R91, 6N-7987, 7G-9319, 7T-1371

CATERPILLAR CONT.

Fits Models: Caterpillar

TL350F LED Compact Flood Light

Lumens: 5000

Watt: 35

Amps: 2.600

Light Pattern: Flood

Dimensions: 4 1/2" W x 4 1/4" L x 3" Dia.

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

301.5, 301.6, 301.8, 302.5, 375, 511, 521, 522, 532, 541, 543, 551, 552, 584, 725, 730, 735, 740, 770, 772, 789, 797, 844, 902, 906, 908, 990, 2290, 2390, 2391, 2491, 2590, 5412, 5522, 120HNA, 120K, 120K2, 120M, 120M2, 120M2AWD, 120M2OEM, 120MAWD, 1290T, 12H, 12HNA, 12K, 12M, 12M2, 12M2AWD, 12M3, 12M3AWD, 135HNA, 140H, 140HNA, 140K, 140K2, 140M, 140M2, 140M2AWD, 140M3, 140M3AWD, 140MAWD, 143H, 14H, 14LAWD, 14M, 160H, 160HNA, 160K, 160M, 160M2, 160M2AWD, 160M3, 160M3AWD, 160MAWD, 163H, 16H, 16M, 16M3, 18M3, 216B2, 216B3, 216B3LRC, 226B, 226B2, 226B3, 226B3LRC, 232B2, 236B2, 236B3, 2384C, 242B3, 246B, 246C, 247B2, 247B3, 247B3LRC, 2484C, 24M, 252B2, 252B3, 256C, 257B2, 257B3, 259B3, 262C, 262C2, 272C, 277C, 277C2, 279C, 279C2, 287C, 287C2, 289C, 289C2, 297C, 299C, 302.5C, 303.5E2CR, 303ECR, 304E2CR, 305.5E2CR, 305E2CR, 308E2CRSB, 320CLU, 320CU, 320D2FMGF, 320D2FMLL, 320DFMGFB, 320DFMHW, 320DFMLL, 320DFMLLB, 320DFMRR, 320DFMST, 320DLRR, 320DRR, 324DFMGF, 324DFMLGP, 324DFMLL, 325DFMGF, 325DFMLL, 330DFMGF, 330DFMLL, 345B Series II, 345BIIL, 345D, 345DL, 345DLVG, 349D, 349D2, 349D2L, 349DL, 349DLVG, 374DL, 375 L, 385B L, 390D, 390DL, 414E, 415F2IL, 415F2ST, 416EST, 416F2ST, 416F2STLRC, 416FST, 420EIT, 420EST, 420F2IT, 420F2ITLRC, 420F2ST, 420F2STLRC, 420FIT, 420FST, 422E, 422F, 422F2STLRC, 427F2, 428D, 428E, 428F, 428F2, 428F2LRC, 430EIT, 430EST, 430F2IT, 430F2ITLRC, 430F2ST, 430F2STLRC, 430FIT, 430FST, 432D, 432E, 432F, 432F2, 432F2LRC, 434E, 434F, 434F2, 434F2LRC, 442D, 442E, 444E, 444F, 444F2, 444F2LRC, 446D, 450E, 450F, 5110B L Mining, 5110B MH Mining, 5110BME, 5130 Mining, 518C, 521B, 522B, 5230 Mining, 5230B Mining, 525C, 525D, 525DLRC, 528B, 530B, 535C, 538GF, 538LL, 545C, 545D, 545DLRC, 555D, 555DLRC, 559C, 561M, 568GF, 568LL, 572R, 572RII, 579C, 583R, 583T, 584HD, 587R, 587T, 6015B, 6020B, 613CII, 613G, 621F, 621G, 621H, 621HOEM, 621K, 621KLRC, 621KOEM, 621KOEMLRC, 623F, 623G, 623H, 623K, 623KLRC, 627F, 627G, 627H, 627K, 627KLRC, 631D, 631K, 631KLRC, 633D, 633E, 637D, 637DPP, 637K, 637KLRC, 651E, 657E, 657G, 730EJ, 735B, 735OEM, 740B, 740BEJ, 740EJ, 740OEM, 770G, 770GLRC, 770GOEM, 770GOEMLRC, 772G, 772GLRC, 772GOEM, 772GOEMLRC, 773F, 773FOEM, 773G, 773GLRC, 773GOEM, 775F, 775FOEM, 775G, 775GLRC, 775GOEM, 775GOEMLRC, 776D, 777D, 777DHAA, 777F, 777FOEM, 777G, 777GLRC, 777GOEM, 777GOEMLRC, 784B, 784C, 785B, 785C, 785D, 785DOEM, 789B, 789C, 789D, 789DXQ, 793B, 793C, 793D, 793F, 793FAC, 793FCMD, 793FOEM, 793FXQ, 794AC, 795FAC, 795FXQ, 797B, 797F, 797FXQ, 814FII, 815FII, 816F Series II, 824G, 824GII, 824H, 824K, 825G, 825GII, 825H, 825K, 826G, 826GII, 826H, 826K, 834G, 834H, 834K, 834KLRC, 836G, 836H, 836K, 836KLRC, 844H, 844K, 844KLRC, 854G, 854K, 854KLRC, 906H, 906H2, 906K, 906M, 907H, 907H2, 907K, 907M, 908H, 908H2, 908K, 908M, 910K, 910M, 914G, 914G2, 914K, 914M, 918M, 924G, 924GZ, 924H, 924HZ, 924K, 926M, 928G, 928GZ, 928H, 928HZ, 930G, 930H, 930K, 930M, 938G, 938GII, 938H, 938K, 938M, 950GII, 950H, 950K, 953C, 962G, 962GII, 962H, 962K, 963BLGP, 963C, 966GII, 966H, 966K, 966KXE, 972G, 972GII, 972H, 972K, 973C, 973CLGP, 980GII, 980H, 980K, 980KOEM, 986H, 988G, 988H, 988K, 988KLRC, 990H, 990K, 990KLRC, 992D, 992G, 992K, 992KLRC, 993K, 993KLRC, 994F, 994H, 994KLRC, AD30, AD45B, AD55, AD55B, AD60, AP1000D, AP1000E, AP1000F, AP1055D, AP1055E, AP1055F, AP300F, AP300FLRC, AP355F, AP355FLRC, AP500E, AP500F, AP500FLRC, AP555E, AP555F, AP555FLRC, AP600D, AP600F, AP600FLRC, AP655C, AP655D, AP655F, AP655FLRC, AP800D, BG1000E, BG1055E, BG2255C, BG230D, BG2455D, BG260D, BG500E, BG555E, BG600D, BG655D, CB14, CB22B, CB22BLRC, CB24B, CB24BLRC, CB32B, CB32BLRC, CB34B, CB34BLRC, CB34BXW, CB34BXWLRC, CB36B, CB36BLRC, CB434C, CB44B, CB46B, CB534C, CB535B, CB54, CB54B, CB64, CB64B, CB64BLRC, CB66B, CB68B, CB68BLRC, CC24B, CC24BLRC, CC34B, CC34BLRC, CD44B, CD54, CD54B, CP323C, CP34, CP433C, CP433E, CP44, CP44B, CP533D, CP533E, CP54, CP54B, CP56, CP563C, CP563D, CP563E, CP56B, CP56BLRC, CP573E, CP64, CP663E, CP68B, CP68BLRC, CP74, CP74B, CP74BLRC, CP76, CS323C, CS34, CS423E, CS431C, CS433C, CS433E, CS44, CS44B, CS531D, CS533D, CS533E, CS54, CS54B, CS54BLRC, CS56, CS563CAW, CS563E, CS56B, CS56BLRC, CS573C, CS573D, CS573E, CS583D, CS583E, CS64, CS64BLRC, CS663E, CS683E, CS68B, CS68BLRC, CS74, CS74B, CS74BLRC, CS76, CS78B, CS78BLRC, CS79BLRC, CW14, CW16, CW16LRC, CW34, CW34LRC, D10N, D10T, D10T2, D10T2LRC, D11N, D11RCD, D11T, D11TCD, D250E, D250EII, D300E, D350E, D350EII, D3K2LGP, D3K2SLGP, D3K2XL, D3KLGP, D3KXL, D400E, D400EII, D4HIIIXL, D4HIILGP, D4K2LGP, D4K2XL, D4KLGP, D4KXL, D4TSKHIII, D5HIIXL, D5K2LGP, D5K2SLGP, D5K2XL, D5KLGP, D5KXL, D5MLGP, D5MXL, D5R2LGP, D5R2XL, D5TSKHII, D6K, D6K2LGP, D6K2XL, D6KLGP, D6KXL, D6KXLARMY, D6MLGP, D6MXL, D6R2, D6R2LGP, D6R2XL, D6RII, D6RIII, D6RIIILGP, D6RIIILGPVP, D6RIIIXL, D6RIIIXLVP, D6RIIIXW, D6RIIIXWVP, D6RIILGP, D6RIIXL, D6RIIXW, D6RLGP, D6RXL, D6RXR, D6RXW, D6T, D6TLGP, D6TLGPOEM, D6TLGPVP, D6TXL, D6TXLVP, D6TXW, D6TXWVP, D7E, D7ELGP, D7R, D7RII, D7RIILGP, D7RIIXR, D7RLGP, D7RXR, D8N, D8RII, D8RLRC, D8T, D9RLRC, D9T, HA770, HA771, HA870, HA871, IT14G, IT14G2, IT28G, IT38G, IT38H, IT62G, IT62H, MD5150C, MT4400DAC, MT5300DAC, PL61, PL72, PL83, PL87, PM201, PM620, PM622, PR1000, PS150B, PS150C, PS360C, R1300HII, R1600G, R1600H, R1700G, R2900G, R3000H, RM500B, TH220B, TH330B, TH340B, TH350B, TH355B, TH360B, TH460B, TH560B, TH580B, TK1051, TK370, TK371, TK380, TK381, TK711, TK721, TK722, TK732, TK752, W345CMH

Replaces: 147-0319, 153-2073, 157-0305, 161-0908, 161-3509, 162-3294, 164-7600, 168-1953, 168-1960, 171-2065, 171-2066, 180-1300, 201-1422, 201-1423, 212-9347, 214-2696, 214-2968, 219-6482, 219-6485, 219-6486, 227-5978, 227-5979, 234-4323, 234-4324, 234-4325, 234-4326, 234-4327, 234-4328, 234-4329, 254-8155, 257-3168, 257-3171, 272-6641, 290-5749, 319-7377, 319-7378, 319-7379, 319-7380, 319-7381, 319-7382, 332-9402, 346-9593, 347-9427, 353-9420, 359-3426, 359-3427, 359-3429, 359-3430, 359-3445, 359-3446, 366-7803, 381-8979, 383-8634, 384-9610, 386-1717, 386-1718, 386-1722, 386-1723, 388-6274, 388-6291, 388-6292, 388-6293, 388-6294, 417-0977, 424-5603

CATERPILLAR CONT.

Fits Models: Caterpillar

TL500F LED Flood Light

TL500S LED Spot Light

TL500SS LED Super Spot Light

TL500WF LED Wide Flood Light

Lumens: 6900

Watt: 50

Amps: 4.100

Light Pattern: Flood/Spot

Dimensions: 4 1/2" W x 4 1/4" L x 3" D

Volt: 9-32

Includes: Stainless steel hardware and mounting bracket Tech Specs: OEM replacement; Plug and Play

301.5, 301.6, 301.8, 302.5, 375, 511, 521, 522, 532, 541, 543, 551, 552, 584, 725, 730, 735, 740, 770, 772, 789, 797, 844, 902, 906, 908, 990, 2290, 2390, 2391, 2491, 2590, 5412, 5522, 120HNA, 120K, 120K2, 120M, 120M2, 120M2AWD, 120M2OEM, 120MAWD, 1290T, 12H, 12HNA, 12K, 12M, 12M2, 12M2AWD, 12M3, 12M3AWD, 135HNA, 140H, 140HNA, 140K, 140K2, 140M, 140M2, 140M2AWD, 140M3, 140M3AWD, 140MAWD, 143H, 14H, 14LAWD, 14M, 160H, 160HNA, 160K, 160M, 160M2, 160M2AWD, 160M3, 160M3AWD, 160MAWD, 163H, 16H, 16M, 16M3, 18M3, 2384C, 2484C, 24M, 302.5C, 303.5E2CR, 303ECR, 304E2CR, 305.5E2CR, 305E2CR, 308E2CRSB, 320CLU, 320CU, 320D2FMGF, 320D2FMLL, 320DFMGFB, 320DFMHW, 320DFMLL, 320DFMLLB, 320DFMRR, 320DFMST, 320DLRR, 320DRR, 324DFMGF, 324DFMLGP, 324DFMLL, 325DFMGF, 325DFMLL, 330DFMGF, 330DFMLL, 345B Series II, 345BIIL, 345D, 345DL, 345DLVG, 349D, 349D2, 349D2L, 349DL, 349DLVG, 374DL, 375 L, 385B L, 390D, 390DL, 414E, 415F2IL, 415F2ST, 416EST, 416F2ST, 416F2STLRC, 416FST, 420EIT, 420EST, 420F2IT, 420F2ITLRC, 420F2ST, 420F2STLRC, 420FIT, 420FST, 422E, 422F, 422F2STLRC, 427F2, 428D, 428E, 428F, 428F2, 428F2LRC, 430EIT, 430EST, 430F2IT, 430F2ITLRC, 430F2ST, 430F2STLRC, 430FIT, 430FST, 432D, 432E, 432F, 432F2, 432F2LRC, 434E, 434F, 434F2, 434F2LRC, 442D, 442E, 444E, 444F, 444F2, 444F2LRC, 446D, 450E, 450F, 5110B L Mining, 5110B MH Mining, 5110BME, 5130 Mining, 518C, 521B, 522B, 5230 Mining, 5230B Mining, 525C, 525D, 525DLRC, 528B, 530B, 535C, 538GF, 538LL, 545C, 545D, 545DLRC, 555D, 555DLRC, 559C, 561M, 568GF, 568LL, 572R, 572RII, 579C, 583R, 583T, 584HD, 587R, 587T, 6015B, 6020B, 613CII, 613G, 621F, 621G, 621H, 621HOEM, 621K, 621KLRC, 621KOEM, 621KOEMLRC, 623F, 623G, 623H, 623K, 623KLRC, 627F, 627G, 627H, 627K, 627KLRC, 631D, 631K, 631KLRC, 633D, 633E, 637D, 637DPP, 637K, 637KLRC, 651E, 657E, 657G, 730EJ, 735B, 735OEM, 740B, 740BEJ, 740EJ, 740OEM, 770G, 770GLRC, 770GOEM, 770GOEMLRC, 772G, 772GLRC, 772GOEM, 772GOEMLRC, 773F, 773FOEM, 773G, 773GLRC, 773GOEM, 775F, 775FOEM, 775G, 775GLRC, 775GOEM, 775GOEMLRC, 776D, 777D, 777DHAA, 777F, 777FOEM, 777G, 777GLRC, 777GOEM, 777GOEMLRC, 784B, 784C, 785B, 785C, 785D, 785DOEM, 789B, 789C, 789D, 789DXQ, 793B, 793C, 793D, 793F, 793FAC, 793FCMD, 793FOEM, 793FXQ, 794AC, 795FAC, 795FXQ, 797B, 797F, 797FXQ, 814FII, 815FII, 816F Series II, 824G, 824GII, 824H, 824K, 825G, 825GII, 825H, 825K, 826G, 826GII, 826H, 826K, 834G, 834H, 834K, 834KLRC, 836G, 836H, 836K, 836KLRC, 844H, 844K, 844KLRC, 854G, 854K, 854KLRC, 906H, 906H2, 906K, 906M, 907H, 907H2, 907K, 907M, 908H, 908H2, 908K, 908M, 910K, 910M, 914G, 914G2, 914K, 914M, 918M, 924G, 924GZ, 924H, 924HZ, 924K, 926M, 928G, 928GZ, 928H, 928HZ, 930G, 930H, 930K, 930M, 938G, 938GII, 938H, 938K, 938M, 950GII, 950H, 950K, 953C, 962G, 962GII, 962H, 962K, 963BLGP, 963C, 966GII, 966H, 966K, 966KXE, 972G, 972GII, 972H, 972K, 973C, 973CLGP, 980GII, 980H, 980K, 980KOEM, 986H, 988G, 988H, 988K, 988KLRC, 990H, 990K, 990KLRC, 992D, 992G, 992K, 992KLRC, 993K, 993KLRC, 994F, 994H, 994KLRC, AD30, AD45B, AD55, AD55B, AD60, AP1000D, AP1000E, AP1000F, AP1055D, AP1055E, AP1055F, AP300F, AP300FLRC, AP355F, AP355FLRC, AP500E, AP500F, AP500FLRC, AP555E, AP555F, AP555FLRC, AP600D, AP600F, AP600FLRC, AP655C, AP655D, AP655F, AP655FLRC, AP800D, BG1000E, BG1055E, BG2255C, BG230D, BG2455D, BG260D, BG500E, BG555E, BG600D, BG655D, CB14, CB22B, CB22BLRC, CB24B, CB24BLRC, CB32B, CB32BLRC, CB34B, CB34BLRC, CB34BXW, CB34BXWLRC, CB36B, CB36BLRC, CB434C, CB44B, CB46B, CB534C, CB535B, CB54, CB54B, CB64, CB64B, CB64BLRC, CB66B, CB68B, CB68BLRC, CC24B, CC24BLRC, CC34B, CC34BLRC, CD44B, CD54, CD54B, CP323C, CP34, CP433C, CP433E, CP44, CP44B, CP533D, CP533E, CP54, CP54B, CP56, CP563C, CP563D, CP563E, CP56B, CP56BLRC, CP573E, CP64, CP663E, CP68B, CP68BLRC, CP74, CP74B, CP74BLRC, CP76, CS323C, CS34, CS423E, CS431C, CS433C, CS433E, CS44, CS44B, CS531D, CS533D, CS533E, CS54, CS54B, CS54BLRC, CS56, CS563CAW, CS563E, CS56B, CS56BLRC, CS573C, CS573D, CS573E, CS583D, CS583E, CS64, CS64BLRC, CS663E, CS683E, CS68B, CS68BLRC, CS74, CS74B, CS74BLRC, CS76, CS78B, CS78BLRC, CS79BLRC, CW14, CW16, CW16LRC, CW34, CW34LRC, D10N, D10T, D10T2, D10T2LRC, D11N, D11RCD, D11T, D11TCD, D250E, D250EII, D300E, D350E, D350EII, D3K2LGP, D3K2SLGP, D3K2XL, D3KLGP, D3KXL, D400E, D400EII, D4HIIIXL, D4HIILGP, D4K2LGP, D4K2XL, D4KLGP, D4KXL, D4TSKHIII, D5HIIXL, D5K2LGP, D5K2SLGP, D5K2XL, D5KLGP, D5KXL, D5MLGP, D5MXL, D5R2LGP, D5R2XL, D5TSKHII, D6K, D6K2LGP, D6K2XL, D6KLGP, D6KXL, D6KXLARMY, D6MLGP, D6MXL, D6R2, D6R2LGP, D6R2XL, D6RII, D6RIII, D6RIIILGP, D6RIIILGPVP, D6RIIIXL, D6RIIIXLVP, D6RIIIXW, D6RIIIXWVP, D6RIILGP, D6RIIXL, D6RIIXW, D6RLGP, D6RXL, D6RXR, D6RXW, D6T, D6TLGP, D6TLGPOEM, D6TLGPVP, D6TXL, D6TXLVP, D6TXW, D6TXWVP, D7E, D7ELGP, D7R, D7RII, D7RIILGP, D7RIIXR, D7RLGP, D7RXR, D8N, D8RII, D8RLRC, D8T, D9RLRC, D9T, HA770, HA771, HA870, HA871, IT14G, IT14G2, IT28G, IT38G, IT38H, IT62G, IT62H, MD5150C, MT4400DAC, MT5300DAC, PL61, PL72, PL83, PL87, PM201, PM620, PM622, PR1000, PS150B, PS150C, PS360C, R1300HII, R1600G, R1600H, R1700G, R2900G, R3000H, RM500B, TH220B, TH330B, TH340B, TH350B, TH355B, TH360B, TH460B, TH560B, TH580B, TK1051, TK370, TK371, TK380, TK381, TK711, TK721, TK722, TK732, TK752, W345CMH, John Deere 764, 1050K, 2032R 72, 2036R, 2038R 72D, 210C, 210LE, 250D, 260E, 300D, 310C, 310E, 310G, 310J, 310K, 310L, 310SG, 310SJ, 310SK, 310SL, 315C, 315CH, 315SG, 315SJ, 315SK, 315SL, 325J, 325SK, 325SL, 344E, 350D, 355D, 370E, 400D, 400G, 410B, 410C, 410E, 410G, 410J, 410K, 410L, 415B, 444D, 444E, 444J, 444JR, 444K, 450E, 450G, 455E, 455G, 460E, 540E, 540G, 544D, 544E, 544G, 544J, 544K, 548E, 548G, 550B, 550G, 550K, 555B, 555G, 610B, 610C, 624E, 624G, 624J, 624K, 624KR, 640E, 640G, 644D, 644E, 644G, 644K, 648E, 648G, 650G, 650K, 653E, 655K, 670D, 670G, 670GP, 672D, 672G, 672GP, 700J, 700J, 700K, 700K, 710B, 710C, 710J, 710K, 710K, 710L, 724J, 724K, 724K, 740E, 740G, 744J, 744K, 748E, 748G, 750K, 755K, 770D, 770G, 770GP, 772D, 772G, 772GP, 803M, 803MH, 824J, 824K, 844J, 844K, 850J, 850K, 853M, 853MH, 859M, 859MH, 870D, 870G, 870GP, 872D, 872G, 872GP, 903K, 903KH, 903M, 903MH, 909K, 909KH, 909M, 909MH, 944K, 953K, 953M, 959K, 959M, Komatsu GD675-5, HM250-2, HM300-2, HM300-2R, HM300-3, HM300-3R, HM350-2R, HM400-2, HM400-2R, HM400-3M0, WA1200-6, WA150-6, WA150PZ-6, WA200-6, WA250-6, WA250PZ-6, WA320-6, WA320PZ-6, WA380-6, WA380-7, WA380Z-6, WA430-6, WA470-6, WA470-6A, WA480-6, WA500-6, WA500-7, WA600-6, WA800-3E0, WA900-3E0

CHALLENGER

TL5650 LED Light

Lumens: 2900

Watt: 35

Amps: 2.900

Light Pattern: Flood

Dimensions: 3 3/4" W x 5 3/4" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Powder coated housing; oversized aluminum heat sink; RFI and EMI filters

Fits Models: Challenger MT425B, MT445B, MT445D, MT455B, MT455D, MT465B, MT465D, MT475B, MT475D, MT485D, MT495D, MT515D, MT515E, MT525B, MT525D, MT535B, MT535D, MT545B, MT545D, MT545E, MT555B, MT555D, MT555E, MT565B, MT565D, MT565E, MT575B, MT575D, MT575E, MT585B, MT585D, MT585E, MT595B, MT595D, MT635B, MT645B, MT645C, MT645D, MT645E, MT655B, MT655C, MT655D, MT665B, MT665E, MT675C, MT675D, MT675E, MT685C, MT685D, MT685E

TL650 Skid Steer Headlight

Lumens: 2000

Watt: 24

Amps: 2

Light Pattern: Flood

Volt: 12-24

Tech Specs: Fits into original housing; Plug and Play

Fits Models: Challenger 2240, 2250, 2270, 2270XD, BA3, BA3B, BA4, BA4B, LB23B, LB33B, LB34B, LB44, MT735, MT745, MT745C, MT745D, MT755, MT755C, MT755D, MT755E, MT765, MT765C, MT765D, MT765E, MT775E, MT835, MT835C, MT845, MT845C, MT845E, MT855, MT855C, MT855E, MT865, MT865C, MT865E, MT875C, MT875E, MT945B, MT945C, MT955B, MT955C, MT955E, MT965B, MT965C, MT965E, MT975B, MT975C, MT975E

TL6020 LED Headlight

Lumens: 3200

Watt: 32

Amps: 2.600

Light Pattern: Flood

Dimensions: 2" L x 3 3/8" D

Volt: 12-24

Tech Specs: Direct replacement; will bolt right into factory light housing; Plug and Play; will bolt into OEM light housing part numbers: 87455676, 87455677 and 87308895

Fits Models: Challenger MT745C, MT745D, MT755D, MT755E, MT765C, MT765D, MT765E, MT775C, MT775E, MT835C, MT845C, MT845E, MT855C, MT855E, MT865C, MT865E, MT875C, MT875E, MT945C, MT955C, MT955E, MT965C, MT965E, MT975C Sprayers MT975E, RG1100, RG1100B, RG1300, RG1300B, RG700, RG700B, RG900, RG900B

TL6040 LED High/Low Beam

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Connectors and stainless steel hardware

Tech Specs: Uses original mount and wiring

Fits Models: Challenger MT635, MT645, MT655, MT665

CHALLENGER CONT.

TL6050 LED High/Low Beam

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Connectors and stainless steel hardware

Tech Specs: Uses original mount and wiring

Fits Models: Challenger MT455, MT465, MT465B, MT525B, MT535B, MT545B, MT555B, MT565B, MT575B, MT635B, MT645B, MT655B, MT665B

TL7080 LED Work Light

Lumens: 2450

Watt: 24

Amps: 2

Light Pattern: Flood

Dimensions: 4" W x 6 1/4" L x 3" D

Volt: 12-24

Includes: Connectors, adapter and stainless steel hardware

Tech Specs: Comes with two connectors to work on lights that have two bulbs in one housing, as well as an adapter to work on single bulb lights; Plug and Play; uses original mounting bracket on tractor; swivel mount

Fits Models: Challenger MT425B, MT445B, MT455B, MT455D, MT455E, MT465B, MT465D, MT465E, MT475B, MT475D, MT475E, MT485D, MT485E, MT495D, MT495E, MT515D, MT515E, MT525B, MT525D, MT525E, MT535B, MT535D, MT535E, MT545B, MT545D, MT545E, MT555B, MT555D, MT555E, MT565B, MT565D, MT565E, MT575B, MT575D, MT575E, MT585B, MT585D, MT585E, MT595B, MT595D, MT595E, MT635B, MT645B, MT655B, MT665B

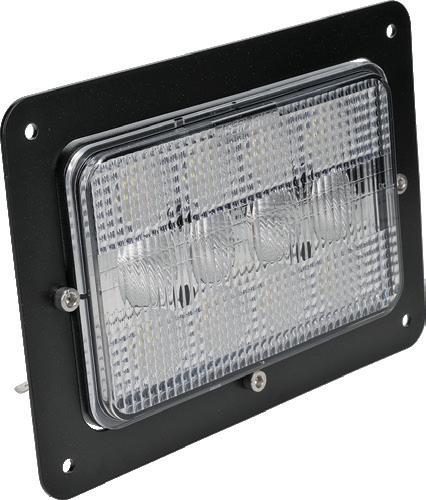

TL7090 LED Flush Cab Light

Lumens: 2450

Watt: 24

Amps: 2

Light Pattern: Flood

Dimensions: 4 3/4" W x 6 1/2" L x 2 3/4" D

Volt: 12-24

Fits Models: Challenger MT455D, MT465D, MT475D, MT485D, MT495D, MT555D, MT565D, MT575D, MT585D, MT595D

TL8100 Round Flush Mount LED Light

Lumens: 1400

Watt: 20

Amps: 2.500

Light Pattern: Flood

Dimensions: 3 3/8" Dia. x 2 13/16" depth Volt: 12-24

Tech Specs: Aluminum housing, durable poly-carbonate lens; Plug and Play; replaces round light with two clips on either side

Fits Models: Challenger MT738, MT740, MT743

TL6320 LED Headlight

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Direct fit, OEM replacement Fits Models: Challenger 660, 670, 680B

CHALLENGER

TL7065 LED Tractor Light

Lumens: 4500

Watt: 50

Amps: 4.200

Light Pattern: Flood

Light Shape: Oval

Volt: 12-24

Includes: Connector and stainless steel hardware

Tech Specs: Please reference OEM part number to ensure proper applications; will bolt into original mount in tractor; uses original mount and wiring

Fits Models: Challenger MT745B, MT745C, MT745D, MT755B, MT755C, MT755D, MT755E, MT765B, MT765C, MT765D, MT765E, MT775E, MT835B, MT835C, MT845B, MT845C, MT845E, MT855B, MT855C, MT855E, MT865B, MT865C, MT865E, MT875B, MT875C, MT875E, MT945B, MT945C, MT955B, MT955C, MT955E, MT965B, MT965C, MT965E, MT975B, MT975C, MT975E

TL7095 LED Mount Light

Lumens: 2000

Watt: 30

Amps: 2.500

Light Pattern: Flood

Dimensions: 4 3/4" W x 6 1/2" L x 2 3/4" D

Volt: 12-24

Includes: Connectors, adapter and stainless steel hardware

Tech Specs: Plug and play; uses original mounting bracket on tractor

Fits Models: Challenger MT735, MT745, MT755, MT765, MT835, MT845, MT855, MT865

TL8950L LED Headlight

TL8950R

LED Headlight

Lumens: 8200

Watt: 90

Amps: 7.5

Light Pattern: Flood/Spot Combo

Dimensions: 13 1/2" L x 5 1/2" HT x 10 1/2" D

Volt: 12-24

Fits Models: Challenger 4455, 4460, 4660, 4655, 7450, 7650, 7460, 7660, TG7300, TG8300, TG7300B, TG8300B, TG7300C, TG8300C, TG8400C, TG9300C

TL5655 LED Light

Lumens: 2900

Watt: 35

Amps: 2.900

Light Pattern: Flood

Dimensions: 3 3/4" W x 3 3/4" L

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Powder coated housing; oversized aluminum heat sink; RFI and EMI filters

Fits Models: Challenger 660, 670, 2240, 2250, 2270, 2270XD, 680B, BA3, BA3B, BA4, BA4B, LB23B, LB33B, LB34B, LB44

CHALLENGER CONT.

TL7085 LED Work Light

Lumens: 2450

Watt: 24

Amps: 2

Light Pattern: Flood

Dimensions: 4" W x 6 1/2" L x 3" D

Volt: 12-24

Includes: Connectors, adapter and stainless steel hardware

Tech Specs: Plug and Play; uses original mounting bracket on tractor; swivel mount

Fits

Models: Challenger 4455, 4460, 4655, 4660, 7450, 7460, 7650, 7660, 520C, 540C, 540E, 550C, 560C, 560E, 660B, 670B, 680B, MT738, MT740, MT743, MT745B, MT745C, MT755B, MT755C, MT765B, MT765C, MT945B, MT945C, MT955B, MT955C, MT955E, MT965B, MT965C, MT965E, MT975B, MT975C, MT975E, RG1100, RG1100B, RG1300, RG1300B, RG700, RG700B, RG900, TG7300, TG7300B, TG7300C, TG8300, TG8300B, TG8300C, TG8400C, TG9300C

TL6045 LED Tractor Light

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Connectors and stainless steel hardware

Tech Specs: Uses original mount and wiring, high/low beam

Fits Models: Challenger

MT455, MT465, MT465B, MT525B, MT535B, MT545B, MT555B, MT565B, MT575B, MT635, MT635B, MT645, MT645B, MT655, MT655B, MT665, MT665B

CLAAS

TL9090 LED Mount Light

Lumens: 3500

Watt: 40

Amps: 3.300

Light Pattern: Spot/Flood

Dimensions: 3 1/4" W x 7 1/4" L x 3 1/4" D

Tech Specs: Direct fit; oversized aluminum heat sink and aluminum bezel; will also fit some Massey Ferguson tractors with high visibility cabs and John Deere forage harvesters

Fits Models: Claas

Lexion 450 (Cat. 3126 -B), 460 (Cat. 3126 -B), 460R, 470 (Cat. 3126 -B), 470R, 475, 475R, 480 (Cat. 3176), 480R, 485 (Cat. 3176), 485R, 560 (C10), 560R, 570 (C12), 570R, 575R, 580R

TL8950L Headlight

TL8950R Headlight

Lumens: 8200

Watt: 90

Amps: 7.5

Light Pattern: Flood/Spot Combo

Dimensions: 13 1/2" L x 5 1/2" HT x 10 1/2" D

Volt: 12-24

Tech Specs: Uses original mount and wiring

Fits Models: Claas 5, 45, 55, 65E, 75E, 85E, 95E

TL9095 LED Mount Light

Lumens: 3500

Watt: 40

Amps: 3.3

Light Pattern: Flood/Spot Combo

Dimensions: 3 1/4" W x 7 1/4" L x 3 1/4" D

Volt: 12-24

Fits Models: Claas

820, 830, 840, 850, 860, 870, 880, 890, 900; Lexion 450, 460, 460R, 470, 470R, 475, 475R, 480, 480R, 485, 485R, 560, 560R, 570, 570R, 575R, 580R, 585R, 590R, 595R

FENDT

TL8100 Round Flush Mount LED Light

Lumens: 1400

Watt: 20

Amps: 2.500

Light Pattern: Flood

Dimensions: 10" W x 14 7/8" L x 7 7/32" D

Volt: 12-24

Tech Specs: Aluminum housing, durable poly-carbonate lens; Plug and Play; replaces round light with two clips on either side

Fits Models: Fendt

512, 513, 514, 516, 822, 824, 826, 828 Vario

TL7095 LED Cab Light

Lumens: 2000

Watt: 30

Amps: 2.500

Light Pattern: Flood

Dimensions: 4 3/4" W x 6 1/2" L x 2 3/4" D

Volt: 12-24

Includes: Connectors, adapter and stainless steel hardware

Tech Specs: Plug and play; uses original mounting bracket on tractor; flush mount

Fits Models: Fendt 9300R, 9350R, 9480R

TL5675 LED Light

Lumens: 3200

Watt: 40

Amps: 3.200

Light Pattern: Flood

Light Shape: Oval

Dimensions: 4 1/2" W x 4 1/4" L x 3" D

Volt: 12-24

Includes: Connector, stainless steel hardware and mounting bracket

Tech Specs: Uses original mounting bracket

Fits Models: Fendt 714, 716, 718, 922, 924, 927, 930, 933, 936, 939; 207, 208, 209, 210, 211, 512, 513, 514, 516, 819, 819NA, 822, 822NA, 824, 824NA, 826, 826NA, 828, 828NA; 922NA, 924NA, 927NA, 930NA, 933NA, 936NA, 939NA

Replaces; 72482555, 72484147, 72484153, 72499357

TL7085 LED Work Light

Lumens: 2450

Watt: 24

Amps: 2

Light Pattern: Flood

Dimensions: 4" W x 6 1/2" L x 3" D

Volt: 12-24

Includes: Connectors, adapter and stainless steel hardware

Tech Specs: Plug and Play; uses original mounting bracket on tractor

Fits Models: Fendt 9300R, 9350R, 9480R

TL650 Skid Steer Headlight

Lumens: 2000

Watt: 24

Amps: 2

Light Pattern: Flood

Dimensions: 3" W x 5" L x 3" HT

Volt: 12-24

Tech Specs: Fits into original housing; Plug and Play

Fits Models: Fendt

870, 1270, 1290, 12130, 12130S, 1270S, 1290N, 1290S, 990N, 990S

TL6460 LED Round Headlight

Lumens: 4000

Watt: 60

Amps: 4.200

Light Pattern: Driving

Dimensions: 5 1/2" OD x 3 1/8" D

Volt: 12-24

Tech Specs: Plug and Play; round high/low beam fits directly into factory mounts

Fits Models: Fendt

711, 712, 714, 716, 718, 815, 817, 818, 820, 922, 924, 927, 930, 933, 936, 939; 411, 412, 413, 414, 415, 819, 819NA, 822, 822NA, 824, 824NA, 826, 826NA, 828, 828NA Vario; 922NA, 924NA, 927NA, 930NA, 933NA, 936NA, 939NA; Farmer 409, 410, 411, 412; Favorit 711, 712, 714, 716, 916, 920, 926

Replaces: 72436277, 72436278, 72438271, 74284113

TL9095 Mount Light

Lumens: 3500

Watt: 40

Amps: 3.3

Light Pattern: Flood/Spot Combo

Dimensions: 3 1/4" W x 7 1/4" L x 3 1/4" D

Volt: 12-24

Tech Specs: Direct fit; Hi/lo beam, H4 connector; oversized aluminum heat sink and aluminum bezel

Fits Models: Fendt

711, 712, 714, 716, 815, 817, 818, 820; 207, 208, 209, 210, 211, 411, 412, 413, 414, 415 Vario; Farmer 304, 305, 306, 307, 308, 309, 310, 312, 409, 410, 411, 412; Favorit 711, 712, 714, 716, 816, 818, 822, 824, 916, 920, 926; Xylon 520, 522, 524

FORD/NEW HOLLAND

TL2050 LED Sealed Light

Lumens: 2200

Watt: 40

Amps: 2

Light Pattern: Flood

Dimensions: 1 1/2" L x 4 1/2" Dia.

Volt: 12-24

Tech Specs: Par 36 replacement; uses original mount, wiring and screw connections; Par 36 replacement, round light with OEM style lens

Fits Models: Ford/New Holland 233, 333, 2000, 2100, 2110, 2120, 2150, 2300, 2310, 2600, 3000, 3055, 3100, 3110, 3120, 3150, 3300, 3310, 3330, 3400, 3500, 3550, 3600, 3900, 4000, 4100, 4110, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 5000, 5100, 5200, 5340, 5600, 5700, 6600, 6700, 6710, 7000, 7100, 7200, 7600, 7700, 7710, 7910, 8000, 8210, 8600, 8700, 9000, 9600, 9700, 2600N, 2600R, 2600V, 3600N, 3600NO, 3600R, 3600V, 4600NO, 4600O, 4600SU, 6600C, 6600O, 7600C, TW10, TW15, TW20, TW25, TW30, TW35, TW5

TL3010 LED Sealed Light

Lumens: 1250

Watt: 18

Amps: 1.500

Light Pattern: Trapezoid

Light Shape: Round

Dimensions: 1 1/2" L x 4 1/2" Dia.

Volt: 12-24

Tech Specs: Par 36 replacement; uses original mount and wiring

FORD/NEW HOLLAND CONT.

TL3015 LED Sealed Light

Lumens: 2200

Amps: 2

Light Pattern: Spot/Flood

Light Shape: Round

Dimensions: 1 1/2" L x 4 1/2" Dia. Volt: 12-24

Tech Specs: Par 36 replacement; uses original mount, wiring and screw connections

Fits Models: Ford/New Holland

233, 333, 2000, 2100, 2110, 2120, 2150, 2300, 2310, 2600, 3000, 3055, 3100, 3110, 3120, 3150, 3300, 3310, 3330, 3400, 3500, 3550, 3600, 3900, 4000, 4100, 4110, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 5000, 5100, 5200, 5340, 5600, 5700, 6600, 6700, 6710, 7000, 7100, 7200, 7600, 7700, 7710, 7910, 8000, 8210, 8600, 8700, 9000, 9600, 9700, 2600N, 2600R, 2600V, 3600N, 3600NO, 3600R, 3600V, 4600NO, 4600O, 4600SU, 6600C, 6600O, 7600C, TW10, TW15, TW20, TW25, TW30, TW35, TW5

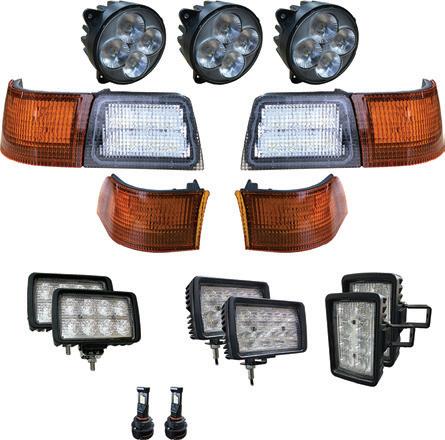

FNHKIT-1 LED Light Kit

Lumens: 45200

Amps: 500

Light Pattern: Spot/Flood

Volt: 12-24

Includes: TL8970L left headlight, TL8970R right headlight, two TL3090 lower mid mount lights, stairs and fuel tank and six TL3050 upper front cab and rear fenders

Tech Specs: Uses original mount and wiring

Fits Models: Ford/New Holland 8670, 8770, 8870, 8970, 8670A, 8770A, 8870A, 8970A

TL3030 LED Tractor Light

Lumens: 3600

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 3 1/2" W x 6" L x 3" D Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Uses original mount and wiring

Fits Models: Ford/New Holland T8010, T8020, T8030, T8040, T8050, T9.390, T9.450, T9.505, T9.560, T9.615, T9.670, T9010, T9020, T9030, T9040, T9050, T9060, TG210, TG215, TG230, TG245, TG255, TG275, TG285, TG305, TJ275, TJ280, TJ325, TJ330, TJ375, TJ380, TJ425, TJ430, TJ450, TJ480, TJ500, TJ530

TL3050 Tractor Cab Light

Lumens: 3600

Watt: 40

Amps: 3.330

Light Pattern: Flood

Dimensions: 3 1/2" W x 6" L x 3" D

Volt: 12-24

Includes: Deutsch connector, stainless steel hardware and mounting bracket

Tech Specs: Uses original mount and wiring

Fits Models: Ford/New Holland 8670, 8770, 8870, 8970, 8670A, 8770A, 8870A, 8970A

Replaces: 9824851, 9846121

TL3070 LED Mount Light

Lumens: 2200

Amps: 2

Light Pattern: Spot/Flood

Dimensions: 3 1/2" W x 6" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket,

Tech Specs: Plug and Play, uses original mount and wiring, swivel mounting bracket, which allows for better angles to mount the light, side mount

Fits Models: Ford/New Holland

T8010, T8020, T8030, T8040, T8050, TG215, TG245, TG275, TG305

FORD/NEW HOLLAND CONT.

TL3085 LED Fender

Lumens: 3600

Watt: 40

Amps: 3.330

Light Pattern: Flood

Dimensions: 3 1/2" W x 6" L x 3" D

Volt: 12-24

Includes: Deutsch connector, stainless steel hardware and mounting bracket

Tech Specs: Uses original wiring, however, it will require to install the connector after running wires through bolt, comes with a hollow bolt to easily run the wire to hide under the fender

Fits Models: Ford/New Holland

Tractors T8.320, T8.330, T8.350, T8.360, T8.380, T8.390, T8.410, T8.420, T8.435, T8010, T8020, T8030, T8040, T8050, T8275, T8300, TG210, TG215, TG230, TG245, TG255, TG275, TG285, TG305

TL3075 LED Mount Light

Lumens: 3600

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 3 1/2" W x 6" L x 3" D

Volt: 12-24

Tech Specs: Does require splicing into original wiring; will work with mid mount lights off front of cab on some Case IH Magnum tractors; requires splicing into original wiring, side mount

Fits

Models: Ford/New Holland

T8010, T8020, T8030, T8040, T8050, TG210, TG215, TG230, TG245, TG255, TG275, TG285, TG305

TL3090 LED Mount Light

Lumens: 3600

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 3 1/2" W x 6" L x 3" D

Volt: 12-24

Includes: Connector, stainless steel hardware and mounting bracket

Tech Specs: Uses original mount and wiring, side mount

Fits Models: Ford/New Holland 8160, 8260, 8360, 8560, 8670, 8770, 8870, 8970, 8670A, 8770A, 8870A, 8970A, TM115, TM120, TM125, TM130, TM135, TM140, TM150, TM155, TM165, TM175, TM190, TS100, TS110, TS115, TS90

Replaces: 9846125, 9846126

TL5690 LED Work Light

Lumens: 5200

Light Pattern: Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Stainless steel hardware, hollow bolt, adapter and mounting bracket

Tech Specs: Powder coated housing, oversized aluminum heat sink, RFI and EMI filters, replaces rear fender lights on models with oval lights on the upper cab and fenders on Magnum tractors

Fits Models: Ford/New Holland

T8.320, T8.330, T8.350, T8.360, T8.380, T8.390, T8.410, T8.420, T8.435, T8275, T8300

TL3095 LED Oval Work Light

Lumens: 2800

Watt: 30

Amps: 2.500

Light Pattern: Flood

Dimensions: 5 1/8" L x 4" HT x 3 1/8" D

Volt: 12-24

Tech Specs: Plug and play, this light replaces the 6 lights on top of the cab, as well as the work lights on rear

Fits Models: Ford/New Holland

H8040, H8060, H8080, HW305, HW305S, HW325, HW345, HW365

FORD/NEW HOLLAND CONT.

TL6020 LED Headlight

Lumens: 3200

Watt: 32

Amps: 2.600

Light Pattern: Flood

Dimensions: 2" L x 3 3/8" Dia.

Volt: 12-24

Tech Specs: Plug and Play, direct replacement, light will bolt right into factory light housing, will bolt into OEM light housing part numbers: 87455676, 87455677 and 87308895

Fits Models: Ford/New Holland

C227, C232, C234, C237, C238, C245, C327, C332, C345, L213, L215, L216, L218, L220, L221, L223, L225, L228, L230, L234, L313, L315, L316, L318, L320, L321, L323, L325, L328, L330, L334, T8010, T8020, T8030, T8040, T8050, TG210, TG215, TG230, TG245, TG255, TG275, TG285, TG305

TL6025 LED Headlight

Lumens: 3200

Watt: 32

Amps: 2.500

Light Pattern: Flood

Dimensions: 2" L x 3 3/8" Dia.

Volt: 12-24

Tech Specs: Direct replacement; Plug and Play

Fits

Models: Ford/New Holland

T6010, T6020, T6030, T6040, T6060, T6070, T7030, T7040, T7060, TL100A, TL80A, TL90A, TN60A, TN60DA, TN60SA, TN70A, TN70DA, TN70SA, TN75A, TN75DA, TN85A, TN85DA, TN95A, TN95DA, TS100A, TS110A, TS115A, TS125A, TS135A

Replaces: 82035642

TL650 Skid Steer Headlight

Lumens: 2000

Watt: 24

Amps: 2

Light Pattern: Flood

Dimensions: 3" W x 5" L x 3" HT

Volt: 12-24

Tech Specs: Fits into original housing; Plug and Play

Fits Models: Ford/New Holland

L465, L565, L865, LX465, LX485, LX565, LX665, LX865, LX885

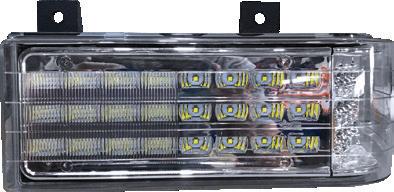

TL8030L LED Left Headlight

TL8030R

LED Right Headlight

Lumens: 5900

Watt: 62

Amps: 5.16

Light Pattern: Combo

Dimensions: 11" W x 27" HT x 9" D

Volt: 12-24

Tech Specs: Uses original mount and connectors, has two flood lights and hi/lo driving light, E-marked and DOT compliant

Fits Models: Ford/New Holland

T8010, T8020, T8030, T8040, T8050, T9.390, T9.450, T9.505, T9.560, TG210, TG215, TG230, TG245, TG255, TG275, TG285, TG305

Replaces: Left 87529727, 87529723, 87529729, 87529731, 84283084, 84283087, 84283091; Right 87529725, 87529724, 87529728, 87529730, 84283090, 84283088, 84283092, 84283085

FORD/NEW HOLLAND CONT.

TL7040 LED Upper Cab Light

Watt: 40

Amps: 3.33

Dimensions: 3 1/2" W x 6" L x 2 1/2" D

Volt: 12-24

Includes: Connector and stainless steel hardware

Tech Specs: Uses original mount and wiring, bolts into the original mount in the tractor

Fits Models: Ford/New Holland

T6010, T6020, T6030, T6040, T6050, T6060, T6070, T6080, T6090, T7030, T7040, T7050, T7060, T7070, T8010, T8020, T8030, T8040, T8050, TG210, TG215, TG230, TG245, TG255, TG275, TG285, TG305, TS100A, TS110A, TS115A, TS125A, TS130A, TS135A

Replaces: 82031075

TL7050 LED Cab Light

Light Pattern: Flood

Light Shape: Oval

Dimensions: 3 3/8" W x 7 1/2" L x 4 1/8" HT

Volt: 12-24

Includes: Connector, adapter and stainless steel hardware

Tech Specs: Uses original mount and wiring, bolts into the original mount in the tractor, please reference OEM part number, to ensure proper applications

Fits Models: Ford/New Holland

T8.320, T8.330, T8.350, T8.360, T8.380, T8.390, T8.410, T8.420, T8.435, T8275, T8300

Replaces: 4269971, 84269973

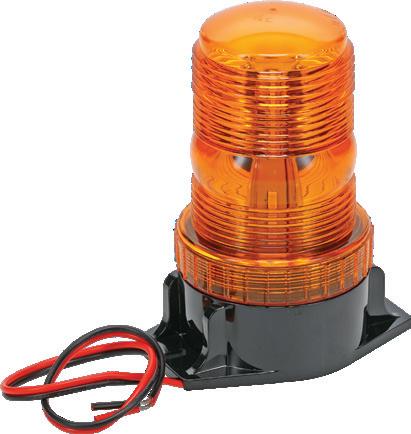

92185C1 LED Amber Light

Watt: 9

Amps: 0.75

Light Pattern: Flood

Dimensions: 3 1/2" W x 6" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware

Tech Specs: Uses original mount and wiring

Fits Models: Ford/New Holland

9184, 9384, 9484, 9684, 9884, 9030E, 9030V

Replaces: 83977683, 86012669, 86014019, 86016518, 86023276, 87053368, 8770630, 9706415

TL7060 LED Cab Light

Lumens: 4500

Watt: 50

Amps: 4.2

Light Pattern: Flood

Light Shape: Oval

Dimensions: 3 3/8" W x 7 1/2" L x 4 1/8" HT

Volt: 12-24

Includes: Connector and stainless steel hardware

Tech Specs: Uses original mount and wiring, bolts into the original mount in the tractor, please reference OEM part number, to ensure proper applications

Fits Models: Ford/New Holland

T6.120, T6.140, T6.150, T6.155, T6.160, T6.165, T6.175, T6010, T6020, T6030, T6040, T6050, T6060, T6070, T6080, T6090, T7.60, T7030, T7040, T7050, T7060, T7070, T7170, T7175, T7185, T7190, T7200, T7210, T7220, T7225, T7230, T7235, T7245, T7250, T7270

Replaces: 84254557, 84273088

FORD/NEW HOLLAND CONT.

TL7740 LED Headlight

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Direct fit; OEM replacement

Fits Models: Ford/New Holland

5640, 6640, 7740, 7840, 8160, 8240, 8260, 8340, 8360, 8560, 6640O, 7740O, 7840O

TL8670 LED High/Low Beam

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Connector and stainless steel hardware

Tech Specs: Uses original mount and wiring

Fits

Models: Ford/New Holland

8670, 8770, 8870, 8970, 8670A, 8770A, 8870A, 8970A

TL8670 -1 LED High/Low Beam

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Connector and stainless steel hardware

Tech Specs: Uses original mount and wiring

Fits Models: Ford/New Holland

8670, 8770, 8870, 8970, 8670A, 8770A, 8870A, 8970A, TS100, TS110, TS115, TS90

Replaces: 82014422, 82014423, 86500543, 86500544

TL8970L

LED Left Headlight

TL8970R LED Right Headlight

Lumens: 8200

Watt: 90

Amps: 7.500

Light Pattern: Spot/Flood

Dimensions: 8" W x 11" L x 5" D

Volt: 12-24

Tech Specs: Uses original mount and wiring

Fits Models: Ford/New Holland

8670, 8770, 8870, 8970, 8670A, 8770A, 8870A, 8970A, Versatile 2145, 2160, 2180, 2210

Replaces: 86514348, 86514349

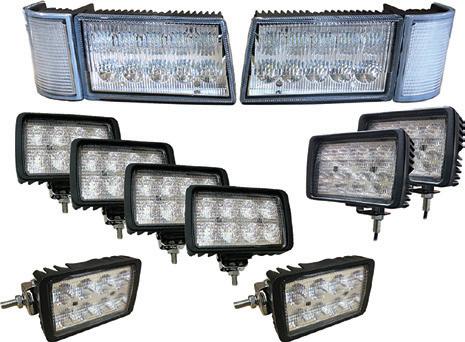

FNHKIT-2 LED Light Kit

Lumens: 45400

Watt: 524

Amps: 43.340

Light Pattern: Driving/Flood/Spot

Volt: 12-24

Includes: Two TL3030 LED tractor lights, two TL3075 LED side mount lights, two TL3085 LED fender lights, four TL7040 LED upper cab lights, TL8030L left LED headlight and TL8030R right LED headlight, Fits Models: Ford/New Holland

T8010, T8020, T8030, T8040, T8050, TG210, TG215, TG230, TG245, TG255, TG275, TG285, TG305

FNHKIT-3 LED Light Kit

Lumens: 45400

Watt: 444

Amps: 36.740

Light Pattern: Driving/Flood/Spot

Volt: 12-24

Includes: TL8970L left headlight, TL8970R right headlight, two TL3090 lower mid mount lights, stair lights, fuel tank lights and six TL3050 upper front cab lights and rear fender lights

TL855 LED Mount Light

Lumens: 3000

Watt: 32

Amps: 2.660

Light Pattern: Flood

Light Shape: Rectangular

Dimensions: 2 3/4" W x 5 3/4" L x 3 3/4" HT Volt: 12-24

Tech Specs: Flush mount

Fits Models: Gehl

SL7810, Mustang 2066, 2076 and 2086 skid steers

Replaces: 137426, 242852

HARVEST PRO

TL6320 LED Headlight

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Direct fit, OEM replacement

Fits Models: Harvest Pro 8140, 8150, 8152, 8152C, 8152I

GLEANER

TL6220 LED Headlight

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Direct fit OEM replacement

Fits Models: Gleaner

Combines C62, R40, R42, R50, R52, R60, R62, R70, R72

TL8350 LED Cab Headlight

Lumens: 3000

Watt: 40

Amps: 3.300

Light Pattern: Flood Volt: 12-24

Tech Specs: Plug and Play, Direct replacement, Uses original mounting hardware, Cast aluminum body

Fits Models: Harvest Pro 8140, 8150, 8152, 8152c, 8152i

JOHN DEERE

JDKIT-1 LED Tractor Light Kit

Lumens: 38400

Watt: 480

Amps: 40

Light Pattern: Spot/Flood Volt: 12-24

Includes: Twelve TL8400 LED lights on the equipment; 4 in the nose, 2 on the windshield, 2 under the steps and fuel tank, and 4 on the rear of the tractor

Tech Specs: Plug and Play, we also have add on options for the four upper cab lights and the corner amber lights, the TL8400 light has a dual mounting option; can be mounted from the side of the light or the bottom of the light

Fits Models: John Deere 8100, 8110, 8200, 8210, 8300, 8310, 8400, 8410, 8100T, 8110T, 8200T, 8210T, 8300T, 8310T, 8400T, 8410T

Replaces: RE1154908, RE154898, RE154900, RE154901, RE154902, RE154903, RE154904, RE154906

JDKIT-1.5 LED Tractor Light Kit

Lumens: 36400

Watt: 480

Amps: 40

Light Pattern: Spot/Flood

Volt: 12-24

Includes: Eight TL8410 LED lights; 2 on the windshield, 2 under the steps and fuel tank and 4 on the rear of the tractor and four TL8400 LED lights in the nose

Tech Specs: Plug and Play, early serial number 8000 series John Deere tractors, this kit also includes the four upper cab lights (RE306510), TL8400 light has a dual mounting option; can be mounted from the side of the light or the bottom of the light

Fits Models: John Deere 8100, 8110, 8200, 8210, 8300, 8310, 8400, 8410, 8100T, 8110T, 8200T, 8210T, 8300T, 8310T, 8400T, 8410T

Replaces: RE1154908, RE154898, RE154900, RE154901, RE154902, RE154903, RE154904, RE154906

JDKIT-2 LED Light Kit

Lumens: 49200

Watt: 560

Amps: 46.600

Light Pattern: Spot/Flood Volt: 12-24

Includes: Two TL8520 large oval, high/low hood lights, two TL8220 small hood lights, six TL5680 front mid mount lights, two rear fenders and two upper rear cab lights

Tech Specs: Plug and Play

Fits Models: John Deere 8120, 8220, 8320, 8420, 8520, 9120, 9220, 9320, 9420, 9520, 9620, 8120T, 8220T, 8320T, 8420T, 8520T, 9320T, 9420T, 9520T, 9620T

JDKIT-3 LED Light Kit

Lumens: 49200

Watt: 560

Amps: 46.600

Light Pattern: Spot/Flood Volt: 12-24

Includes: Two TL8520 large oval high/low hood lights, two TL8220 small hood lights, six TL5680 front mid mount lights, two rear fenders and two upper rear cab lights

Tech Specs: Plug and Play

Fits Models: John Deere 8130, 8230, 8330, 8430, 8530, 9230, 9330, 9430, 9530, 9630, 8230T, 8330T, 8430T, 9430T, 9530T, 9630T

JOHN DEERE CONT.

JDKIT-4 LED Light Kit

Lumens: 45400

Watt: 690

Amps: 57.500

Light Pattern: Spot/Flood Volt: 12-24

Includes: Eight TL9000 60 cab headlights, two side row finder and six TL5655 stubble lights, field lights, auger light

Tech Specs: Uses original mount and wiring, for John Deere combines with rectangular lights on top of cab; if your cab has oval lights, you will need JDKIT-5

Fits Models: John Deere

9400, 9410, 9450, 9500, 9510, 9550, 9560, 9600, 9610, 9650, 9660, 9550SH, 9560SH, 9560STS, 9570

STS, 9650 STS, 9660 CTS, 9660

STS, 9670 STS, 9750 STS, 9760 STS, 9770 STS, 9870 STS

JDKIT-5 LED Light Kit

Lumens: 55600

Watt: 690

Amps: 57.500

Light Pattern: Spot/Flood Volt: 12-24

Includes: Six TL5680 cab headlights, two TL9000 side row finders, six TL5655 stubble lights, field lights, auger light and stainless steel hardware and connectors

Tech Specs: Uses original mount and wiring, for John Deere combines with large oval lights on top of cab

Fits Models: John Deere

9560, 9660, 9770, 9470 STS, 9560SH, 9560STS, 9570 STS, 9650 STS, 9660 STS, 9670 STS, 9750 STS, 9760 STS, 9770 STS, 9860 STS, 9870 STS

JDKIT-6 LED Light Kit

Lumens: 46000

Watt: 610

Amps: 50.800

Light Pattern: Spot/Flood Volt: 12-24

Includes: Four TL8060 cab oval headlights, four TL8090 cab round headlights, two TL9000 side row finders, six TL5655 stubble lights, field lights, auger light and stainless steel hardware and connectors

Tech Specs: Uses original mount and wiring, for John Deere combines with large oval cab lights

Fits Models: John Deere

S550, S650, S660, S670, S670HM, S680, S680HM, S690, S690HM, S760, S770, S780, S790, T550, T560, T660, T670, W540, W550, W650, W660

JDKIT-7 LED Light Kit

Lumens: 37200

Watt: 496

Amps: 41.330

Light Pattern: Spot/Flood Volt: 12-24

Includes: Two Two TL9010 center headlights, two TL6060 high/low headlights, four TL3080 rear fender lights and four TL3015 par 36 cab light bulbs

Tech Specs: Plug and Play, for 9300 and 9400 models, the 3rd center light is a TL9010; this will be need to be added to complete the tractor

Fits Models: John Deere 9100, 9200, 9300, 9400, 9300T, 9400T

JOHN DEERE

JDKIT-8 LED Light Kit

Lumens: 45200

Watt: 550

Amps: 45.800

Light Pattern: Spot/Flood

Volt: 12-24

Includes: Two TL7820 large oval high/low hood lights, one TL7830L left oval hood lights, one TL7830R right oval hood light and six TL5680 front mid mount lights, two rear fenders and two upper rear cab lights

Tech Specs: Plug and Play, late 20 and 30 series John Deere tractors

Fits Models: John Deere

7630, 7720, 7730, 7820, 7830, 7920, 7930

JDKIT-9 LED Light Kit

Lumens: 37960

Watt: 540

Amps: 44.200

Volt: 12-24

Includes: TL7210L left LED work light, TL7210R right LED work light, two TL6700 LED headlights, six TL8400 LED work lights with Ball Mount, four RE306510 upper cab work lights

Tech Specs: Plug and Play, some versions of tractors do not use a ball mount, please check equipment before ordering

Fits Models: John Deere 7200, 7210, 7400, 7410, 7510, 7630, 7720, 7730, 7820, 7830, 7920, 7930

JDKIT-10 LED Light Kit

Lumens: 25800

Watt: 340

Amps: 27.800

Volt: 12-24

Includes: Four TL5670

Tech Specs: Plug and Play, some tractors use a 3 pin electrical connector, please check equipment before ordering, some tractors will need additional work lights (TL5670)

Fits Models: John Deere 6120, 6215, 6220, 6230, 6330, 6415, 6420, 6430, 6615, 6715, 7130, 7130, 7230, 7230, 7330, 7630, 7720, 7730, 7820, 7830, 7920, 7930, 6120L, 6220L, 6420L, 6520L

JDKIT-11 LED Tractor Light Kit

Lumens: 38400

Watt: 480

Amps: 40

Volt: 12-24

Includes: Twelve TL8400 LED lights on the equipment; 4 in the nose, 2 on the windshield, 2 under the steps and fuel tank and 4 on the rear of the tractor

Tech Specs: Plug Plug and Play, For 8000 series John Deere tractors, This kit also includes the four upper cab lights (RE306510), TL8400 light has a dual mounting option; Can be mounted from the side of the light or the bottom of the light

Fits Models: John Deere

8100, 8110, 8200, 8210, 8300, 8310, 8400, 8410, 8100T, 8110T, 8200T, 8210T, 8300T, 8310T, 8400T, 8410T

Replaces: RE1154908, RE154898, RE154900, RE154901, RE154902, RE154903, RE154904, RE154906

JOHN DEERE CONT.

MACDONKIT-1 LED Upper Cab Light Kit

Lumens: 22000

Watt: 320

Amps: 26.600

Light Pattern: Spot/Flood

Volt: 12-24

Includes: Plug and Play, replaces the 7 upper cab lights on MacDon M series windrowers

Fits Models: John Deere W110, W150, W155

TL2060 LED Tractor Light

Lumens: 2800

Watt: 40

Amps: 3.300

Light Pattern: Trapezoid

Light Shape: Round

Dimensions: 3 1/2" L x 4 1/2" Dia.

Volt: 12-24

Includes: Stainless steel hardware, long rubber bezel and short rubber bezel

Tech Specs: 1/2" rear stud mount with built-in heat sink

Fits Models: John Deere

820, 830, 920, 930, 1030, 1120, 1130, 1520, 1530, 1630, 1640, 1830, 2010, 2020, 2030, 2120, 2130, 2140, 2150, 2155, 2240, 2255, 2350, 2355, 2440, 2510, 2550, 2555, 2630, 2640, 2750, 2755, 2840, 2940, 2950, 2955, 3010, 3020, 3030, 3040, 3055, 3130, 3140, 3155, 3255, 4000, 4020, 4030, 4040, 4050, 4230, 4240, 4250, 4430, 4440, 4450, 4620, 4630, 4640, 4650, 6030, 7020, 8430, 8630, 2040S, 2355N, 2520 62, 4010 54, 4320 72, 4520 72

Replaces: AR85262, RE19080

MACDONKIT-2 LED Light Kit

Lumens: 36200

Watt: 520

Amps: 43.300

Light Pattern: Spot/Flood

Volt: 12-24

Includes: Five TL8350 3x5 upper cab lights, four TL9350 4x6 upper cab headlights and hood headlights and two TL860 rear corner cab lights

Tech Specs: Plug and Play

Fits Models: John Deere W110, W150, W155, MacDon M100, M105, M150, M155, M155E4, M200, M205

TL2050 LED Sealed Round Light with OEM Style Lens

Lumens: 2200

Amps: 2

Light Pattern: Flood

Dimensions: 1 1/2" L x 4 1/2" Dia.

Volt: 12-24

Tech Specs: Uses original mount, wiring and screw connections, Par 36 replacement, round light with OEM style lens

Fits Models: John Deere 14, 24, 302, 310, 375, 380, 410, 440, 444, 480, 510, 540, 544, 550, 555, 570, 575, 640, 675, 740, 2010, 2240, 2510, 2840, 2940, 3010, 3020, 3300, 3375, 4000, 4020, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4400, 4420, 4430, 4440, 4450, 4455, 4555, 4560, 4620, 4630, 4640, 4650, 4755, 4760, 6030, 6600, 6602, 6620, 6622, 7020, 7520, 7700, 7720, 7721, 8440, 8450, 8560, 8570, 8630, 8640, 8650, 8760, 8770, 8820, 8850, 8870, 8960, 8970, 9100, 9200, 9300, 9400, 170 38, 24A, 2520 62, 300B, 301A, 302A, 310A, 310B, 340D, 4010 54, 401B, 401C, 410B, 415B, 4320 72, 440A, 440B, 440C, 440D, 444C, 444CH, 448D, 450D, 450E, 4520 72, 455D, 455E, 480A, 480B, 480C, 500A, 500B, 540A, 540B, 540D, 544A, 544B, 544C, 548D, 550A, 550B, 555A, 555B, 610B, 644A, 644B, 644C, 675B, 700A, 710B, 710C, 740A, 760A

Replaces: AF3892R, AT25451, RE285628, RE336111, RE561116, RE561117

JOHN DEERE

TL2070 LED Sealed Light

Lumens: 2200

Watt: 24

Amps: 2

Light Pattern: Flood

Light Shape: Round

Dimensions: 1 1/2" L x 4 1/2" Dia.

Volt: 12-24

Tech Specs: Plug and Play, uses original mount and wiring, uses screwed connection points for installation, high/low beam with OEM style lens

Fits Models: John Deere 2155, 2350, 2355, 2520, 2550, 2555, 2750, 2755, 2940, 2950, 2955, 3040, 3140, 3150, 3155, 3300, 4000, 4020, 4030, 4040, 4230, 4240, 4320, 4400, 4420, 4430, 4450, 4620, 4630, 4650, 4850, 6030, 6100, 6500, 6600, 6602, 6620, 6622, 6700, 7020, 7520, 7700, 7720, 8430, 8440, 8450, 8630, 8640, 8650, 8820, 8850, 9900, 9910, 9920, 9930, 9940, 9950, 2355N, 2855N

Replaces: AR48723, AR85263, AR85264, AR93335, RE10962, RE10963, RE19081, RE19082

TL3005 LED Sealed Light

Lumens: 2200

Watt: 24

Amps: 2

Light Pattern: Spot/Flood

Light Shape: Round

Dimensions: 1 1/2" L x 4 1/2" Dia.

Volt: 12-24

Tech Specs: Plug and Play; sealed light for the rear work light on tractors that have a red tail light option; uses original mount and wiring; white work light and red tail light built in together; will not work on positive ground tractors

Fits Models: John Deere 920, 930, 1120, 1130, 1140, 1520, 1530, 1630, 1640, 1750, 1830, 1840, 1850, 1950, 2010, 2020, 2030, 2120, 2130, 2140, 2150, 2155, 2240, 2250, 2255, 2350, 2355, 2440, 2450, 2510, 2550, 2555, 2630, 2640, 2650, 2750, 2755, 2840, 2850, 2940, 2950, 2955, 3010, 3020, 3030, 3050, 3130, 3140, 3350, 4000, 4020, 4620, 6030, 1950N, 2040S, 2355N, 2520 62, 2855N, 4010 54, 4320 72, 4520 72

Replaces: AR21737, AR21739, AR77324, ELJ50-0015

JOHN DEERE CONT.

TL3010 LED Sealed Light

Lumens: 1250

Watt: 18

Amps: 1.500

Light Pattern: Trapezoid

Light Shape: Round

Dimensions: 1 1/2" L x 4 1/2" Dia.

Volt: 12-24

Tech Specs: Par 36 replacement; uses original mount and wiring

54, 401B, 401C, 410B, 415B, 4320 72, 440A, 440B, 440C, 440D, 444C, 444CH, 448D, 450D, 450E, 4520 72, 455D, 455E, 480A, 480B, 480C, 500A, 500B, 540A, 540B, 540D, 544A, 544B, 544C, 548D, 550A, 550B, 555A, 555B, 610B, 644A, 644B, 644C, 675B, 700A, 710B, 710C, 740A, 760A

Replaces: AF3892R, AT25451, RE285628, RE336111, RE561116, RE561117

TL3015 LED Sealed Light

Lumens: 2200

Amps: 2

Light Pattern: Spot/Flood

Light Shape: Round

Dimensions: 1 1/2" L x 4 1/2" Dia.

Volt: 12-24

Tech Specs: Uses original mount and wiring, Par 36 replacement

Fits Models: John Deere 14, 24, 70, 125, 170, 302, 310, 375, 380, 410, 440, 444, 480, 510, 540, 544, 550, 555, 570, 575, 640, 675, 740, 2010, 2240, 2510, 2840, 2940, 3010, 3020, 3300, 3375, 4000, 4020, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4400, 4420, 4430, 4440, 4450, 4455, 4555, 4560, 4620, 4630, 4640, 4650, 4755, 4760, 6030, 6600, 6602, 6620, 6622, 7020, 7520, 7700, 7720, 7721, 8440, 8450, 8560, 8570, 8630, 8640, 8650, 8760, 8770, 8820, 8850, 8870, 8960, 8970, 9100, 9200, 9300, 9400, 24A, 2520 62, 300B, 301A, 302A, 310A, 310B, 340D, 4010 54, 401B, 401C, 410B, 415B, 4320 72, 440A, 440B, 440C, 440D, 444C, 444CH, 448D, 450D, 450E, 4520 72, 455D, 455E, 480A, 480B, 480C, 500A, 500B, 540A, 540B, 540D, 544A, 544B, 544C, 548D, 550A, 550B, 555A, 555B, 610B, 644A, 644B, 644C, 675B, 700A, 710B, 710C, 740A, 760A

Replaces: AF3892R, AT25451, RE285628, RE336111, RE561116, RE561117

JOHN DEERE

TL3020 LED Sealed Light

Lumens: 2200

Light Pattern: Spot/Flood

Light Shape: Round

Dimensions: 1 1/2" L x 4 1/2" Dia.

Volt: 12-24

Includes: Wired cable and pigtail wires for installation

Tech Specs: Uses original mount, low beam is a flood pattern and high beam adds a spot pattern

Fits Models: John Deere

2155, 2350, 2355, 2550, 2555, 2750, 2755, 2940, 2950, 2955, 3040, 3140, 3150, 3155, 3300, 4000, 4020, 4030, 4040, 4230, 4240, 4400, 4420, 4430, 4450, 4620, 4630, 4650, 6030, 6100, 6500, 6600, 6600, 6602, 6620, 6622, 6700, 7020, 7520, 7700, 7720, 8430, 8440, 8450, 8630, 8640, 8650, 8820, 8850, 9900, 9910, 9920, 9930, 9940, 9950, 2355N, 2520 62, 2855N, 4320 72

Replaces: AR48723, AR85263, AR85264, AR93335, RE10962, RE10963, RE19081, RE19082

TL9095 Mount Light

Lumens: 3500

Watt: 40

Amps: 3.3

Light Pattern: Flood/Spot Combo

Dimensions: 3 1/4" W x 7 1/4" L x 3 1/4" D

Fits Models: John Deere

6650, 6750, 6850, 6950, 7180, 7200, 7250, 7280, 7300, 7350, 7380, 7400, 7450, 7480, 7500, 7550, 7580, 7700, 7750, 7780, 7800, 7850, 7950, 7980, Massey Ferguson 4225, 4235, 4240, 4245, 4255, 4260, 4265, 4270, 4325, 4335, 4345, 4355, 4360, 4365, 4370, 6140, 6150, 6160, 6170, 6180, 6190, 6235, 6245, 6255, 6260, 6265, 6270, 6280, 6290, 8110, 8120, 8130, 8140, 8150, 8160, 8210, 8220, 8240, 8250, 8260, 8270, 8280

TL3025 LED Sealed Light

Lumens: 2200

Watt: 24

Amps: 2

Light Pattern: Spot/Flood

Light Shape: Round

Dimensions: 1 1/2" L x 4 1/2" Dia.

Volt: 12-24

Includes: Wired cable and pigtail wires for installation

Tech Specs: Plug and Play, uses original mount and wiring, uses screwed connection points for installation, low beam is a flood pattern and high beam adds a spot pattern

Fits Models: John Deere 2155, 2350, 2355, 2550, 2555, 2750, 2755, 2940, 2950, 2955, 3040, 3140, 3150, 3155, 3300, 4000, 4020, 4030, 4040, 4230, 4240, 4400, 4420, 4430, 4450, 4620, 4630, 4650, 6030, 6100, 6500, 6600, 6600, 6602, 6620, 6622, 6700, 7020, 7520, 7700, 7720, 8430, 8440, 8450, 8630, 8640, 8650, 8820, 8850, 9900, 9910, 9920, 9930, 9940, 9950, 2355N, 2520 62, 2855N, 4320 72

Replaces: AR48723, AR85263, AR85264, AR93335, RE10962, RE10963, RE19081, RE19082

JOHN DEERE CONT.

TL5670 LED Small Oval Light

Lumens: 3200

Watt: 40

Amps: 3,200

Light Pattern: Flood

Light Shape: Oval

Dimensions: 4 1/2" W x 4 1/4" L x 3" D

Volt: 12-24

Includes: Connector, stainless hardware and mounting bracket

Tech Specs: Powder coated housing, oversized aluminum heat sink, RFI and EMI filters, some newer John Deere models will have a three terminal connector on the light, these lights come with a two terminal connector

Fits Models: John Deere 4630, 5320, 5325, 5420, 5425, 5520, 5525, 5603, 5625, 6120, 6215, 6220, 6230, 6320, 6330, 6415, 6420, 6430, 6615, 6715, 7130, 7130, 7180, 7200, 7220, 7230, 7230, 7250, 7280, 7300, 7320, 7330, 7350, 7380, 7400, 7420, 7450, 7480, 7500, 7520, 7550, 7580, 7700, 7750, 7780, 7800, 7850, 7950, 7980, 5101E, 5325N, 5425N, 5525N, 6105M, 6110M, 6115M, 6120M, 6125M, 6130M, 6140M, 6145M, 6150M, 6155M, 6170M, 6175M, 6195M, 6320L, 6420L, 6520L, 9540 WTS, 9540i WTS, 9560iWTS, 9560WTS, 9580iWTS, 9640iWTS, 9660i WTS, 9680i WTS, 9780 CTS, 9780i CTS, C670, R4023, R4030, R4038, R4045, T550, T560, T660, T670, W540, W550, W650, W660

Replaces: AL150478, AL174341, AL175528, AL175529, AL202742, AL202743, AL205375, RE219708, RE233263, RE567623

TL8050 LED Upper Cab Light

Lumens: 3200

Watt: 40

Amps: 3.300

Light Pattern: Spot/Flood

Light Shape: Oval

Dimensions: 3" W x 6" L x 3 1/4" D

Volt: 12-24

Light Location: Upper front and rear cab

Fits Models: John Deere

6105R, 6110R, 6115R, 6120R, 6125R, 6130R, 6140R, 6145R, 6150R, 6150RH, 6155R, 6155RH, 6170R, 6175R, 6190R, 6195R, 6210R, 6215R, 6250R, 7200R, 7215R, 7230R, 7230R, 7250R, 7250R, 7260R, 7270R, 7270R, 7280R, 7290R, 7310R, 8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8295RT, 8310R, 8310RT, 8320R, 8320RT, 8335R, 8335RT, 8345R, 8345RT, 8360R, 8360RT, 8370R, 8370RT, 8400R, 9360R, 9370R, 9410R, 9420R, 9460R, 9460RT, 9470R, 9470RT, 9470RX, 9510R, 9510RT, 9520R, 9520RT, 9520RX, 9560R, 9560RT, 9570R, 9570RT, 9570RX, 9620R, 9620RX

Replaces: RE269637

TL7830L LED Left Corner Light

TL7830R

LED Right Corner Light

Lumens: 2000

Watt: 30

Amps: 2.5

Light Pattern: Flood

Dimensions: 3" W x 6" L x 2 1/2" D

Volt: 12-24

Tech Specs: Plug and Play, uses original mount and wiring, high beam

Fits Models: John Deere

4720, 4730, 7630, 7720, 7730, 7820, 7830, 7920, 7930

Replaces: RE181916, RE205361

TL7820 LED Headlight

Lumens: 5000

Watt: 65

Amps: 5.4

Light Pattern: Spot/Flood

Light Shape: Oval

Volt: 12-24

Tech Specs: Plug and Play, uses original mount and wiring, works for high/low beams and high beams, for John Deere tractors 8120 thru 8530, this light will only fit the lower lights in the screen; for the main headlights use TL8520, for models 7630-7920, this will replace the main headlights

Fits Models: John Deere

4720, 4730, 7630, 7720, 7730, 7820, 7830, 7920, 7930, 8120, 8130, 8220, 8230, 8320, 8330, 8420, 8430, 8520, 8530, 8245R, 8270R, 8295R, 8320R, 8330T, 8345R, 8430T

Replaces: RE181963, RE181964, RE205360

TL8090 LED Headlight

Lumens: 2200

Watt: 30

Amps: 2.500

Light Pattern: Flood

Light Shape: Round

Volt: 12-24

Tech Specs: Plug and Play, direct replacement, swivel mount

Fits Models: John Deere

8100, 8200, 8300, 8400, 8500, 8600, 8700, 8800, CH570, CH670, S550, S650, S660, S670, S670HM, S680, S680HM, S690, S690HM, S760, S770, S780, S790, T550, T560, T660, T670, W235 Draper, W235 Rotary, W260 Rotary, W540, W550, W650, W660

Replaces: AXE20661

TL8640 LED Headlight

Lumens: 2200

Watt: 20

Amps: 1.660

Light Pattern: Flood

Dimensions: 4 3/4" W x 7 1/2" HT x 3 1/2" D

Volt: 12-24

Tech Specs: Plug and Play, uses original mounting bracket, small round insert light for John Deere R series tractor, replaces the smaller inner round light in the right upper headlight, closest to the center, this light does not replace the whole housing

Fits Models: John Deere

4940, 6105M, 6105R, 6110R, 6120R, 6130R, 6135M, 6135R, 6140M, 6140R, 6145M, 6145R, 6150M, 6150R, 6155M, 6155R, 6155RH, 6170M, 6170R, 6175M, 6175R, 6190R, 6195M, 6195R, 6210R, 6215R, 6230R, 6250R, 6250R, 6250R, 7200R, 7215R, 7230R, 7250R, 7260R, 7270R, 7280R, 7290R, 7310R, 7R 210, 7R 230, 7R 250, 7R 270, 7R 290, 7R 310, 7R 330, 7R 350, 8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8310R, 8310RT, 8320R, 8320RT, 8335R, 8335RT, 8345R, 8345RT, 8360R, 8360RT, 8360T, 8370R, 8370RT, 8400R, 9360R, 9370R, 9410R, 9420RX, 9460R, 9460RT, 9470R, 9470RT, 9470RX, 9510R, 9510RT, 9520R, 9520RT, 9520RX, 9560R, 9570R, 9570RT, 9570RX, 9620R, 9620RX, R4023, R4030, R4038, R4040I, R4044, R4045, R4050I, R4060, R4140I, R4150I

Replaces: AR48723, AR85263, AR85264, AR93335, RE10962, RE10963, RE19081, RE19082

Replaces: AL206153, AL206154, RE288376, RE288377, RE296513, RE296514, RE296679, RE29680

JOHN DEERE CONT.

TL8070 LED Amber Cab Light

Watt: 40

Amps: 3.200

Light Pattern: Spot/Flood

Light Shape: Oval

Dimensions: 3" W x 6" L x 3 1/4" D

Volt: 12-24

Includes: Plastic bezel, uses original hardware

Tech Specs: Plug and Play, direct replacement, aluminum housing, durable poly-carbonate lens, flush mount

Fits Models: John Deere

5100R, 5115R, 5125R, 6105R, 6110R, 6115R, 6120R, 6125R, 6130R, 6140R, 6145R, 6150R, 6150RH, 6155R, 6155RH, 6170R, 6175R, 6190R, 6195R, 6210R, 6215R, 6250R, 7200R, 7215R, 7230R, 7230R, 7250R, 7250R, 7260R, 7270R, 7270R, 7280R, 7290R, 7310R, 8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8295RT, 8310R, 8310RT, 8320R, 8320RT, 8335R, 8335RT, 8345R, 8345RT, 8360R, 8360RT, 8370R, 8370RT, 8400R, 9360R, 9370R, 9410R, 9420R, 9420RX, 9460R, 9460RT, 9470R, 9470RT, 9470RX, 9510R, 9510RT, 9520R, 9520RT, 9520RX, 9560R, 9560RT, 9570R, 9570RT, 9570RX, 9620R, 9620RX

Replaces: RE269636

AR60250 LED Amber Cab Light

Watt: 9

Amps: 0.750

Light Pattern: Flood/Flashing

Dimensions: 2" W x 7 3/4" L x 1 1/2" D

Volt: 12-24

Includes: Stainless steel hardware

Tech Fits sound guard cabs and 4WD Steiger

Fits Models: John Deere 820, 850, 870, 950, 970, 990, 1070, 1250, 1450, 1520, 1530, 1650, 2020, 2030, 2140, 2150, 2155, 2240, 2255, 2350, 2440, 2550, 2555, 2630, 2640, 2750, 2755, 2840, 2940, 2950, 2955, 3040, 3055, 3140, 3150, 3155, 3255, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4430, 4440, 4450, 4455, 4555, 4560, 4630, 4640, 4650, 4755, 4760, 5105, 5320, 5325, 5400, 5410, 5420, 5425, 5500, 5510, 5520, 5525, 5625, 6100, 6110, 6200, 6205, 6210, 6300, 6310, 6400, 6403, 6410, 6500, 6505, 6600, 6603, 6605, 7200, 7210, 7220, 7320, 7400, 7405, 7410, 7420, 7440, 7445, 7505, 7510, 7520, 7600, 7610, 7700, 7710, 7740, 7800, 7810, 8430, 8440, 8450, 8560, 8570, 8630, 8640, 8650, 8760, 8770, 8850, 8870, 8960, 8970, 9900, 9910, 9920, 9930, 9940, 9950, 9960, 9965, 9970, 2355N, 2855N, 4040S, 4240S, 6105D, 6105E, 6110L, 6115D, 6120E, 6210L, 6310L, 6410L, 6510L, 900HC

Replaces: AR60250

JOHN DEERE

TL8060 LED Mount Light

Lumens: 3000

Watt: 40

Amps: 3.300

Light Pattern: Spot/Flood

Light Shape: Oval

Dimensions: 3" W x 6" L x 3 1/4" D

Volt: 12-24

Tech Specs: Plug and Play, direct replacement, bottom mount

Fits

Models: John Deere

8100, 8200, 8300, 8400, 8500, 8600, 8700, 8800, 6105R, 6110R, 6115R, 6120R, 6125R, 6130R, 6140R, 6145R, 6150R, 6150RH, 6155R, 6155RH, 6170R, 6175R, 6190R, 6195R, 6210R, 6215R, 6250R, 6250R, 6250R, 6250R, 7200R, 7215R, 7230R, 7230R, 7250R, 7250R, 7260R, 7270R, 7270R, 7280R, 7290R, 7310R, 8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8295RT, 8310R, 8310RT, 8320R, 8320RT, 8335R, 8335RT, 8345R, 8345RT, 8360R, 8360RT, 8370R, 8370RT, 8400R, 9360R, 9370R, 9410R, 9420R, 9460R, 9460RT, 9470R, 9470RT, 9470RX, 9510R, 9510RT, 9520R, 9520RT, 9520RX, 9560R, 9560RT, 9570R, 9570RT, 9570RX, 9620R, 9620RX, CH570, CH670, R4023, R4030, R4038, R4045, S550, S650, S660, S670, S670HM, S680, S680HM, S690, S690HM, S760, S770, S780, S790, T550, T560, T660, T670, W235 Draper, W235 Rotary, W260 Rotary, W540, W550, W650, W660

Replaces: AL207359, AXE10038, RE269638, RE269640, RE331643, RE573609

TL8220 LED Hood Light

Lumens: 3000

Watt: 35

Amps: 2.500

Light Pattern: Flood

Light Shape: Oval

Dimensions: 3 3/4" W x 5 1/2" L x 3" D

Volt: 12-24

Tech Specs: Plug and Play; Uses original mount and wiring

Fits Models: John Deere 8120, 8130, 8220, 8230, 8320, 8330, 8420, 8430, 8520, 8530, 9120, 9220, 9230, 9320, 9330, 9420, 9430, 9520, 9530, 9620, 9630, 8120T, 8220T, 8225R, 8230T, 8245R, 8270R, 8295R, 8295RT, 8320R, 8320RT, 8320T, 8330T, 8345R, 8345RT, 8420T, 8430T, 8520T, 9420T, 9430T, 9520T, 9530T, 9620T, 9630T, Versatile 190, 220, 250, 260, 290, 300, 305, 310

Replaces: RE180613, RE181282, RE271573, RE271574

RE19079 LED Fender Light

Lumens: 3200

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 2 1/2" L x 4 1/2" Dia.

Volt: 12-24

Tech Specs: Rear fender

Includes: Stainless steel hardware, mounting bracket and hollow bolt to allow wiring to travel through bolt

Fits Models: John Deere

2510, 2940, 3020, 4000, 4020, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4430, 4440, 4455, 4555, 4560, 4620, 4630, 4640, 4650, 4755, 4760, 5400, 5500, 6030, 7020, 7520, 8430, 8440, 8450, 8630, 8640, 8650, 8850, 4010 54, 4320 72, 4520 72

Replaces: AR85260, RE12718, RE19079

JOHN DEERE CONT.

TL8520 LED Headlight

Lumens: 6000

Watt: 65

Amps: 5.400

Light Pattern: Flood

Light Shape: Oval

Dimensions: 4 1/2" W x 6 1/2" L x 4" D

Volt: 12-24

Tech Specs: Plug and Play, uses original mount and wiring, high/low beam

Fits Models: John Deere 4730, 8120, 8130, 8220, 8230, 8320, 8330, 8420, 8430, 8520, 8530, 9120, 9220, 9230, 9320, 9330, 9420, 9430, 9520, 9530, 9620, 9630, 8120T, 8220T, 8225R, 8230T, 8245R, 8270R, 8295RT, 8320R, 8320RT, 8320T, 8330T, 8345R, 8345RT, 8420T, 8430T, 8520T, 9320T, 9420T, 9430T, 9520T, 9530T, 9620T, 9630T

Replaces: RE173600, RE260102

TL5650 LED Light

Lumens: 2900

Watt: 35

Amps: 2.900

Light Pattern: Flood

Dimensions: 3 3/4" W x 5 3/4" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Powder coated housing, oversized aluminum heat sink, RFI and EMI filters

Fits Models: John Deere

Utility Tractors 1023E, 2305, 2320, 2520, 2720, 3033R, 3039R, 3046R, 3120, 3203, 3320, 3520, 3720, 4010, 4044M, 4044R, 4052M, 4066M, 4066R, 4105, 4115, 4120, 4210 (serial number 030001 and higher), 4310, 4320, 4410 (serial number 345001 and higher), 4510, 4520, 4610, 4710, 4720, 5045D, 5045E, 5055D, 5055E, 5075E, 5075M, 5085E, 5085M, 5100E, 5100M, 5100MH, 5115M

Tractors 1026R, 2340, 4110 diesel, 5065M, 5083E, 5093E, 5095M, 5095MH, 5101E, 5105M, 5105ML, 5220, 5225, 5325, 5420, 5425, 5520, 5525, 5625

Combines 9470 STS, 9560, 9560 STS, 9560SH, 9570, 9570 STS, 9650 STS, 9660, 9660 CTS, 9660 STS, 9670, 9670 STS, 9750 STS, 9760 STS, 9770, 9770 STS, 9860, 9860 STS, 9870 STS

JOHN DEERE

TL5655 LED Light

Lumens: 2900

Watt: 35

Amps: 2.900

Light Pattern: Flood

Dimensions: 5 3/4" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Powder coated housing, oversized aluminum heat sink, RFI and EMI filters

Fits

Models: John Deere 2320, 3203, 4105, 4120, 5320, 5325, 5420, 5425, 5525, 5625, 9560, 9660, 1023E 54D, 1025R 60, 1026R, 2025R 54D, 2026R, 2032R 72, 2038R 72D, 2305 54C, 2520 62, 2720 72C, 3025D, 3025E, 3032E, 3033R, 3035D, 3038E, 3039R, 3043D, 3046R, 3120 60, 3320 72, 3720 72D, 4044M, 4044R, 4049M, 4049R, 4052M, 4052R, 4066M, 4066R, 4320 72, 4520 72, 4720 72, 5090EL, 5105ML, 5325N, 5425N, 5525N, 9560SH, 9560STS, 9570

STS, 9660 CTS, 9660 STS, 9670

STS, 9760 STS, 9770 STS, 9870

STS, A400, D450, S550, S650, S660, S670, S670HM, S680, S680HM, S690, S690HM, S760, S770, S780, S785, S790, T550, T560, T660, T670, W235, W260, W540, W550, W650, W660, Agco 2150, 2170, 2190, 7423, 7424, 7433, 7434, 7435, 7444, 7445, A25, AC20, AC25, Challenger 660, 670, 2240, 2250, 2270, 2270XD, 680B, BA3, BA3B, BA4, BA4B, LB23B, LB33B, LB34B, LB44

Replaces: AH205072, AH207788, AXE16947, AXE40244

TL5680 LED Light

Lumens: 5200

Watt: 65

Amps: 5.400

Light Pattern: Flood

Dimensions: 4 1/2" W x 6 1/2" L x 4" D

Volt: 12-24

Includes: Stainless hardware and mounting bracket

Tech Specs: Powder coated housing, oversized aluminum heat sink, RFI and EMI filters

Fits Models: John Deere 3510, 4710, 4720, 4730, 4940, 7460, 7630, 7660, 7720, 7730, 7760, 7820, 7830, 7920, 7930, 8120, 8130, 8220, 8230, 8320, 8330, 8420, 8430, 8520, 8530, 9120, 9220, 9230, 9320, 9330, 9420, 9430, 9520, 9530, 9560, 9620, 9630, 9660, 9996, 3520 72D, 8120T, 8220T, 8225R, 8230T, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8295RT, 8310R, 8310RT, 8320R, 8320RT, 8320T, 8330T, 8335R, 8335RT, 8345R, 8345RT, 8360RT, 8420T, 8430T, 8520T, 9320T, 9420T, 9430T, 9520T, 9530T, 9560SH, 9560STS, 9570 STS, 9620T, 9630T, 9650 STS, 9660 STS, 9670 STS, 9750 STS, 9760 STS, 9770 STS, 9860 STS, 9870 STS, A400, CH330, CH530, CP690, CS690, D450, R450, Versatile 190, 220, 250, 260, 290, 305, 310, 340, 375, 400, Miller 200 Nitro, 200HT Nitro, 2200HT Nitro, 2200T Nitro, 2200TSS Nitro, 2275HT Nitro, 275 Nitro, 3200HT Nitro, 3200T Nitro, 3200TSS Nitro, 3275HT Nitro Replaces: AH212523, RE181281

JOHN DEERE CONT.

TL3030 LED Tractor Light

Lumens: 3600

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 3 1/2" W x 6" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Uses original mount and wiring

Fits Models: John Deere 4700, 4710, 6700, 7445, 7450, 7455, 7460, 7660, 7760, 9935, 9965, 9970, 9976, 9986, 9996, 230LCR, 330LCR, 444H, 444J, 544H, 544J, 624H, 624J, 644H, 644J, 724J, 744H, 744J, 824J, CP690, CS690, TC44H, TC54H, TC62H

Replaces: AN272464, AT208435, AT226338

TL3080 LED Fender Light

Lumens: 3600

Watt: 40

Amps: 3.330

Light Pattern: Flood

Dimensions: 3 1/2" W x 6" L x 3" D

Volt: 12-24

Includes: Connector, stainless steel hardware and mounting bracket

Tech Specs: Uses original mount and wiring

Fits Models: John Deere

9100, 9200, 9300, 9400, 9300T, 9400T

TL5100 LED Tractor Headlight

Lumens: 3500

Watt: 40

Amps: 3.33

Light Pattern: Spot/Flood

Dimensions: 4 3/4" W x 6 1/2" L x 2 3/4" D

Volt: 12-24

Tech Specs Plug and Play, uses original mount and wiring

Fits Models: John Deere 2320, 2320, 1025R 60, 1025R 60, 1026R, 2025R 54D, 2027R, 2032R 72, 2036R, 2038R 72D, 2520 62, 2720 72C, 3025D, 3025E, 3032E, 3033R, 3035D, 3036E, 3038E, 3038R, 3043D, 3045R, 3320 72, 3720 72D, 4044R, 4049M, 4049R, 4052R, 4066M, 4066R, 4320 72, 4520 72, 4720 72, 5058E, 5067E, 6105D, 6105E, 6115D, 6120E, 6130D, 6135E, 6140D

Replaces: LVA14946

TL5500 LED Tractor Light

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Connector, adapter and stainless steel hardware

Tech Specs: Uses original mount and wiring, high/low beam

Fits Models: John Deere 5105, 5320, 5400, 5403, 5410, 5415, 5420, 5500, 5510, 5520, 5603, 6403, 6603, 7405, 7500, 5320N, 5400N, 5420N, 5500N, 5510N, 5520N Replaces: 135400, RE137879, RE195219, RE22573, RE225730, RE58638

JOHN DEERE

TL6420 LED Headlight

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Direct fit, OEM replacement

Fits Models: John Deere

5325, 5425, 5525, 5625, 5725, 6120, 6215, 6220, 6230, 6320, 6330, 6415, 6420, 6430, 6615, 6715, 7130, 7130, 7220, 7230, 7230, 7320, 7330, 7420, 7520, 5090EH, 5090EL, 5101E, 5105ML, 5325N, 5425N, 5525N, 5725N, 6100D, 6110D, 6115D, 6120L, 6125D, 6130D, 6140D, 6140J, 6155J, 6220L, 6320L, 6420L, 6520L

Replaces: AL152328, AL152329, RE269110

TL6060 LED Tractor Light

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Tech Specs: Uses original mount and wiring, does not include bezel in picture, high/low beam

Fits Models: John Deere

4560, 4760, 9100, 9200, 9300, 9400, 9300T, 9400T

Replaces: RE46298, RE65223, RE65423

TL7810L LED Left Corner Light TL7810R LED Right Corner Light

Lumens: 2100

Watt: 30

Amps: 2.500

Light Pattern: Flood

Dimensions: 4 3/16" W x 5 1/8" L x 5 7/8" D

Volt: 12-24

Tech Specs: Plug and Play, uses original mount and wiring, high beam

Fits Models: John Deere

4700, 4710, 4720, 7600, 7610, 7700, 7710, 7800, 7810

Replaces: RE151564, RE151565

TL8400 LED Light with Interchangeable Mounts

Lumens: 3200

Watt: 40

Amps: 3.200

Light Pattern: Flood

Dimensions: 3 1/4" W x 5 1/2" L x 2 1/4" HT

Volt: 12-24

Tech Specs: Plugs directly into existing wire harness, dual mounting option; can be mounted from the side of the light or the bottom of the light, some tractors do not use a ball mount style light, check the lights on the tractor before ordering

Fits Models: John Deere

4700, 4710, 7200, 7210, 7400, 7410, 7510, 7600, 7610, 7700, 7710, 7800, 7810, 8100, 8110, 8200, 8210, 8300, 8310, 8400, 8410, 9100, 9200, 9300, 9400, 8100T, 8110T, 8200T, 8210T, 8300T, 8310T, 8400T, 8410T, 9300T, 9400T

Replaces: RE154898, RE154900, RE154901, RE154902, RE154903, RE154904, RE154906, RE154908

JOHN DEERE CONT.

TL8410 LED Tractor Light

Lumens: 3200

Amps: 3.200

Light Pattern: Flood

Dimensions: 3 1/4" W x 5 1/2" L x

2 1/4" HT

Volt: 12-24

Tech Specs: Plugs directly into existing wire harness, dual mounting option; can be mounted from the side of the light or the bottom of the light, reference OEM part numbers if the tractor has a ball style mount then use TL8400 as the replacement

Fits Models: John Deere

7200, 7400, 7600, 7700, 7800, 8100, 8200, 8300, 8400

Replaces: RE51076, RE54664, RE54665, RE61164, RE61165, RE61201

TL8350 LED Cab Headlight

Lumens: 3000

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 3 3/4" W x 6 1/8" L x

2 13/16" D

Volt: 12-24

Tech Specs: Plug and Play, Direct replacement, Uses original mounting hardware, Cast aluminum body

Fits Models: John Deere

W110, W150, W155, MacDon 9250, 9350, 9352, 9352c, 9352i, M100, M105, M150, M155, M155E4, M200, M205

Replaces: AFH209736

TL9000 LED Combine Light

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Connector and stainless steel hardware

Tech Specs: Oversized aluminum heatsink, RFI and EMI filters

Fits Models: John Deere

7700, 7800, 7950, 9400, 9410, 9450, 9500, 9510, 9550, 9560, 9600, 9610, 9650, 9660, 9986, 9996, 9550SH, 9560SH, 9560STS, 9570 STS, 9650 STS, 9660 CTS, 9660 STS, 9670 STS, 9750 STS, 9760 STS, 9770 STS, 9870 STS, C670, CTS, S550, S650, S660, S670, S680, S690, T550, T560, T660, T670, W540, W550, W650, W660, Miller 200 Nitro, 200HT Nitro, 2200HT Nitro, 2200T Nitro, 2200TSS Nitro, 2275HT Nitro, 275 Nitro, 3200HT Nitro, 3200T Nitro, 3200TSS Nitro, 3275HT Nitro

TL9000-KIT LED Combine Light Kit

Lumens: 21000

Watt: 370

Amps: 30

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Six TL9000 lights, stainless steel hardware and connectors

Tech Specs: This kit is for John Deere combines with rectangular lights on top of cab, if your cab has oval lights, you will need our TL9660-KIT, uses original mount and wiring

Fits Models: John Deere

9400, 9410, 9450, 9500, 9510, 9550, 9560, 9600, 9610, 9650, 9660, 9550SH, 9560SH, 9560STS, 9570 STS, 9650 STS, 9660 CTS, 9660 STS, 9670 STS, 9750 STS, 9760 STS, 9770 STS, 9870 STS, CTS

JOHN DEERE

TL9350 LED Headlight

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 4 3/4" W x 6 3/4" L x 1 1/2" HT

Volt: 12-24

Tech Specs: Plug and Play, direct fit, cast aluminum body, uses original mounting hardware

Fits Models: John Deere

W110, W150, W155, MacDon M100, M105, M150, M155, M155E4, M200, M205

Replaces: AFH208686

RE306510 LED Headlight

Lumens: 1440

Watt: 30

Amps: 2.500

Light Pattern: Flood

Light Shape: Rectangular

Dimensions: 2" W x 5 1/2" L x 1 1/2" D

Volt: 12-24

Tech Specs: Plug and Play, uses original mount and wiring, will fit in tractors above the cab and in the nose

Fits Models: John Deere

4040, 4050, 4055, 4240, 4250, 4255, 4440, 4450, 4455, 4555, 4560, 4640, 4650, 4700, 4710, 4755, 4760, 6110, 6200, 6210, 6300, 6310, 6400, 6410, 6500, 7200, 7210, 7400, 7410, 7510, 7600, 7610, 7700, 7710, 7800, 7810, 8100, 8110, 8200, 8210, 8300, 8310, 8400, 8410, 450H, 550H, 650H, 8100T, 8110T, 8200T, 8210T, 8300T, 8310T, 8400T, 8410T

Replaces: R161288, RE306510, RE37450

TL2030 LED Amber Light

Watt: 9

Amps: 0.75

Dimensions: 3" W x 8" L x 2 1/2" HT

Volt: 12-24

Includes: Two mounting brackets and 1/2" bolt mount option

Tech Specs: Replaces the rear extremity warning light on tractors

Fits Models: John Deere

4040, 4050, 4055, 4230, 4240, 4250, 4255, 4430, 4440, 4450, 4455, 4555, 4560, 4630, 4640, 4650, 4755, 4760, 6120, 6215, 6220, 6230, 6320, 6330, 6415, 6420, 6430, 6615, 6715, 7130, 7130, 7200, 7210, 7220, 7320, 7400, 7410, 7420, 7510, 7520, 7600, 7610, 7630, 7700, 7710, 7720, 7730, 7800, 7810, 7820, 7830, 7920, 7930, 8100, 8110, 8120, 8130, 8200, 8210, 8220, 8230, 8300, 8310, 8320, 8330, 8400, 8410, 8420, 8430, 8440, 8450, 8520, 8530, 8560, 8630, 8640, 8760, 8850, 8960, 6105M, 6105R, 6110M, 6110R, 6115M, 6115R, 6120M, 6120R, 6125M, 6125R, 6130M, 6130R, 6140M, 6140R, 6145M, 6145R, 6150M, 6150R, 6150RH, 6155M, 6155R, 6155RH, 6170M, 6170R, 6175M, 6175R, 6190R, 6195M, 6195R, 6210R, 6215R, 6250R, 7200R, 7215R, 7230R, 7230R, 7250R, 7250R, 7260R, 7270R, 7270R, 7280R, 7290R, 7310R, 7430

Replaces: RE172010, RE193222, RE199920, RE20561, RE250562, RE284891

TL9010 Flood Light

Lumens: 3500

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Tech Specs: Plug and Play; uses original mount and wiring

Fits Models: John Deere 9100, 9200, 9300, 9400, 9300T, 9400TT

Replaces: RE65423

JOHN DEERE CONT.

TL4560 LED Red Tail Light

Watt: 9

Amps: 0.750

Color: Red

Light Shape: Oval

Dimensions: 3 1/2" W x 7 3/4" L x 1 1/2" HT

Volt: 12-24

Tech Specs: Plug and Play

Fits Models: John Deere

2140, 2350, 2355, 2510, 2550, 2555, 2750, 2755, 2940, 2950, 2955, 3020, 3040, 3055, 3140, 3150, 3155, 3255, 4000, 4020, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4430, 4440, 4455, 4560, 4620, 4630, 4640, 4650, 4755, 4760, 5410, 5440, 5460, 5510, 5720, 5730, 5820, 5830, 6030, 6100, 6500, 6600, 7020, 7440, 7445, 7520, 8430, 8440, 8450, 8630, 8640, 8650, 8850, 9900, 9910, 9920, 9930, 9940, 9950, 9960, 9965, 9970, 2855N, 4320 72, 4520 72, JD500B

Replaces: AR45099, AR78825, RE39223

TL860 LED Mount Light

Lumens: 3600

Watt:40

Amps: 3.300

Light Pattern: Flood

Light Shape: Square

Dimensions: 4" W x 4" L x 3 1/4" D

Volt: 12-24

Tech Specs: Direct replacement; Plug and Play

Fits Models: John Deere

210LJ, 310G, 310J, 310K, 310L, 310SG, 310SJ, 310SK, 310SL, 312GR, 314G, 315SG, 315SJ, 315SK, 315SL, 316GR, 317G, 318G, 325J, 325K, 325SK, 325SL, 331G, 332G, 332G, 333G, 335D, 337E, 410G, 410J, 410K, 410L, 437D, 437E, 450J, 550J, 643K, 650J, 710G, 710J, 710K, 710K, 710L, 843K, W110, W150, W155

Replaces: AFH209737, AT323301, AT440366, AT469859

TL500F LED Flood Light

TL500S LED Spot Light

TL500SS LED Super Spot Light

TL500WF LED Wide Flood Light

Lumens: 6900

Watt: 50

Amps: 4.100

Light Pattern: Flood/Spot

Dimensions: 4 1/2" W x 4 1/4" L x 3" D

Volt: 9-32

Includes: Stainless steel hardware and mounting bracket

Fits Models: John Deere

764, 1050K, 2032R 72, 2036R, 2038R 72D, 210C, 210LE, 250D, 260E, 300D, 310C, 310E, 310G, 310J, 310K, 310L, 310SG, 310SJ, 310SK, 310SL, 315C, 315CH, 315SG, 315SJ, 315SK, 315SL, 325J, 325SK, 325SL, 344E, 350D, 355D, 370E, 400D, 400G, 410B, 410C, 410E, 410G, 410J, 410K, 410L, 415B, 444D, 444E, 444J, 444JR, 444K, 450E, 450G, 455E, 455G, 460E, 540E, 540G, 544D, 544E, 544G, 544J, 544K, 548E, 548G, 550B, 550G, 550K, 555B, 555G, 610B, 610C, 624E, 624G, 624J, 624K, 624KR, 640E, 640G, 644D, 644E, 644G, 644K, 648E, 648G, 650G, 650K, 653E, 655K, 670D, 670G, 670GP, 672D, 672G, 672GP, 700J, 700J, 700K, 700K, 710B, 710C, 710J, 710K, 710K, 710L, 724J, 724K, 724K, 740E, 740G, 744J, 744K, 748E, 748G, 750K, 755K, 770D, 770G, 770GP, 772D, 772G, 772GP, 803M, 803MH, 824J, 824K, 844J, 844K, 850J, 850K, 853M, 853MH, 859M, 859MH, 870D, 870G, 870GP, 872D, 872G, 872GP, 903K, 903KH, 903M, 903MH, 909K, 909KH, 909M, 909MH, 944K, 953K, 953M, 959K, 959M

Replaces: AT135485, AT135486, AT305931, AT443223, AT443224

JOHN DEERE

TL350F LED Flood Light

Lumens: 5000

Watt: 35

Amps: 2.600

Light Pattern: Flood

Dimensions: 4 1/2" W x 4 1/4" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Fits Models: John Deere

TLG3 LED Flood Light Kit

Lumens: 10000

Watt: 70

Amps: 5.800

Light Pattern: Spot

Volt: 12-24

Includes: For Gator XUV and RSX; two 35 watt lights (5000 lumens each), wire harness, switch, brackets, all attaching hardware and instruction sheet for easy installation

Fits Models: John Deere RSX, XUV

TL8020 LED Amber Cab Light

Watt: 11

Amps: 0.900

Light Pattern: Flood

Dimensions: 4" W x 6 3/4" L x 2 3/4" D

Volt: 12-24

Includes: Stainless steel hardware

Tech Specs: Direct replacement; Plug and Play

Fits Models: John Deere

5320, 5325, 5420, 5425, 5520, 5525, 5603, 5625, 5725, 6120, 6215, 6220, 6230, 6320, 6330, 6403, 6415, 6420, 6430, 6603, 6615, 6715, 7130, 7130, 7220, 7230, 7230, 7320, 7330, 7420, 7520, 7630, 7730, 7830, 7930, 8130, 8230, 8330, 8430, 8530, 9120, 9220, 9230, 9320, 9330, 9420, 9430, 9520, 9530, 9620, 9630, 3033R, 3039R, 3046R, 310G, 310J, 310K, 310L, 310SG, 310SJ, 310SK, 310SL, 315SG, 3320 72, 3520 72D, 3720 72D, 4044R, 4052R, 4066R, 410J, 410K, 410L, 4320 72, 4520 72, 4720 72, 5090EH, 5101E, 5325N, 5425N, 5525N, 6100D, 6105D, 6105E, 6105M, 6110D, 6110M, 6115D, 6115M, 6120E, 6120M, 6125D, 6125M, 6130D, 6130M, 6135E, 6140D, 6140J, 6140M, 6145M, 6150M, 6155J, 6155M, 6170M, 6175M, 6195M, 710G, 710J, 710K, 710K, 710L, 7430 Premium, 7530 Premium, 8230T, 8330T, 8430T, 9320T, 9420T, 9430T, 9520T, 9530T, 9620T, 9630T

Replaces: AT151873, AT326622, RE217551

JOHN DEERE CONT.

AR60250 LED Amber Cab Light

Watt: 9

Amps: 0.750

Light Pattern: Flood/Flashing

Dimensions: 2" W x 7 3/4" L x 1 1/2" D

Volt: 12-24

Includes: Stainless steel hardware

Tech Specs: Fits Sound Guard Cabs and 4WD Steiger

Fits Models: John Deere

820, 850, 870, 950, 970, 990, 1070, 1250, 1450, 1520, 1530, 1650, 2020, 2030, 2140, 2150, 2155, 2240, 2255, 2350, 2440, 2550, 2555, 2630, 2640, 2750, 2755, 2840, 2940, 2950, 2955, 3040, 3055, 3140, 3150, 3155, 3255, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4430, 4440, 4450, 4455, 4555, 4560, 4630, 4640, 4650, 4755, 4760, 5105, 5320, 5325, 5400, 5410, 5420, 5425, 5500, 5510, 5520, 5525, 5625, 6100, 6110, 6200, 6205, 6210, 6300, 6310, 6400, 6403, 6410, 6500, 6505, 6600, 6603, 6605, 7200, 7210, 7220, 7320, 7400, 7405, 7410, 7420, 7440, 7445, 7505, 7510, 7520, 7600, 7610, 7700, 7710, 7740, 7800, 7810, 8430, 8440, 8450, 8560, 8570, 8630, 8640, 8650, 8760, 8770, 8850, 8870, 8960, 8970, 9900, 9910, 9920, 9930, 9940, 9950, 9960, 9965, 9970, 2355N, 2855N, 4040S, 4240S, 6105D, 6105E, 6110L, 6115D, 6120E, 6210L, 6310L, 6410L, 6510L, 900HC

Replaces: AR60250

TLFL2 LED Warning Light

Light Pattern: Flood/Flashing

Dimensions: 4 1/8" Dia.

Volt: 12-24

Tech Specs: Double-sided warning light, 25 bulbs per side, 1/2" mounting stud, aluminum body, this light does not have a built-in flasher, they would require a flashing relay inline in order to flash

Fits Models: John Deere

283, 299, 740, 820, 920, 1120, 1520, 2020, 2120, 2280, 2320, 2420, 2510, 3020, 3300, 3430, 3830, 4000, 4020, 4030, 4040, 4050, 4230, 4240, 4250, 4400, 4420, 4425, 4430, 4435, 4440, 4450, 4620, 4630, 5400, 5440, 5460, 5720, 5730, 5820, 5830, 6600, 6601, 6602, 6620, 6622, 7020, 7700, 7701, 7720, 7721, 8820, 9960, 2520 62, 4010 54, 4320 72, 4520 72

TLFL3 LED Warning Light

Light Pattern: Flood/Flashing

Dimensions: 4 1/8" Dia.

Volt: 12-24

Tech Specs: Double-sided warning light with red and amber, 25 bulbs per side, 1/2" mounting stud, aluminum body, this light does not have a built-in flasher, they would require a flashing relay inline in order to flash

Fits

Models: John Deere

JOHN DEERE

TL8320KIT LED Upgrade Kit

Lumens: 10000

Watt: 120

Amps: 10

Light Pattern: Spot/Flood

Dimensions: 3" W x 6" L x 3 1/4" D

Volt: 12-24

Includes: Two TL5680 lights, mounting brackets, stainless steel hardware and wiring harness

Tech Specs: LED upgrade kit adds two TL5680 lights to your tractor, will sit under the roof of the cab, our mounting brackets replace the wind shield brackets on the cab

Fits Models: John Deere

7630, 7720, 7730, 7820, 7830, 7920, 7930, 8120, 8130, 8220, 8230, 8320, 8330, 8420, 8430, 8520, 8530, 8230T, 8330T, 8430T

TL6700 LED Headlight Conversion

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 4" L

Volt: 12-24

Includes: Connector, adapter and stainless steel hardware

Fits Models: John Deere

4700, 4710, 4720, 5105, 6110, 6200, 6210, 6300, 6310, 6400, 6410, 6500, 6600, 6605, 6610, 6650, 6700, 6710, 6750, 6810, 6850, 6910, 6950, 7200, 7210, 7400, 7410, 7510, 7600, 7610, 7700, 7710, 7800, 7810, 6110L, 6200L, 6210L, 6300L, 6310L, 6310S, 6400L, 6410L, 6410S, 6500L, 6510L, 6510S

Replaces: AL753338

TL2755 LED Hood Conversion Kit

Lumens: 4320

Watt: 90

Amps: 7.5

Light Pattern: Flood

Dimensions: 8 9/16" W x 20 3/4" L x 6 7/8" D

Volt: 12-24

Includes: LED lights, wire harness (Plug and Play), housing, billet bezel and all mounting hardware

Tech Specs: Everything needed to convert your John Deere tractor to LED lighting, this product will only work with tractors with existing front headlight/light bar in hood

Fits Models: John Deere 2150, 2155, 2255, 2350, 2355, 2550, 2555, 2750, 2755, 2950, 2955, 3055, 3150, 3155, 3255, 2355N, 2855N

Replaces: AL64781

TL3000 LED Hood Conversion Kit

Lumens: 4320

Watt: 90

Amps: 7.500

Light Pattern: Flood Volt: 12-24

Includes: LED lights, wire harness (Plug and Play), housing, billet bezel and all mounting hardware

Tech Specs: Everything needed to convert your John Deere tractor to LED lighting

Fits Models: John Deere 1640, 2140, 2150, 2155, 2240, 2255, 2350, 2550, 2940, 2950, 2955, 3040, 3055, 3140, 3150, 3155, 3255, 4030, 4040, 4230, 2355N, 2855N

JOHN DEERE CONT.

TL2700 LED Hood Conversion Kit

Lumens: 4320

Watt: 90

Amps: 7.500

Light Pattern: Flood Volt: 12-24

Includes: LED lights, wire harness (Plug and Play), housing, billet bezel and all mounting hardware

Tech Specs: Everything needed to convert your John Deere tractor to LED lighting, This product will not work with tractors with existing front headlight in hood

Fits Models: John Deere

2355, 2555, 2750, 2755

TL4000 LED Hood Conversion Kit

Lumens: 4320

Watt: 90

Amps: 7.500

Light Pattern: Flood Volt: 12-24

Includes: LED lights, wire harness (Plug and Play), housing, billet bezel and all mounting hardware

Tech Specs: Everything needed to convert your John Deere tractor to LED lighting

Fits Models: John Deere

4050, 4055, 4250, 4255, 4450, 4455

TL4200 LED Hood Conversion Kit

Lumens: 4320

Watt: 90

Amps: 7.500

Light Pattern: Flood Volt: 12-24

Includes: LED lights, wire harness (Plug and Play), housing, billet bezel and all mounting hardware

Tech Specs: Everything needed to convert your John Deere tractor to LED lighting

Fits Models: John Deere 4240, 4430, 4440, 4630

TL4600 LED Hood Conversion Kit

Lumens: 5760

Watt: 120

Amps: 10

Light Pattern: Flood Volt: 12-24

Includes: LED lights, wire harness (Plug and Play), housing, billet bezel and all mounting hardware

Tech Specs: Everything needed to convert John Deere tractor to LED lighting

Fits Models: John Deere 4640, 8430, 8440, 8450, 8630, 8640, 8650

JOHN DEERE

TL4850 LED Hood Conversion Kit

Lumens: 5760

Watt: 120

Amps: 10

Light Pattern: Flood

Dimensions: 8 5/8" W x 20 3/4" L x 6 7/8" D Volt: 12-24

Includes: LED lights, wire harness (Plug and Play), housing, billet bezel and all mounting hardware

Tech Specs: Everything needed to convert John Deere tractor to LED lighting

Fits Models: John Deere 4850

Replaces: RE12431

TL4900 LED Hood Conversion Kit

Lumens: 5760

Watt: 120

Amps: 10

Light Pattern: Flood Volt: 12-24

Includes: LED lights, wire harness (Plug and Play), housing, billet bezel and all mounting hardware

Tech Specs: Everything needed to convert John Deere tractor to LED lighting

Fits Models: John Deere 4555, 4560, 4755, 4760

Replaces: R98629

TL4030KIT LED Light Kit

Lumens: 36000

Watt: 440

Amps: 36.600

Light Pattern: Flood Volt: 12-24

Includes: Eight TL5670 small oval lights, two TL5680 tractor and combine lights, four mounting brackets and four adapters to mount two lights on each corner of cab

Tech Specs: LED upgrade kit, To mount the other 4 lights on to cab, use original bracket on the sprayer

Fits Models: John Deere R4023, R4038, R4045

TL8620 LED Large Round Headlight Insert

Light Pattern: Flood Dimensions: 4 1/2" Dia. x 2" HT Volt: 12-24

Tech Specs: Plug and Play, Uses original mounting bracket, Large round insert light for John Deere R series tractor, Replaces the larger round reflector in the upper headlight, This light does not replace the whole housing

Fits Models: John Deere 4940, 6105M, 6105R, 6110M, 6110R, 6115M, 6115R, 6120M, 6120R, 6125M, 6125R, 6130M, 6130R, 6135M, 6135R, 6140M, 6140R, 6145M, 6145R, 6150M, 6150R, 6155M, 6155R, 6155RH, 6170M, 6170R, 6175M, 6175R, 6190R, 6195M, 6195R, 6210R, 6215R, 6230R, 6250R, 6250R, 6250R, 7200R, 7215R, 7230R, 7230R, 7250R, 7250R, 7260R, 7270R, 7270R, 7280R, 7290R, 7310R, 7R 210, 7R 230, 7R 250, 7R 270, 7R 290, 7R 310, 7R 330, 7R 350, 8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8310R, 8310RT, 8320R, 8320RT, 8335R, 8335RT, 8345R, 8345RT, 8360R, 8360RT, 8360T, 8370R, 8370RT, 8400R, 9360R, 9370R, 9410R, 9420R, 9420RX, 9460R, 9460RT, 9470R, 9470RT, 9470RX, 9510R, 9510RT, 9520R, 9520RT, 9520RX, 9560R, 9560RT, 9570R, 9570RT, 9570RX, 9620R, 9620RX, R4023, R4030, R4038, R4040I, R4044, R4045, R4050I, R4060, R4140I, R4150I

Replaces: 206153, AL206154, RE288376, RE288377, RE296513, RE296514, RE296679, RE29680

JOHN DEERE CONT.

TL7210L LED Left Work Light

TL7210R LED Right Work Light

Lumens: 3000

Watt: 30

Amps: 2.500

Light Pattern: Flood

Dimensions: 4 1/2" HT x 2 1/4" L x

4 3/4" D

Volt: 12-24

Includes: Stainless steel hardware

Tech Specs: Uses original mount and wiring

Fits

Models: John Deere 6010, 6100, 6110, 6200, 6205, 6210, 6300, 6310, 6400, 6410, 6500, 6505, 6506, 6510, 6600, 6610, 6800, 6810, 6900, 6910, 7200, 7210, 7400, 7410, 7510, 6110L, 6200L, 6210L, 6300L,

TL7130L LED Left Work Light

TL7130R

LED Right Work Light

Lumens: 3000

Watt: 30

Amps: 2.500

Light Pattern: Flood

Dimensions: 4 1/2" HT x 4 3/4" L x 5 1/4" D

Volt: 12-24

Includes: Stainless steel hardware

Tech Specs: Uses original mount and wiring

Fits Models: John Deere 5620, 5720, 5820, 6020, 6120, 6130, 6215, 6220, 6230, 6330, 6415, 6420, 6430, 6520, 6530, 6534, 6615, 6620, 6630, 6715, 6820, 6830, 6920, 6930, 7130, 7130,

JOHN DEERE

TL8630 LED Headlight

Light Pattern: Flood

Dimensions: 3 1/2" Dia. x 2 1/2" HT

Volt: 12-24

Tech Specs: Plug and Play, uses original mounting bracket, small round insert light for John Deere R series tractor, replaces the smaller round reflector in the upper headlight, this light does not replace the whole housing

Replaces: AL206153, AL206154, RE288376, RE288377, RE296513, RE296514, RE296679, RE29680

TL8650 LED Projector Light

Lumens: 1100

Watt: 18

Amps: 1.500

Light Pattern: Driving Volt: 12-24

Tech Specs: E-Mark and DOT compliant beam pattern, Light uses factory bezel for mounting Fits Models: John Deere

6090MC, 6090RC, 6095MC, 6095RC, 6100MC, 6100RC, 6105M, 6105MC, 6105R, 6110M, 6110MC, 6110R, 6115M, 6115MC, 6115R, 6115RC, 6120M, 6120R, 6125M, 6125R, 6130M, 6130R, 6135M, 6135R, 6140M, 6140R, 6145M, 6145R, 6150M, 6150R, 6150RH, 6155M, 6155R, 6155RH, 6170M, 6170R, 6175M, 6175R, 6190R, 6195M, 6195R, 6210R, 6215R, 6230R, 6250R, 6250R, 7200R, 7215R, 7230R, 7230R, 7250R, 7250R, 7260R, 7270R, 7270R, 7280R, 7290R, 7310R, 7R 210, 7R 230, 7R 250, 7R 270, 7R 290, 7R 310, 7R 330, 7R 350, 8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8310R, 8310RT, 8320R, 8320RT, 8335R, 8335RT, 8345R, 8345RT, 8360R, 8360RT, 8370R, 8370RT, 8400R

Replaces: AL209451, RE288372, RE288373, RE305675, RE305676, RE346166, RE346167, RE563608, RE563609, RE587449, RE587450

KUBOTA

KUBOTAKIT-1 LED Light Kit

Lumens: 12000

Watt: 160

Amps: 13.300

Light Pattern: Flood

Dimensions: 3" W x 6" L x 2 1/2" HT

Volt: 12-24

Includes: Four TL790 headlights, connector and stainless steel hardware

Tech Specs: Uses original mount and wiring, lights will bolt into the original mount on the skid steer (two on the front, two on the rear)

Fits Models: Kubota

SVL65-2, SVL65-2C, SVL75, SVL75-2, SVL75-2C, SVL75C, SVL90, SVL90-2, SVL90-2C, SVL90C, SVL95-2S, SVL95-2SC

Replaces: V0511-53510

KUBOTAKIT-3 MS Series Light Kit

Lumens: 18800

Watt: 520

Amps: 20.320

Light Pattern: Driving/Flood/Spot

Lighting: LED Volt: 12-24

Includes: TL5110L and TL5110R headlights, two TL5090 projector headlights, four TL3250 work lights

Tech Specs: Plug and Play

Fits Models: Kubota

M5-111HDC, M5-111HDC-1, M5111HDC12, M5-111HDC12-1, M5-111HDC24, M5-111HDC24-1, M5-111HFC, M5-111HFC-1, M5-111HHDC12-1, M5N-091HDC12, M5N-091HDC12-PC, M5N-091HDC24, M5N-111HDC12, M5N-111HDC24

Replaces: 3B291-75710, 3B291-75712, 3B291-75730, 3B291-75740, 3C581-75910, 3C581-75912, 3C581-75913, 3C581-75914

KUBOTAKIT-4 MS Series Light Kit

Lumens: 18800

Watt: 278

Amps: 26.620

Light Pattern: Spot/Flood

Lighting: LED Volt: 12-24

Includes: Two TL5120 headlights, two TL5130 headlights, four TL3240 work lights

Tech Specs: Plug and Play

Fits Models: Kubota

M100GXDTC, M110GXDTC, M126GXDTC, M135GXDTC, M135GXDTC, M135GXDTSC, M135GXDTSC, M6-101DTC, M6-111DTC, M6-131DTC, M6-141DTC, M6-141DTSC

Replaces: 3Y205-75712, 3Y205-75730, 3Y205-75732, TD170-75300

KUBOTAKIT-5 MS Series Light Kit

Lumens: 43400

Watt: 496

Amps: 41.440

Light Pattern: Driving/Flood/Spot Volt: 12-24

Includes: Two TL8090 headlights, four TL5160 headlights, four TL5180 work lights, two TL5150 projector headlights, four TL5170 mount lights

Tech Specs: Plug and Play

Fits Models: Kubota

M7-131P, M7-131PB, M7-131PKVT, M7-132P, M7-132PKVT, M7-132S, M7-151P, M7-151PB, M7-151PBKVT, M7-151PKVT, M7-151S, M7-152P, M7-152PKVT, M7-152S, M7-171P, M7-171PB, M7-171PB KVT, M7-171PKVT, M7-171S, M7-172P, M7-172PKVT, M7-172S

Replaces: 3J029-35962, 3J030-13560, 3J030-13570, 3J030-14770, 3J031-22290, 3J031-68410, 3J032-74830, 3J032-74840

TL3240 LED Work Light

Lumens: 3200

Watt: 40

Amps: 3.33

Light Pattern: Flood

Dimensions: 4 1/8" W x 7 1/2" L x 3 3/8" D

Volt: 12-24

Includes: Connector and stainless steel hardware

Tech Specs: Plug and Play

Fits Models: Kubota B2650HSDC, B3350HSDC, L3240HSTC, L3240HSTC3, L3540HSTC, L3540HSTC3, L3560HSTC, L3560HSTC-Limited, L3940HSTC, L3940HSTC-3, L4060HSTC, L4240HSTC, L4240HSTC3, L4740HSTC, L4740HSTC3, L4760HSTC, L5240HSTC, L5240HSTC3, L5460HSTC, L5740HSTC, L5740HSTC3, L6060HSTC, LX3310HSDC, M100GXDTC, M110GXDTC, M126GXDTC, M135GXDTC, M135GXDTC, M135GXDTSC, M135GXDTSC, M6-101DTC, M6-111DTC, M6131DTC, M6-141DTC, M6-141DTSC, M6S-111SDSC, M6S-111SHC, M6S-111SHDC, M6S-111SHDC2, MX5400DTC, MX6000DTHC

Replaces: 170-75300

TL3250 LED Work Light

Lumens: 2800

Watt: 30

Amps: 2.5

Light Pattern: Flood

Light Shape: Oval

Dimensions: 3" HT x 6" L x 3 1/3" D

Volt: 12-24

Tech Specs: OEM style light fits into existing bracket; Plug and Play

Fits Models: Kubota

M100XDTC, M105XDTC, M108, M108SDSC, M108SDSC2, M108SHC, M108SHDC, M108SHDC2, M108X, M108XDTC, M110XDTC, M110XDTC1, M125XDTC, M125XDTC-1, M126XDTC, M126XDTC-1, M126XDTPC, M126XDTPC-1, M135XDTC, M135XDTC-1, M135XDTSC, M4N-071HDC12, M5040, M5040DTC, M5040DTC-1, M5040FC, M5040FC-1, M5040HDC, M5040HDC-1, M5-091HDC, M5-091HDC-1, M5-091HDC12, M5-091HDC12-1, M5-091HFC, M5-091HFC-1, M5-111HDC, M5-111HDC-1, M5111HDC12, M5-111HDC12-1, M5-111HDC24, M5-111HDC24-1, M5-111HFC, M5-111HFC-1, M5140DTC, M5140FC, M5140HDC, M5N-091HDC12, M5N-091HDC12-PC, M5N-091HDC24, M5N111HDC12, M5N-111HDC24, M6040, M6040DTC, M6040DTC-1, M6040FC, M6040FC-1, M6040HDC, M6040HDC-1, M6060HDC, M6060HFC, M7040DTC, M7040DTC1, M7040FC, M7040FC1, M7040HDC, M7040HDC1, M7040HDCLTD, M7040HDNBC, M7060HDC, M7060HDC12, M7060HFC, M8540DTC, M8540DTC1, M8540FC, M8540FC1, M8540HDC, M8540HDC1, M8540HDC12, M8540HDC121, M8540HDNBC, M8540HDNBC10, M8540HDNBPC, M8540HDNBPC, M8560HDC, M8560HDC12, M8560HFC, M9540DHDC1, M9540DTC, M9540DTC1, M9540FC, M9540FC1, M9540HDC, M9540HDC1, M9540HDC12, M9540HDC121, M9540HDC241, M9540HDCLTD, M95XDTC, M96, M96SDSC, M9960, M9960HDC, M9960HDC12, M9960HDC24, M9960HFC

Replaces: 3C581-75910, 3C581-75912, 3C581-75913, 3C581-75914

TL5700 LED Flood Light

Lumens: 2450

Watt: 24

Amps: 2

Light Pattern: Flood

Light Shape: Oval

Dimensions: 3 1/4" W x 5 1/2" L x 2 1/4" D

Volt: 12-24

Includes: Connector and stainless steel hardware

Tech Specs: Plug and Play

Fits Models: Kubota

M100X, M108X, M125X, M126X, M135X, M5040, M5140, M6040, M6060, M7040, M7060, M8540, M9540, M96S

TL790 LED Headlight

Lumens: 3000

Watt: 40

Amps: 3.333

Light Pattern: Flood

Dimensions: 4 7/8" W x 7 3/4" L x 3" D

Volt: 12-24

Includes: Connector and stainless steel hardware

Tech Specs: Uses original mount and wiring, Bolts into the original mount in the tractor

Fits Models: Kubota

SVL65-2, SVL65-2C, SVL75, SVL75-2, SVL75-2C, SVL75C, SVL90, SVL90-2, SVL90-2C, SVL90C, SVL95-2S, SVL95-2SC

Replaces: V0511-53510

MACDON

MACDONKIT-1 LED UPPER CAB

Lumens: 22000

Watt: 320

Amps: 26.600

Light Pattern: Spot/Flood Volt: 12-24

Includes: Five TL8350 3x5 upper cab lights and two TL9350 4x6 upper cab

headlights

Tech Specs: Plug and Play, Replaces the 7 upper cab lights on MacDon M series windrowers

Fits Models: MacDon

M100, M105, M150, M155, M155E4, M200, M205

MACDONKIT-2 LED Light Kit

Lumens: 36200

Watt: 520

Amps: 43.300

Light Pattern: Spot/Flood Volt: 12-24

Includes:Five TL8350 3x5 upper cab lights, four TL9350 4x6 upper cab headlights and hood headlights and two TL860 rear corner cab lights

Tech Specs: Plug and Play

Fits Models: MacDon

M100, M105, M150, M155, M155E4, M200, M205

TL8350 LED Cab Headlight

Lumens: 3000

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 3 34" W x 6 1/8" L x 2 13/16" D

Volt: 12-24

Tech Specs: Plug and Play, direct replacement, uses original mounting hardware, cast aluminum body

Fits Models: MacDon

9250, 9350, 9352, 9352c, 9352i, M100, M105, M150, M155, M155E4, M200, M205

Replaces: 109112, 109696

TL860 LED Mount Light

Lumens: 3600

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 4" W x 4" L x 3 1/4" D

Volt: 12-24

Tech Specs: Plug and Play, direct replacement, bottom mount

Fits Models: MacDon M100, M105, M150, M155, M155E4, M200, M205

Replaces: 109717

TL9250 LED Headlight

Lumens: 3000

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 3 3/4" W x 5 3/4" L x 2 3/4" HT

Volt: 12-24

Tech Specs: Plug and Play, direct fit, cast aluminum body, uses original mounting hardware

Fits Models: MacDon 9000 series

Replaces: 42222, 42223, 42224, H-9406, H-9411, H-9414

TL9350 LED Headlight

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 4 3/4" W x 6 3/4" L x 1 1/2" HT

Volt: 12-24

Tech Specs: Plug and Play, direct fit, cast aluminum body, uses original mounting hardware

Fits Models: MacDon M100, M105, M150, M155, M155E4, M200, M205

Replaces: 110268

TL6320 LED Headlight

Lumens: 3500

Watt: 60

Amps: 15

Light Pattern: Spot/Flood

Volt: 12-24

Includes:Stainless steel hardware and mounting bracket

Tech Specs: Direct fit, OEM replacement

Fits Models: MacDon 9350, 9352, 9352c, 9352i

MASSEY FERGUSON

TL3010 LED Sealed Light

Lumens: 1250

Watt: 18

Amps: 1.500

Light Pattern: Trapezoid

Light Shape: Round

Dimensions: 1 1/2" L x 4 1/2" Dia.

Volt: 12-24

Tech Specs: Uses original mount and wiring, Par 36 replacement

Fits Models: Massey Ferguson

10, 20, 30, 31, 40, 50, 60, 70, 80, 135, 150, 165, 175, 180, 230, 240, 245, 250, 255, 270, 275, 285, 290, 298, 1080, 1085, 1100, 1105, 1130, 1135, 1150, 1155, 1500, 1505, 1800, 1805, 2640, 2675, 2705, 2745, 2775, 2805, 3505, 3525, 3545

TL5650 LED Light

Lumens: 2900

Watt: 35

Amps: 2.900

Light Pattern: Flood

Dimensions: 3 3/4" W x 5 3/4" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Powder coated housing, oversized aluminum heat sink, RFI and EMI filters

Fits

Models: Massey Ferguson

5425, 5435, 5445, 5450, 5455, 5460, 5465, 5470, 5475, 5480, 5609, 5610, 5611, 5612, 5613, 6350, 6360, 6445, 6455, 6460, 6465, 6475, 6480, 6485, 6614, 6615, 6616, 7614, 7615, 7616, 7618, 7620, 7622, 7624, 7626, 7714, 7715, 7716, 7718, 7719, 7720, 7722, 7724, 7726, 8680

Replaces: 3788699M93

TL5655 LED Light

Lumens: 2900

Watt: 35

Amps: 2.900

Light Pattern: Flood

Dimensions: 5 3/4" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Powder coated housing, oversized aluminum heat sink, RFI and EMI filters

Fits Models: Massey Ferguson 2140, 2150, 2160, 2170, 2190, 2240, 2250, 2270, 9690, 9790, 2170XD, 2270XD, AC20, AC25

TL3015 LED Sealed Light

Lumens: 2200

Amps: 2

Light Pattern: Spot/Flood

Light Shape: Round

Dimensions: 1 1/2" L x 4 1/2" Dia.

Volt: 12-24

Tech Specs: Uses original mount and wiring, Par 36 replacement

Fits Models: Massey Ferguson 10, 20, 30, 31, 40, 50, 60, 70, 80, 135, 150, 165, 175, 180, 230, 240, 245, 250, 255, 270, 275, 285, 290, 298, 1080, 1085, 1100, 1105, 1130, 1135, 1150, 1155, 1500, 1505, 1800, 1805, 2640, 2675, 2705, 2745, 2775, 2805, 3505, 3525, 3545

TL6220 LED Headlight

Lumens: 3500

Watt: 60

Amps: 3

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Direct fit, OEM replacement

Fits Models: Massey Ferguson 8680

MASSEY FERGUSON CONT.

TL7080 LED Work Light

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Flood

Dimensions: 4" W x 6 1/2" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Plug and Play, uses original mounting bracket on tractor, swivel mount

Fits

Models: Massey Ferguson 2650, 2660, 2670, 2680, 2685, 5425, 5435, 5445, 5455, 5460, 5465, 5470, 5475, 5480, 5609, 5610, 5611, 5612, 5613, 6350, 6360, 6445, 6455, 6460, 6465, 6470, 6475, 6480, 6485, 6490, 6495, 6497, 6499, 6614, 6615, 6616, 7465, 7475, 7480, 7485, 7490, 7495, 7497, 7499, 7614, 7615, 7616, 7618, 7620, 7622, 7624, 7626, 7714, 7715, 7716, 7718, 7719, 7720, 7722, 7724, 7726, 8450, 8460, 8470, 8480, 5709S, 5709SL, 5710S, 5710SL, 5711SL, 5712SL, 5713S, 5713SL, 6712S, 6713S, 6714S, 6715S, 6716S, 6718S, 7714 S, 7715 S, 7716 S, 7718 S

Replaces: 3786666M92, 3786668M93

TL6040 LED High/Low Beam

Lumens: 3600

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Connectors and stainless steel hardware

Tech Specs: Uses original mount and wiring

Fits Models: Massey Ferguson

240, 253, 263, 271, 281, 360, 362, 365, 375, 383, 390, 393, 396, 398, 399, 3050, 3060, 3065, 3070, 3075, 3090, 3095, 3120, 3125, 3140, 3630, 3645, 3650, 3655, 3660, 3670, 3680, 3690, 3945, 8245, 8260, 8270, 8280, 9240, 3120T, 390T

TL6320 LED Headlight

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Direct fit, OEM replacement

Fits Models: Massey Ferguson 9690, 9790, 9895

TL6050 LED High/Low Beam

Lumens: 3600

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Connectors and stainless steel hardware

Tech Specs: Uses original mount and wiring

Fits Models: Massey Ferguson 6140, 6150, 6170, 6180, 6190, 6260, 6270, 6280, 6290, 8110, 8120, 8130, 8140, 8150, 8160, 8260, 8270, 8280

TL3070 LED Mount Light

Lumens: 3600

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 3 1/2" W x 6" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Plug and Play, Uses original mount and wiring, Swivel mounting bracket, which allows for better angles to mount the light, Side mount

Fits Models: Massey Ferguson 6235, 6245, 6255, 6265, 6270, 6280, 6290

Replaces: 3781544M1, 3900811M91, 3900812M91

MASSEY FERGUSON CONT.

TL2050 LED Sealed Light

Lumens: 2200

Amps: 2

Light Pattern: Flood

Dimensions: 1 1/2" L x 4 1/2" Dia.

Volt: 12-24

Tech Specs: Uses original mount, wiring and screw connections, Par 36 replacement, round light with OEM style lens

Fits

Models: Massey Ferguson 10, 20, 30, 31, 40, 50, 60, 70, 80, 135, 150, 165, 175, 180, 230, 240, 245, 250, 255, 270, 275, 285, 290, 298, 1080, 1085, 1100, 1105, 1130, 1135, 1150, 1155, 1500, 1505, 1800, 1805, 2640, 2675, 2705, 2745, 2775, 2805, 3505, 3525, 3545

TL7090 LED Cab Light

Lumens: 2450

Watt: 24

Amps: 2

Light Pattern: Flood

Dimensions: 4 3/4" W x 6 1/2" L x

2 3/4" D

Volt: 12-24

Includes: Two connectors to work on lights that have two bulbs in one housing, as well as an adapter to work on single bulb lights and stainless steel hardware

Tech Specs:Plug and Play, Uses original mounting bracket on tractor, Flush mount,

Fits Models: Massey Ferguson 5425, 5435, 5445, 5450, 5455, 5460, 5465, 5470, 5475, 5480, 5609, 5610, 5611, 5612, 5613, 6350, 6360, 6445, 6455, 6465, 6475, 6480, 6485, 6490, 6495, 6497, 6499, 6614, 6615, 6616, 7465, 7475, 7480, 7485, 7490, 7495, 7497, 7499, 7615, 7618, 7714, 7715, 7716, 7718, 5709S, 5709SL, 5710S, 5710SL, 5711SL, 5712SL, 5713S, 5713SL, 6712S, 6713S, 6714S, 6715S, 6716S, 6718S, 7714 S, 7715 S, 7716 S, 7718 S

Replaces: 3786664M92, 3786665M93

TL9090 LED Mount Light

Lumens: 3500

Watt: 40

Amps: 3.300

Light Pattern: Spot/Flood

Dimensions: 3 1/4" W x 7 1/4" L x 3 1/4" D

Volt: 12-24

Tech Specs: Oversized aluminum heatsink and aluminum bezel, direct fit, fits some Massey Ferguson tractors with high visibility cabs and John Deere forage harvesters

Fits Models: Massey Ferguson 4225, 4235, 4240, 4245, 4255, 4260, 4265, 4270, 4325, 4335, 4345, 4355, 4360, 4370, 6140, 6150, 6170, 6180, 6190, 6235, 6245, 6255, 6265, 6270, 6280, 6290, 8120, 8140, 8150, 8160, 8210, 8220, 8240, 8250, 8260, 8270, 8280

TL650 Skid Steer Headlight

Lumens: 2000

Watt: 24

Amps: 2

Light Pattern: Flood

Dimensions: 3" W x 5" L x 3" HT

Volt: 12-24

Tech Specs: Fits into original housing; Plug and Play

Fits Models: Massey Ferguson 2140, 2150, 2160, 2170, 2190, 2240, 2250, 2270, 2170XD, 2270XD, AC20, AC25

TL9095 Mount Light

Lumens: 3500

Watt: 40

Amps: 3.3

Light Pattern: Flood/Spot Combo

Dimensions: 3 1/4" W x 7 1/4" L x 3 1/4" D

Tech Specs: Oversized aluminum heat sink and aluminum bezel, direct fit, high/low beam, H4 connector

Fits Models: Massey Ferguson 4225, 4235, 4240, 4245, 4255, 4260, 4265, 4270, 4325, 4335, 4345, 4355, 4360, 4365, 4370, 6140, 6150, 6160, 6170, 6180, 6190, 6235, 6245, 6255, 6260, 6265, 6270, 6280, 6290, 8110, 8120, 8130, 8140, 8150, 8160, 8210, 8220, 8240, 8250, 8260, 8270, 8280

Replaces: 3713137M1

TL6460 Round Headlight

Lumens: 4000

Watt: 60

Amps: 4.200

Light Pattern: Driving

Dimensions: 5 1/2" OD x 3 1/8" D

Volt: 12-24

Includes: H4 connector, oversized aluminum heatsink and aluminum bezel

Tech Specs: Round high/low beam fits directly into factory mounts, Plug and Play

Fits Models: Massey Ferguson 1523, 1528, 1529, 1531, 1533, 1540, 1547, 1552, 1560, 5425, 5435, 5445, 5455, 5460, 5465, 5470, 5475, 5480, 6445, 6455, 6460, 6465, 6470, 6475, 6480, 6485, 6490, 6495, 6497, 6499, 7465, 7475, 7480, 7485, 7490, 7495, 7497, 7499, 8450, 8460, 8470, 8480

Replaces: 3788220M91, 3788221M91, 4278938M92, 6241873M91

TL6045 LED Tractor Light

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Connectors and stainless steel hardware

Tech Specs: Uses original mount and wiring, high/low beam

Fits Models: Massey Ferguson

TL7095 LED Cab Light

Lumens: 2000

Watt: 30

Amps: 2.500

Light Pattern: Flood

Dimensions: 3/4" W x 6 1/2" L x 2 3/4" D

Volt: 12-24

Includes: Connectors, adapter and stainless steel hardware

Tech Specs: Plug and Play, Uses original mounting bracket on tractor, Flush mount

Fits Models: Massey Ferguson 9695, 9895

TL7085 LED Work Light

Lumens: 2450

Watt: 24

Amps: 2

Light Pattern: Flood

Dimensions: 4" W x 5 1/2" L x 3" D

Volt: 12-24

Includes: Connectors, adapter and stainless steel hardware

Tech Specs: Plug and Play, Uses original mounting bracket on tractor, Swivel mount

Fits Models: Massey Ferguson 9695, 9795, 9895

TL5680 LED Light

Lumens: 5200

Watt: 65

Amps: 5.400

Light Pattern: Flood

Dimensions: 4 1/2" W x 6 1/2" L x 4" D

Volt: 12-24

Includes: Stainless hardware and mounting bracket

Tech Specs: Powder coated housing, oversized aluminum heat sink, RFI and EMI filters

Fits

Models: Miller

200 Nitro, 200HT Nitro, 2200HT Nitro, 2200T Nitro, 2200TSS Nitro, 2275HT Nitro, 275 Nitro, 3200HT Nitro, 3200T Nitro, 3200TSS Nitro, 3275HT Nitro

MUSTANG

PRAIRIE STAR

TL6320

LED Headlight

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Direct fit, OEM replacement

Fits Models: Prairie Star 4940, 4950, 4952, 4952c, 4952i,

TL350F

LED Flood Light

Lumens: 5000

Watt: 35

Amps: 2.600

Light Pattern: Flood

Dimensions: 4 1/2" W x 4 1/4" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Fits Models: Mustang

2012, 1350R, 1500R, 1650R, 1900R, 2200R, 2600R, 2700V, 3300V, 4000V

TL855

LED Mount Light

Lumens: 3000

Watt: 32

Amps: 2.660

Light Pattern: Flood

Light Shape: Rectangular

Dimensions: 2 3/4" W x 5 3/4" L x 3 3/4" HT

Volt: 12-24

Tech Specs: Flush mount

Fits Models: Mustang 2066, 2076 and 2086 skid steers

TL9250

LED Headlight

Lumens: 3000

Watt: 40

Amps: 3.300

Light Pattern: Flood

Volt: 12-24

Tech Specs: Plug and Play, direct fit, cast aluminum body, uses original mounting hardware

Fits Models: Prairie Star 4900 series

TL8350

LED Cab Headlight

Lumens: 3000

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 3 3/4" W x 6 1/8" L x 2 13/16" D

Volt: 12-24

Tech Specs: Plug and Play, direct replacement, uses original mounting hardware, cast aluminum body

Fits Models: Prairie Star 4940, 4950, 4952, 4952c, 4952i

PREMIER

TL6320 LED Headlight

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Direct fit, OEM replacement

Fits Models: Premier 4940, 4950, 4952, 4952c, 4952i, Premier 2940, 2950, 2952, 2952c, 2952i

TL8350 LED Cab Headlight

Lumens: 3000

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 3 3/4" W x 6 18" L x 2 13/16" D

Volt: 12-24

Tech Specs: Plug and Play, direct replacement, uses original mounting hardware, cast aluminum body

Fits Models: Premier 2940, 2950, 2952, 2952c, 2952i, Westward 9250, 9350, 9352, 9352c, 9352i

TL9250 LED Headlight

Lumens: 3000

Watt: 40

Amps: 3.300

Light Pattern: Flood Volt: 12-24

Tech Specs: Plug and Play, Direct fit, Cast aluminum body, Uses original mounting hardware

Fits Models: Premier 2900 series

SPRA-COUPE

TL8950L LED Left Headlight

TL8950R LED Right Headlight

Lumens: 8200

Watt: 90

Amps: 7.5

Light Pattern: Flood/Spot Combo

Dimensions: 3 1/2" L x 5 1/2" HT x 10 1/2" D

Tech Specs: Uses original mount and wiring

Fits Models: Spra-Coupe 4455, 4460, 4655, 4660, 7450, 7460, 7650, 7660

TL7085 LED Work Light

Lumens: 2450

Watt: 24

Amps: 2

Light Pattern: Flood

Dimensions: 4" W x 6 1/2" L x 3" D

Volt: 12-24

Includes: Connectors, adapter and stainless steel hardware

Tech Specs: Plug and Play, uses original mounting bracket on tractor, swivel mount

Fits Models: Spra-Coupe 4455, 4460, 4655, 4660, 7460, 7660

STEIGER

CASEKIT-6 LED Light Kit

Lumens: 35800

Watt: 440

Amps: 36.600

Light Pattern: Spot/Flood

Volt: 12-24

Includes: Two TL2020 high/low headlights, eight TL3085 work lights and eight mating Deutsch pigtails for work lights

Tech Specs: Kit requires the installation of connector onto wiring harness, original equipment does not have connectors, Pigtail connectors are provided

Fits Models: Steiger

Bearcat 1000, Cougar 1000, CR-1225, CR-1280, KR1225, KR-1280, Panther 1000, Puma 1000, Wildcat 1000

TL175-F LED Flood Light

Lumens: 4800

Watt: 50

Amps: 4.160

Light Pattern: Spot/Flood

Light Shape: Rectangular

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Fits Models: Steiger 1225, 1280, 1325, 1360, 1400, CM, KM, KR, KS, ST

TL2020-1 LED Tractor Headlight

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood

Dimensions: 8 1/4" W x 5 3/4" L

Volt: 12-24

Includes: Deutsch connector, stainless steel hardware and mounting bracket,

Tech Specs: Uses original mount and wiring, high/low beam

Fits Models: Steiger

Bearcat 1000, Cougar 1000, CR-1225, CR-1280, KR-1225, KR-1280, Panther 1000, Puma 1000, Wildcat 1000

VERSATILE

TL8220 LED Hood Light

Lumens: 3000

Watt: 35

Amps: 2.900

Light Pattern: Flood

Dimensions: 3 3/4" W x 5 1/2" L x 3" D

Volt: 12-24

Tech Specs: Plug and Play; uses original mount and wiring

Fits Models: Versatile

190, 220, 250, 260, 290, 300, 305, 310

Replaces: 86038024, 86038025, 8604012, 86056892

92185C1 LED Amber Light

Watt: 9

Amps: 0.750

Light Pattern: Flood

Dimensions: 3 1/2" W x 6" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware

Tech Specs: Uses original mount and wiring

Fits Models: Versatile

9280, 9282, 9480, 9482, 9680, 9682, 9880, 9882

Replaces: V77050, V93104

TL5680

LED Light

Lumens: 5200

Watt: 65

Amps: 5.400

Light Pattern: Flood

Dimensions: 4 1/2" W x 6 1/2" L x 4" D

Volt: 12-24

Includes: Stainless hardware and mounting bracket

Tech Specs: Powder coated housing, oversized aluminum heat sink, RFI and EMI filters

Fits Models: Versatile

190, 220, 250, 260, 290, 305, 310, 340, 375, 400

Replaces: 86044306

TL3050

Cab Light

Lumens: 3600

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 3 1/2" W x 6" L x 3" D

Volt: 12-24

Includes: Deutsch connector, stainless steel hardware and mounting bracket

Tech Specs: Uses original mount and wiring

Fits Models: Versatile 2145, 2160, 2180, 2210

TL3090 LED Mount Light

Lumens: 3600

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 3 1/2" W x 6" L x 3" D

Volt: 12-24

Includes: Connector, stainless steel hardware and mounting bracket

Tech Specs: Uses original mount and wiring, side mount

Fits Models: Versatile 2145, 2160, 2180, 2210

VERSATILE

TL8970L LED Left Headlight

TL8970R

LED Right Headlight

Lumens: 8200

Watt: 90

Amps: 7.500

Light Pattern: Spot/Flood

Dimensions: 11" L x 5" D

Volt: 12-24

Tech Specs: Uses original mount and wiring

Fits Models: Versatile 2145, 2160, 2180, 2210

FNHKIT-1 LED Light Kit

Lumens: 45200

Watt: 500

Amps: 41.660

Light Pattern: Spot/Flood Volt: 12-24

Includes: TL8970L left headlight, TL8970R right headlight, two TL3090 lower mid mount lights, stairs and fuel tank and six TL3050 upper front cab and rear fenders

Tech Specs: Uses original mount and wiring

Fits Models: Versatile 2145, 2160, 2180, 2210

WESTWARD

TL6320 LED Headlight

Lumens: 3500

Watt: 60

Amps: 5

Light Pattern: Spot/Flood Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Direct fit, OEM replacement Fits Models: Westward 9250, 9350, 9352, 9352c, 9352i

TL8350 LED Cab Headlight

Lumens: 3000

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 3 3/4" W x 6 1/8" L x 2 13/16" D

Volt: 12-24

Tech Specs: Cast aluminum body; direct replacement; Plug and Play; uses original mounting hardware Fits Models: Westward 9250, 9350, 9352, 9352c, 9352i

INDUSTRIAL LED LIGHTS

• Fits OEM mounts and wiring harnesses for skid steers, forklifts and loaders • Heavy-duty build for demanding jobsite use

LUMENS 330% MORE POWER

AGCO

TL5655 LED Light

Lumens: 2900

Watt: 35

Amps: 2.900

Light Pattern: Flood

Dimensions: 5 3/4" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Powder coated housing; oversized aluminum heat sink; RFI and EMI filters

Fits Models: Agco 2150, 2170, 2190, 7423, 7424, 7433, 7434, 7435, 7444, 7445, A25, AC20, AC25

BOBCAT

BOBCATKIT-1 LED Light Kit

Lumens: 9000

Watt: 108

Amps: 9

Light Pattern: Spot/Flood Volt: 12-24

Includes: Two TL950 triangle headlights and two TL650 rear work lights

Tech Specs: Plug and Play LED light, fits into original housing, right and left, aluminum housing and durable poly carbonate lens

Fits Models: Bobcat

751, 753, 763, 773, 863, 864, 873, 963, A220, A300, S100, S130, S150, S160, S175, S185, S205, S220, S250, S300, S330, T110, T140, T180, T190, T200, T250, T300, T320

Replaces: 6718042, 6718043, 7259523, 7259524

BOBCATKIT-2 LED Light Kit

Lumens: 14000

Watt: 188

Amps: 15.600

Light Pattern: Spot/Flood Volt: 12-24

Includes: TL970L left headlight, TL970R right headlight and two TL650 rear work lights

Tech Specs: Plug and Play, aluminum housing and durable poly carbonate lens

Fits Models: Bobcat

A770, S450, S510, S530, S550, S570, S590, S595, S630, S650, S740, S750, S770, S850, T450, T550, T590, T595, T630, T650, T740, T750, T770, T870

Replaces: 7251340, 7251341

TL5015 LED Skid Steer Headlight Kit

Lumens: 7200

Watt: 80

Amps: 6.600

Light Pattern: Flood

Dimensions: 3 1/2" W x 6" L x 3" D Volt: 12-24

Includes: Two LED lights, two mounting plates and stainless steel hardware

Tech Specs: Converts Bobcat to LED, uses a mounting plate to bolt the lights to the underside of the roof, requires to splice into the original wiring harness

Fits Models: Bobcat

450, 453, 463, 553, 653, 751, 753, 763, 773, 853, 863, 864, 873, 953, 963, 7753, S70

Replaces: 6649478

TL5655 LED Light

Lumens: 2900

Watt: 35

Amps: 2.900

Light Pattern: Flood

Dimensions: 5 3/4" L x 3" D Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Powder coated housing, oversized aluminum heat sink, RFI and EMI filters

Fits Models: Bobcat 5600, 5610

Replaces: 6682472, 6683314, 6683315, 7012802

TL650 Skid Steer Headlight

Lumens: 2000

Watt: 24

Amps: 2

Light Pattern: Flood Volt: 12-24

Tech Specs: Fits into original housing; Plug and Play

Fits Models: Bobcat

553, 751, 753, 763, 773, 853, 863, 864, 873, 883, 943, 963, 7753, A300, A770, S100, S130, S150, S160, S175, S185, S205, S250, S450, S510, S530, S550, S570, S590, S595, S630, S650, S740, S750, S770, S850, T110, T140, T180, T190, T250, T300, T320, T450, T550, T590, T595, T630, T650, T740, T750, T770, T870

Replaces: 6661353

TL660 LED Tail Light

Watt: 10

Amps: 0.8

Light Pattern: Flood Volt: 12-24

Tech Specs: Fits into factory rubber housing, has low beam (running light) and high beam (brake light)

Fits Models: Bobcat

751, 753, 763, 773, 863, 864, 873, 963, A220, A300, A770, S100, S130, S150, S160, S175, S185, S205, S220, S250, S300, S330, S450, S510, S530, S550, S570, S590, S595, S630, S650, S740, S750, S770, S850, T110, T140, T180, T190, T200, T250, T300, T320, T450, T550, T590, T595, T630, T650, T740, T750, T770, T870

TL950 Skid Steer Headlight

Lumens: 2500

Watt: 30

Amps: 2.500

Light Pattern: Spot/Flood

Light Shape: Triangle

Dimensions: 7" W x 7" L x 2 3/4" HT

Volt: 12-24

Includes: One light that will work for left or right side

Tech Specs: Plug and Play, fits into original housing, right and left, aluminum housing and durable poly carbonate lens, package contains one light that will work for left or the right side

Fits Models: Bobcat

751, 753, 763, 773, 863, 864, 873, 963, A220, A300, S100, S130, S150, S160, S175, S185, S205, S220, S250, S300, S330, T110, T140, T180, T190, T200, T250, T300, T320

Replaces: 6718042, 67189043, 7259523, 7259524

TL970L LED Skid Steer Left Headlight

TL970R LED Skid Steer Right

Headlight

Lumens: 5000

Watt: 70

Amps: 5.800

Light Pattern: Spot/Flood

Dimensions: 6 1/2" W x 7 1/2" L x 4 3/4" HT

Volt: 12-24

Tech Specs: Plug and Play, fits into original housing, aluminum housing and durable poly carbonate lens

Fits Models: Bobcat

A770, S450, S510, S530, S550, S570, S590, S595, S630, S650, S740, S750, S770, S850, T450, T550, T590, T595, T630, T650, T740, T750, T770, T870

Replaces: 7251340, 7251341

TL3030 LED Tractor Light

Lumens: 3600

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 3 1/2" W x 6" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Uses original mount and wiring

Fits Models: Case IH 590, 5120, 5130, 5140, 5150, 5220, 5230, 5240, 5250, 7110, 7120, 7130, 7140, 7150, 7210, 7220, 7230, 7240, 7250, 8910, 8920, 8930, 8940, 8950, 1150H, 285 Steiger; 3040, 3540 Titan; 370, 420 Steiger; 4420 Patriot, 4540 Titan; 470, 540, 580 Steiger; 580K, 580SK, 650G, 650H, 750H, 850H, CX100, CX50, CX60, CX70, CX80, CX90, FLX3010, FLX3510, FLX4010, FLX4510; Magnum 215, 245, 255, 260, 275, 305, 335; MX100, MX100C, MX120, MX135, MX150, MX170, MX180, MX200, MX210, MX215, MX220, MX230, MX240, MX245, MX255, MX270, MX285, MX305, MX80C, MX90C; Quadtrac 370, 420, 450, 470, 500, 540, 550, 580, 600, 620; SPX4410; Steiger 280, 330, 335, 350, 380, 385, 400, 430, 435, 450, 480, 485, 500, 530, 535, 550, 600; STX275, STX280, STX325, STX330, STX375, STX380, STX425, STX430, STX440, STX450, STX480, STX485, STX500, STX530; Titan 3020, 3030, 3520, 3530, 4020, 4030, 4520, 4530

Replaces: 178345A1, 180097A1, 1983210C1, 275335A1, 305256A1, 87435762, 87773385, 92263C1, 92269C1, R54411, R54412

TL750 LED Skid Steer Headlight

Lumens: 2000

Watt: 24

Amps: 2

Light Pattern: Flood

Dimensions: 5" W x 3" L x 3" D

Volt: 12-24

Includes: Clip

Tech Specs: Plug and Play, direct replacement, fits into the two front lights above the cab and the rear work/reverse light

Fits Models: Case IH

410, 420, 430, 450, 465, 40XT, 420CT, 440CT, 445CT, 450CT, 60XT, 70XT, 75XT, 85XT, 90XT, 95XT

Replaces: 222004A2

TL780 LED Headlight

Lumens: 2100

Watt: 30

Amps: 2.500

Light Pattern: Flood Volt: 12-24

Tech Specs: Fits into original housing; Plug and Pla

Fits Models: Case IH

SR130, SR150, SR160, SR175, SR175B, SR200, SR220, SR250, SV185, SV185B, SV250, SV300, TR270, TR320, TV380

TL860 LED Mount Light

Lumens: 3600

Watt: 40

Amps: 3.300

Light Pattern: Flood

Light Shape: Square

Dimensions: 4" W x 4" L x 3 1/4" D

Volt: 12-24

Tech Specs: Plug and Play, direct replacement, bottom mount

Fits Models: Case IH

Replaces: 47682620, 47682629, 84236850, 87584890

TL3050 Tractor Cab Light

Lumens: 3600

Watt: 40

Amps: 3.330

Light Pattern: Flood

Dimensions: 3 1/2" W x 6" L x 3" D

Volt: 12-24

Includes: Deutsch connector, stainless steel hardware and mounting bracket

Tech Specs: Uses original mount and wiring

Replaces: 239758A1, 301891A2, 178345A1, 431025A1

CATERPILLAR

Fits Models: Caterpillar

TL350F LED Flood Light

Lumens: 5000

Watt: 35

Amps: 2.600

Light Pattern: Flood

Dimensions: 4 1/2" W x 4 1/4" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

CATERPILLAR CONT.

Fits Models: Caterpillar

TL500F LED Flood Light

TL5005 LED Spot Light

TL500SS LED Super Spot Light

TL500WF Led Wide Flood Light

Lumens: 6900

Watt: 50

Amps: 4.100

Light Pattern: Flood/Spot

Dimensions: 4 1/2" W x 4 1/4" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

301.5, 301.6, 301.8, 302.5, 375, 511, 521, 522, 532, 541, 543, 551, 552, 584, 725, 730, 735, 740, 770, 772, 789, 797, 844, 902, 906, 908, 990, 2290, 2390, 2391, 2491, 2590, 5412, 5522, 120HNA, 120K, 120K2, 120M, 120M2, 120M2AWD, 120M2OEM, 120MAWD, 1290T, 12H, 12HNA, 12K, 12M, 12M2, 12M2AWD, 12M3, 12M3AWD, 135HNA, 140H, 140HNA, 140K, 140K2, 140M, 140M2, 140M2AWD, 140M3, 140M3AWD, 140MAWD, 143H, 14H, 14LAWD, 14M, 160H, 160HNA, 160K, 160M, 160M2, 160M2AWD, 160M3, 160M3AWD, 160MAWD, 163H, 16H, 16M, 16M3, 18M3, 2384C, 2484C, 24M, 302.5C, 303.5E2CR, 303ECR, 304E2CR, 305.5E2CR, 305E2CR, 308E2CRSB, 320CLU, 320CU, 320D2FMGF, 320D2FMLL, 320DFMGFB, 320DFMHW, 320DFMLL, 320DFMLLB, 320DFMRR, 320DFMST, 320DLRR, 320DRR, 324DFMGF, 324DFMLGP, 324DFMLL, 325DFMGF, 325DFMLL, 330DFMGF, 330DFMLL, 345B Series II, 345BIIL, 345D, 345DL, 345DLVG, 349D, 349D2, 349D2L, 349DL, 349DLVG, 374DL, 375 L, 385B L, 390D, 390DL, 414E, 415F2IL, 415F2ST, 416EST, 416F2ST, 416F2STLRC, 416FST, 420EIT, 420EST, 420F2IT, 420F2ITLRC, 420F2ST, 420F2STLRC, 420FIT, 420FST, 422E, 422F, 422F2STLRC, 427F2, 428D, 428E, 428F, 428F2, 428F2LRC, 430EIT, 430EST, 430F2IT, 430F2ITLRC, 430F2ST, 430F2STLRC, 430FIT, 430FST, 432D, 432E, 432F, 432F2, 432F2LRC, 434E, 434F, 434F2, 434F2LRC, 442D, 442E, 444E, 444F, 444F2, 444F2LRC, 446D, 450E, 450F, 5110B L Mining, 5110B MH Mining, 5110BME, 5130 Mining, 518C, 521B, 522B, 5230 Mining, 5230B Mining, 525C, 525D, 525DLRC, 528B, 530B, 535C, 538GF, 538LL, 545C, 545D, 545DLRC, 555D, 555DLRC, 559C, 561M, 568GF, 568LL, 572R, 572RII, 579C, 583R, 583T, 584HD, 587R, 587T, 6015B, 6020B, 613CII, 613G, 621F, 621G, 621H, 621HOEM, 621K, 621KLRC, 621KOEM, 621KOEMLRC, 623F, 623G, 623H, 623K, 623KLRC, 627F, 627G, 627H, 627K, 627KLRC, 631D, 631K, 631KLRC, 633D, 633E, 637D, 637DPP, 637K, 637KLRC, 651E, 657E, 657G, 730EJ, 735B, 735OEM, 740B, 740BEJ, 740EJ, 740OEM, 770G, 770GLRC, 770GOEM, 770GOEMLRC, 772G, 772GLRC, 772GOEM, 772GOEMLRC, 773F, 773FOEM, 773G, 773GLRC, 773GOEM, 775F, 775FOEM, 775G, 775GLRC, 775GOEM, 775GOEMLRC, 776D, 777D, 777DHAA, 777F, 777FOEM, 777G, 777GLRC, 777GOEM, 777GOEMLRC, 784B, 784C, 785B, 785C, 785D, 785DOEM, 789B, 789C, 789D, 789DXQ, 793B, 793C, 793D, 793F, 793FAC, 793FCMD, 793FOEM, 793FXQ, 794AC, 795FAC, 795FXQ, 797B, 797F, 797FXQ, 814FII, 815FII, 816F Series II, 824G, 824GII, 824H, 824K, 825G, 825GII, 825H, 825K, 826G, 826GII, 826H, 826K, 834G, 834H, 834K, 834KLRC, 836G, 836H, 836K, 836KLRC, 844H, 844K, 844KLRC, 854G, 854K, 854KLRC, 906H, 906H2, 906K, 906M, 907H, 907H2, 907K, 907M, 908H, 908H2, 908K, 908M, 910K, 910M, 914G, 914G2, 914K, 914M, 918M, 924G, 924GZ, 924H, 924HZ, 924K, 926M, 928G, 928GZ, 928H, 928HZ, 930G, 930H, 930K, 930M, 938G, 938GII, 938H, 938K, 938M, 950GII, 950H, 950K, 953C, 962G, 962GII, 962H, 962K, 963BLGP, 963C, 966GII, 966H, 966K, 966KXE, 972G, 972GII, 972H, 972K, 973C, 973CLGP, 980GII, 980H, 980K, 980KOEM, 986H, 988G, 988H, 988K, 988KLRC, 990H, 990K, 990KLRC, 992D, 992G, 992K, 992KLRC, 993K, 993KLRC, 994F, 994H, 994KLRC, AD30, AD45B, AD55, AD55B, AD60, AP1000D, AP1000E, AP1000F, AP1055D, AP1055E, AP1055F, AP300F, AP300FLRC, AP355F, AP355FLRC, AP500E, AP500F, AP500FLRC, AP555E, AP555F, AP555FLRC, AP600D, AP600F, AP600FLRC, AP655C, AP655D, AP655F, AP655FLRC, AP800D, BG1000E, BG1055E, BG2255C, BG230D, BG2455D, BG260D, BG500E, BG555E, BG600D, BG655D, CB14, CB22B, CB22BLRC, CB24B, CB24BLRC, CB32B, CB32BLRC, CB34B, CB34BLRC, CB34BXW, CB34BXWLRC, CB36B, CB36BLRC, CB434C, CB44B, CB46B, CB534C, CB535B, CB54, CB54B, CB64, CB64B, CB64BLRC, CB66B, CB68B, CB68BLRC, CC24B, CC24BLRC, CC34B, CC34BLRC, CD44B, CD54, CD54B, CP323C, CP34, CP433C, CP433E, CP44, CP44B, CP533D, CP533E, CP54, CP54B, CP56, CP563C, CP563D, CP563E, CP56B, CP56BLRC, CP573E, CP64, CP663E, CP68B, CP68BLRC, CP74, CP74B, CP74BLRC, CP76, CS323C, CS34, CS423E, CS431C, CS433C, CS433E, CS44, CS44B, CS531D, CS533D, CS533E, CS54, CS54B, CS54BLRC, CS56, CS563CAW, CS563E, CS56B, CS56BLRC, CS573C, CS573D, CS573E, CS583D, CS583E, CS64, CS64BLRC, CS663E, CS683E, CS68B, CS68BLRC, CS74, CS74B, CS74BLRC, CS76, CS78B, CS78BLRC, CS79BLRC, CW14, CW16, CW16LRC, CW34, CW34LRC, D10N, D10T, D10T2, D10T2LRC, D11N, D11RCD, D11T, D11TCD, D250E, D250EII, D300E, D350E, D350EII, D3K2LGP, D3K2SLGP, D3K2XL, D3KLGP, D3KXL, D400E, D400EII, D4HIIIXL, D4HIILGP, D4K2LGP, D4K2XL, D4KLGP, D4KXL, D4TSKHIII, D5HIIXL, D5K2LGP, D5K2SLGP, D5K2XL, D5KLGP, D5KXL, D5MLGP, D5MXL, D5R2LGP, D5R2XL, D5TSKHII, D6K, D6K2LGP, D6K2XL, D6KLGP, D6KXL, D6KXLARMY, D6MLGP, D6MXL, D6R2, D6R2LGP, D6R2XL, D6RII, D6RIII, D6RIIILGP, D6RIIILGPVP, D6RIIIXL, D6RIIIXLVP, D6RIIIXW, D6RIIIXWVP, D6RIILGP, D6RIIXL, D6RIIXW, D6RLGP, D6RXL, D6RXR, D6RXW, D6T, D6TLGP, D6TLGPOEM, D6TLGPVP, D6TXL, D6TXLVP, D6TXW, D6TXWVP, D7E, D7ELGP, D7R, D7RII, D7RIILGP, D7RIIXR, D7RLGP, D7RXR, D8N, D8RII, D8RLRC, D8T, D9RLRC, D9T, HA770, HA771, HA870, HA871, IT14G, IT14G2, IT28G, IT38G, IT38H, IT62G, IT62H, MD5150C, MT4400DAC, MT5300DAC, PL61, PL72, PL83, PL87, PM201, PM620, PM622, PR1000, PS150B, PS150C, PS360C, R1300HII, R1600G, R1600H, R1700G, R2900G, R3000H, RM500B, TH220B, TH330B, TH340B, TH350B, TH355B, TH360B, TH460B, TH560B, TH580B, TK1051, TK370, TK371, TK380, TK381, TK711, TK721, TK722, TK732, TK752, W345CMH

CATERPILLAR

TL3010 LED Sealed Light

Lumens: 1250

Watt: 18

Amps:1.500

Light Pattern: Trapezoid

Light Shape: Round

Dimensions: 1 1/2" L x 4 1/2" Dia.

Volt: 12-24

Tech Specs: Uses original mount and wiring, Par 36 replacement

Fits Models: Caterpillar 797, 120G, 140G, 776C, 776D, 777C, 777D, 784B, 784C, 785B, 785C, 785D, 785DOEM, 789B, 789C, 793B, 793C, 793D, 797B, 815B, 950H, 966H, 972G, 972H, 972K, 972M, 980F, 980G, 980GII, 980H, 980K, IT12F, MT4400DAC, PR1000, Ford/New Holland 233, 333, 2000, 2100, 2110, 2120, 2150, 2300, 2310, 2600, 3000, 3055, 3100, 3110, 3120, 3150, 3300, 3310, 3330, 3400, 3500, 3550, 3600, 3900, 4000, 4100, 4110, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 5000, 5100, 5200, 5340, 5600, 5700, 6600, 6700, 6710, 7000, 7100, 7200, 7600, 7700, 7710, 7910, 8000, 8210, 8600, 8700, 9000, 9600, 9700, 2600N, 2600R, 2600V, 3600N, 3600NO, 3600R, 3600V, 4600NO, 4600O, 4600SU, 6600C, 6600O, 7600C, TW10, TW15, TW20, TW25, TW30, TW35, TW5, Replaces: 373662R91, 6N-7987, 7G-9319, 7T-1371

TL3015 LED Sealed Light

Lumens: 2200

Amps: 2

Light Pattern: Spot/Flood

Light Shape: Round

Dimensions: 1 1/2" L x 4 1/2" Dia.

Volt: 12-24

Tech Specs: Uses original mount and wiring, Par 36 replacement

Fits Models: Caterpillar

Replaces: 6N-7987, 7G-9319, 7T-1371

CHALLENGER

TL5655 LED Light

Lumens: 2900

Watt: 35

Amps: 2.900

Light Pattern: Flood

Dimensions: 3 3/4" W x 5 3/4" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Powder coated housing, oversized aluminum heat sink, RFI and EMI filters

Fits Models: Challenger 660, 670, 2240, 2250, 2270, 2270XD,

CLAAS

TL9090 LED Mount Light

Lumens: 3500

Watt: 40

Amps: 3.300

Light Pattern: Spot/Flood

Dimensions: 3 1/4" W x 7 1/4" L x 3 1/4" D

Volt: 12-24

Tech Specs: Oversized aluminum heatsink and aluminum bezel, direct fit, fits some Massey Ferguson tractors with high visibility cabs and John Deere forage harvesters

Fits Models: Claas

TL350F LED Flood Light

Lumens: 5000

Watt: 35

Amps: 2.600

Light Pattern: Flood

Dimensions: 4 1/2" W x 4 1/4" L x 3" D

Volt: 12-24

Tech Specs: Stainless steel hardware and mounting bracket

Fits Models: Gehl

1640E, R135, R150, R165, R190, R220, R260, V270, V330

Replaces: 241117

TL5655 LED Light

Lumens: 2900

Watt: 35

Amps: 2.900

Light Pattern: Flood

Dimensions: 5 3/4" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Powder coated housing, oversized aluminum heat sink, RFI and EMI filters

Fits Models: Fendt

870, 1270, 1290, 12130, 12130S, 1270S, 1290N, 1290S, 990N, 990S

TL5650 LED Light

Lumens: 2900

Amps: 2.900

Light Pattern: Flood

Dimensions: 43 3/4" W x 5 3/4" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Powder coated housing, oversized aluminum heat sink, RFI and EMI filters

Fits Models: Gehl

840, 3640E, 4240E

FORD/NEW HOLLAND

TL650 Skid Steer Light

Lumens: 2000

Watt: 24

Amps: 2

Light Pattern: Flood Volt: 12-24

Tech Specs: Plug and Play, Fits into original housing

Fits Models: Ford/New Holland

L465, L565, L865, LX465, LX485, LX565, LX665, LX865, LX885

Replaces: 9829523

TL780 LED Headlight

Lumens: 2200

Watt: 30

Amps: 2.500

Light Pattern: Flood Volt: 12-24

Tech Specs:Plug and Play, fits into original housing, fits Ford/New Holland skid steers with heavy-duty light housing

Fits Models: Ford/New Holland

C227, C232, C234, C237, C238, C245, C327, C332, C345, L213, L215, L216, L218, L220, L221, L225, L228, L234, L313, L315, L316, L318, L320, L321, L323, L325, L328, L330, L334

Replaces: 84306268, 84306271, 84306337

TL750 LED Skid Steer Headlight

Lumens: 2000

Watt: 24

Amps: 2

Light Pattern: Flood

Dimensions: 5" W x 3" L x 3" D

Volt: 12-24

Tech Specs: Plug and Play, direct replacement, fits into the two front lights above the cab and the rear work/reverse light

Fits Models: Ford/New Holland C175, C185, C190, L120, L125, L140, L150, L160, L170, L175, L180, L185, L190, L250, L255, L465, L565, L865, LS120, LS125, LS140, LS160, LS170, LS180, LS180B, LS185B, LS190, LS190B, LX465, LX485, LX565, LX665, LX885, LX985, John Deere 240, 250, 260, 270, 313, 315, 317, 325, 328, 332, 320 50, CT315, CT322, CT332

Replaces: 86501306, 86533428, 9844417, 9844418

JOHN DEERE

TL750 LED Skid Steer Headlight

Lumens: 2000

Watt: 24

Amps: 2

Light Pattern: Flood

Dimensions: 5

Volt: 12-24

Tech Specs: Plug and Play, direct replacement, fits into the two front lights above the cab and the rear work/reverse light

Fits Models: John Deere 240, 250, 260, 270, 313, 315, 317, 325, 328, 332, 320 50, CT315, CT322, CT332

Replaces: AT345169, KV13708, KV13709, KV26918

TL3030 LED Tractor Light

Lumens: 3600

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 3 1/2" W x 6" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Uses original mount and wiring

Replaces: AN272464, AT208435, AT226338

RE306510 LED Headlight

Lumens: 1440

Watt: 30

Amps: 2.500

Light Pattern: Flood

Light Shape: Rectangular

Dimensions: 2" W x 5 1/2" L x 1 1/2" D

Volt: 12-24

Tech Specs: Plug and Play, uses original mount and wiring, will fit in tractors above the cab and in the nose

Fits Models: John Deere 4040, 4050, 4055, 4240, 4250, 4255, 4440, 4450, 4455, 4555, 4560, 4640, 4650, 4700, 4710, 4755, 4760, 6110, 6200, 6210, 6300, 6310, 6400, 6410, 6500, 7200, 7210, 7400, 7410, 7510, 7600, 7610, 7700, 7710, 7800, 7810, 8100, 8110, 8200, 8210, 8300, 8310, 8400, 8410, 450H, 550H, 650H, 8100T, 8110T, 8200T, 8210T, 8300T, 8310T, 8400T, 8410T

Replaces: R161288, RE306510, RE37450

TL850 LED Mount Light

Lumens: 3600

Watt: 40

Amps: 3.300

Light Pattern: Flood

Light Shape: Square

Dimensions: 4" W x 4" L x 4" D

Volt: 12-24

Tech Specs: Plug and Play, direct replacement, flush mount

Fits Models: John Deere

312GR, 314G, 316GR, 317G, 318D, 318E, 318G, 319D, 319E, 320D, 320E, 323D, 323E, 324E, 324E, 326D, 326E, 328D, 328E, 329D, 329E, 331G, 332D, 332E, 332G, 333D, 333E, 333G

Replaces: AT352538

JOHN DEERE CONT.

TL500F LED Flood Light

TL500S LED Spot Light

TL500SS LED Super Spot Light

TL500WF LED Wide Flood Light

Lumens: 6900

Watt: 50

Amps: 4.100

Light Pattern: Flood/Spot

Dimensions: 4 1/2" W x 4 1/4" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Fits Models: John Deere 764, 1050K, 2032R 72, 2036R, 2038R 72D, 210C, 210LE, 250D, 260E, 300D, 310C, 310E, 310G, 310J, 310K, 310L, 310SG, 310SJ, 310SK, 310SL, 315C, 315CH, 315SG, 315SJ, 315SK, 315SL, 325J, 325SK, 325SL, 344E, 350D, 355D, 370E, 400D, 400G, 410B, 410C, 410E, 410G, 410J, 410K, 410L, 415B, 444D, 444E, 444J, 444JR, 444K, 450E, 450G, 455E, 455G, 460E, 540E, 540G, 544D, 544E, 544G, 544J, 544K, 548E, 548G, 550B, 550G, 550K, 555B, 555G, 610B, 610C, 624E, 624G, 624J, 624K, 624KR, 640E, 640G, 644D, 644E, 644G, 644K, 648E, 648G, 650G, 650K, 653E, 655K, 670D, 670G, 670GP, 672D, 672G, 672GP, 700J, 700J, 700K, 700K, 710B, 710C, 710J, 710K, 710K, 710L, 724J, 724K, 724K, 740E, 740G, 744J, 744K, 748E, 748G, 750K, 755K, 770D, 770G, 770GP, 772D, 772G, 772GP, 803M, 803MH, 824J, 824K, 844J, 844K, 850J, 850K, 853M, 853MH, 859M, 859MH, 870D, 870G, 870GP, 872D, 872G, 872GP, 903K, 903KH, 903M, 903MH, 909K, 909KH, 909M, 909MH, 944K, 953K, 953M, 959K, 959M

Replaces: AT135485, AT135486, AT305931, AT443223, AT443224

TL860 LED Mount Light

Lumens: 3600

Watt: 40

Amps: 3.300

Light Pattern: Flood

Light Shape: Square

Dimensions: 4" W x 4" L x 3 1/4" D

Volt: 12-24

Tech Specs: Plug and Play, direct replacement, bottom mount

Fits Models: John Deere

Replaces: AFH209737, AT323301, AT440366, AT469859

JOHN DEERE

TL8020 LED Amber Cab Light

Watt: 11

Amps: 0.900

Light Pattern: Flood

Dimensions: 4" W x 6 3/4" L x 2 3/4" D

Volt: 12-24

Includes: Stainless steel hardware

Tech Specs: Direct replacement; Plug and Play

Fits Models: John Deere

Replaces: AT151873, AT326622, RE217551

KOMATSU

TL350F LED Flood Light

Lumens: 5000

Watt: 35

Amps: 2.600

Light Pattern: Flood

Dimensions: 4 1/2" W x 4 1/4" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Fits Models: Komatsu

CK30-1, CK35-1, GD675-5, HM250-2, HM300-2, HM300-2R, HM300-3, HM300-3R, HM350-2R, HM400-2, HM400-2R, HM400-3M0, SK1020-5, SK1020-5N, SK10265, SK714-5, SK815-5, SK820-5N, WA1200-6, WA150-6, WA150PZ-6, WA200-6, WA250-6, WA250PZ-6, WA320-6, WA320PZ-6, WA380-6, WA380-7, WA380Z-6, WA430-6, WA470-6, WA470-6A, WA480-6, WA500-6, WA500-7, WA6006, WA800-3E0, WA900-3E0

Replaces: 37A-06-12430, 423-06-33130

TL3050 Cab Light

Lumens: 3600

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 3 1/2" W x 6" L x 3" D

Volt: 12-24

Includes: Deutsch connector, stainless steel hardware and mounting bracket

Tech Specs: Uses original mount and wiring

Fits Models: Komatsu

PC138US-8

Replaces: 20Y-06-K276

TL500F LED Flood Light

TL500S LED Spot Light

TL500SS LED Super Spot Light

TL500WF LED Wide Flood Light

Lumens: 6900

Watt: 350

Amps: 4.100

Light Pattern: Flood/Spot

Dimensions: 4 1/2" W x 4 1/4" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Fits Models: Komatsu

GD675-5, HM250-2, HM300-2, HM300-2R, HM300-3, HM300-3R, HM350-2R, HM400-2, HM400-2R, HM400-3M0, WA1200-6, WA150-6, WA150PZ-6, WA200-6, WA250-6, WA250PZ-6, WA320-6, WA320PZ-6, WA380-6, WA380-7, WA380Z-6, WA430-6, WA470-6, WA470-6A, WA480-6, WA500-6, WA500-7, WA600-6, WA800-3E0, WA900-3E0

Replaces: 37A-06-12430, 423-06-33130

KUBOTAKIT-1 LED Light Kit

Lumens: 12000

Watt: 160

Amps: 13.300

Light Pattern: Flood

Dimensions: 3" W x 6" L x 2 1/2" HT

Volt: 12-24

Includes: Four TL790, connector and stainless steel hardware

Tech Specs: Uses original mount and wiring, lights will bolt into the original mount on the skid steer (two on the front, two on the rear

Fits Models: Kubota

SVL65-2, SVL65-2C, SVL75, SVL75-2, SVL75-2C, SVL75C, SVL90, SVL90-2, SVL90-2C,

TL790 LED Headlight

Lumens: 3000

Watt: 40

Amps: 3.333

Light Pattern: Flood

Dimensions: 4 7/8" W x 7 3/4" L x 3" D

Volt: 12-24

Includes: Connector and stainless steel hardware

Tech Specs: Uses original mount and wiring, bolts into the original mount in the tractor

Fits Models: Kubota

SVL65-2, SVL65-2C, SVL75, SVL75-2, SVL75-2C, SVL75C, SVL90, SVL90-2, SVL90-2C,

KUBOTAKIT-2 LED Light Kit

Lumens: 16000

Watt: 224

Light Pattern: Flood

Dimensions: 4 13/16" W x 4 1/2" HT

Volt: 12-24

Includes: TL900L left headlight, TL900R right headlight, TL910L left tail light and TL910R right tail light

Tech Specs: Uses original mount and wiring, bolts into the original mount on the skid steer

Fits Models: Kubota

SSV65, SSV65, SSV65, SSV65, SSV65, SSV65C, SSV65P, SSV65PC, SSV75, SSV75, SSV75, SSV75, SSV75C, SSV75P, SSV75PC

Replaces: V1311-53510, V1311-53520, V1311-53530, V1311-53540

TL900L LED Left Headlight

TL900R

LED Right Headlight

Lumens: 4000

Watt: 56

Amps: 4.770

Light Pattern: Flood

Dimensions: 8" W x 4 1/2" HT x 4 13/16" D

Volt: 12-24

Includes: Connector and stainless steel hardware

Tech Specs: Uses original mount and wiring, bolts into the original mount on the skid steer

Fits Models: Kubota

SSV65, SSV65, SSV65C, SSV65P, SSV65PC, SSV75, SSV75, SSV75C, SSV75P, SSV75PC

Replaces: V1311-53510

TL910L LED Left Tail Light

TL910R

LED Right Tail Light

Lumens: 4000

Watt: 56

Amps: 4.660

Light Pattern: Flood

Dimensions: 8" W x 4 1/2" HT x 4 13/16" D

Volt: 12-24

Includes: Connector and stainless steel hardware

Tech Specs: Uses original mount and wiring, consists of red tail light and white work light, bolts into the original mount on the skid steer

Fits Models: Kubota

SSV65, SSV65, SSV65C, SSV65P, SSV65PC, SSV75, SSV75, SSV75C, SSV75P, SSV75PC

Replaces: V1311-53530

MASSEY FERGUSON

TL5655 LED Light

Lumens: 2900

Watt: 35

Amps: 2.900

Light Pattern: Flood

Dimensions: 5 3/4" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Powder coated housing, oversized aluminum heat sink, RFI and EMI filters

Fits Models: Massey Ferguson 2140, 2150, 2160, 2170, 2190, 2240, 2250, 2270, 9690, 9790, 2170XD, 2270XD, AC20, AC25

TL2050 LED Sealed Light

Lumens: 2200

Amps: 2

Light Pattern: Flood

Dimensions: 1 1/2" L x 4 1/2" Dia.

Volt: 12-24

Tech Specs: Uses original mount, wiring and screw connections, Par 36 replacement, Round light with OEM style lens

TL7085 LED Work Light

Lumens: 2450

Watt: 24

Amps: 2

Light Pattern: Flood

Dimensions: 4" W x 6 1/2" L x 3" D

Volt: 12-24

Includes: Connectors, adapter and stainless steel hardware

Tech Specs: Plug and Play, uses original mounting bracket on tractor, swivel mount

Fits Models: Massey Ferguson 9695, 9795, 9895

MILLER

TL5680 LED Light

Lumens: 5200

Watt: 65

Amps: 5.400

Light Pattern: Flood

Dimensions: 4 1/2" W x 6 1/2" L x 4" D

Volt: 12-24

Includes: Stainless hardware and mounting bracket

Tech Specs: Powder coated housing, oversized aluminum heat sink, RFI and EMI filters

Fits

Models: Miller

200, 200HT, 2200HT, 2200T, 2200TSS, 2275HT, 275, 3200HT, 3200T, 3200TSS, 3275HT Nitro

WILLMAR

TL7085 LED Work Light

Lumens: 2450

Watt: 24

Amps: 2

Light Pattern: Flood

Dimensions: 4" W x 5 1/2" L x 3" D

Volt: 12-24

Includes: Connectors, adapter and stainless steel hardware

Tech Specs: Plug and Play, uses original mounting bracket on tractor, swivel mount

Fits Models: Willmar 4560 Wrangler and 4565 Wrangler

MUSTANG

TL350F LED Flood Light

Lumens: 5000

Watt: 35

Amps: 2.600

Light Pattern: Flood

Dimensions: 4 1/2" W x 4 1/4" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Fits

Models: Mustang

2012, 1350R, 1500R, 1650R, 1900R, 2200R, 2600R, 2700V, 3300V, 4000V

OFF-ROAD LED LIGHTS

• Mojave Series: Compact and mid-sized LED lighting solutions

• Ideal for trail use, rough terrain and adverse weather

• Available in spot and flood beam patterns

LUMENS 330% MORE POWER

LED MOJAVE SERIES LIGHTS

Features a heavy-duty compact housing that can withstand hard impacts

A lens that is twice as thick as our traditional lights

Designed to survive and operate in extreme conditions

TLM2 LED 2" Mojave Series Light

Lumens: 1200

Watt: 20

Amps: 1.800

Light Pattern: Spot/Flood

Dimensions: 2 1/4" W x 2 3/8" HT x 2 1/4" D

Volt: 12-24

Includes: Flood lens, spot lens, wide flood lens, stainless steel hardware, stainless steel bracket and pigtail

Tech Specs: The 2" light is the smallest light in the series; one light with 3 lenses

TLM2-ALP 2" Mojave Amber Lens Pack with O-Ring

Includes: 2" Mojave amber lens pack (wide flood, flood and spot) with O-ring

Tech Specs: Replacement amber lens for TLM2

TLM2-OR 2" Mojave Replacement O-Ring

Includes: 2" Mojave light O-ring seal

Tech Specs:Replacement O-ring for TLM2

TLM2-KIT LED 2" Mojave Series Light Kit

Lumens: 1200

Watt: 20

Amps: 1.800

Light Pattern: Spot/Flood

Dimensions: 2 1/4" W x 2 3/8" HT x 2 1/4" D

Volt: 12-24

Includes: Two TLM2 2" Mojave LED lights and two TLMWH2 wiring harness

Tech Specs: The 2" light is the smallest light in the series; two lights with 3 lenses

TLM2X3 LED 2" x 3" Mojave Series Light

Lumens: 2000

Watt: 20

Amps: 1.800

Light Pattern: Spot/Flood

Dimensions: 3" W x 2 1/4" HT x 2" D

Volt: 12-24

Includes: Flood lens, spot lens, combo lens, stainless steel hardware, stainless steel bracket and pigtail

Tech Specs: One light with 3 lenses

TLM2X3-ALP Mojave Amber Lens Pack with O-Ring

Includes: 2" x 3" Mojave amber lens pack (combo, flood and spot) with O-ring

Tech Specs: Replacement amber lens for TLM2x3

TLM2X3-OR 2" x 3" Mojave Replacement O-Ring

Includes: 2" x 3" Mojave light O-ring seal

Tech Specs: Replacement O-ring for TLM2X3

TLM2X3-KIT LED 2" x 3" Mojave Series Light Kit

Lumens: 2000

Watt: 20

Amps: 1.800

Light Pattern: Spot/Flood

Dimensions: 3" W x 2 1/4" HT x 2" D

Volt: 12-24

Includes: Two TLM2X3 2x3" LED Mojave lights and TLMWH2 wiring harness

Tech Specs: Two lights with 3 lenses each

LED MOJAVE SERIES LIGHTS

CONT.

TLM3-FM LED 3" Flush Mount Mojave Series Light

Lumens: 3000

Watt: 40

Amps: 3.300

Light Pattern: Spot/Flood

Dimensions: 4 3/4" W x 3 1/2" HT x 3" D

Volt: 12-24

Includes: Flood lens, spot lens, combo lens, stainless steel hardware and pigtail

Tech Specs: One light with 3 lenses

TLM3-FM-KIT LED 3" Flush Mount Mojave Series Light Kit

Lumens: 3000

Watt: 40

Amps: 3.300

Light Pattern: Spot/Flood

Dimensions: 4 3/4" W x 3 1/2" HT x 3" D

Volt: 12-24

Includes: Two TLM3-FM 3" flush mount Mojave LED lights and TLMWH2

wiring harness

Tech Specs: One light with 3 lenses each

TLM3 LED 3" Mojave Series Light

Lumens: 3000

Watt: 40

Amps: 3.300

Light Pattern: Spot/Flood

Dimensions: 3 3/4" W x 3 3/4" HT x 3" D

Volt: 12-24

Includes: Flood lens, spot lens, combo lens, stainless steel hardware, stainless steel bracket and pigtail

Tech Specs: One light with 3 lenses

TLM-LC3 Lens Cover for 3" Mojave Light Clear Lens

Dimensions: 3 1/4" W x 3 1/4" L x 1" HT

TLM-LC3-A Lens Cover for 3" Mojave Light

Dimensions: 1/4" W x 3 1/4" L x 1" HT

TLM3-ALP 3" Mojave Amber Lens Pack with O-Ring

Includes: 3" Mojave amber lens pack (combo, flood and spot) with O-ring

Tech Specs: Replacement amber lens for for TLM3 and TLM3-FM, 3" Mojave LED light and flush mount

TLM3-OR 3" Mojave Replacement O-Ring

Includes: 3" Mojave light O-ring seal

Tech Specs: Replacement O-ring for TLM3 and TLM3-FM

TLM3-KIT LED 3" Mojave Series Light Kit

Lumens: 3000

Watt: 40

Amps: 3.300

Light Pattern: Spot/Flood

Dimensions: 3 3/4" W x 3 3/4" HT x 3" D

Volt: 12-24

Includes: Two TLM3 3" Mojave LED lights, and TLMWH2 wiring harness

Tech Specs: One light with 3 lenses each

LED MOJAVE SERIES LIGHTS CONT.

TLM4 LED 4" Mojave Series Light

Lumens: 5000

Watt: 50

Amps: 4.160

Light Pattern: Spot/Flood

Dimensions: 5" W x 5" HT x 3 1/2" D

Volt: 12-24

Includes: Clear and amber lens cover, stainless steel hardware, stainless steel bracket and pigtail

TLM4-ALC 4" Mojave Amber Lens with O-Ring

Includes: 4" amber combo lens and O-ring

Tech Specs: Replacement amber lends for TLM4

TLM5 LED 5" Mojave Series Light

Lumens: 6000

Watt: 70

Amps: 5.800

Light Pattern: Spot/Flood

Dimensions: 6" W x 6" HT x 4" D

Volt: 12-24

Includes: Clear and amber lens cover, stainless steel hardware, stainless steel bracket and pigtail

TLM4-OR 4" Mojave Replacement O-Ring

Includes: 4" Mojave light O-ring seal

Tech Specs: Replacement O-ring for TLM4

TLM5-ALC 5" Mojave Amber Lens with O-Ring

Includes: 5" amber combo lens and O-ring

Tech Specs: Replacement amber lens for TLM5

TLM4-KIT LED 4" Mojave Series Light Kit

Lumens: 5000

Watt: 50

Amps: 4.160

Light Pattern: Spot/Flood

Dimensions: 5" W x 5" HT x 3 1/2" D

Volt: 12-24

Includes: 2 TLM4 4" Mojave LED lights, 2 TLM4-LC 4" lens covers and TLMWH3 wiring harness

TLM5-OR 5" Mojave Replacement O-Ring

Includes: Mojave light O-ring seal

Tech Specs: Replacement O-ring for TLM5

TLM5-KIT LED 5" Mojave Series Light Kit

Lumens: 6000

Watt: 70

Amps: 5.800

Light Pattern: Spot/Flood

Dimensions: 6" W x 6" HT x 4" D Volt: 12-24

Includes: 2 TLM5 5" Mojave LED lights, 2 TLM5-LC 5" lens covers and TLMWH3 wiring harness

LED MOJAVE SERIES LIGHTS CONT.

TLM8 LED 8" Mojave Series Light

Lumens: 13000

Watt: 150

Amps: 12.500

Light Pattern: Spot/Flood

Dimensions: 9" W x 9" HT x 5" D

Volt: 12-24

Includes: Clear and amber lens cover, stainless steel hardware, stainless steel bracket and pigtail

Tech Specs: Biggest light in the series

TLM8-ALC 8" Mojave Amber Lens with O-Ring

Includes: 8" amber combo lens and O-ring

Tech Specs: Replacement amber lens for TLM8

TLM8-OR 8" Mojave Replacement O-Ring

Includes: 8" Mojave light O-ring seal

Tech Specs: Replacement O-ring for TLM8

TLM8-KIT LED 8" Mojave Series Light Kit

Lumens: 13000

Watt: 150

Amps: 12.500

Light Pattern: Spot/Flood

Dimensions: 9" W x 9" HT x 5" D

Volt: 12-24

Includes: 2 TLM8 8" Mojave LED lights, 2 TLM8-LC 8" lens covers and TLMWH3 wiring harness

Tech Specs: Biggest light in the series

LED Mojave Series Lens Cover

TLM4-LC LED Mojave Series Lens Cover

TLM5-LC LED Mojave Series Lens Cover

LED Mojave Series Lens Cover

WIRE HARNESSES WITH LARGE ROCKER SWITCHES

TLWH1 Wire Harness

Tech Specs: Wire harness with single Deutsch connectors; can fit any light

Relay to Battery Terminals: 22"

Relay to Switch: 102"

Relay to Light Plug: 100"

Includes: Deutsch connector (one light), inline fuse, relay and switch Volt: 12-24

TLMWH2 Wire Harness

Tech Specs: Rocker switch fits into most UTV factory knock outs; can fit any light with 2 pin Deutsch connector

Relay to Battery Terminals: 22"

Relay to Switch: 102"

Relay to Light Plug: 100"

Includes: 2 Deutsch connectors, inline fuse, relay and large rocker switch Volt: 12-24

TLMWH1 Wire Harness

Tech Specs: Rocker switch fits into most UTV factory knock outs; can fit any light with 2 pin Deutsch connector

Relay to Battery Terminals: 22"

Relay to Switch: 102"

Relay to Light Plug: 100"

Includes: Deutsch connector, inline fuse, relay and large rocker switch Volt: 12-24

TLMWH3 Wire Harness

Tech Specs: First position: Amber back lighting; Second position: Off; Third position: Work light on (no back lighting); rocker switch fits into most UTV factory knock outs; designed to work with 4", 5" and 8" Mojave Series LED lights

Relay to Battery Terminals: 22"

Relay to Switch: 102"

Relay to Light Plug: 100"

Includes: Two 4 pin Deutsch connectors, inline fuse, relay and large 3-way rocker switch Volt: 12-24

UNIVERSAL LIGHTS

TL205F LED Square Flood Beam

Lumens: 1350

Watt: 108

Amps: 1.500

Light Pattern: Flood

Dimensions: 3" W x 3" L

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

TL118S LED Spot Light

Lumens: 1300

Watt: 18

Amps: 1.500

Light Pattern: Spot

Dimensions: 1 3/4" W x 6 1/4" L

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

TL906F LED Single Flood Beam

Lumens: 1000

Watt: 10

Amps: 0.800

Light Pattern: Flood

Dimensions: 2 1/8" Dia.

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

TL130F LED Rectangular Flood Light

Lumens: 3500

Watt: 55

Amps: 4.500

Light Pattern: Flood

Dimensions: 6" W x 4" L

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

TL118F LED Flood Light

Lumens: 1300

Watt: 18

Amps: 1.500

Light Pattern: Flood

Dimensions: 1 3/4" W x 6 1/4" L

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

TL150 50W Round LED Work Light with Swivel Mount

Lumens: 3500

Amps: 4.100

Dimensions: 4" W x 1/2" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Built in Deutsch connector; comes with a mating pigtail; excellent flood light coverage with an even pattern; unique swivel mount that can spend 360°, allowing it to achieve better angles

UNIVERSAL LIGHTS CONT.

TLROPSKIT-1 Universal LED ROPS

Light Kit

Lumens: 2750

Watt: 36

Amps: 53

Light Pattern: Flood

Volt: 12-24

Includes: Two TL205F LED pod lights, two ROPS mounting brackets, two 3" wide U-bolts, two 2" wide U-bolts, universal wiring harness and hardware

Tech Specs: Bracket will mount on ROPS with dimensions 2" x 2", 1.5" x 3" and 2" x 3"; note: this kit is universal, depending on location of battery, extending wiring harness may be needed; switch will fit into existing knock-outs on equipment, if applicable; mounts two LED lights onto existing ROPS for zero-turn mowers and compact tractors

TL100R LED Round Spot Beam

Lumens: 1400

Watt: 27

Amps: 2.200

Light Pattern: Spot

Dimensions: 4 1/4" Dia.

Volt: 12-24

TL100S LED Square Spot Beam

Lumens: 1400

Watt: 27

Amps: 2.200

Light Pattern: Spot

Dimensions: 4 1/4" W x 4 1/2" L

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

TL105F LED Work Light Flood Beam

Lumens: 2650

Watt: 48

Light Pattern: Flood

Dimensions: 4 1/2" W x 4 1/2" L

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

TL115F LED Work Light Flood Beam

Lumens: 2650

Watt: 42

Amps: 3.500

Light Pattern: Flood

Dimensions: 4 1/4" Dia.

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

TL180

LED Round Flood Beam

Lumens: 3200

Watt: 40

Amps: 3.300

Light Pattern: Flood

Dimensions: 5" Dia.

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

TL200F LED Square Flood Beam

Lumens: 900

Watt: 16

Amps: 1.200

Light Pattern: Flood

Dimensions: 3" W x 6" L

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

UNIVERSAL LIGHTS CONT.

TL800 LED High/Low Beam

Lumens: 3600

Watt: 48

Amps: 4

Light Pattern: Spot/Flood

Dimensions: 6" W x 4" L Volt: 9-32

Includes: Connector

Tech Specs: Fits most 4" x 6" equipment lights

DRIVING LIGHTS

TL810 LED Driving Light

Lumens: High beam 3700

Watt: 35

Amps: 2.900

Light Pattern: Spot/Flood Volt: 9-32

Includes: H4 connector

Tech Specs: Fits most 5" x 7" equipment lights

TL805 LED High/Low Beam

Lumens: 2800

Watt: 20

Amps: 2

Light Pattern: Spot/Flood

Volt: 9-32

Tech Specs: Fits most 4" x 6" equipment lights

Replaces bulbs in Kubota L4651, L4652, L4610 and L4630

LIGHT BARS

TL6SRC LED 6" Single Row Light Bar

Lumens: 3400

Watt: 30

Amps: 2.500

Light Pattern: Spot/Flood

Dimensions: 3 1/2" W x 7" L x 1 1/2" D

Volt: 12-24

Includes: Connector, adapter and stainless steel hardware

TL10SRC LED 10" Single Row Light Bar

Lumens: 5700

Watt: 50

Amps: 4.200

Light Pattern: Spot/Flood

Dimensions: 3 1/2" W x 11" L x 1 3/4" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

TL20SRC LED 20" Single Row

Light Bar

Lumens: 11300

Watt: 100

Amps: 8.300

Light Pattern: Spot/Flood

Dimensions: 3 1/2" W x 11" L x 1 3/4" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

TL30SRC LED 30" Single Row Light Bar

Lumens: 13600

Watt: 150

Amps: 12.500

Light Pattern: Spot/Flood

Dimensions: 3 1/2" W x 31" L x 1 1/2" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

TL40SRC LED 40" Single Row Light Bar

Lumens: 17300

Watt: 200

Amps: 16.700

Light Pattern: Spot/Flood

Dimensions: 3 1/2" W x 41" L x 1 1/2" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

TLB400C LED 8" Double Row Light Bar

Lumens: 2650

Watt: 36

Amps: 3

Light Pattern: Flood Dimensions: 3 1/2" W x 8" L x 3" D Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: 3 watt, high-intensity bulbs; die-aluminum housing, dust and waterproof; poly carbonate lens

TLB410C LED 14" Double Row Light Bar

Lumens: 5400

Watt: 72

Amps: 6

Light Pattern: Spot/Flood

Dimensions: 3 1/2" W x 14" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: 3 watt, high-intensity bulbs; die-aluminum housing, dust and waterproof; poly carbonate lens

LIGHT BARS

TLB420C LED 22" Double Row Light Bar

Lumens: 7200

Watt: 120

Amps: 10

Light Pattern: Spot/Flood

Dimensions: 3 1/2" W x 22" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: 3 watt, high-intensity bulbs; die-aluminum housing, dust and waterproof; poly carbonate lens

TLB420C-CURV LED 22" Double Row Curved Light Bar

Lumens: 7200

Watt: 120

Amps: 10

Light Pattern: Spot/Flood

Dimensions: 3 1/2" W x 22" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: 3 watt, high-intensity bulbs; die-aluminum housing, dust and waterproof; poly carbonate lens

TLB430C LED 32" Double Row Light Bar

Lumens: 9900

Watt: 180

Amps: 15

Light Pattern: Spot/Flood

Dimensions: 3 1/2" W x 32" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: 3 watt, high-intensity bulbs; die-aluminum housing, dust and waterproof; poly carbonate lens

TLB430C-CURV

LED 32" Curved Double Row Light Bar

Lumens: 9900

Watt: 180

Amps: 15

Light Pattern: Spot/Flood

Dimensions: 3 1/2" W x 32" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: 3 watt, high-intensity bulbs; die-aluminum housing, dust and waterproof; poly carbonate lens

TLB440C

LED 42" Double Row Light Bar

Lumens: 14500

Watt: 240

Amps: 19

Light Pattern: Spot/Flood

Dimensions: 3 1/2" W x 42" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: 3 watt, high-intensity bulbs; die-aluminum housing, dust and waterproof; poly carbonate lens

TLB440C-CURV LED 42" Curved Double Row Light Bar

Lumens: 14500

Watt: 240

Amps: 19

Light Pattern: Spot/Flood

Dimensions: 3 1/2" W x 42" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: 3 watt, high-intensity bulbs; die-aluminum housing, dust and waterproof; poly carbonate lens

LIGHT BARS

TLB450C LED 50" Double Row

Light

Bar

Lumens: 21000

Watt: 288

Amps: 24

Light Pattern: Spot/Flood

Dimensions: 3 1/2" W x 52" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: 3 watt, high-intensity bulbs; die-aluminum housing, dust and waterproof; poly carbonate lens

TL1200-1 LED Amber Light Bar

Light Pattern: Flashing

Dimensions: 8 1/4" W x 14" L

Volt: 10-30

Tech Specs: Multiple flash pattern, 360 flashing, magnet mount/bracket mount

TLB450C-CURV LED 50" Curved Double Row Light Bar

Lumens: 21000

Watt: 288

Amps: 24

Light Pattern: Spot/Flood

Dimensions: 3 1/2" W x 52" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: 3 watt, high-intensity bulbs; die-aluminum housing, dust and waterproof; poly carbonate lens

TLKB3 Light Bar Kit

Lumens: 13600

Watt: 90

Amps: 7.500

Light Pattern: Spot/Flood

Dimensions: 3 1/2" W x 31" L x 1 1/2" D

Volt: 12-24

Includes: 30" single row light bar (13,600 lumen), wire harness made for the Kubota RTV 900, brackets, all mounting hardware and instructions

Tech Specs: Must have factory cab; Plugs into existing wire harness

Fits Models: Kubota UTVs 900, 1100

TL1500-1 LED Amber Light Bar

Light Pattern: Flashing

Dimensions: 5 1/2" W x 47" L x 7 7/8" D

Volt: 12-24

Includes: Controller

Tech Specs: Low profile design, 28 patterns and 360 lighting, Bright 3 watt LED’s, 1 1/2" thick light bar

TLC26 LED Chase Light Bar

Watt: 120

Amps: 10

Dimensions: 26" L

Volt: 12-24

TLC32 32" UTV Chase Light

Dimensions: 32" L

Volt: 12-24

RECHARGEABLE LIGHTS

TL2460 Rechargeable LED Magnetic Work Light and Flashing Amber

Lumens: 1000

Light Pattern: Flood/Flashing

Dimensions: 3 3/8" W x 3 3/8" L x 4" base W

Volt: 12-24

Includes: Cigarette lighter and DC

charger

Tech Specs: 4 light modes: low power, high power, S.O.S. pattern and flashing amber light; improved bracket, making it easier to adjust the light; Rechargeable LED with replaceable Lithium Ion battery; up to 4 hours of use on a single charge

HIGH BAY LIGHTS

120° pattern and can run on AC100-277V 150W high bay light has 5700k (pure white)

UL approved

IP65 rating and R0HS compliant

TLHB-150W

LED High Bay Light

Lumens: 20250

Watt: 150

Light Pattern: Flood Dimensions: 13" Dia. Volt: 110-220

TL2560 Portable LED Magnetic Warning Light and Flashlight

Light Pattern: Flood/Flashing

Dimensions: 3 15/16" W x 6 9/32" L x 1 21/32" HT

Volt: 12-24

Includes: 4 AA batteries

Tech Specs: 360° illumination; Battery operated; Strong magnetic back for static applications; Weather resistant, rugged and durable; 7 flashing modes: red solid, red strobing, red wig-wag, amber solid, amber strobing, amber wig-wag and white solid

STREET LIGHTS

TLSL-150W LED Street Light

Lumens: 20250

Watt: 150

Light Pattern: Flood

Volt: 110-220

Tech Specs: Each lamp requires a mounting bracket, TLSL-Mount (up to 2.5" slip mount) or TLS-Square-Mount (square pole mount; excellent fixture to mount on a pole or an exterior building, light up driveways, parking lots, etc.; has a 5700k (pure white), UL approved, IP66 rating and RoHS compliant

TLHB-200W

LED High Bay Light

Lumens: 27000

Watt: 200

Light Pattern: Flood Dimensions: 13" Dia. Volt: 110-220

TLS-SQUARE-MOUNT Street Light Square Mount

Tech Specs: Used to mount street light on flat surfaces

WARNING LIGHTS

Multiple flash pattern, 360° flashing

Powerful magnetic base/solid mount

TL2000-1 LED Amber Warning Beacon

Watt: 48

Amps: 54

Light Pattern: Flood/Flashing

Dimensions: 10" L x 5" Dia.

Volt: 12-24

Tech Specs: 3 patterns; 360 lighting; multiple brackets available; to switch patterns, unscrew the orange lens and there will be 3 switches that are used to change patterns; Watt and amps are rated at max, values change depending on light pattern

BK-3 Amber Beacon Bracket

For: #3 for TL2000

TL2100 LED Warning Beacon

Light Pattern: Flood/Flashing

Dimensions: 5 1/4" L x 2 3/4" Dia.

Volt: 12-24

Includes: Stainless steel hardware and mounting pad

Tech Specs: 360 flash pattern, solid mount; durable polycarbonate lens and housing

TL1400 LED 360° Multi

Function Amber Light Bar

Light Pattern: Flashing

Dimensions: 11 3/4" W x 34 1/4" L x 3 3/4" D

Volt: 12-24

Includes: Controller, wiring harness and mounting brackets

Tech Specs: 1 1/2" thick light bar; 17 patterns, 360° lighting; bright 3 watt LEDs; low profile design

BK-8 Amber Beacon Bracket

For: #8 for TL2000

TLFL1 LED Marker and Flasher Light

Light Pattern: Flood/Flashing

Dimensions: 2 3/8" W x 5 1/4" L x 2" D

Volt: 12-24

Tech Specs: Sold individually; solid aluminum housing and durable polycarbonate lens

TLFL5 LED Blue Work Light

Lumens: 2650

Watt: 42

Amps: 3.500

Light Pattern: Spot

Dimensions: 4 1/2" W x 4 1/4" L x 3" D

Volt: 12-24

Includes: Stainless steel hardware and mounting bracket

Tech Specs: Shines a bright blue light; works great mounted to a sprayer to see the spray pattern

ACCESSORIES LED LIGHTS

LED BULB CONVERSION KITS

• 10,000+ hours lifespan

• 6000 Kelvin color temperature and 360° heat dissipation

• Engineered for a simple and quick installation

• Put into place in no time with no painful rewiring or soldering needed

• Plug it in directly into your car's factory harness

• Some applications in Chrysler, Dodge and Jeep have been known not to operate the light successfully

• These applications will require a Canbus Relay, please contact customer service for these makes

• These bulbs may not work in every application, the heat sink on the back of the light may not fit into compact housings, so the heat sink will stick out about 2" from the back of the housing

• INCLUDES: Two LED light bulbs, two Plug and Play controllers with harnesses and hardware

TLHL-9004 LED Bulb Conversion Kit

Lumens: 1400

Watt: 16

Amps: 1.200 Volt: 12

TLHL-9005 LED Bulb Conversion Kit

Lumens: 1400

Watt: 16

Amps: 1.200 Volt: 12

TLHL-9012 LED Bulb Conversion Kit

Lumens: 1400

Watt: 16

Amps: 1.200

Volt: 12

TLHL-9007 LED Bulb Conversion Kit

Lumens: 1400

Watt: 16

Amps: 1.200

Volt: 12

TLHL-H4 LED Bulb Conversion Kit

Lumens: 1400

Watt: 16

Amps: 1.200

Volt: 12

TLHL-H7 LED Bulb Conversion Kit

Lumens: 1400

Watt: 16

Amps: 1.200

Volt: 12

LED BULB CONVERSION KITS

TLHL-H11 LED Bulb Conversion Kit

Lumens: 1400

Watt: 16

Amps: 1.200 Volt: 12

HARNESSES

TLHL-H13 LED Bulb Conversion Kit

Lumens: 1400 Watt: 16

Amps: 1.200 Volt: 12

TLPB1 Pigtail Harness

Dimensions: 6" L

Tech Specs: Pigtail harness plugs into bus bar of Polaris UTVs

TLHL-H16 LED Bulb Conversion Kit

Lumens: 1400 Watt: 16

Amps: 1.200

Volt: 12

TLHL-880 LED Bulb Conversion Kit

Lumens: 1400 Watt: 16

Amps: 1.200

Volt: 12

TLHL-H3 LED Headlight Conversion Kit

Lumens: 1400 Watt: 16

Amps: 1.200 Volt: 12

TLPH1 Power Harness

Tech Specs: Polaris tail light power harness, plugs inline with tail lights to provide a power wire

LED ROCKER SWITCHES

TLSW2-B LED Rocker Switch

Color: Blue

Tech Specs: Works with most wire harnesses

Hole cut-out size: 1 3/8" x 13/16" Volt: 12-24

TLSW2-G LED Rocker Switch

Color: Green

Tech Specs: Works with most wire harnesses

Hole cut-out size: 1 3/8" x 13/16" Volt: 12-24

TLSW2-O LED Rocker Switch

Color: Orange

Tech Specs: Works with most wire harnesses

Hole cut-out size: 1 3/8" x 13/16" Volt: 12-24

TLSW2-R LED Rocker Switch

Color: Red

Tech Specs: Works with most wire harnesses

Hole cut-out size: 1 3/8" x 13/16" Volt: 12-24

TLSW3-B LED Rocker Switch

Color: Blue

Tech Specs: 3 position on/off/on

Hole cut-out size: 1 3/8" x 13/16"

Volt: 12-24

WARRANTY INFORMATION

LIMITED LIFETIME WARRANTY

• Tiger Lights warrants that any good shall be free from defects in material or workmanship under normal use and service for 25,000 hours or the lifetime of the product.

• This express limited warranty does not apply where there has been a failure of goods due to alteration, repair, misuse, improper installation, neglect or accident.

• Products may not be used in a racing application.

• If any part or product sold or distributed by is covered by any manufacturer’s warranty or any other separate or independent warranty supported by the part or products distributor or licensor/licensee, then that warranty shall be the sole and exclusive warranty for the part or product — neither the Express Limited Warranty, Limited Lifetime Warranty nor any other Warranty shall apply.

• The direct customer will be reimbursed for the reasonable charges incurred in replacing any goods sold by the vendor if the item is found to be defective.

CUSTOMER RESPONSIBILITIES AND LIMITATION OR REMEDIES

• The customer is responsible for all transportation costs associated with the examination, inspection, repair or replacement of defective goods.

• Damages will not exceed purchase price (not including tax) of what was paid for the goods.

EXCLUSION OF OTHER WARRANTIES

• Except as provided above, Tiger Lights makes no other express or implied warranties of any kind, including but not limited, to merchantability or fitness for a particular purpose.

• Verbal statements about goods by sales personnel or representatives do not constitute warranties and are not part of Tiger Lights Warranties.

EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

• Tiger Lights shall not be liable for any incidental or consequential damages that the consumer alleges that his/ her equipment may have suffered as a result of the purchase and/or use of Tiger Lights goods.

• This exclusion of liability for incidental and consequential damages includes, but is not limited to, claims for lost profits, any costs or expenses for labor, transportation or other expenses incurred by reason of the use of sale of any defective goods.

• Warranties give specific legal rights, and other rights may vary by state, as some states do not allow the exclusion of warranties and incidental or consequential damages, or limitations of remedies.

PRODUCT LIABILITY

• All Tiger Lights products are automatically covered by a comprehensive liability policy for both bodily injury and property damage.

CLAIM PROCESS

• If a Tiger Lights customer believes they have purchased defective goods from Tiger Lights as described, they should notify Tiger Lights via phone, email or fax, fully informing the company why the goods are believed to be defective.

• The original receipt or invoice must be provided as proof of purchase.

• Tiger Lights will either request a return of the defective goods to Tiger Lights for inspection or will rely on the information provided to determine if the goods are defective as described above.

• If any item is proven to be defective, Tiger Lights, at its option, will repair or replace the defective product, refund the purchase price excluding sales tax or issue a customer account credit toward the purchase of future items.

FORCE MAJEURE

• Tiger Lights shall be under no obligation to perform any contract when performance is prevented by fire, strike, labor dispute, war, embargo, transportation delay or failure, material shortages, supplier default, government intervention or act of God, or for any other cause beyond the control of Tiger Lights.
