Ball Valves

Next Article
Arrowhead FAQs

Arrowhead FAQs

BVS series BVF series BVR series

BVX series

BVU series

BVC series

BVP series

BVP series

BV3DF series

BVDS series

• Full-port, forged lead-free brass construction. NSF/ ANSI 61 certified Lead-free by IAPMO

• Two-part brass body with chrome-plated solid brass ball and QuickTurn operation

Features

• BVS & BVF series are certified to IAPMO/ANSI Z1152014e1 and NSF/ANSI 14-2010a.cUPC, NSF61, CSA, UL, and FM approved

• Two-part brass body with chrome-plated solid brass ball and QuickTurn operation

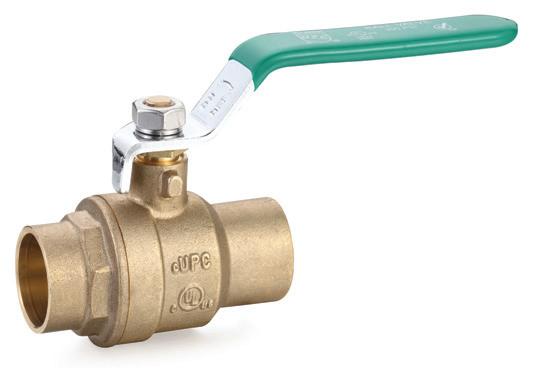

• BVS Series comply with ANSI B16.18 max pressure: 600 PSI Non-Shock WOG (1/2" to 2" models), 400 PSI Non-Shock WOG (2-1/2" models to 3" models), max temp: 300° F

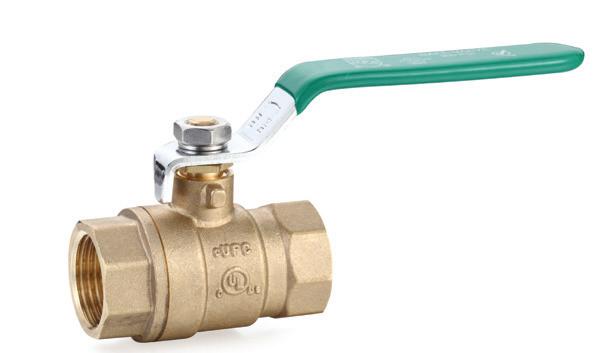

• BVF series comply with ANSI B1.20.1 max pressure: 600 PSI Non-Shock WOG (1/2" to 2" models) 400 PSI pressure Non-Shock WOG(2-1/2" to 3" models): max temp: 300° F

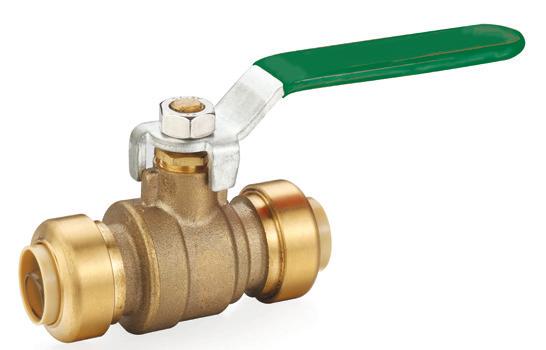

• BVR series: Push-Fit connections certified to ASSE 1061. max pressure: 232 PSI: max temp: 203° F. For water use only

• 3-year limited warranty

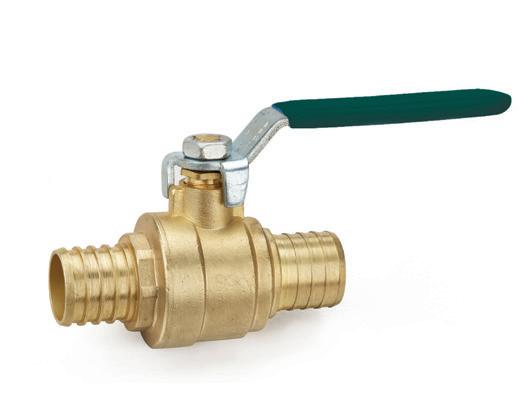

• BVX series: ASTM F1807 PEX Connections max pressure: 400 PSI: max temp: 200° F

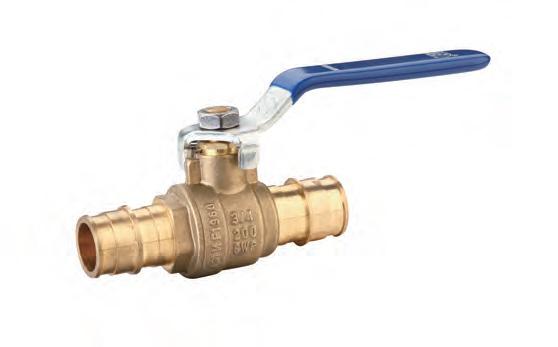

• BVU series: ASTM F1960 Expansion PEX Connections. max pressure: 400 PSI: max temp: 200° F

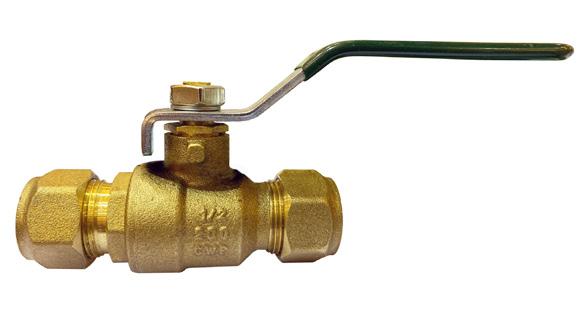

• BVC series: copper compression connection, max pressure: 200 PSI: max temp: 300° F

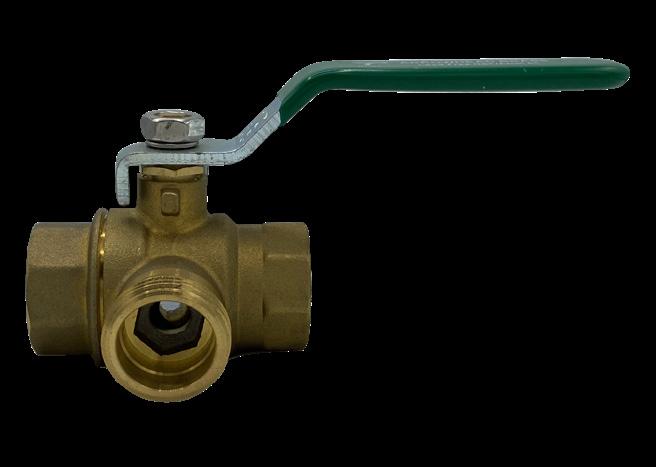

• BV3DF and BV3DS series 3-way ball valves are NSF/ANSI 372 certified

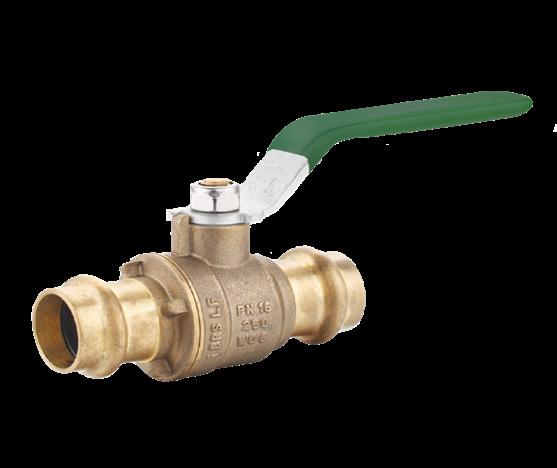

• BVP series: Copper Press-Fit connections- works with a variety of press-fit tools. max pressure: 250 PSI: max temperature: 203° F

• For water use only

• 3-year limited warranty
