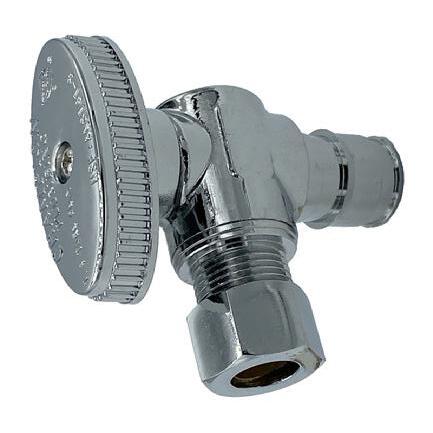

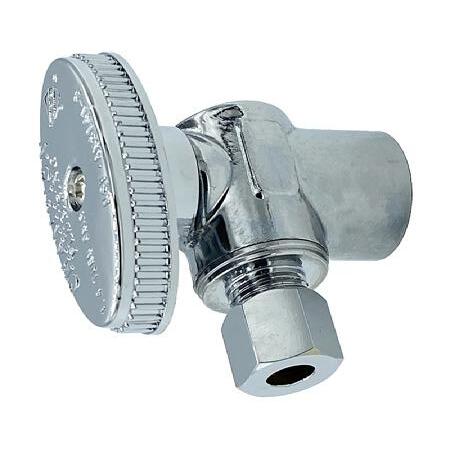

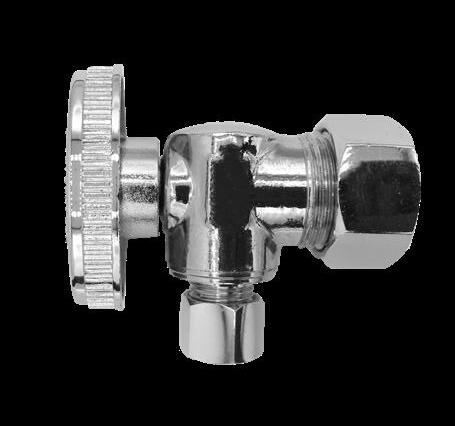

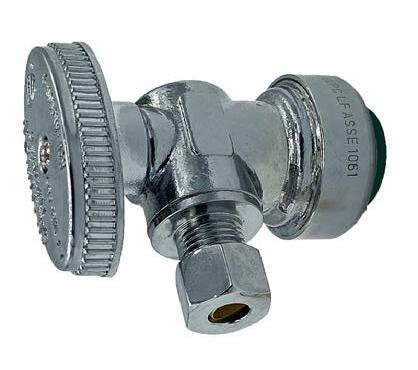

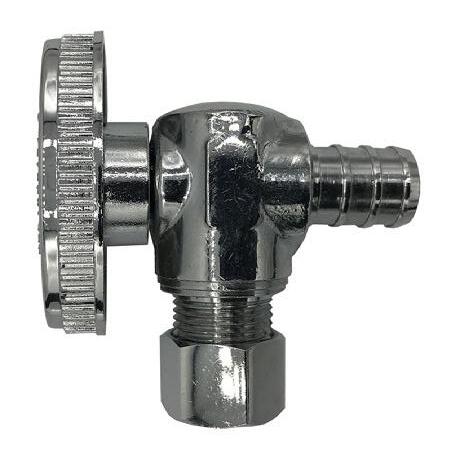

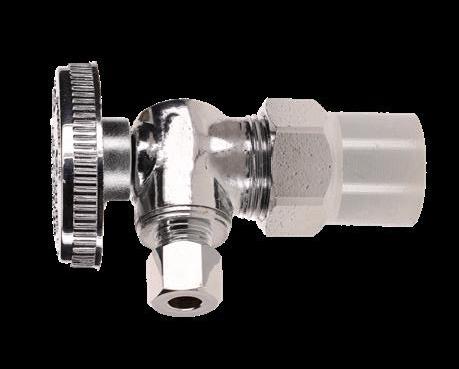

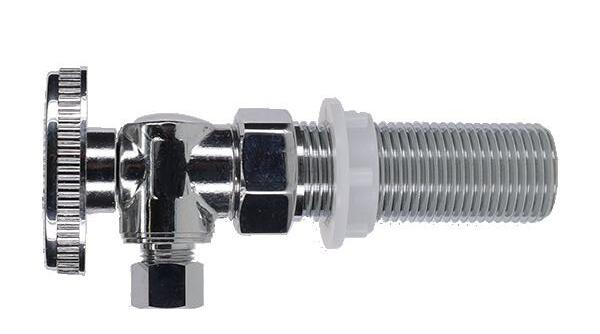

Angle Supply Stop Valves

Features

• Forged lead-free chrome-plated brass construction

• NSF/ANSI 61 certified by IAPMO

• QuickTurn® 1/4 turn operation

• Suitable for water supply valves for toilets, sinks, and more

• Max pressure: 125 PSI

• Max temperature: 160° F base model AS50C25C AS50C37C description 5/8" OD x 1/4" OD compression, LF

5/8” OD x 3/8” OD compression, LF base model AS50F25C AS50F37C description 1/2" FIP x 1/4" OD compression, LF

1/2" FIP x 3/8" OD compression, LF weight (lbs) 0.20 0.20 base model AS50S25C AS50S37C description 1/2" SWT x 1/4" OD compression, LF

1/2" SWT x 3/8" OD, compression, LF weight (lbs) 0.18 0.18 base model AS50P25C AS50P37C description 1/2" CPVC x 1/4" OD compression, LF

1/2" CPVC x 3/8" OD compression, LF weight (lbs) 0.26 0.26 base model AS50X25C AS50X37C description 1/2" PEX x 1/4" OD compression, LF

1/2" PEX x 3/8" OD compression, LF weight (lbs) 0.17 0.17
