4.5 Serial Views

1

Figure 4.14. Location of the serial views. By Author

3

2

4

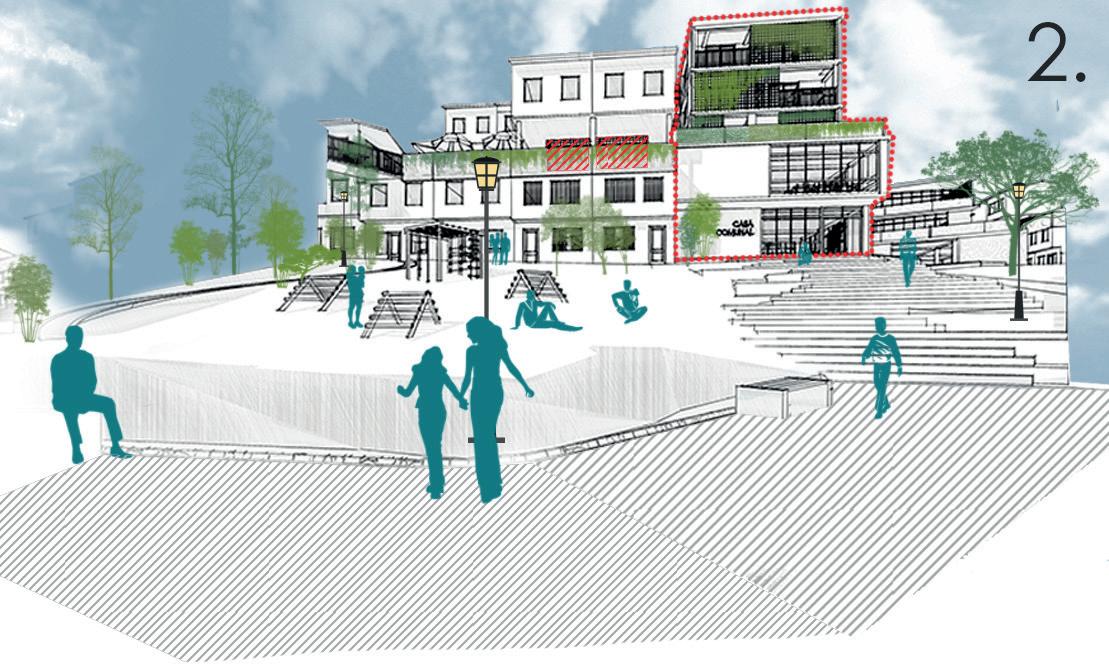

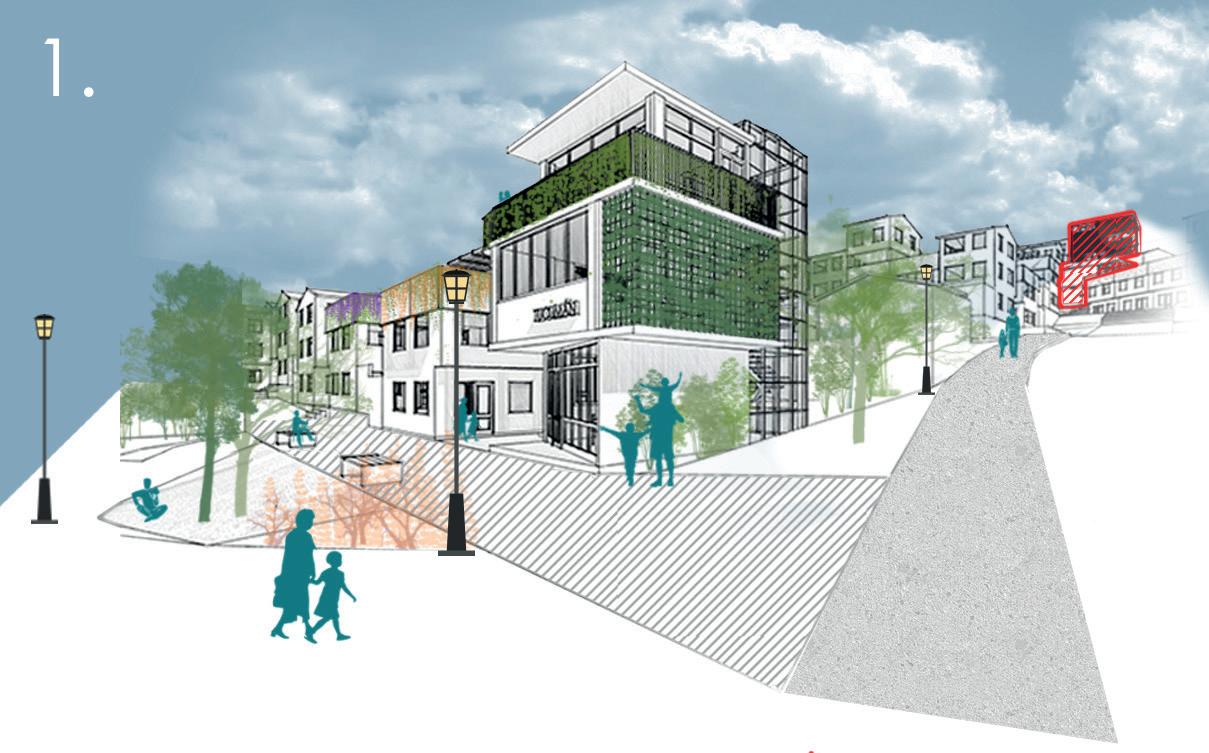

Figure 3.14 indicates the location of a serial view of a small route, but it shows important points for example in the first image, there’s the two multipurpose buildings, meaning that from the bottom block it can be seen at the distance, the next building “La Floresta”. The second view shows la Floresta building with its public space that it’s the existing playground redesigned, which remains with the same function because it’s the only space dedicated to that activity and is the only larger space that kids can use inside of Miraflores. From the second view it can be seen the connection between the housing unit and its extension, showing how the roofs will be used as an extended area welcoming diverse activities. 77
