Lego Building Model

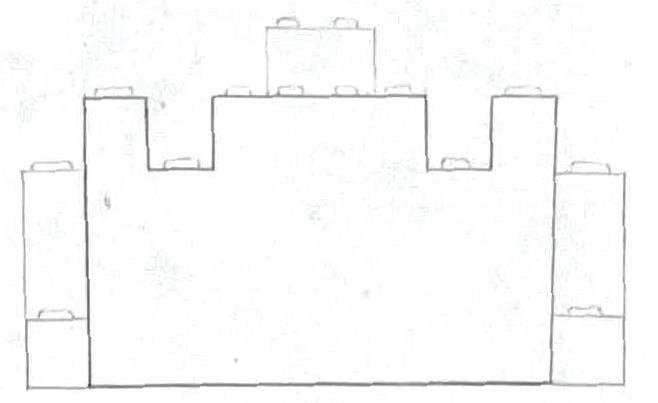

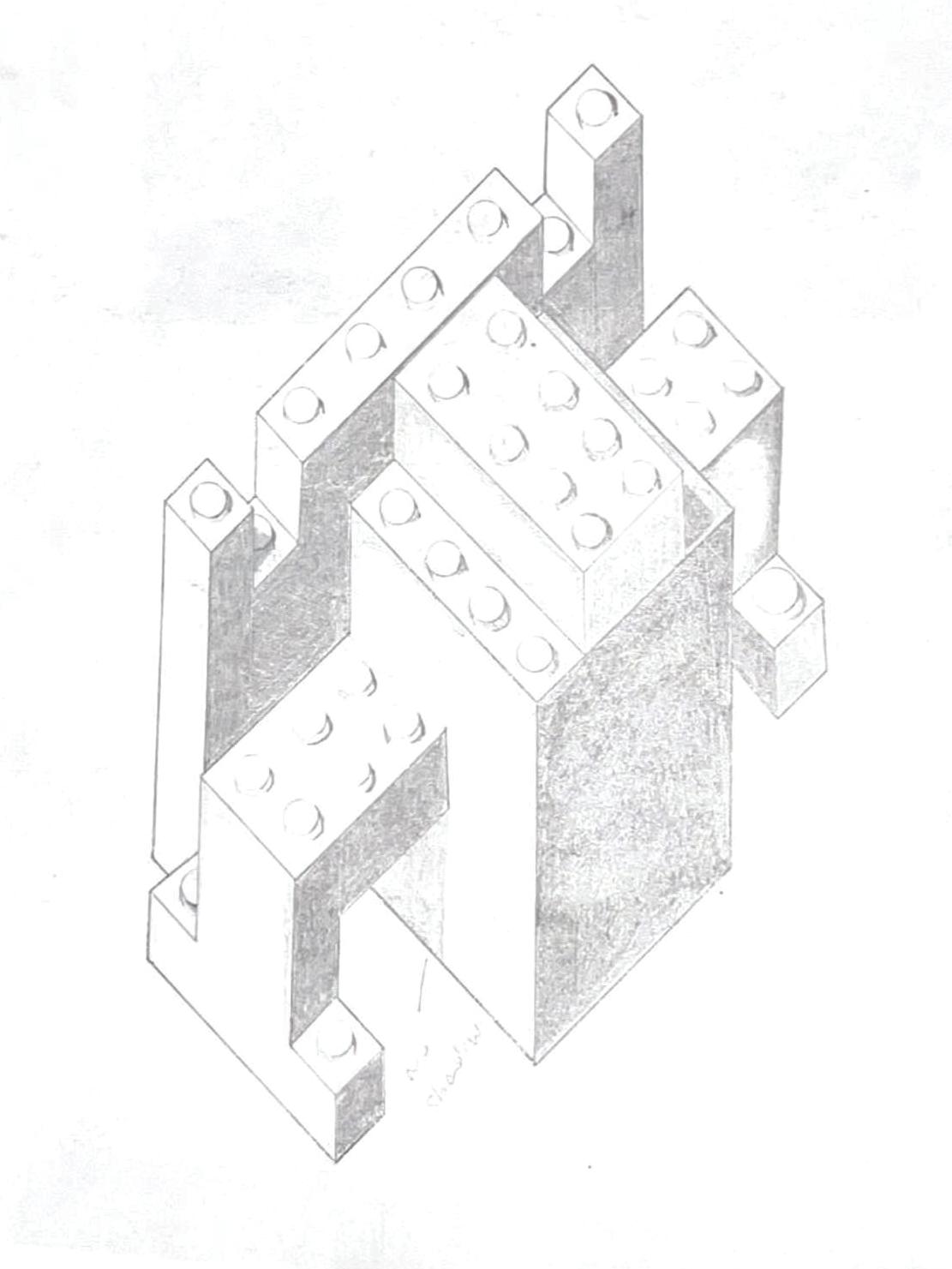

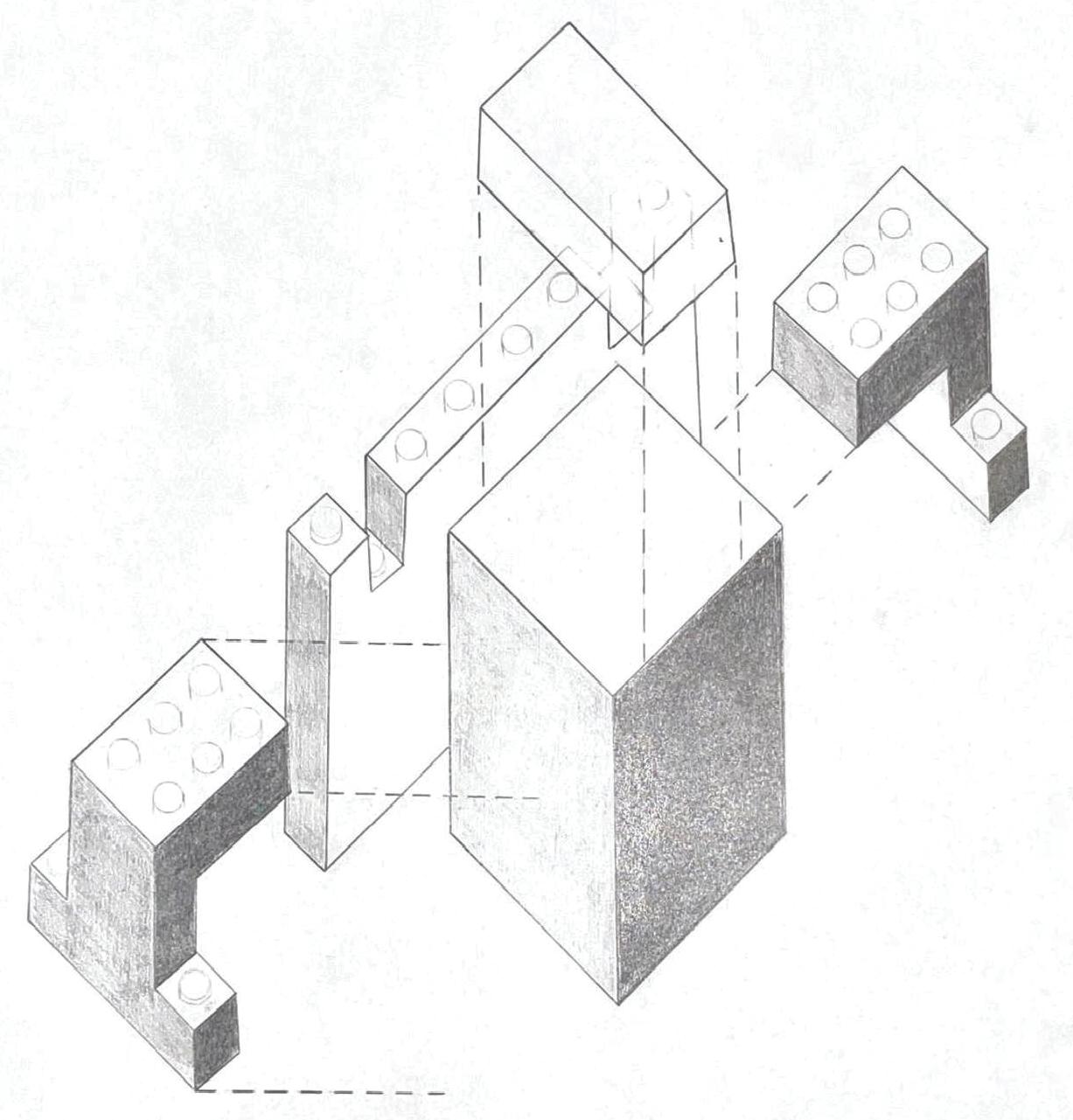

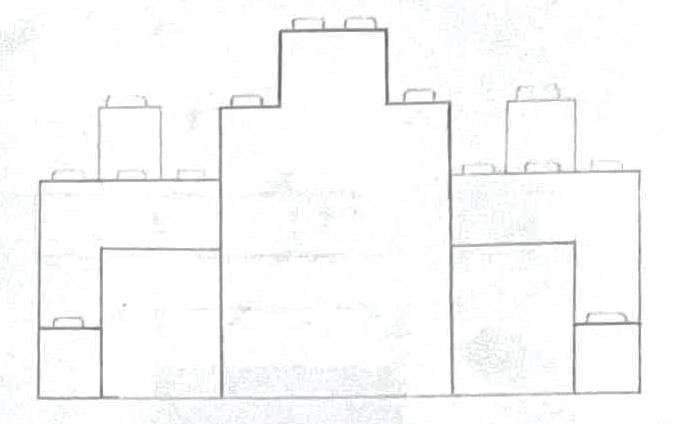

The purpose of this project was to teach us the basics when it comes to architectural drafting. We created a lego model and drew an elevation along with a regular isometric perspective and exploded isometric drawing.

Project Medium: Vellum Professor Anastasia Chybireva Arch 1341 - Fall 2019
