Nine Square Tangram

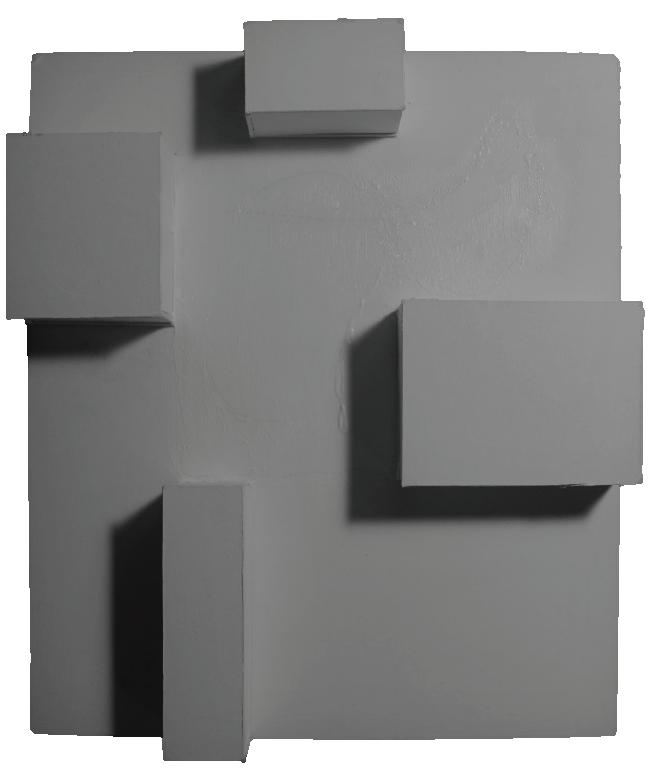

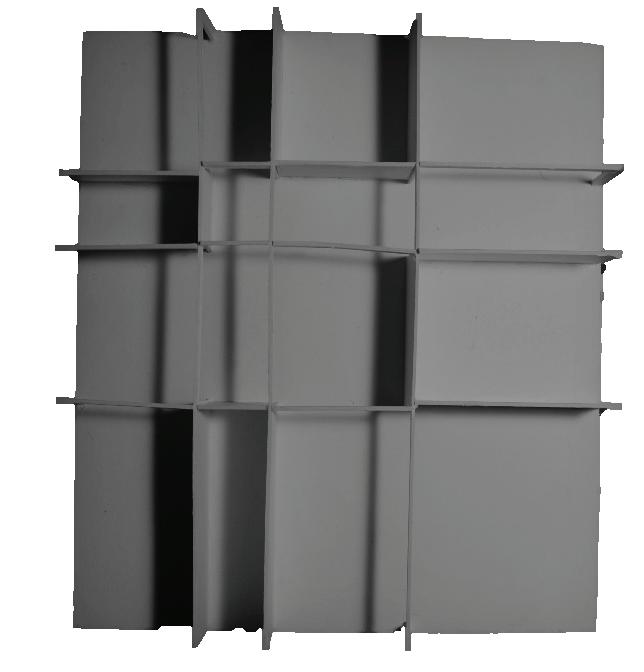

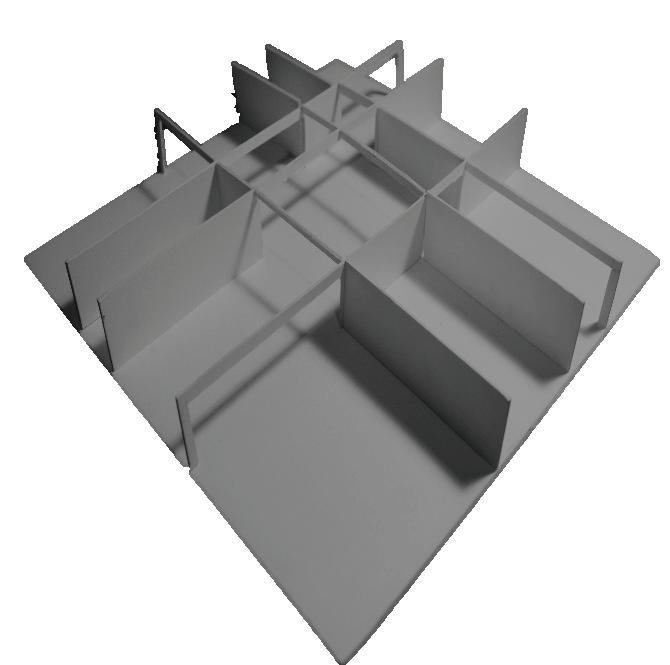

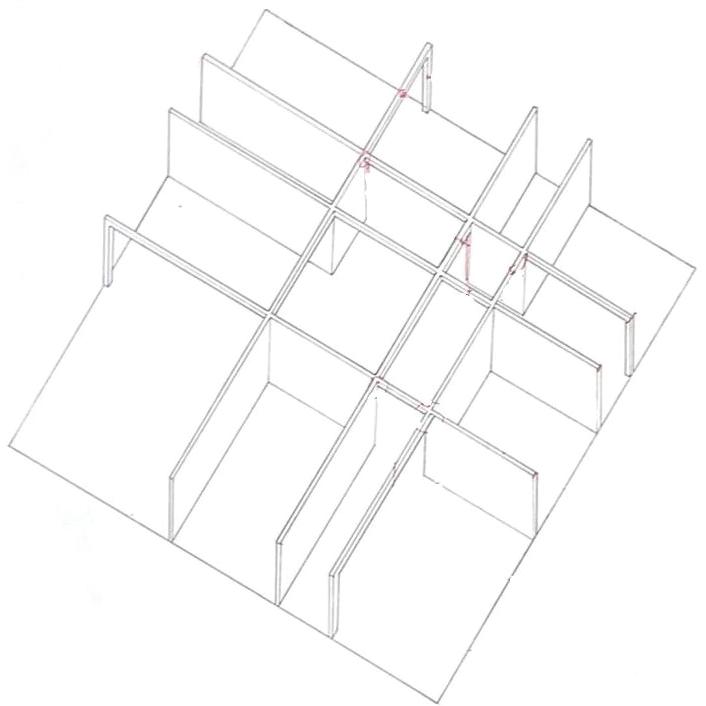

The purpose of this assignment was to understand the use of planes & impled space. The solid parts of each plane imply the enclosed space while the cut part implies open space. The final work results in the last photo which shows the symmetry of each space

Project Mediums: Museum Board & Vellum

Bianchetti House - Luis Snozzi Entry Sequence

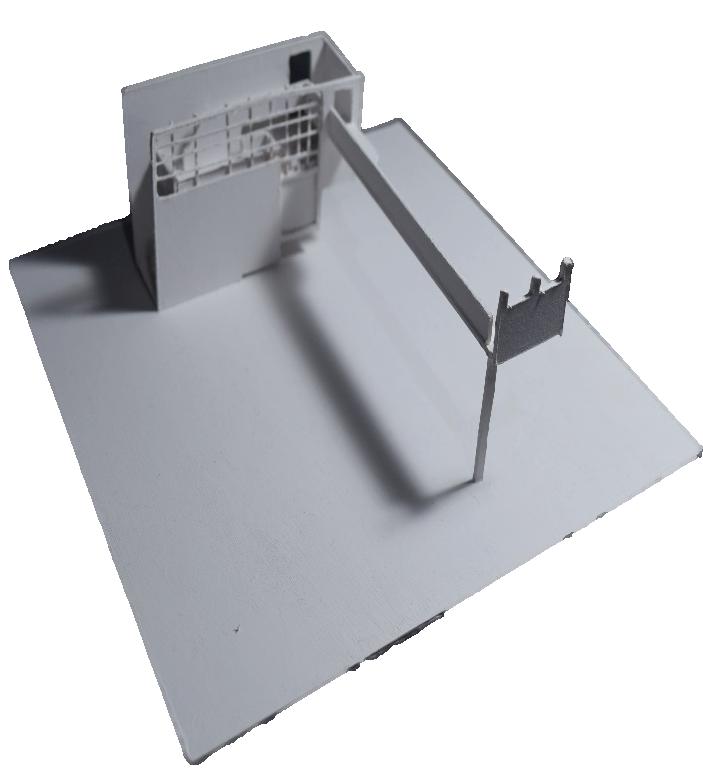

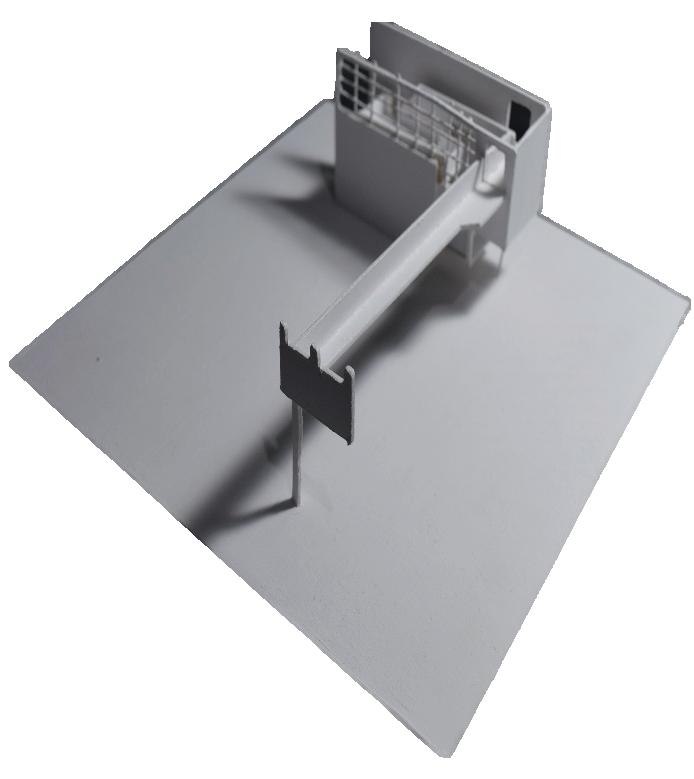

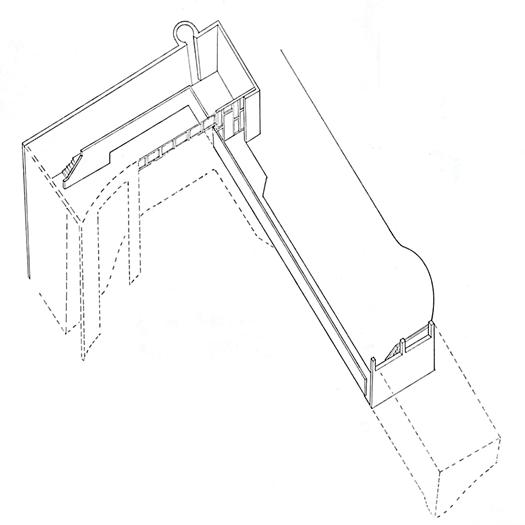

This project was the first case study assigned. In this project we studied the entry sequence of our assigned case study. Depicted here is a model created from Museum Board along with a hand drawn Isometric perspective.

Project Mediums: Museum Board & Vellum

Bianchetti House - Luis Snozzi Plan & Section

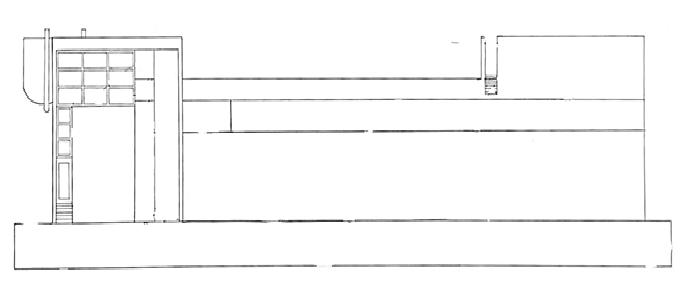

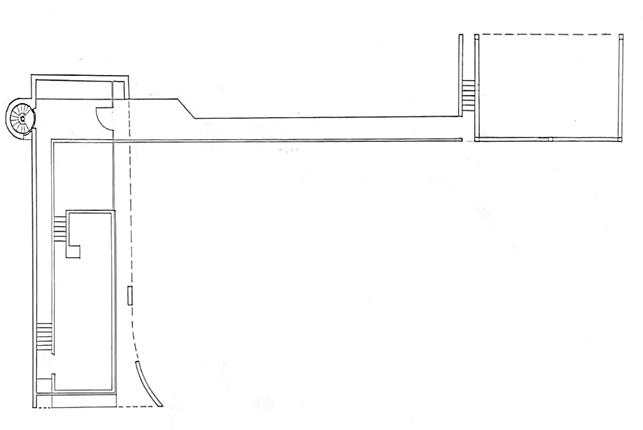

The purpose of this assignment was to understand how a plan, section, & elevation are properly done. Depicted is a plan of the entire entry sequence along with an elevation and a section.

Project Mediums: Vellum
