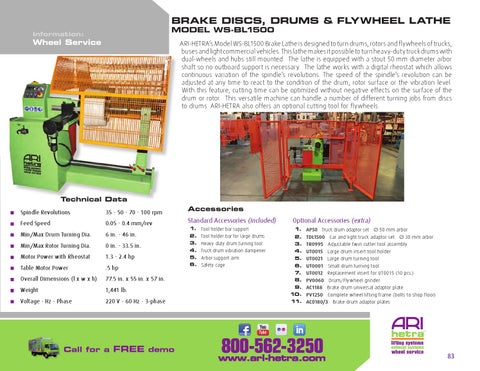

BRAKE DISCS, DRUMS & FLYWHEEL LATHE MODEL WS-BL1500
Information:
Wheel Service
ARI-HETRA’s Model WS-BL1500 Brake Lathe is designed to turn drums, rotors and flywheels of trucks, buses and light commercial vehicles. This lathe makes it possible to turn heavy-duty truck drums with dual-wheels and hubs still mounted. The lathe is equipped with a stout 50 mm diameter arbor shaft so no outboard support is necessary. The lathe works with a digital rheostat which allows continuous variation of the spindle’s revolutions. The speed of the spindle’s revolution can be adjusted at any time to react to the condition of the drum, rotor surface or the vibration level. With this feature, cutting time can be optimized without negative effects on the surface of the drum or rotor. This versatile machine can handle a number of different turning jobs from discs to drums. ARI-HETRA also offers an optional cutting tool for flywheels.
Technical Data Spindle Revolutions
35 - 50 - 70 - 100 rpm
Accessories
Feed Speed
0.05 - 0.4 mm/rev
Standard Accessories (included)
Min/Max Drum Turning Dia.
6 in. - 46 in.
Min/Max Rotor Turning Dia.
0 in. - 33.5 in.
Motor Power with Rheostat
1.3 - 2.4 hp
Table Motor Power
.5 hp
Overall Dimensions (l x w x h)
77.5 in. x 55 in. x 57 in.
Weight
1,441 lb.
Voltage - Hz - Phase
220 V - 60 Hz - 3-phase
Call for a FREE demo
1. 2. 3. 4. 5. 6.
Tool holder bar support Tool holder bar for large drums Heavy-duty drum turning tool Truck drum vibration dampener Arbor support arm Safety cage
Optional Accessories (extra) 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11.
AP50 - Truck drum adaptor set - ∅ 50 mm arbor TDL1500 - Car and light truck adaptor set - ∅ 30 mm arbor TR0995 - Adjustable twin cutter tool assembly UT0015 - Large drum insert tool holder UT0021 - Large drum turning tool UT0001 - Small drum turning tool UT0012 - Replacement insert for UT0015 (10 pcs.) PV0060 - Drum/Flywheel grinder AC1188 - Brake drum universal adaptor plate PV1250 - Complete wheel lifting frame (bolts to shop floor) AC0180/3 - Brake drum adaptor plates
