3.2.13 Activity Analysis

The activity mapping of the community center has been done on the basis of the site visits and therefore three different time zones have been developed that includes:

1. 12 pm – 4 pm

2. 5 pm- 8 pm

3. 9 pm – 12 am

The following image highlights the activity analysis at different times of the day. It can be clearly seen that the center faces its highest footfall during the vening hours i.e. from 5 pm8 pm and the least activity is after 8 pm.

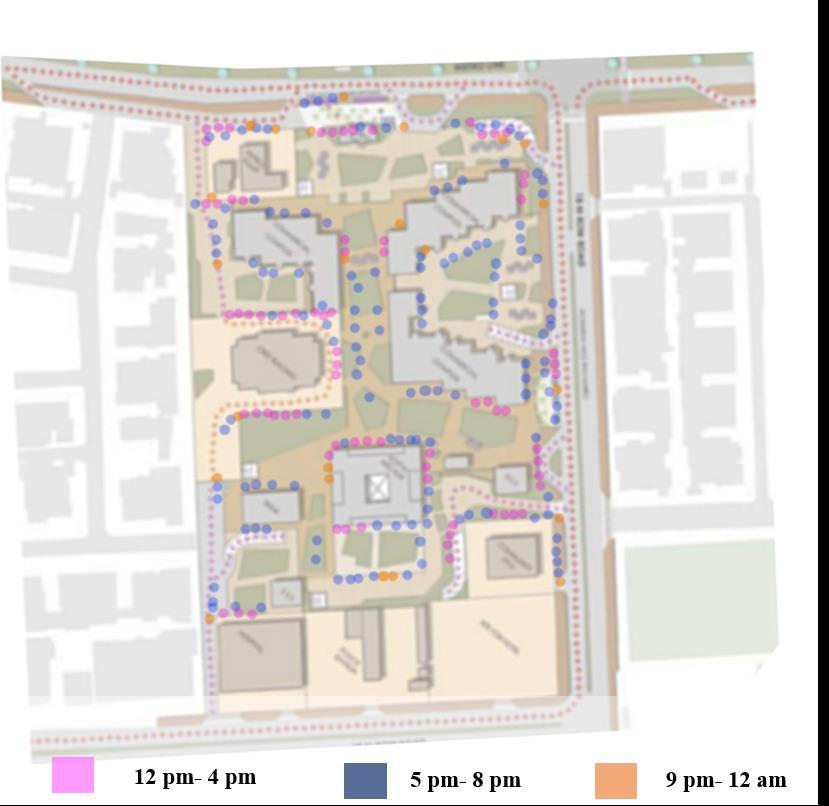

Figure 35: Activity Mapping of Preet Vihar community center; Source: Author

Figure 35: Activity graph of Preet vihar community center
