THE POWER OF TUNGSTEN

Research & development, and customer feedback.

Please call your sales rep or the office if you have anything to discuss.

Although all of the main soil-engaging edges are protected with tungsten and have enabled the point to retain its overall shape, aggressive soils have exposed secondary wear areas. This clearly shows the power of tungsten. We constantly work with farmers to see how we can best improve our wearing parts.

We need to angle the tungsten down so that it covers the whole depth of the wing, which will help protect the underside.

We also ensured that the tungsten was tightly embedded into the body of the point to prevent soil ingress and wear cutting in behind the tungsten.

Twice The Amount Of Tungsten Retaining Full Working Width

By adding twice the amount of tungsten two main advantages are immediately seen. The first is the extended life of the tine and secondly as the original points begins to wear you can clearly see that a hook wear pattern emerges, this hook will then gather trash whereas the Maxipart® version retains its original shape and trash flows through the drill.

(Left)

Version 1

This looks good as we have tungsten on the leading nose and the strip between the nose and the shin, the shin and the wings. However there were still a couple of areas for improvement.

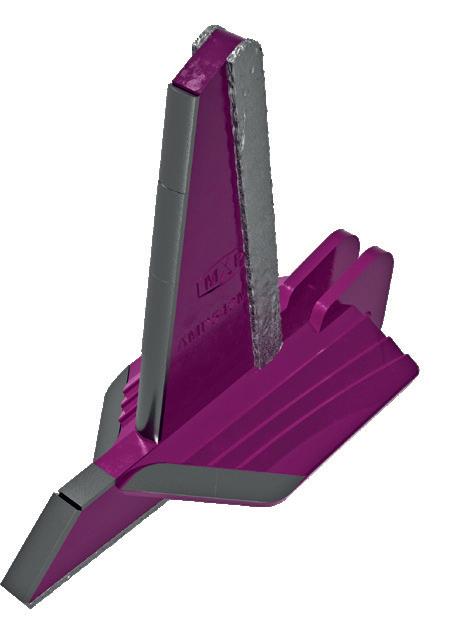

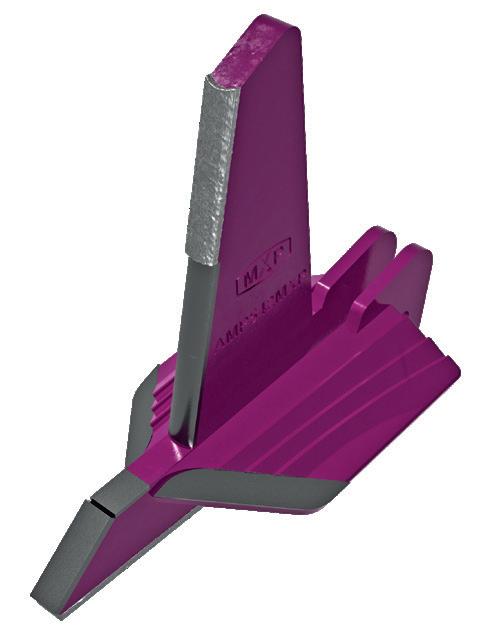

Final Version

Certain conditions have led to the shin narrowing and also wearing above the tungsten leading to excessive leg wear,

So this is what we have done. (1.) We have extended the tungsten to the top of the point. (2.) We have added hard facing to the secondary wear area behind the tungsten and then a further at the rear of the point. Both of these innovations together will mean far more extra acres out of the point as well as keeping your legs working for longer.

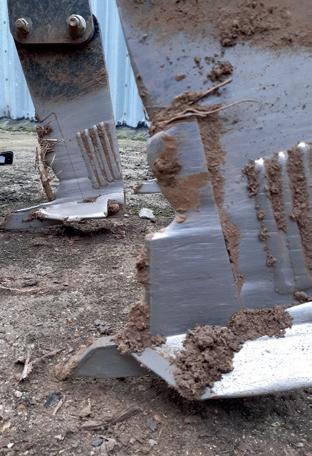

MXP v Original. Tines run side by side on the same drill in the same conditions, both have done exactly the same hectares.

For further features and benefits of the two points offered, see page 112.

Amazone Cultivation Discs Catros / Centaur / Ceus Cultivation Discs

AMP340MXP Maxipart® Disc Plain 18” (460mm) - Ø-Ø120mm, Ø11.5mm

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Optimum hardness ensures extended wear life without cracking

AMP341MXP Maxipart® Disc Cut-Away 18” (460mm) - Ø-Ø120mm, Ø11.5mm

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

AMP342MXP Maxipart® Disc Cut-Away 20” (510mm) - Ø-Ø120mm, Ø10.5mm

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

AMP343MXP Maxipart® Amazone Catros Disc 18” (460mm)- Ø-Ø110mm, Ø12.5mm

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

(Fitted on some later models to check dimensions)

Apc377a Apc377b Hc121 Hc122

Point L485mm x W75mm x T13mm - Ø-Ø 45-75mm Point L485mm x W75mm x T13mm - Ø-Ø 45-75mm

AMC30114MXP Maxipart® Point Tungsten L420mm x W50mm x T23mm - Ø-Ø 30-145mm with Hard Facing

1. 10mm central fin for additional strength and wear life

2. Deeply recessed bolt holes for extra protection.

AMC30105 Universal Point Tungsten 410mm x 100mm x 20mm - Ø-Ø 45-85mm

– Universal

AMC30106 Universal Point Tungsten 410mm x 100mm x 20mm - Ø-Ø 45-80mm

1. 40mm thick base metal with an additional 20mm central ridge for additional strength, wear life and and bolt hole protection.

2. Tungsten added in a “five-toe” formation for excellent penetration. The leading tile is 5mm thick to help with impact even in the toughest conditions

Please see page 100 for alternative point AMC30117MXP

AMC30304 Universal Point Tungsten 450mm x 100mm x 15mm - Ø-Ø 45-85mm

– Universal

AMC30410 Universal Point Tungsten 330mm x 80mm x 15mm - Ø-Ø 45-80mm

Amazone Cenius / Centaur / Ceus - New Leg

Amazone Pegasus

Amazone Pegasus (Continued)

part® Wing 355mm

Tungsten 360mm part® Cranked Wing 345mm

Wing 370mm

Bomford Superflow

Browns Hectavator

Tungsten 285mm x 70mm x 23mm - Ø-Ø 45mm

1. Additional metal throughout to ensure tungsten tiles are fully supported throughout the parts life.

2. Bolt holes deeply recessed to ensure bolts last for the duration of extended life of the points.

3. No weak points between tungsten tiles extending wear life.

4. 5mm thick tungsten tile on leading point, and 4mm thick tungsten tiles on wings.

AMC30111MXP Maxipart®

Tungsten 285mm x 110mm x 23mm - Ø-Ø 45mm

1. Additional metal throughout to ensure tungsten tiles are fully supported throughout the parts life.

2. Bolt holes deeply recessed to ensure bolts last for the duration of extended life of the points.

3. No weak points between tungsten tiles extending wear life.

4. 5mm thick tungsten tile on leading point, and 4mm thick tungsten tiles on wings.

Browns Pan-Buster

Claydon Stubble Rake

Claydon Terrastar

AMP188A

AMP188B

Terrastar Blade L430mm x W74mm x T10mm (Fits square shaft 26mm x 26mm)

Terrastar Blade L430mm x W74mm x T10mm (Fits square shaft 26mm x 26mm)

Cousins Level-Lift / V-Form / Patriot

APC1293 Leg 900mm x 200mm x 25mm - (8 hole Ø-Ø-50mm)

APX312 Shear Bolt M20 x 110mm

APC1687MXP Maxipart® Cutter Bar 28” (700mm)

APC1684MXP Maxipart® Roman Nose Point

1. Additional roll pin protection built into point

APC1683 Straight Nose Point

Maxipart® Wing 4” (100mm) Maxipart® Wing 4” (100mm) 1400-594 1400-595

APC 1239 LEG PTO FOR MORE

Cousins Level-Lift / V-Form / Patriot (Continued)

1. APC1196MXP

2. APC1197MXP

Maxipart® Heavy Duty Point 8” (200mm) Maxipart® Heavy Duty Point 12” (300mm)

1. Additional metal throughout to ensure maximum wear life.

2. Tapered shin to reduce draft.

3. Deeper leg protector for extra wear protection for the leg.

4. Bolt holes to allow wings to be fitted.

2.

Maxipart® Heavy Duty Point Tungsten 8” (200mm) & 12” (300mm) AMP531MXP & AMP530MXP

3. Deeper shin protection for reduced wear on the leg.

4. Bolt holes to allow wings to be fitted.

5. Tungsten tip to ensure that point length is retained.

5 4 3 Part Code Description Hand OEM Number AMP531MXP Maxipart® Heavy Duty Point 8” (200mm) Tungsten – 8100-526L195 AMP530MXP Maxipart® Heavy Duty Point 12” (300mm) Tungsten – 8100-526L195

2 1

“I’m really happy with the wear on these. I get about 600-700 hundred acres out of the points which is great. Also even in harsh conditions I’ve never lost a tungsten plaque With regards to wearing parts – “I’ve tried just about everybody’s and yours are the best.”

– J R Wilson & Sons (Will Dixon), Nr. Stevenage, Hertfordshire

Soil Type: Mixed – Red clay and gravel

AMP520AMXP AMP520BMXP 1400-594 1400-595

AMP521AMXP AMP521BMXP

Maxipart® Wing to fit 8”Point Maxipart® Wing to fit 8”Point

Maxipart® Wing to fit 8”Point Tungsten Maxipart® Wing to fit 8”Point” Tungsten

1. Extended wing with drop down leading edge for increased protection and wear life.

RH LH 1400-594 1400-595

Cousins Level-Lift / V-Form / Patriot (Continued)

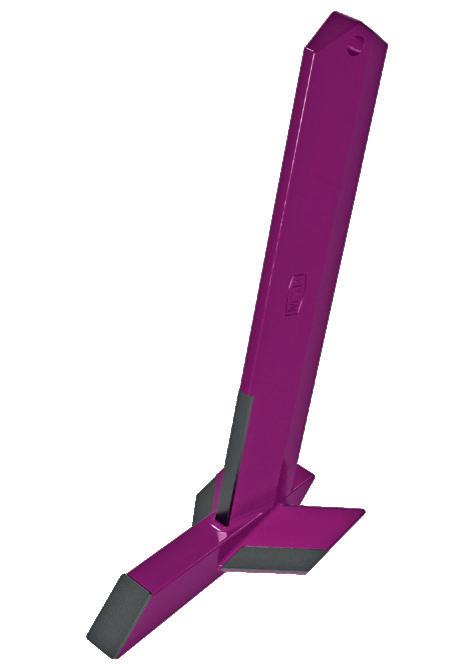

Maxipart® Micro Leg Tungsten

1. Tungsten tiles applied to the point, wings, and shin to ensure that all the working edges of the part are protected. This will ensure its original working dimensions are maintained throughout its extended working life.

WHAT DO OUR CUSTOMERS SAY?

“I tried Maxipart® full tungsten legs, and these are fantastic. The shape holds up throughout and they last a good four or five times longer than Cousins tungsten points on my land. As the genuine points wear, you can see the difference in the establishment of the crop as it comes up, resulting in lost crop.

However, we put in over 1,500 acres of rape with your leg, and we have hardly lost an acre to either the flea beetle or pigeons, and I put this down to your leg. The establishment was so good that the rape got up and away so quickly. I would certainly recommend these to anybody.”

– Foudry Farming (Peter Miller), Nr. Reading, Berkshire

Soil Type: Chalky flints, sands and gravels

Product & machine it was used on: AMP532MXP Cousins Tungsten Micro leg on a Cousins V Form

Dalbo Cultimax

APC725 “S” Tine & Point (L495mm x W45mm x T10mm)

APC1040MXP Maxipart® Reversible Point L210mm x mm x W40mm x T8mm

1. 8mm thick, as opposed to standard 6mm points

APC138/25 Reversible Point L210 mm x W35mm x T6mm - (Pack 25) cw Bolt & Nuts

AMC30101MXP Maxipart® Point Tungsten with Hard Facing L135mm x W33mm x T18mm

Farmet Fantom

AMP670MXP Maxipart® Point Tungsten with Hard Facing

For Drill Parts see page 101

Farmforce

Flexicoil

Flat Lift / Taylor-Gent

APC1586 Leg 34” (Diamond Leg Fitting)

APX261 Shear Bolt M16 x 90mm, 8.8

APC1583MXP Maxipart® Point

AMC30700MXP Maxipart® Point Tungsten

1. 5mm thick x 15mm wide tungsten profiled plaques keeping the cutting edge whilst also protecting the sides of the point.

Maxipart® Upper Shin

APC1585MXP Maxipart® Lower Shin

AMC30701AMXP AMC30701BMXP part® Wing Extra Long part® Wing Extra Long

Maxipart® Wing Extra Long Tungsten part® Wing Extra Long Tungsten

1. Extra thick 15mm base metal

Goliath Stubble System

APC986 Universal Point L440mm x W125mm x T14mm - Ø-Ø 45-75mm

–

AMC30115MXP Maxipart® Point Tungsten L420mm x W80mm x T23mm - Ø-Ø 30-145mm

1. 20mm central ridge for additional strength, wear life and and bolt hole protection.

AMC30105 Universal Point Tungsten 410mm x 100mm x 20mm - Ø-Ø 45-85mm – Universal

AMC30106 Universal Point Tungsten 410mm x 100mm x 20mm - Ø-Ø 45-80mm – Universal

AMC30116MXP Maxipart® Point Tungsten 420mm x 110mm x 40mm - Ø-Ø 35-150mm

1. 40mm thick base metal with an additional 20mm central ridge for additional strength, wear life and and bolt hole protection.

2. Tungsten added in a “five-toe” formation for excellent penetration. The leading tile is 5mm thick to help with impact even in the toughest conditions

Please see page 100 for alternative point AMC30117MXP

– Universal

AMC30304 Universal Point Tungsten 450mm x 100mm x 15mm - Ø-Ø 45-85mm – Universal

AMC30410 Universal Point Tungsten 330mm x 80mm x 15mm - Ø-Ø 45-80mm – Universal

APC990 Wing 17” (430mm) - Ø-Ø45mm-75mm – Universal

AMC30107 Wing 20” (500mm) Tungsten - Ø45mm-85mm

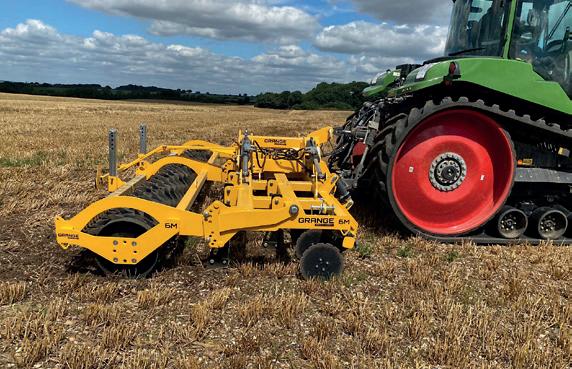

Grange Machinery - Old Leg (Cultivating Solutions) 140mm Shin height

AMP540MXP Maxipart® Point Tungsten with Hard Facing (127mm / 5”)

1. The base metal is one-piece cast steel which presents far better wear properties than a fabricated wear point.

2. It has extended tungsten throughout, covering the nose, shins and wings, ensuring a perfect working shape throughout its life

3. Added ridges to the wings to help extend its life further.

4. Hard facing has been added to the top of the point to help retain it’s shape and extend its life

AMP541 Leg 430mm x 170mm x 15mm

Grange Machinery - New Leg 200mm Shin Height

AMP543MXP Maxipart® Grange Drill Disc 16” (400mm)

1. Slow press to eliminate disc distortion

2. Cut rather than pressed bolt holes to ensure perfect fitment every time

3. Outer edge cut onto each disc individually for optimal sharpness

4. Each scallop individually cut

5. Optimum hardness ensures extended wear life without cracking

Grange Machinery - New Leg 200mm Shin Height (Continued)

Maxipart® Grange Point Tungsten (127mm / 5”)

1. The base metal is one-piece cast alloy which presents far better wear properties than a fabricated wear point.

2. Tungsten tiles are applied to the points, wings and shin so that all the working edges are protected ensuring a perfect working shape is maintained throughout its extended working life.

3. Ridges have been added to the wings which helps with soil flow as well as helping extend its life

4. Hard facing has been added to the top of the shin and to the underside of the point to further extend its working life and prevent excessive wear to the leg.

Usually the mixture of hard facing and tungsten is enough, but if your working conditions require further protection see AMP545MXP below.

1. The base metal is one-piece cast steel which presents far better wear properties than a fabricated wear point.

2. It has extended tungsten throughout, covering the nose, shins and wings, ensuring a perfect working shape throughout its life.

3. Added ridges to the wings to further improve the life of the wings.

4. With tungsten to the top of the point hardfacing has been added to the rear of the point and below to extend the life of the leg.

Grange Machinery - New Leg 200mm Shin Height (Continued) Need to protect your legs further? See page 100 for weld on
