«ARLINGTON HIGH SCHOOL»

Hmfh Architects

Description

Arlington High School (AHS) is situated in Arlington, MA. The project will serve High School students, Pre-k students and it will also include town offices. The design of the new Arlington High School supports interdisciplinary learning, community programs, and the town’s goal of a carbon-free future. The concept for the school begins with the organization of educational programs such as: athletics, humanity studies, performing arts and STEAM along a central corridor/spine. Involved from the beginning of the project, I worked closely with senior staff members to meet and understand the town’s needs, as we provided visual documentations all the way through CA.

Responsibilities

• Preparing precedent studies and presentation of various design options.

• Researching materials and products.

• Working with the Senior Designer to create phasing drawings.

• Working with the Senior Designer and Contractors to design a bridge connector between new and existing construction.

• Creating advanced visual perspective, sections and plan drawings for both presentations and award entries.

• Designing and detailing locker pods featured along the spine.

• Working on construction drawings, such as: overall plans, enlarged plans, detail drawings and interior sections.

• Designing and detailing toilet rooms in all of the floors.

• Designing and detailing library carpet layout.

• Organizing, cleaning and updating REVIT files.

Second Floor

Longitudinal Section

CONSTRUCTION PHOTOGRAPH- NEW AND EXISTING BUILDINGS

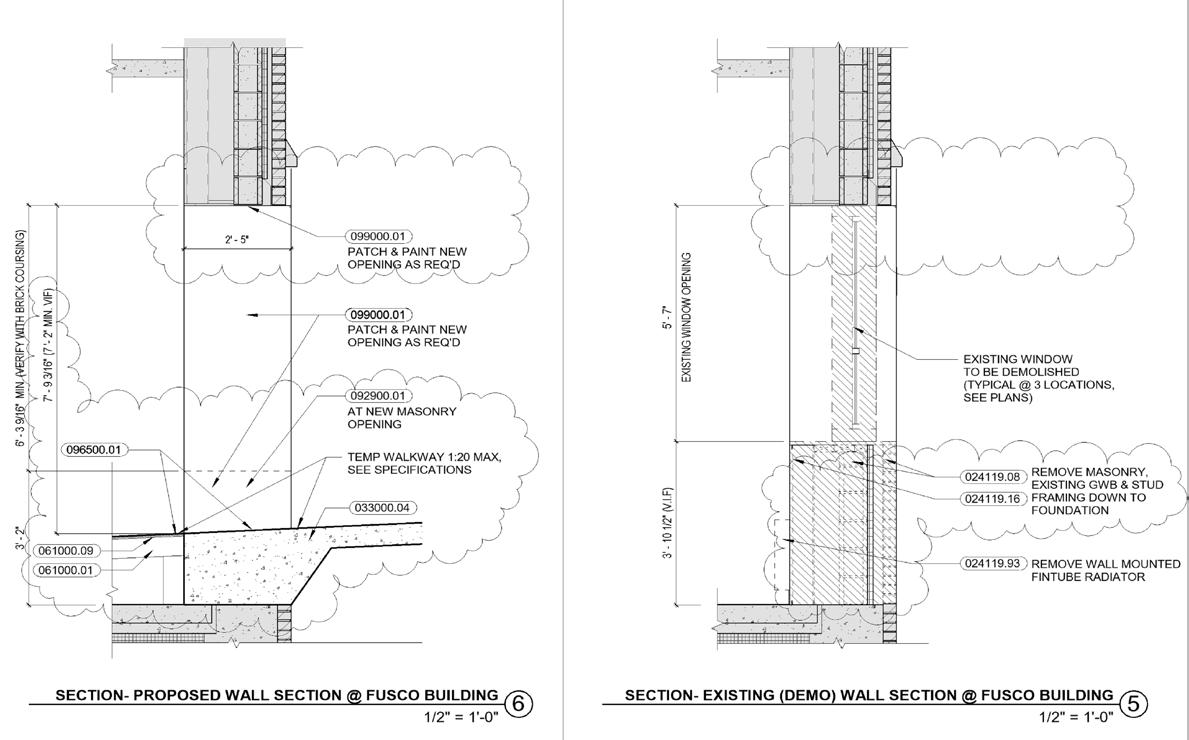

CONSTRUCTION PHOTOGRAPH- NEW AND EXISTING BUILDINGS CONNECTOR

AXONOMETRIC- LOCKER PODS AT ALL FLOORS

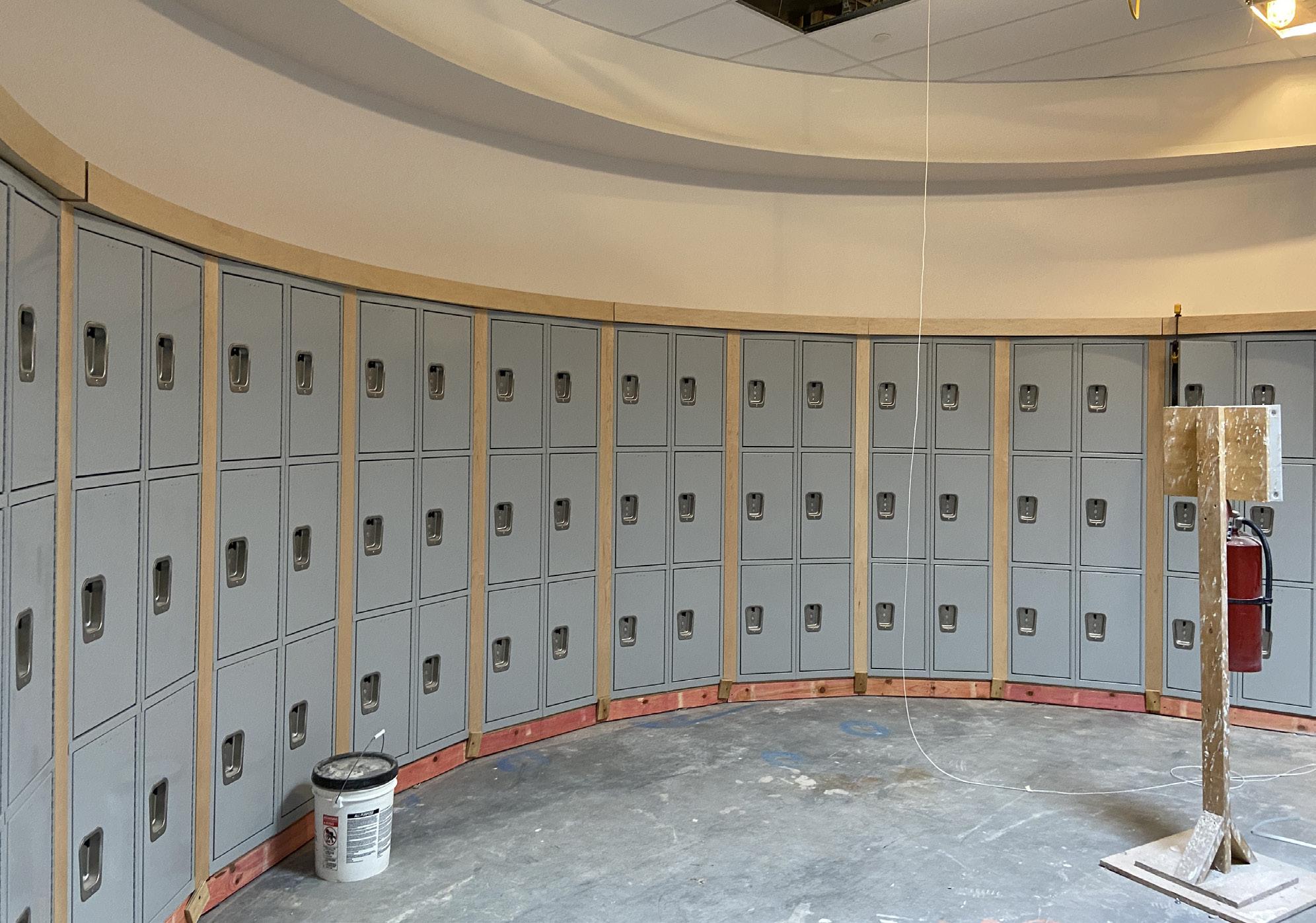

CONSTRUCTION PHOTOGRAPH- LOCKER PODS
