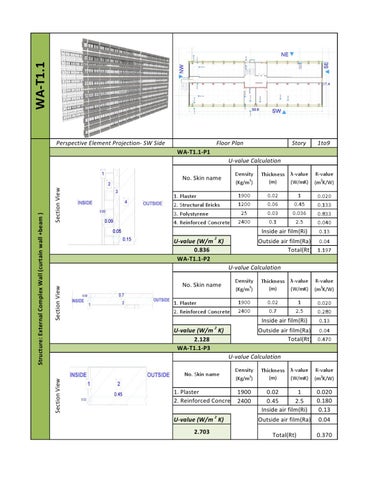

WA-T1.1 Perspective Element Projection- SW Side
Floor Plan
Story
1to9
WA-T1.1-P1 U-value Calculation Density
Section View
3
(Kg/m )
1. Plaster 2. Structural Bricks 3. Polystyrene 4. Reinforced Concrete
1900 1200 25 2400
Thickness 位-value (m) (W/mK) 0.02 0.06 0.03 0.1
1 0.45 0.036 2.5
R-value (m2K/W)
0.020 0.133 0.833 0.040 0.13
Inside air film(Ri) Outside air film(Ra) 0.04 Total(Rt) 1.197
2
U-value (W/m K) 0.836 WA-T1.1-P2
Section View
U-value Calculation Density
No. Skin name
3
(Kg/m )
1. Plaster 2. Reinforced Concrete
1900 2400
Thickness 位-value (m) (W/mK) 0.02 0.7
1 2.5
R-value (m2K/W)
0.020 0.280 0.13
Inside air film(Ri) Outside air film(Ra) 0.04 Total(Rt) 0.470
2
U-value (W/m K) 2.128 WA-T1.1-P3
U-value Calculation No. Skin name
Section View
Structure: External Complex Wall (curtain wall +beam )
No. Skin name
Density (Kg/m3)
1. Plaster 1900 2. Reinforced Concrete 2400 U-value (W/m 2 K) 2.703
Thickness 位-value (m) (W/mK)
R-value (m2K/W)
0.020 0.02 1 0.180 0.45 2.5 Inside air film(Ri) 0.13 Outside air film(Ra) 0.04 Total(Rt)
0.370
