§2.4 Furnaces
2.4.4
41
Environmental chamber F-6
Ancillary code
F-6
Compatible instrument
Echidna, Kowari, Sika, Taipan, Wombat
Temperature range
300 K to ∼400 K
Mount required for sample
M6 male threaded post
Inbuilt thermometry
CernoxNTC sensor DT-670 silicon diode PT100/1000 platinum resistor
Sample containers
Vanadium can 100 bar Stainless steel furnace can
Complementary ancillary
P-2: 100 kN load frame
User instruction SICS control
I-2981 Operation of Environmental Chamber F-6 User Instruction Eurotherm 1 heater
Equipment Number
220185
This environmental chamber is used to keep physically large samples at a well-controlled temperature between room temperature and ∼100◦ C. A constant flow of nitrogen gas passes over twoAheater elements to warm the sample mounted inside the chamber. A A sliding door provides easy access to the sample mount. It can be used on Kowari by mounting it on the load frame P-2. Otherwise, it can be mounted on a base which fits the sample stage of Echidna, Sika, Taipan and Wombat.
90
1.5
Neutron beam
Sample mounted on post with M6 thread 155
107
308

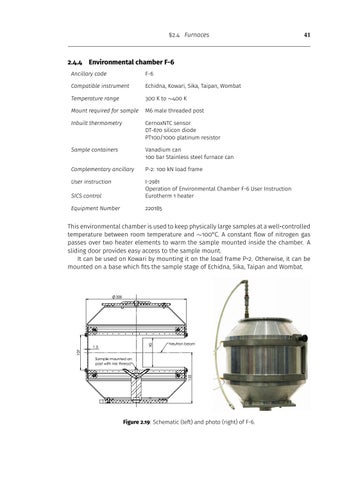

Figure 2.19: Schematic (left) and photo (right) of F-6.
