ROOT
AN EDUCATIONAL PAVILION AT BOGGY SLOUGH CONSERVATION AREA
The Boggy Slough Conservation Area, a sustainably managed, forested property owned by the T.L.L Temple Foundation, aims to serve as a model of excellence for East Texas through ecological research and outreach. As part of their long term vision for Boggy Slough, the T.L.L. Temple Foundation asked for the design and construction of an educational pavilion located in the southern part of the protected forest. Our studio, The Gulf Coast DesignLab, worked closely with the T.L.L Temple Foundation, bc Workshop, and Blackland Collaborative to develop these deliverables in 15 weeks.
ADVISOR: COLEMAN COKER
6 NEAR LUFKIN, TEXAS
7
The site for the educational pavilion carries historical significance, as it had been the site of a hunting clubhouse built in the 1940s that had burned down in the 1960s. All that remained was the towering fifteen foot chimney and two foundation slabs. The team at Boggy Slough had been using a metal covering on one of the slabs to host groups for educational outreach.
Our intervention sought to acknowledge the history of the site and use the construction to showcase materials closely related to the site to act as tacit teaching tools, serving the foundation’s mission of education.
8 PRE-EXISTING SITE
9 DESIGN PROCESS
10 CLIENT PRESENTATION CONTENT
11 CONSTRUCTION & FABRICATION DOCUMENTS
12 CONSTRUCTION PROCESS
13 completed CONSTRUCTION
FOR THE RECORD
FURNITURE
DESIGN STEREO CABINET FOR RECORDSThis furniture design project was the culmination of weeks of study into the properties of wood as well as a series of exercises working with different tools and wood species. As a musician and avid music fan, I decided to design and build a stereo cabinet for my record collection. Ample storage space for records, a section for records in my heavy rotation, and a surface for the turntable were the functional requirements I laid out for myself to guide the design.
ADVISOR: MARK MACEK
14
15
1” 1” 1” 1 1/2” 1 3/4” 13” 2 1/4” 6” 6” 17 1/2” 2 1/4” 22” 27” 72” 6” 30 1/2” 28 1/2” 6” 1” 7 3/4” 16 DIMENSIONED DRAWING
17 PROCESS
18 completed construction
19 completed construction
THE FUNNEL
AT THE TEXAS SCHOOL FOR THE BLIND AND VISUALLY IMPAIRED
The Texas School for the Blind and Visually Impaired is a state-funded institution located in Austin, Texas that serves students ages six to twenty-two who are blind, visually impaired, or deafblind. The existing campus acts as a guarded safe haven for students learning how to navigate the world. The school, in its effort to construct a protected environment to serve that purpose, has become somewhat isolated from the surrounding community. As a result, there is a stark demarcation between the campus and the unpredictable, overwhelming, and noisy world.
The Funnel is a proposal for an addition to the southwest corner of the TSBVI campus that consists of three structures: an apartment building for staff and exiting students, an eatery, and a multiuse office building. Going a step further than the requested structures, the proposal also includes a vision for the development of the site as a whole, incorporating outdoor seating areas and a public playscape to activate interstitial spaces and provide amenities for the surrounding community.
ADVISORS: T. ANDREW STONE & CLAIRE TOWNLEY COLLABORATOR: AYA KOUSA DESIGN EXCELLENCE AWARD20 AUSTIN, TEXAS
21
22 SITE ANALYSIS
23 SITE CONTEXT MATERIAL PALETTE
24 VISUAL & TACTILE CONCEPT ART
insert mass timber post and beam column locations around pre-existing TSBVI school parking
insert
wide internal and external main paths
20’ complex Layout Modular Floorplan Grid + Site Strategy apply coded fractal onto site insert mass timber post + beam column locations around pre-exisitng TSBVI school parking lay out 10’ wide internal and external main paths insert community park elements insert vehicular access considerations skew makerspace + main path for playful exception and corner site interaction 30' 30' 10’ 20' 20' 20' 10'
coded fractal pattern onto site
apply
for
and corner site
skew makerspace and main path
playful exception
interaction
insert community park elements 10’
insert vehicular access considerations
25 SITE STRATEGY & DEVELOPMENT
The development of the site is guided by an orthogonal fractal system that creates an underlying rational organizational system. This logical system aids in wayfinding, enabling autonomy for low vision and blind users.
26 GROUND FLOOR PLAN
27 GROUND FLOOR PLAN
28 PARTIAL ELEVATION & WALL SECTION
29 SECTION PERSPECTIVES
Mixed-Use Makerspace/Office Building
Apartment Building
Sculpture Room Built-In
Workshop Built-In Office Built-In Q P P O level 1 0’6” 10’6” 21’8” 21’8” level 2 11’8” level 2 11’8” double-paned frameless glazing recessed LED strip lighting nook handrail 3 ply CLT wall panel built-in birch cabinetry gypsum wall board birch cladding fry reglet anchor bolts 7’ 6” 3’ 9” 20’ 0” Makerspace Built-In Construction Detail 30 MODULAR BUILT-INS
31 TACTILE PRESENTATION
LAYER BY LAYER CABINS
BUILDNER INTERNATIONAL ARCHITECTURE COMPETITION: CARAMEL SHORE TRAVELLER ROOMS
SHORTLISTED ENTRY

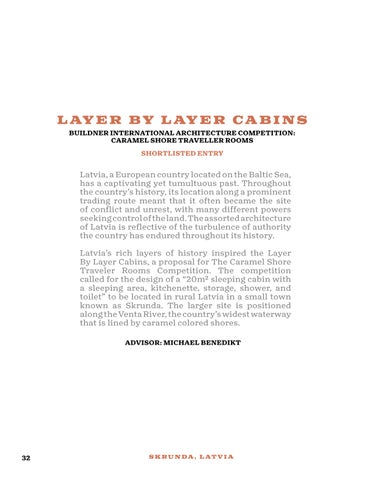

Latvia, a European country located on the Baltic Sea, has a captivating yet tumultuous past. Throughout the country’s history, its location along a prominent trading route meant that it often became the site of conflict and unrest, with many different powers seeking control of the land. The assorted architecture of Latvia is reflective of the turbulence of authority the country has endured throughout its history.
Latvia’s rich layers of history inspired the Layer By Layer Cabins, a proposal for The Caramel Shore Traveler Rooms Competition. The competition called for the design of a “20m² sleeping cabin with a sleeping area, kitchenette, storage, shower, and toilet” to be located in rural Latvia in a small town known as Skrunda. The larger site is positioned along the Venta River, the country’s widest waterway that is lined by caramel colored shores.
ADVISOR: MICHAEL BENEDIKT
32 SKRUNDA, LATVIA
33
Locally sourced earth is formed into a protective exterior
A steep roof is inserted to pay homage to vernacular Latvian architecture
A green roof and local rainwater collection system contributes to an environmentally conscious design
The stained glass, polycarbonate door, and interior wall pay homage to amber, the resource that afforded for Latvian prosperity in trade
Additional glazing allows for more light and views of the sprawling Latvian countryside
34 FORMAL DEVELOPMENT
35 EXTERIOR PERSPECTIVE
36 GROUND FLOOR PLAN
’ 37 LOFT FLOOR PLAN
5’ 15’ 5’ 15’ 38 ELEVATION & SECTION
39 INTERIOR PERSPECTIVE
VANTAGE
A REINTERPRETATION OF THE ROW HOUSE
Row houses have been a reliable solution to middensity housing for centuries. These low-rise, narrow structures provide for ample amounts of housing while also retaining valuable qualities of single family residences. However, to achieve these outcomes, typical row house configurations often have very distinct and solid adjacent boundaries that impact the lived experiences in these spaces. Vantage is a design for a deployable row house block prototype that addresses typical restrictions of row house configuration, and their subsequent impact on lived experience and community.
ADVISOR: PIERGIANNA MAZZOCCA
40
41
CASE STUDY
From this case study and analysis of Kolner Brett, a mixed-use building in Cologne, Germany, three ideas were extracted: the interlocking and overlapping of habitable spaces, the addition of commercial space to residential blocks, and the inclusion of directly accessible outdoor space that is not exclusive to the ground level or roof.
42 CASE STUDY ANALYSIS
43 PROGRAMMATIC DIAGRAM
44 GROUND FLOOR PLAN - MAKERSPACE/COMMERCIAL SPACE
45 THIRD FLOOR PLAN - RESIDENTIAL
46 LONGITUDINAL SECTION
47 LONGITUDINAL SECTION
