Denver Police Stations

Project: New Denver Police Stations 1 & 3

Firm: Reseutek Design Group

Principal in Charge: Dennis Reseutek Project Manager: Fred Hynek Senior Project Architect: Andrew Mitchell Project Design: Josh Bagalopchi, Dennis Reseutek

American Institute of Architects Western Mountain Region Design Awards: 2003 The Citation Award (Excellence in achievement)

“This police station proves that contemporary design can give the department a welcome presence in the community. More than anything, we want to applaud the District 1 Police Department and the architects to take an underachieving program and celebrate it.”

Colorado Construction Magazine - Top projects of 2004: Public Facilities

“The project is an articulation of the police functions accessible to the community. The building is designed to be a welcoming community oriented facility while still dealing with the high security required in a post 9/11 public facility.”

American Institute of Architects - Denver Colorado Chapter Merit Award for built architecture - 2003.

“The project successfully tackles the task of merging a difficult program without being chaotic . The energetic forms and plan are balanced by a sensitivity to materials.”

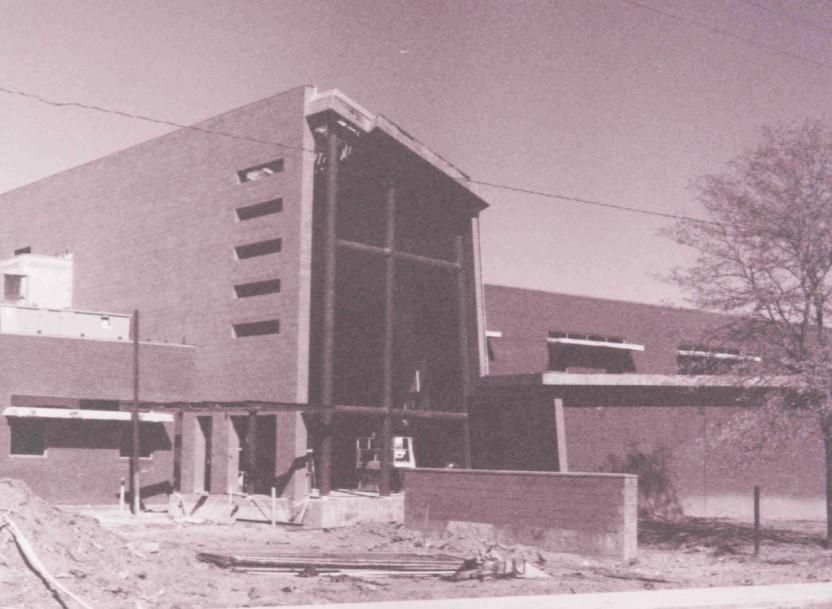

Under construction, before the curved lobby wall was clad with aluminum
Reseutek Design Group

Narrative:

Project Scope was three new police stations for the City and County of Denver for three of its police precincts. The stations function either as a new station for a precinct that did not have its own dedicated station or for a precinct that had a station that did not meet current needs. All of the stations were developed to near identical programs and were scheduled to be executed in a serial fashion. The first one off the boards served as a prototype for two that followed. The stations were programmed to be complete and self-sufficient entities. To this end they were complete with transfer bays, holding cells, booking/ processing areas, administrative offices, lockers, exercise rooms and public meeting rooms.

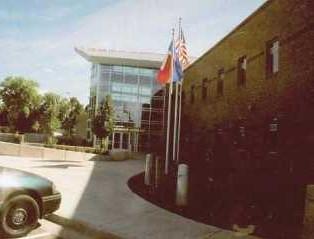

Street View - Nearing Completion
Reseutek Design Group

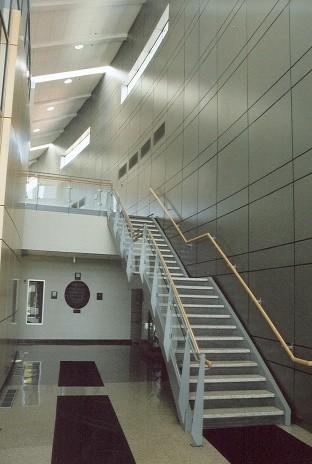

Interior Lobby
Reseutek Design Group

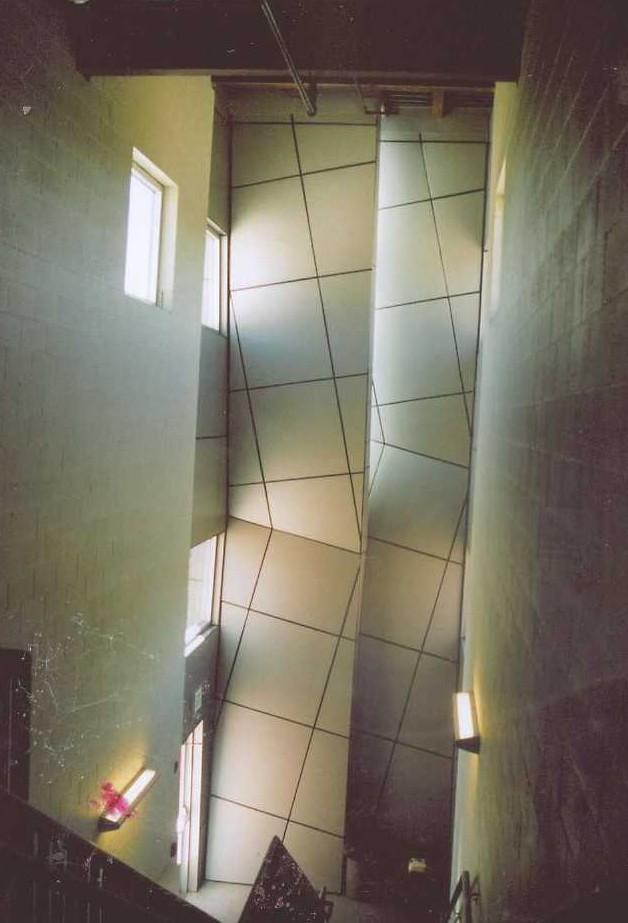

Interior Lobby
Reseutek Design Group

The general layout was two wings linked by a common two story lobby. The lobby was shaped by a linear and vertical monumental masonry wall on one side and an ‘inclined segment of a cylinder’ on the other. The outside and inside surfaces of the segment were clad in a carefully detailed aluminum panel system. Both lobby ends are enclosed by a curtain wall system with mullions matching the aluminum panels. The lobby was capped by a sloped roof with a rectangular shape that played off the inclined and curved lobby wall.

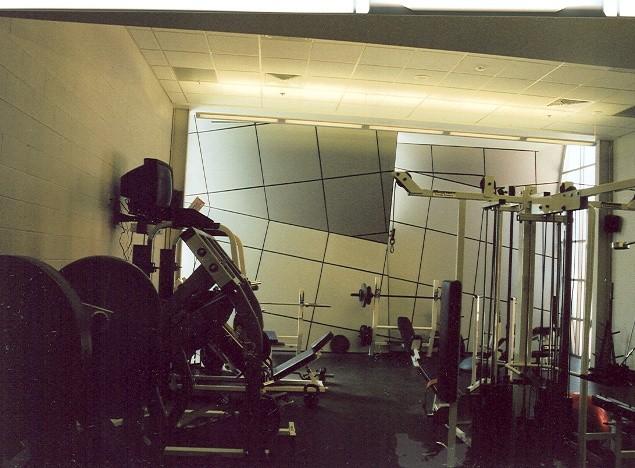

Exercise Room
Reseutek Design Group

The portion of the roof that jutted beyond the curved wall found its expression as a rectangular grid that served as a shading device and provided a counterpoint to the curved wall below. Additional solar control strategies included horizontal louvers on the curtain wall and a high performance tinted glazing system. The main lobby was zoned with public/secure secure zones and appropriate security controls and checkpoints. Access to community functions as hosted in a community room is from the street side.

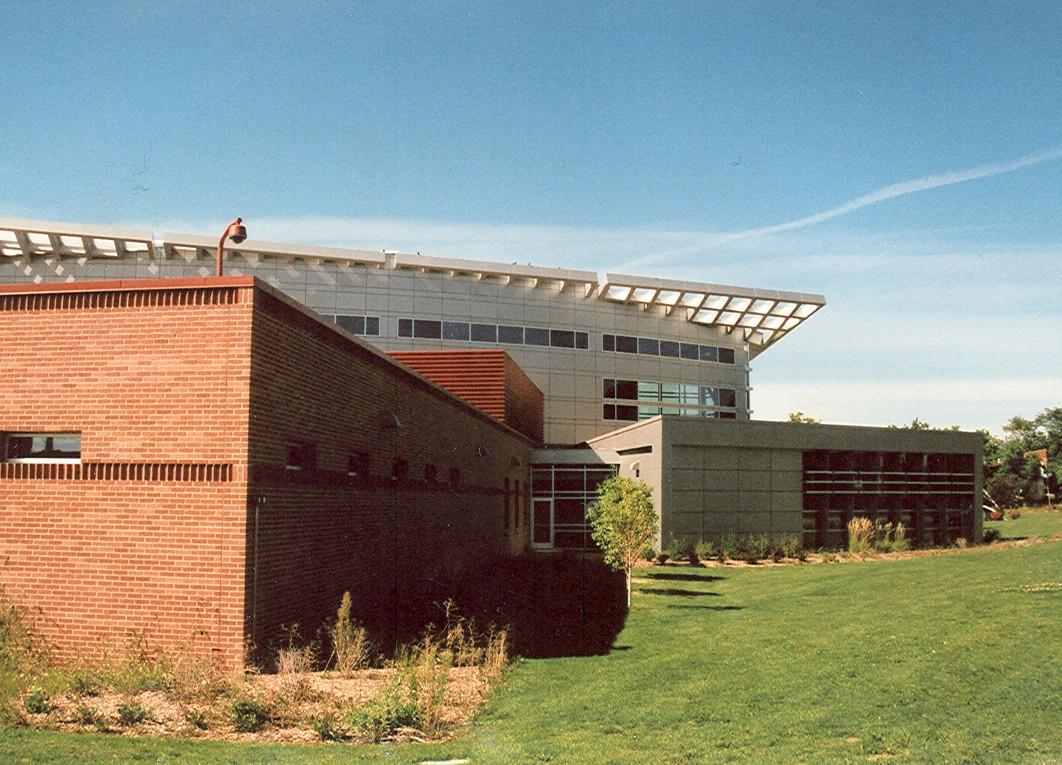

Exterior of Lobby - Parking Lot Side
Reseutek Design Group
Exterior shot that shows of the richness of forms and materials.
Reseutek Design Group

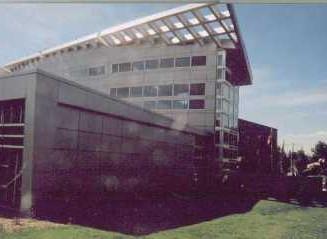

Exterior Shot - Aluminium Clad curved lobby wall with grid shed roof
Reseutek Design Group

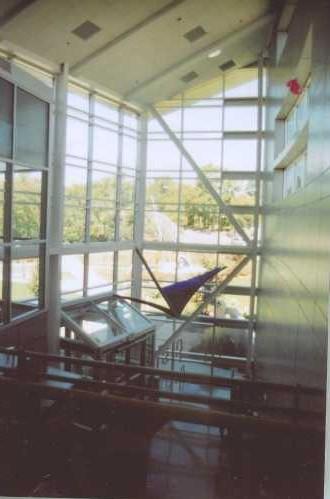

Lobby
Exterior at lobby with curtain wall and solar shading
