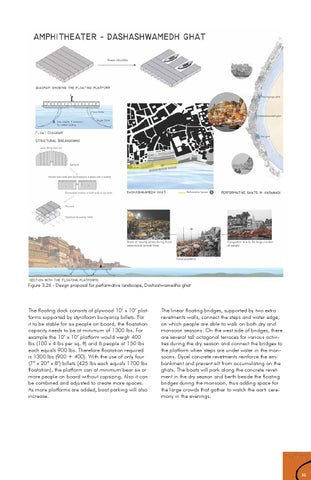

Figure 3.26 - Design proposal for performative landscape, Dashashwamedha ghat
The floating dock consists of plywood 10’ x 10’ platforms supported by styrofoam buoyancy billets. For it to be stable for six people on board, the floatation capacity needs to be at minimum of 1300 lbs. For example the 10’ x 10’ platform would weigh 400 lbs (100 x 4 lbs per sq. ft) and 6 people at 150 lbs each equals 900 lbs. Therefore floatation required is 1300 lbs (900 + 400). With the use of only four (7” x 20” x 8’) billets (425 lbs each equals 1700 lbs floatation), the platform can at minimum bear six or more people on board without capsizing. Also it can be combined and adjusted to create more spaces. As more platforms are added, boat parking will also increase.
The linear floating bridges, supported by two extra revetments walls, connect the steps and water edge, on which people are able to walk on both dry and monsoon seasons. On the west side of bridges, there are several tall octagonal terraces for various activities during the dry season and connect the bridges to the platform when steps are under water in the monsoons. Dycel concrete revetments reinforce the embankment and prevent silt from accumulating on the ghats. The boats will park along the concrete revetment in the dry season and berth beside the floating bridges during the monsoon, thus adding space for the large crowds that gather to watch the aarti ceremony in the evenings.
35
