Fluid Power Systems

Chapter 5 — Hydraulic Pumps 153

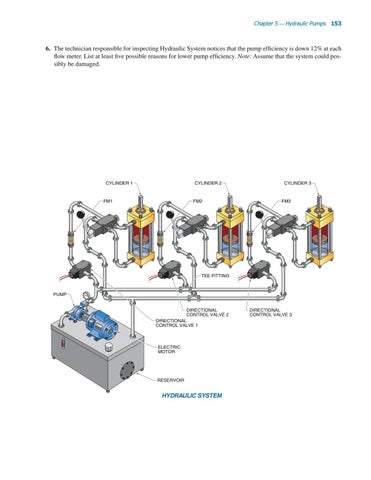

6. The technician responsible for inspecting Hydraulic System notices that the pump efficiency is down 12% at each flow meter. List at least five possible reasons for lower pump efficiency. Note: Assume that the system could possibly be damaged.

CYLINDER 1

CYLINDER 2

FM1

FM2

CYLINDER 3

FM3

TEE FITTING

PUMP DIRECTIONAL CONTROL VALVE 2 DIRECTIONAL CONTROL VALVE 1

ELECTRIC MOTOR

RESERVOIR

HYDRAULIC SYSTEM

DIRECTIONAL CONTROL VALVE 3
